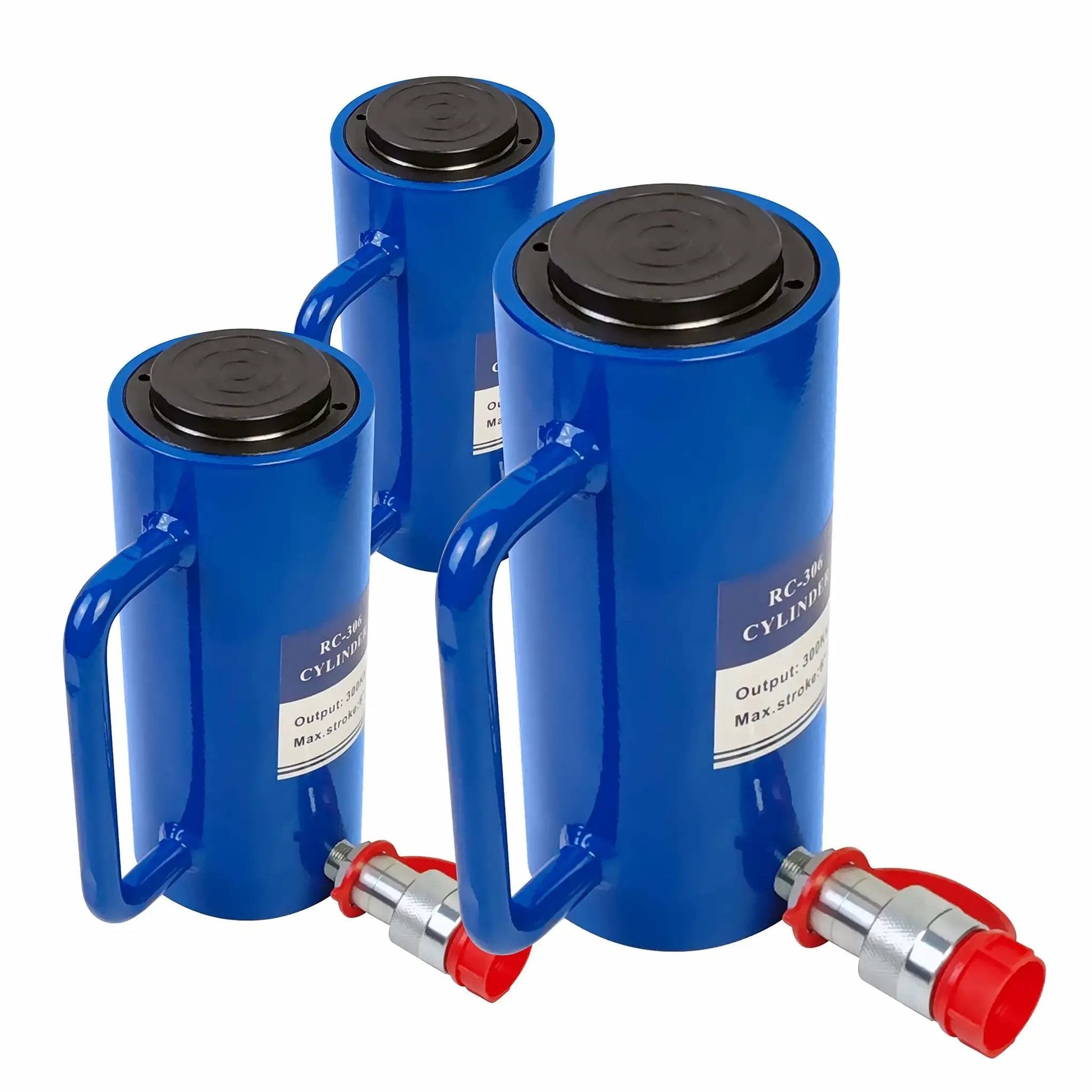

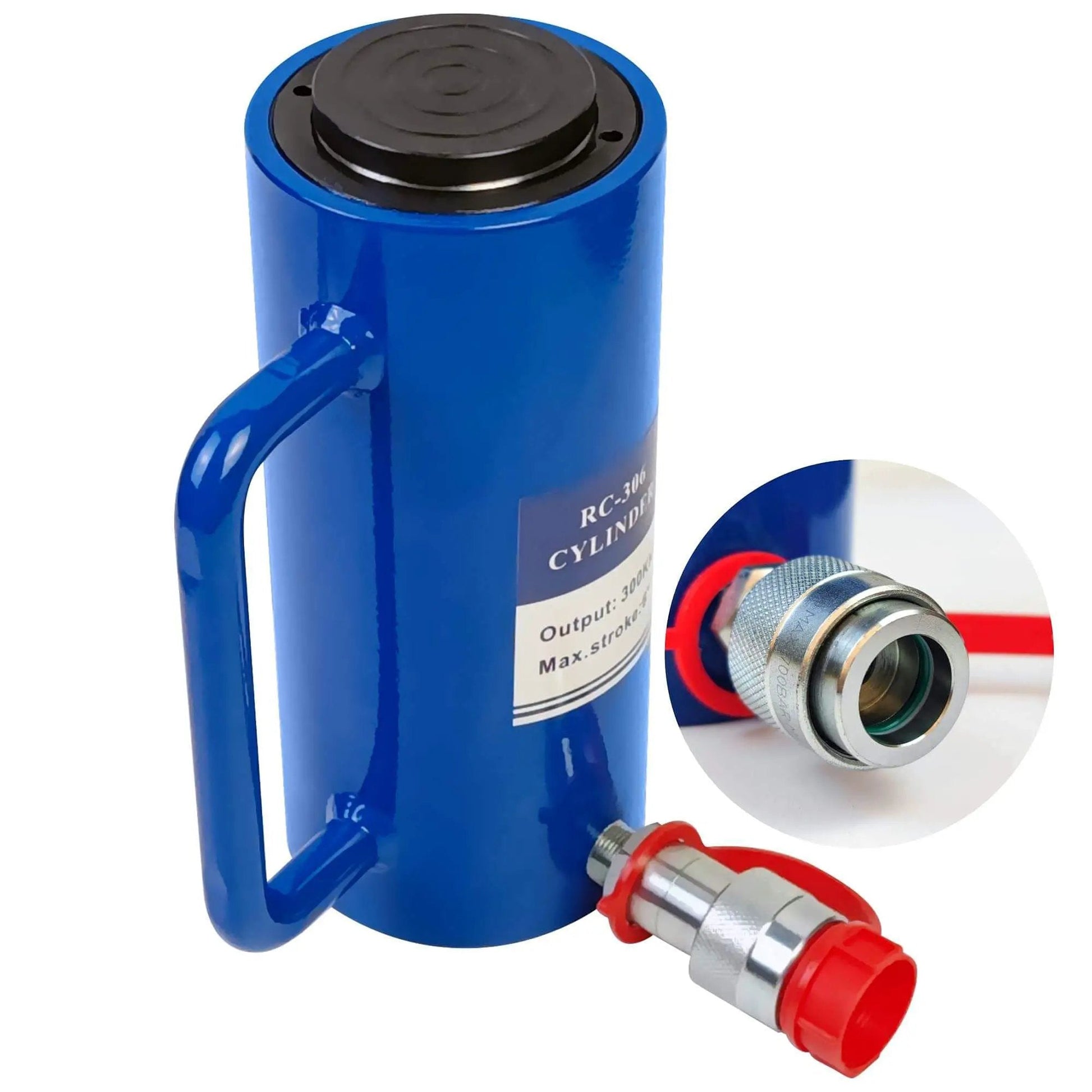

20 Ton Hydraulic Cylinder Ram with 6 Inch Stroke and 10k PSI
✔️ 1 unit: 6 inch stroke, 20 ton, 3/8 in NPT, 10k psi
This high-capacity single-acting hydraulic ram is built for heavy lifting and maintenance across shops, rigs, and industrial facilities. Its compact body fits tight spaces for precise pressing and lifting tasks.
✅ 20 US Ton capacity
✅ 6 inch stroke

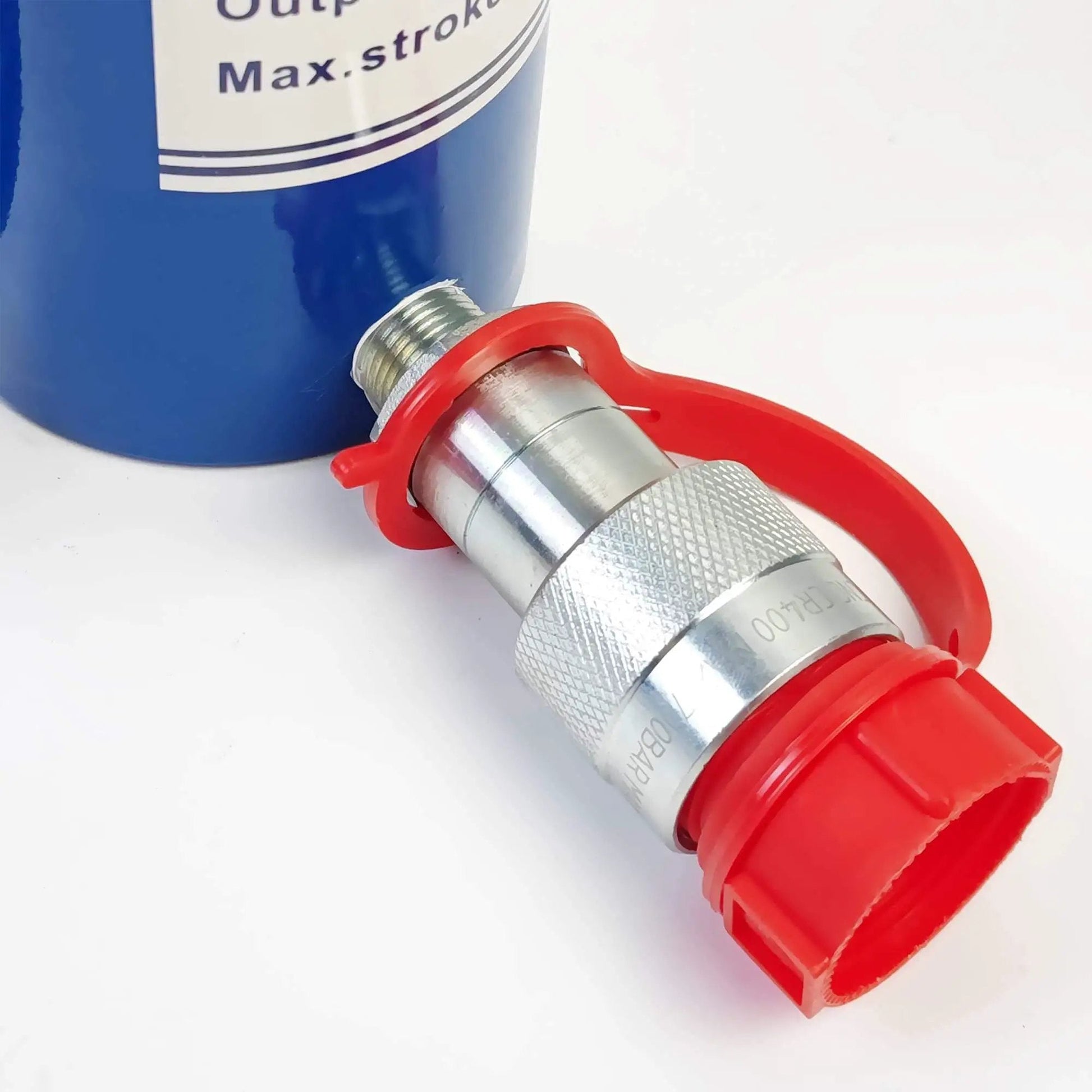

✅ 3/8 in NPT CR-400 quick hydraulic coupler with dust cap
✅ Max pressure 10,000 PSI
✅ Single acting - Pressure extend, Spring return
✅ Hard black oxide plated high carbon steel ram
✅ Proprietary heat-treated steel shell
✅ Color: Blue; compact for narrow spaces
💡 What is a high-pressure hydraulic cylinder used for in heavy lifting and maintenance?
In industrial settings, this handy tool applies controlled force to lift, press, or align heavy components where space is restricted.
- 20 ton capacity for lifting and pressing heavy parts
- 10,000 psi max pressure for strong, controllable force
- Single-acting design with spring return for simple use
- 3/8 in NPT quick coupler for fast connect and leak-free setup
