VXB
UC206-20 Bearing Insert 1-1/4" Mounted
UC206-20 Bearing Insert 1-1/4" Mounted
Regular price
$49.48 CAD
Regular price
$66.79 CAD
Sale price
$49.48 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
|
UC206-20 Bearing Insert Set Screw Locking 1 1/4" Inch Inner Diameter |
UC206-20 Bearing Insert, Bearing is standard duty, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

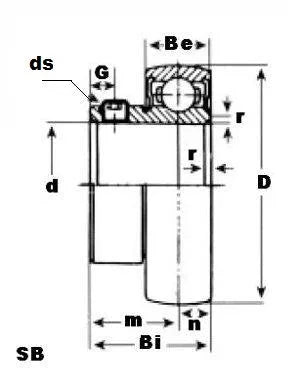

| Dimensions (Inches) | ||||||||
|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | r | n | m | G | W | ds(UNF-Thread) |
| 2-7/16" | 1-1/2" | 45/64" | 0.059" | 5/8" | 7/8" | 7/32" | 1-9/16" | 1/4-28x1/4 |
