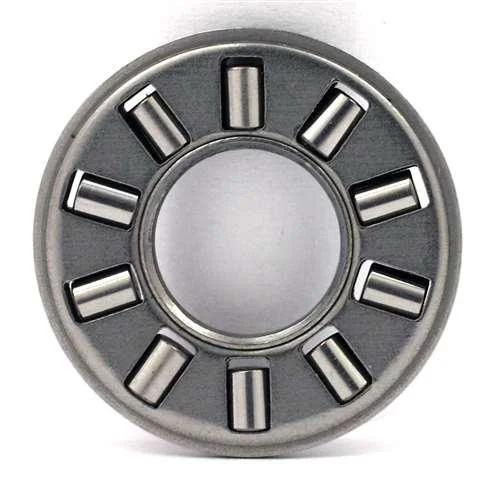

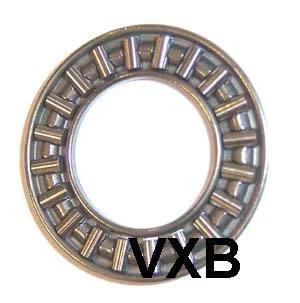

TC1018 Needle Thrust Bearing - 5/8" ID x 1-1/8" OD x 5/64"inch

TC1018 Thrust Needle Roller Bearing
5/8" x 1-1/8" x 5/64" inch
High Load Capacity - One Bearing

The TC1018 is a thrust needle roller bearing designed for applications that need strong axial load support in a low-profile form. With a size of 5/8" inner diameter, 1-1/8" outer diameter, and only 5/64" thick, it’s ideal for tight spaces where performance matters.

This bearing is commonly used in transmissions, gearboxes, power tools, and other equipment where high strength and compact size go hand-in-hand.

🔧 Product Details:

• ✅ Item: TC1018

• ✅ Type: Thrust Needle Roller Bearing

• ✅ Inner Diameter (ID): 5/8"

• ✅ Outer Diameter (OD): 1-1/8"

• ✅ Thickness: 5/64"

• ✅ Dynamic Load Rating: 2,170 lbs

• ✅ Static Load Rating: 6,600 lbs

• ✅ Quantity: 1 Bearing

💡 What’s the difference between TC1018 and standard thrust bearings?
TC1018 is much thinner, which makes it great for designs where space is limited but you still need serious load-handling power.

Compact but tough - this TC1018 bearing is a solid choice for gear that needs strength without the bulk.
