SQL16RS L-Ball Rod Ends 16mm Bore

SQL16RS L-Ball Rod Ends 16mm Bore

$125.62 CAD
$169.58 CAD $125.62 CAD
Sale Sold out
Shipping calculated at checkout.

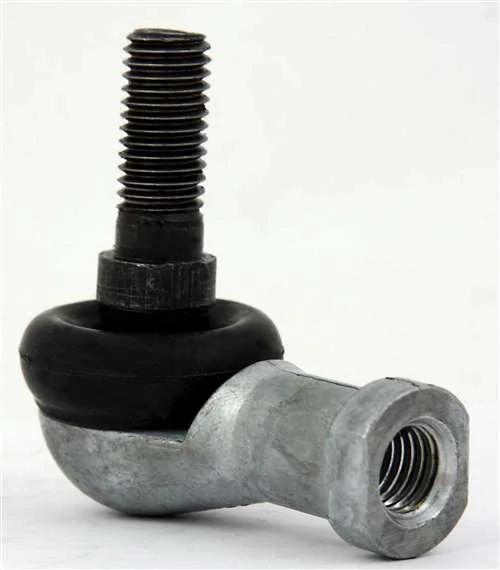

L-Ball Rod Ends SQL16RS
16mm Inner Diameter

L-Ball Rod Ends SQL16RS, inner diameter is 16mm, the internal thread size is M16x1.5, Cross-reference part numbers:

  • SQL16RS Bearing
  • L-Ball Rod Ends
  • Quantity: One L-Shape Rod end
  • Static load Capacity: 15 KN

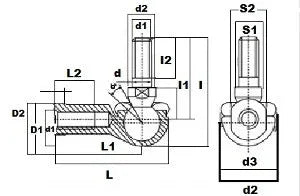

Dimensions (mm)
d d1 d2 d3 I I2 I3 S1 L L1 L2 D1 D2 D3 S2
16 M16x1.5 22 44 23 25.5 19 112 50 8 27 22 27 40 22
