SQ18RS L-Ball Rod Ends 18mm Bore

SQ18RS L-Ball Rod Ends 18mm Bore

$241.73 CAD
$326.33 CAD $241.73 CAD
Sale Sold out
Shipping calculated at checkout.

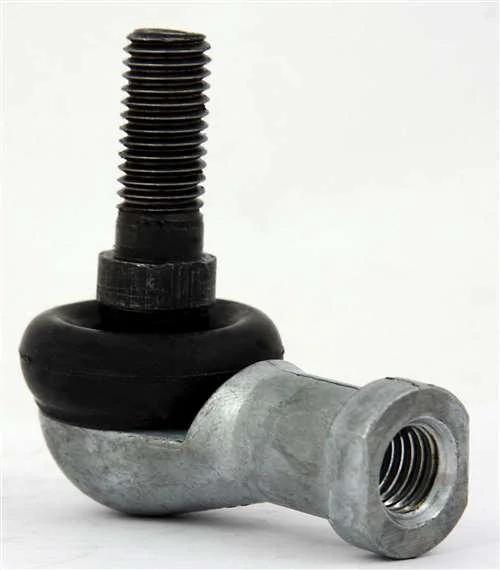

L-Ball Rod Ends SQ18RS
18mm Inner Diameter

L-Ball Rod Ends SQ18RS, inner diameter is 18mm, the internal thread size is M18x1.5, Cross-reference part numbers:

  • SQ18RS Bearing
  • L-Ball Rod Ends
  • Quantity: One L-Shape Rod end
  • Static load Capacity: 33 KN

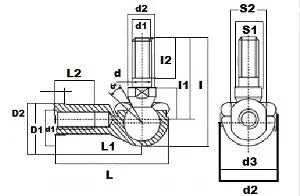

Dimensions (mm)
d d1 d2 d3 I I2 I3 S1 L L1 L2 D1 D2 D3 S2
18 M18x1.5 23 45 90 26.5 68 20 93 71 10 25 31 44 27
