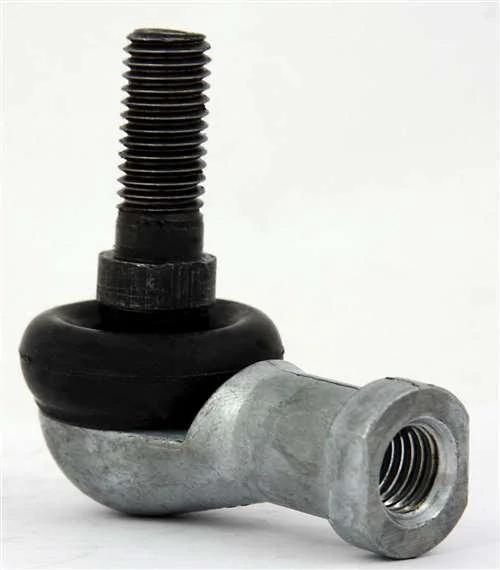

L-Ball Rod Ends SQ10RS, inner diameter is 10mm, the internal thread size is M10x1.25, Cross-reference part numbers:
- SQ10RS Bearing
- L-Ball Rod Ends
- Quantity: One L-Shape Rod end
- Static load Capacity: 10 KN

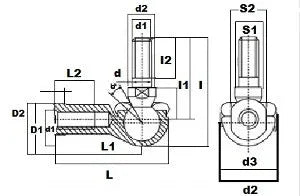

| Dimensions (mm) |
|---|
| d |
d1 |
d2 |
d3 |
I |
I2 |
I3 |
S1 |
L |
L1 |
L2 |
D1 |
D2 |
D3 |
S2 |
| 10 |
M10x1.25 |
14 |
30 |
50.5 |
17 |
37 |
11 |
57 |
43 |
6.5 |
15 |
19 |
27 |
17 |
|
