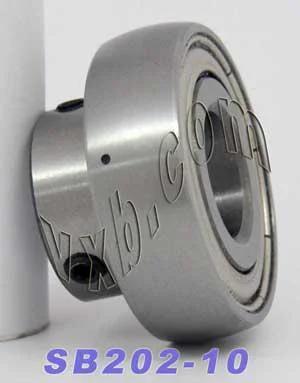

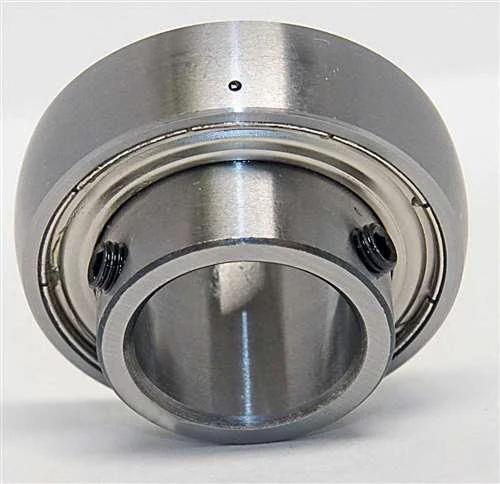

SB202-10 Ball Bearing Insert, bore (with set screws).The inner diameter is 5/8" inch, the outer diameter is 1-37/64" inch and the width is 0.866" inch.
- SB202-10 Ball Bearing
- Ball Bearing Insert
- Quantity: 1 Bearing
- Basic Load (Cr): 2,750 LBS
- Basic Load (Cor): 1,072 LBS

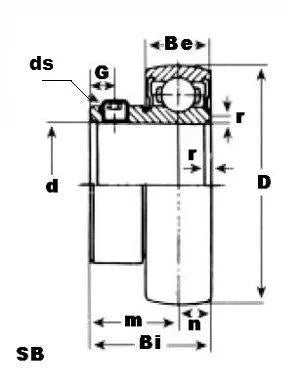

| Dimensions (inches) |
|---|
| d |
D |
Bi |
Be |
r |
n |
m |
G |
ds |
| 5/8" |
1-37/64" |
0.866" |
0.47" |
0.039" |
15/64" |
0.063" |
0.177" |
10-32mm |
|
