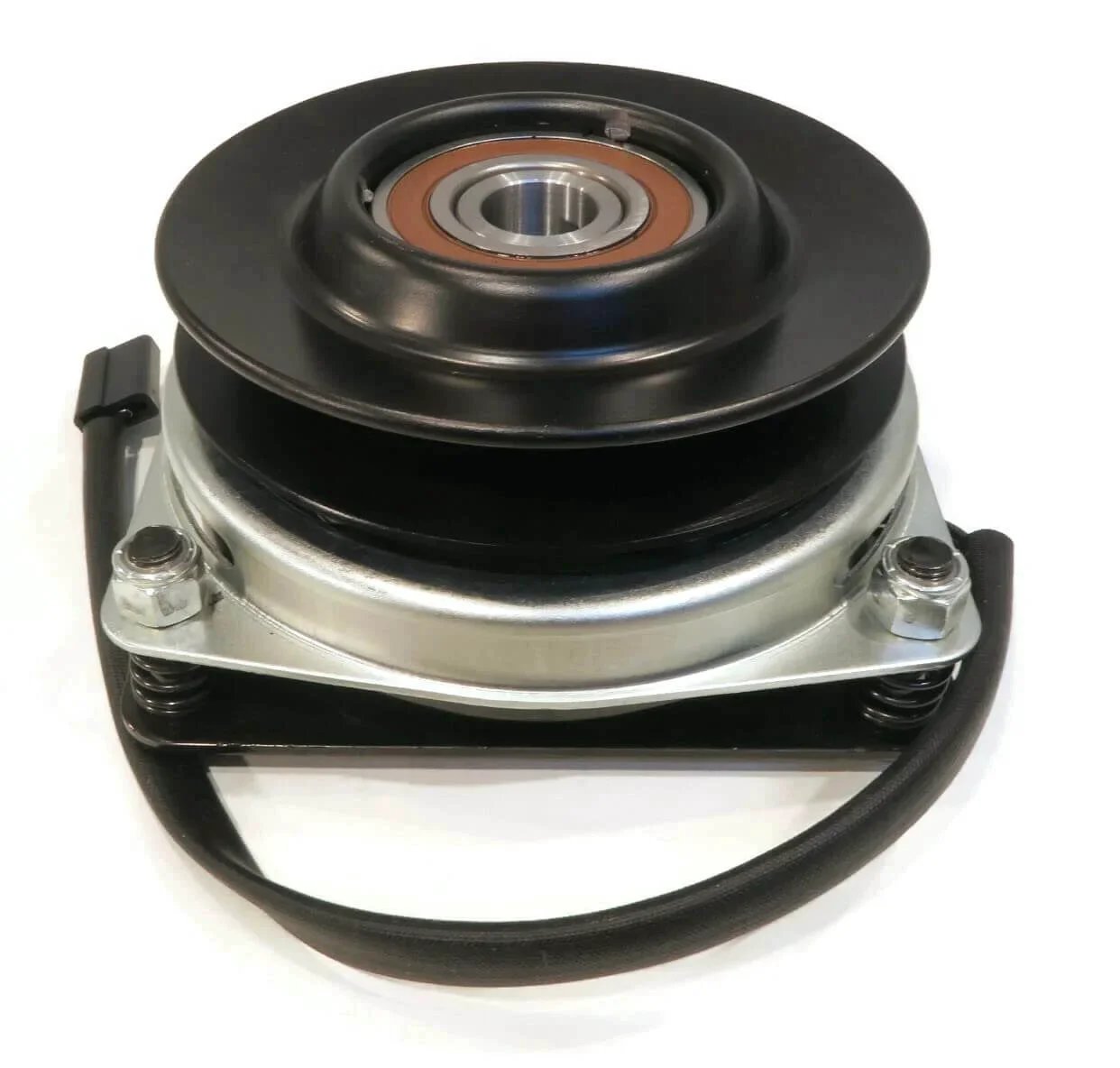

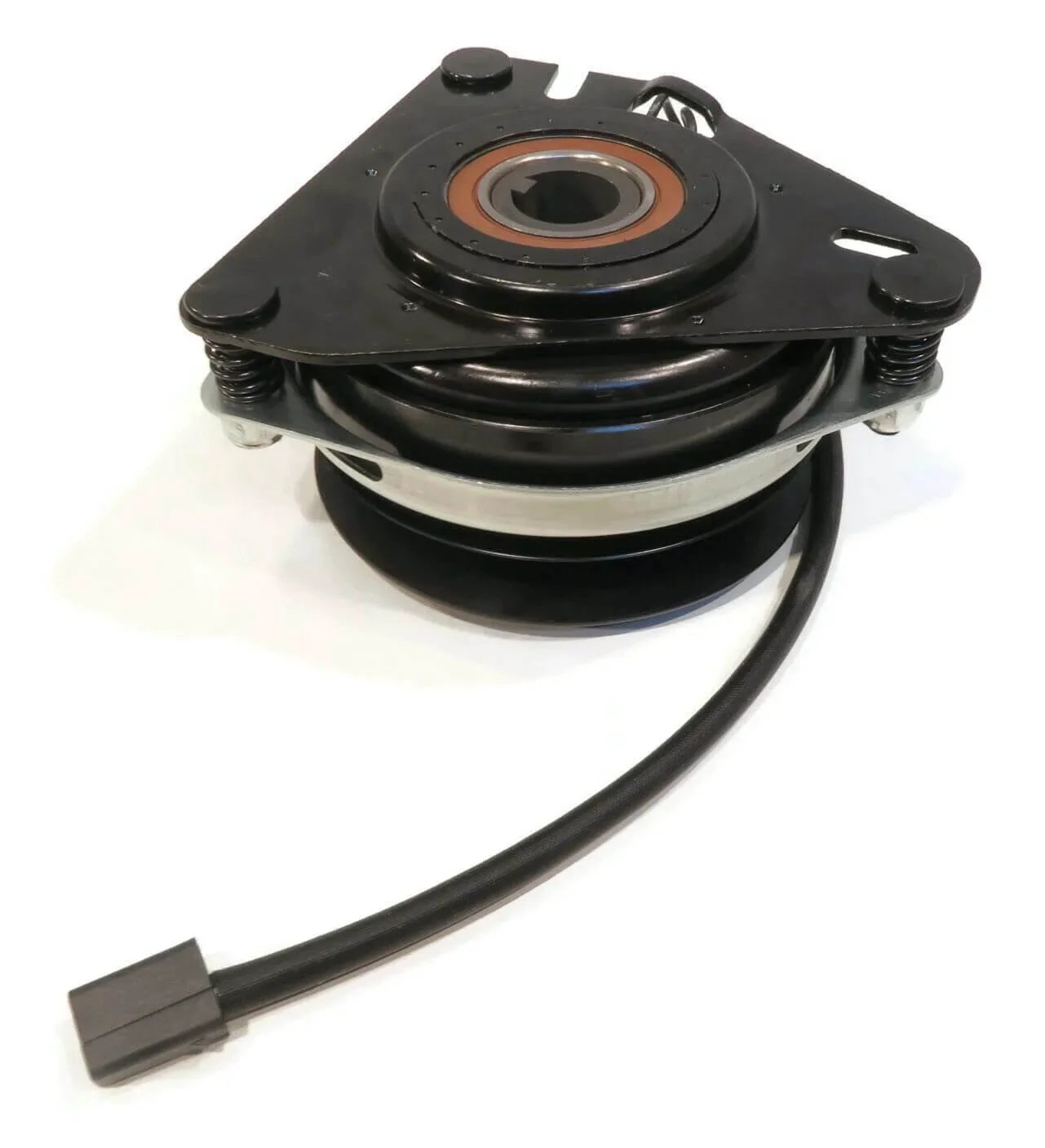

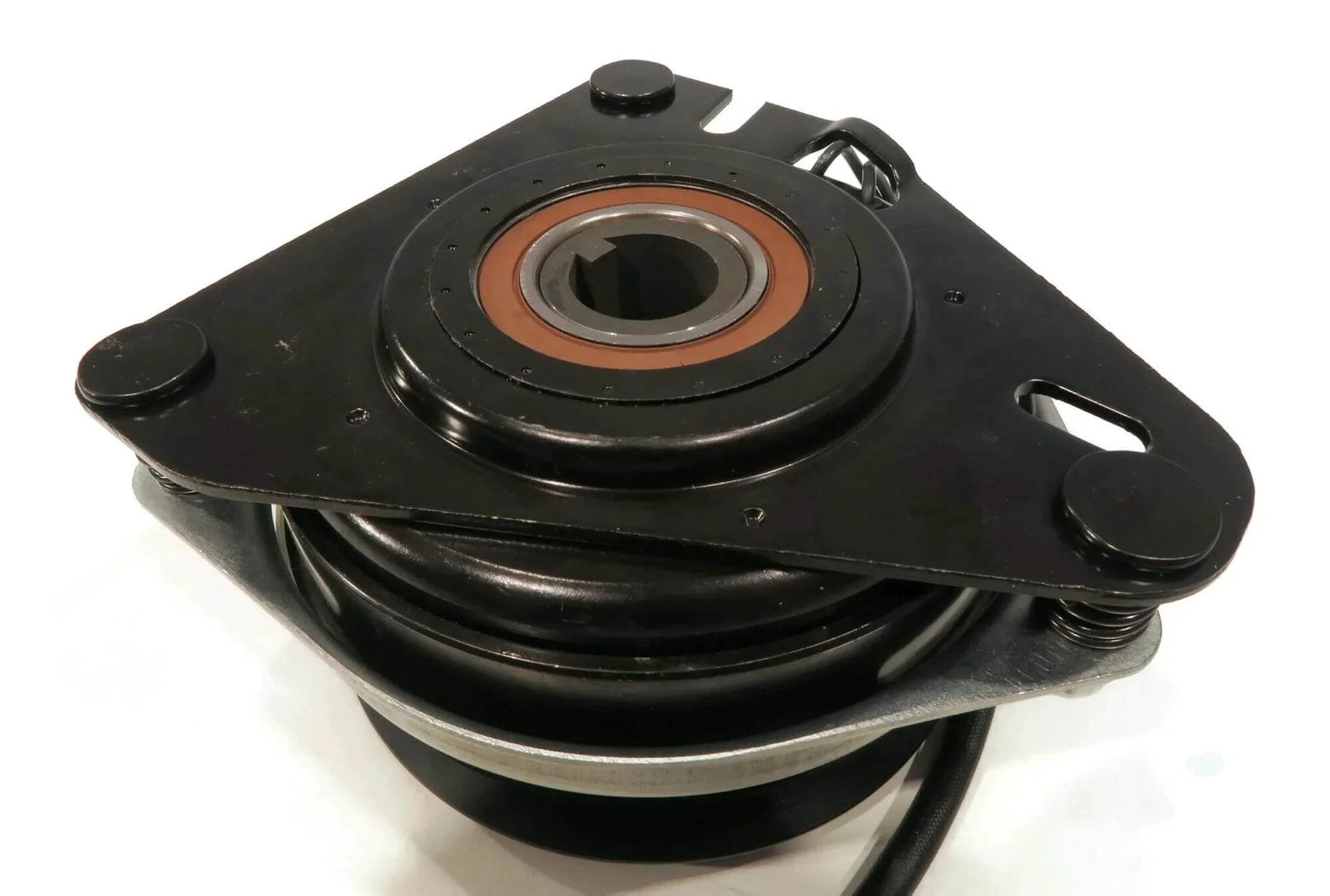

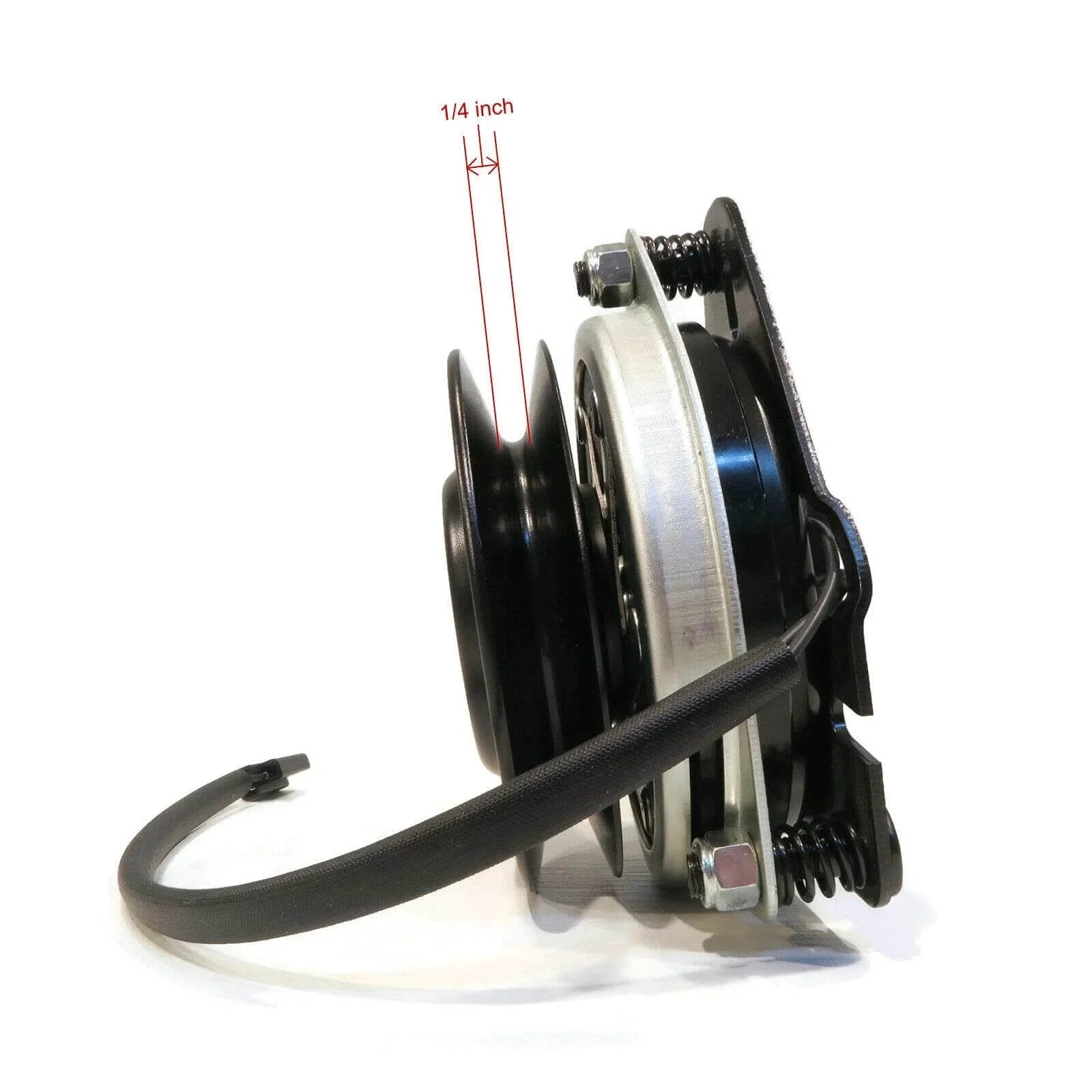

PTO Clutch CCW on 1-inch shaft with 5-5/16 inch pulley
✔️ Crankshaft: 1 inch; Pulley: 5 5/16 inch; CCW rotation; Belts: 1/2 inch or 5/8 inch

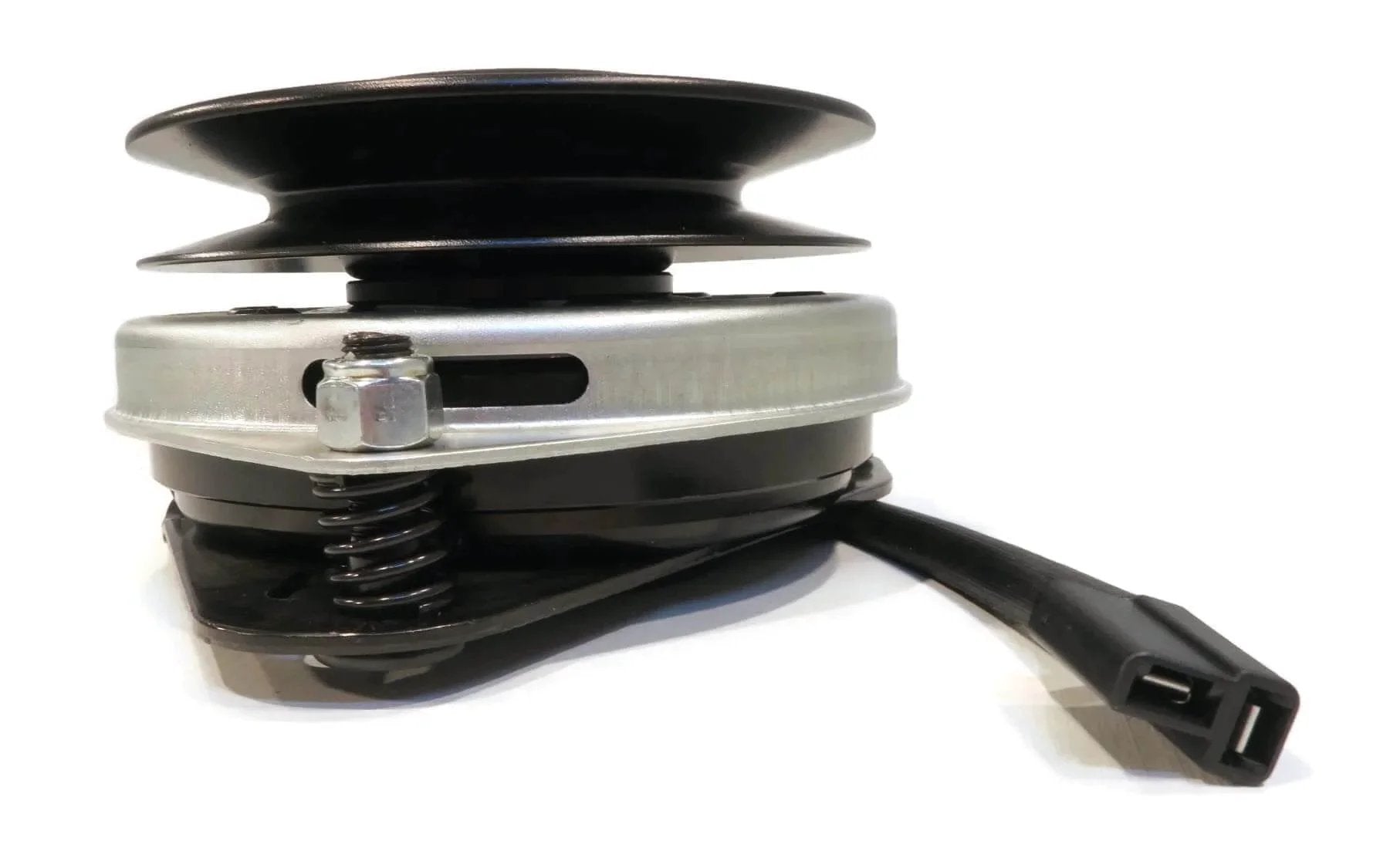

Single-unit PTO Clutch CCW designed for 1-inch shafts and 5-5/16 inch pulleys, perfect for tractors and PTO-driven implements. Sold as a single unit and includes installation manual; has a preinstalled keyway, but you may need to modify your existing keyway for proper fit. Bearings are not replaceable. Before purchase, check OEM part number, model, code, and serial to verify compatibility. If you’re unsure, reach out for help, we’ll make sure you’ve got the right part.
✅ Crankshaft: 1 inch (25.4 mm)

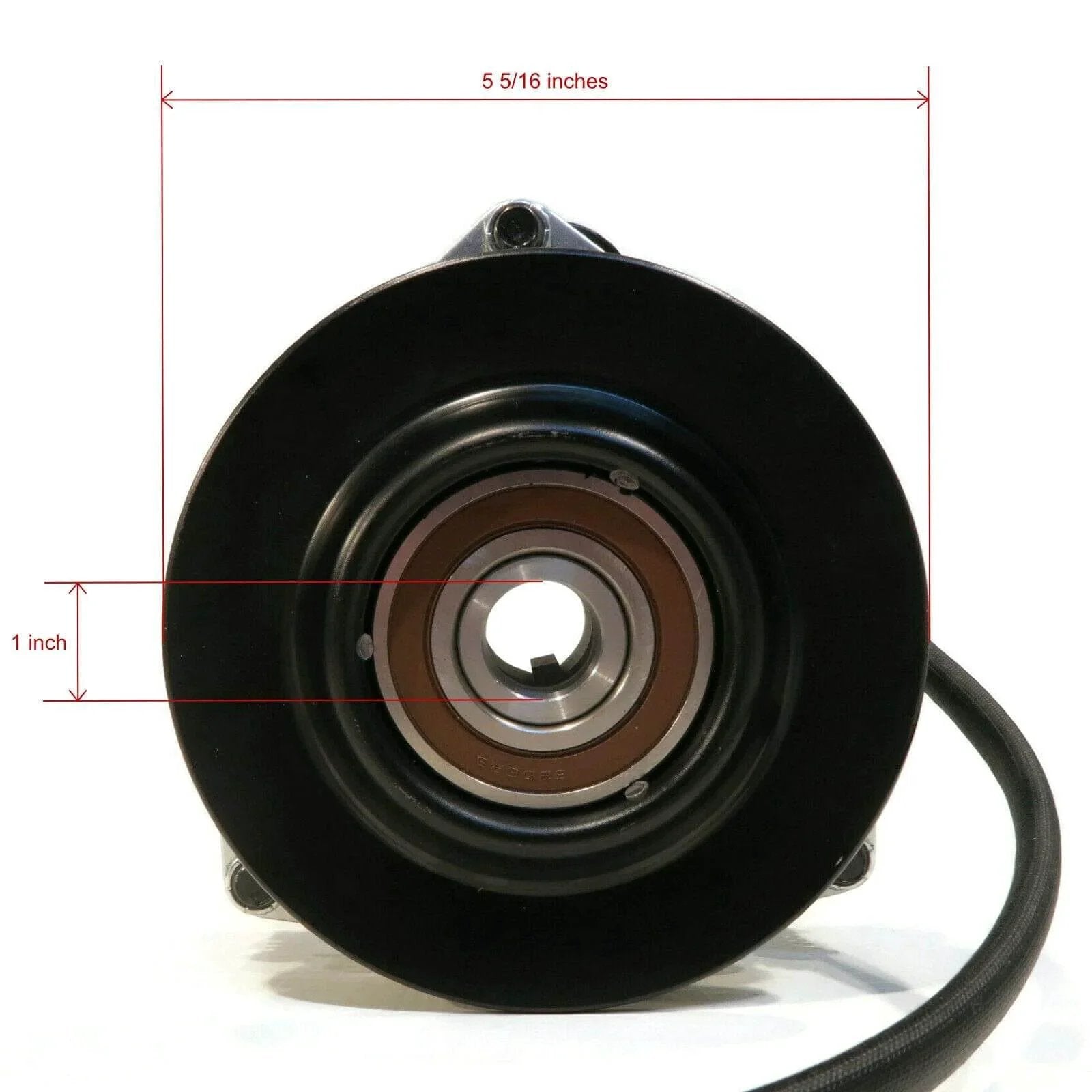

✅ Pulley outside diameter: 5 5/16 inch (134.93 mm)
✅ Direction: Counter Clockwise (CCW)
✅ Belt compatibility: 1/2 inch or 5/8 inch belts

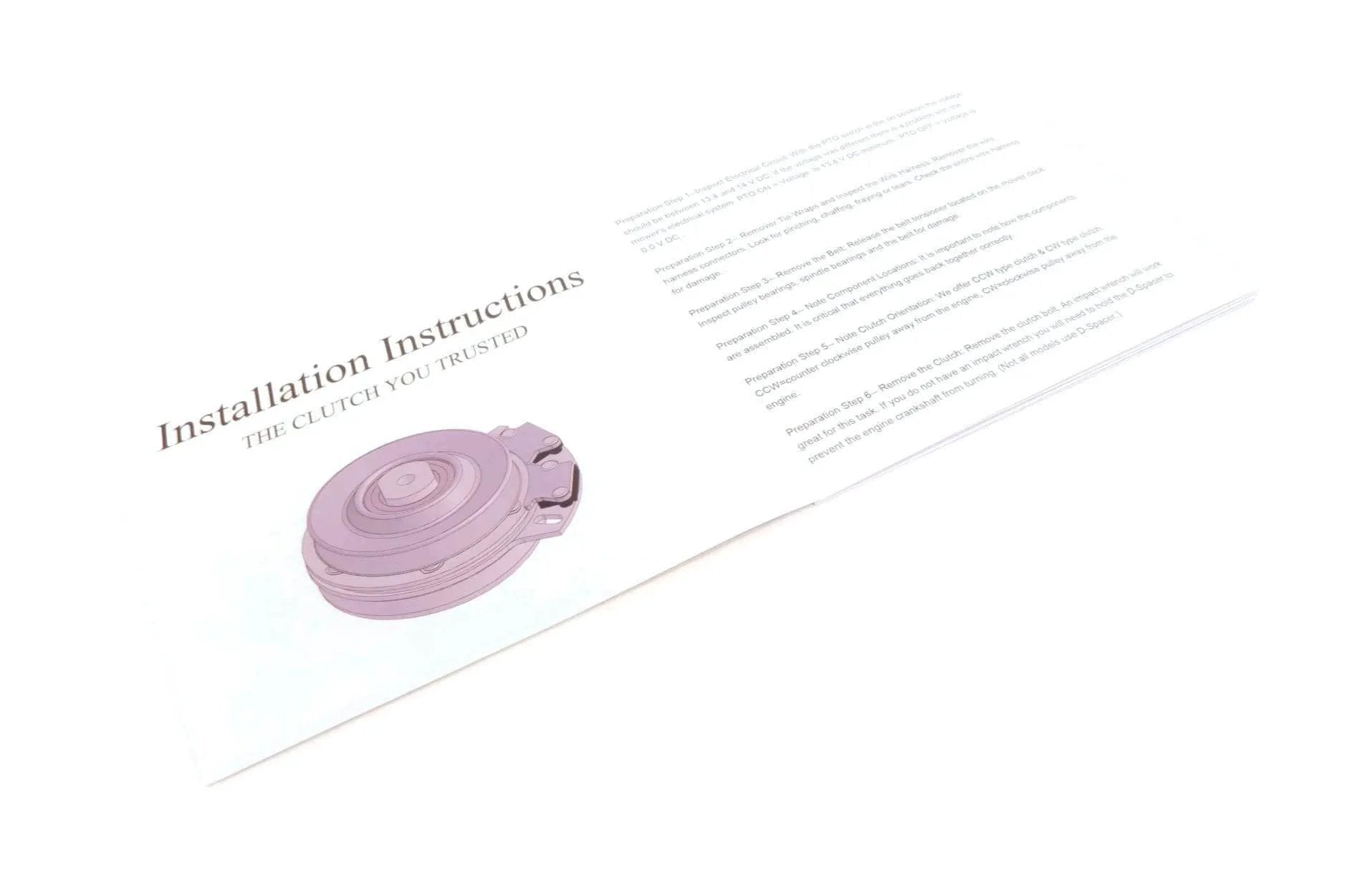

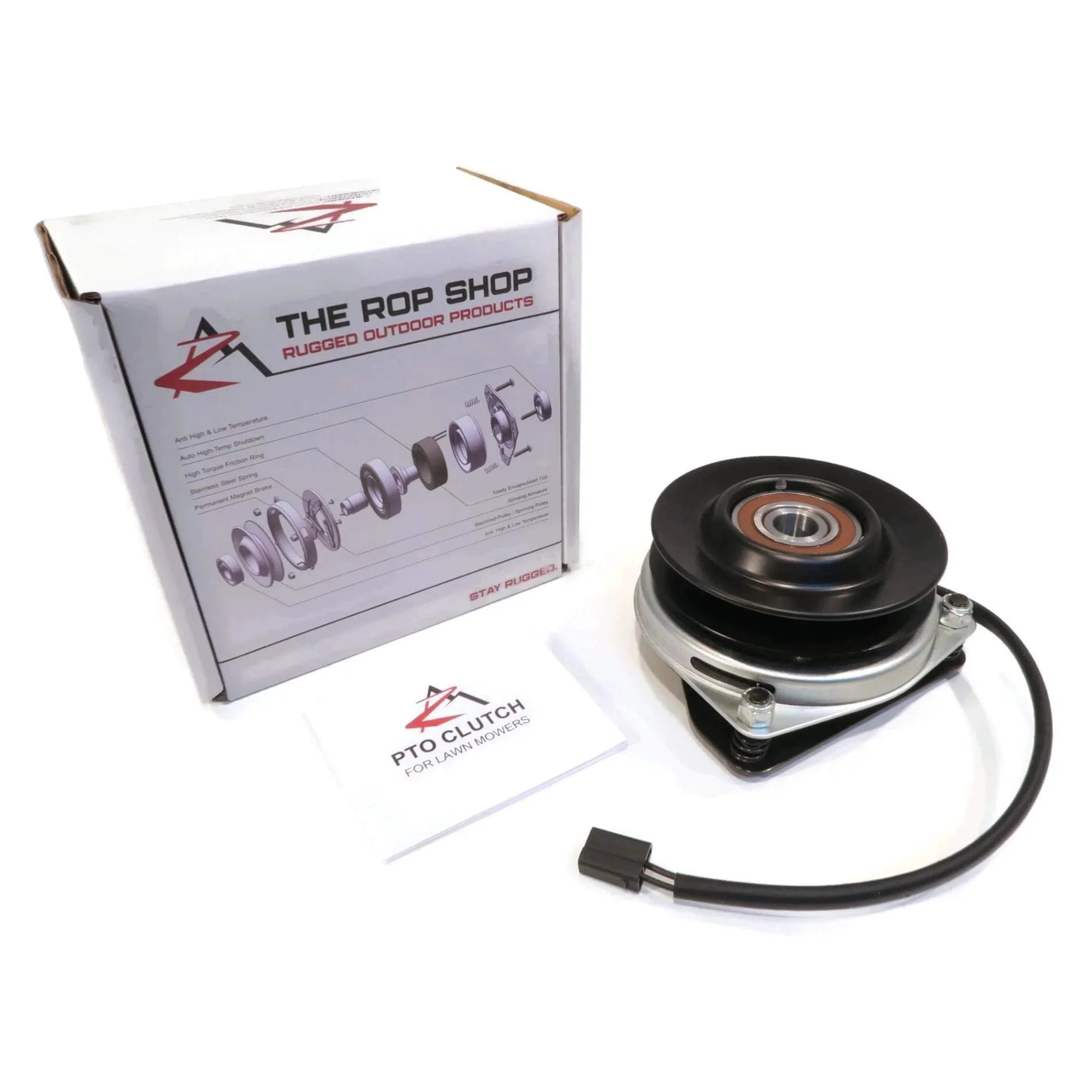

✅ Includes: PTO Clutch + Installation Manual; shown in image
💡 What is a PTO clutch CCW with a 1 inch shaft used for in farm equipment?
It’s a handy device for reliably transferring power from a tractor PTO to attached implements while allowing simple engagement and disengagement.
- CCW rotation ensures compatibility with specific drive trains
- Fits common 1 inch PTO shafts and 5 5/16 inch pulleys (mm: 25.4 mm shaft; 134.93 mm pulley)
- Helps protect PTO systems by enabling controlled power transfer
