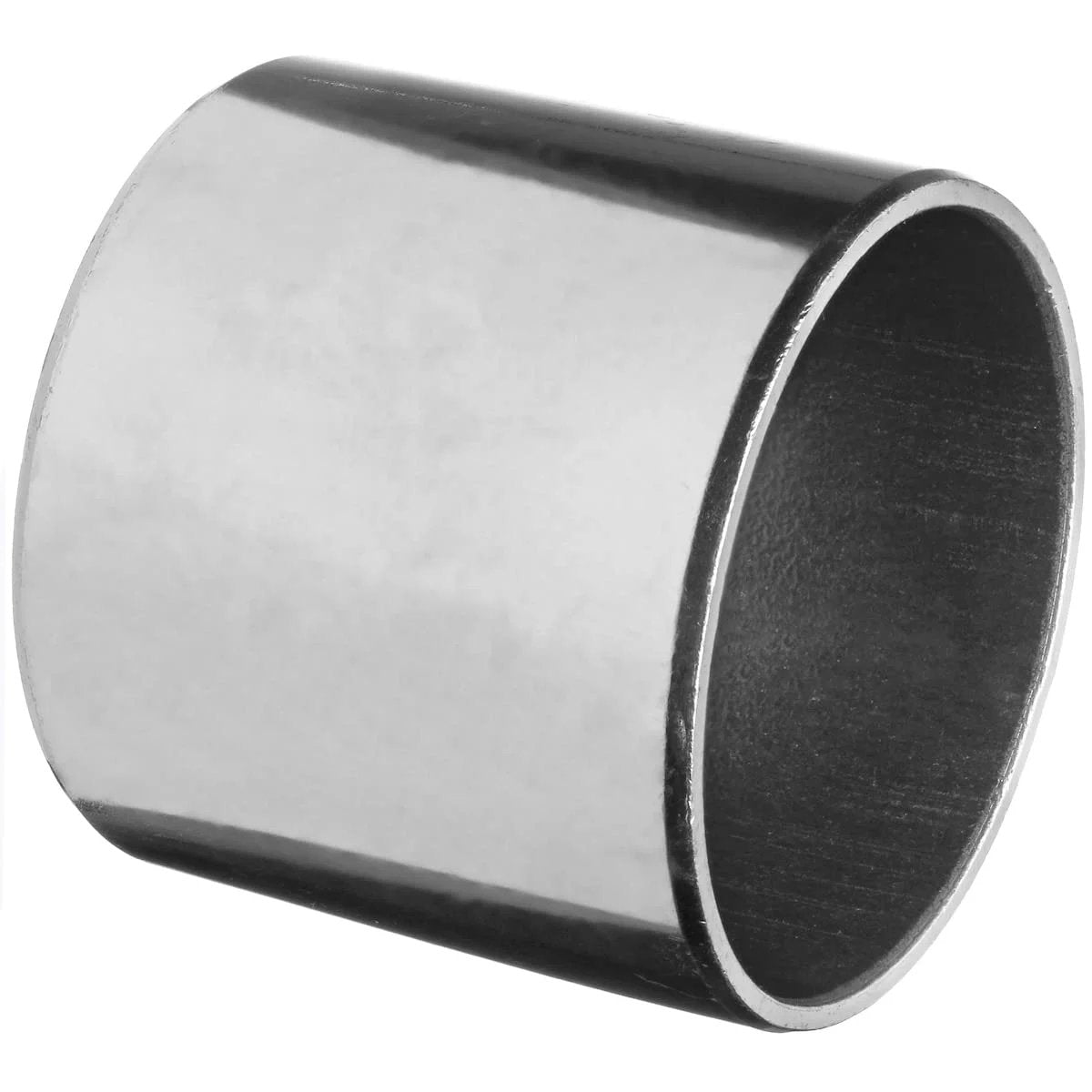

PTFE Lined Sleeve Bearing With Steel Backing Seven Eighths Inch ID By One Inch OD By One And A Quarter Inch Long Rugged Cylindrical Bushing For High Load Shaft Support And Low Friction Plain Bearing

Single PTFE-Lined Cylindrical Bearing, 7/8 ID x 1 OD
✔️ ID 7/8 in, OD 1 in, length 1-1/4 in, PTFE liner on steel

This PTFE lined cylindrical bearing combines a PTFE liner with a steel backing for high load shaft support and low friction in heavy machinery. It’s commonly used in industrial machines, motorcycles, automobiles, power tools, and general mechanical equipment.

✅ ID 7/8 in (22.23 mm), OD 1 in (25.40 mm), L 1-1/4 in (31.75 mm)
✅ Material PTFE liner with steel backing for strength and low friction
✅ Dynamic load: 140 N/mm2, Static load: 250 N/mm2
✅ Max dry sliding speed: 2.5 m/s, CoF 0.02-0.20
✅ Temperature range: -320 to 530°F; Chemical resistant
✅ Applications: industrial machines, motorcycles, autos, tools

💡 What is a PTFE lined bearing used for? A handy answer explaining general uses for this type of bearing.
- Common applications include heavy machinery, automotive components, and power tools.
- PTFE lined bearings reduce friction and wear and offer chemical resistance.
- Steel backing provides strength for long life in harsh environments.
