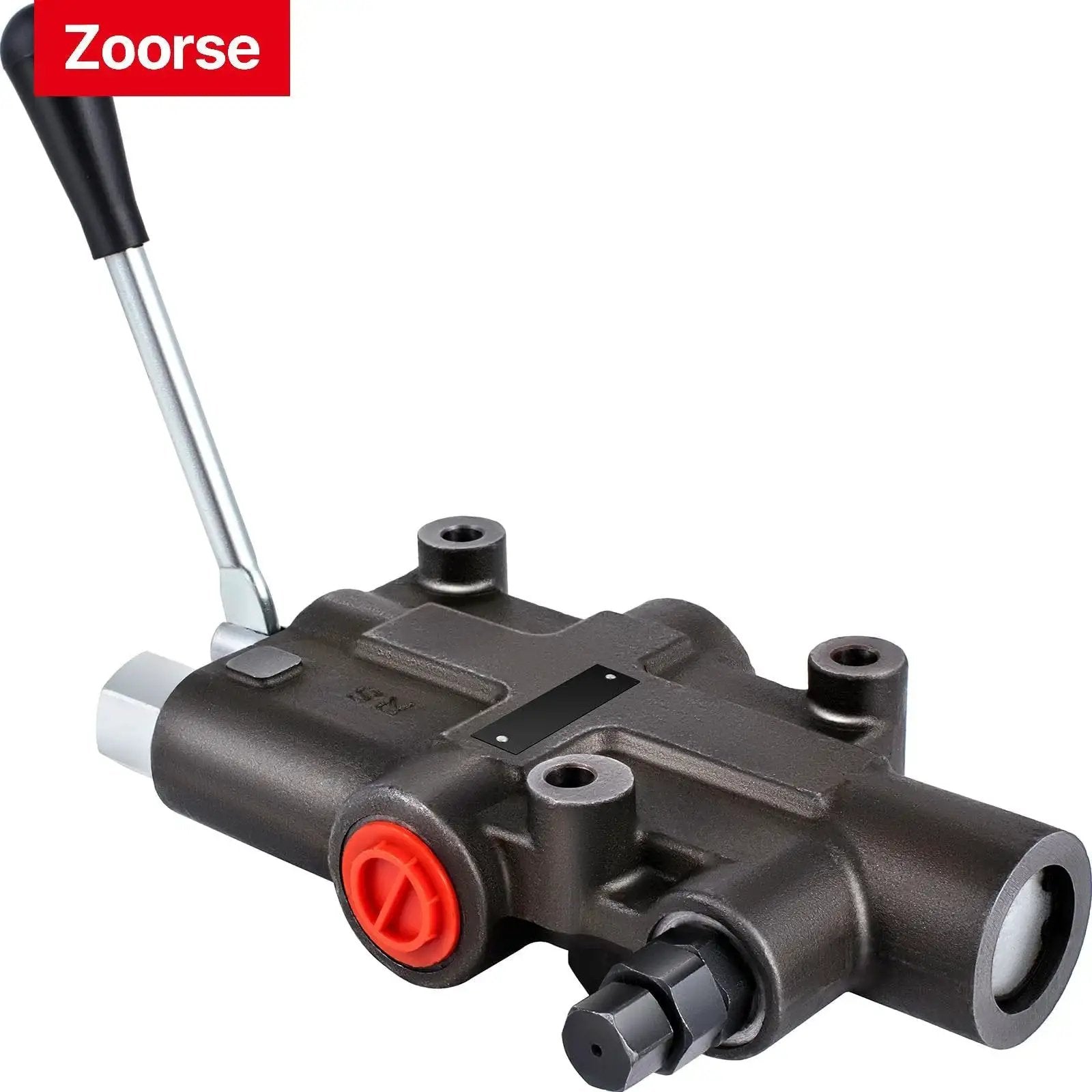

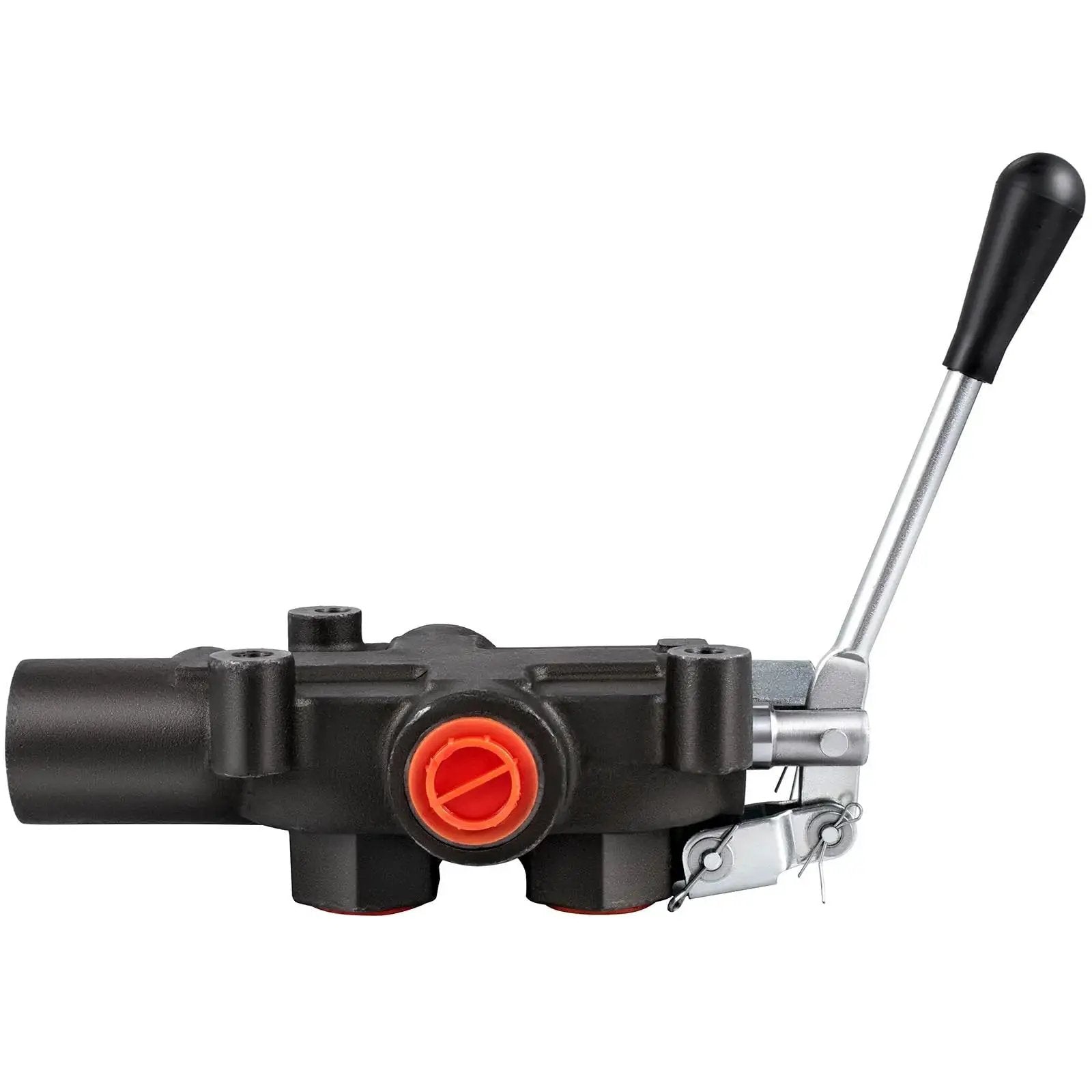

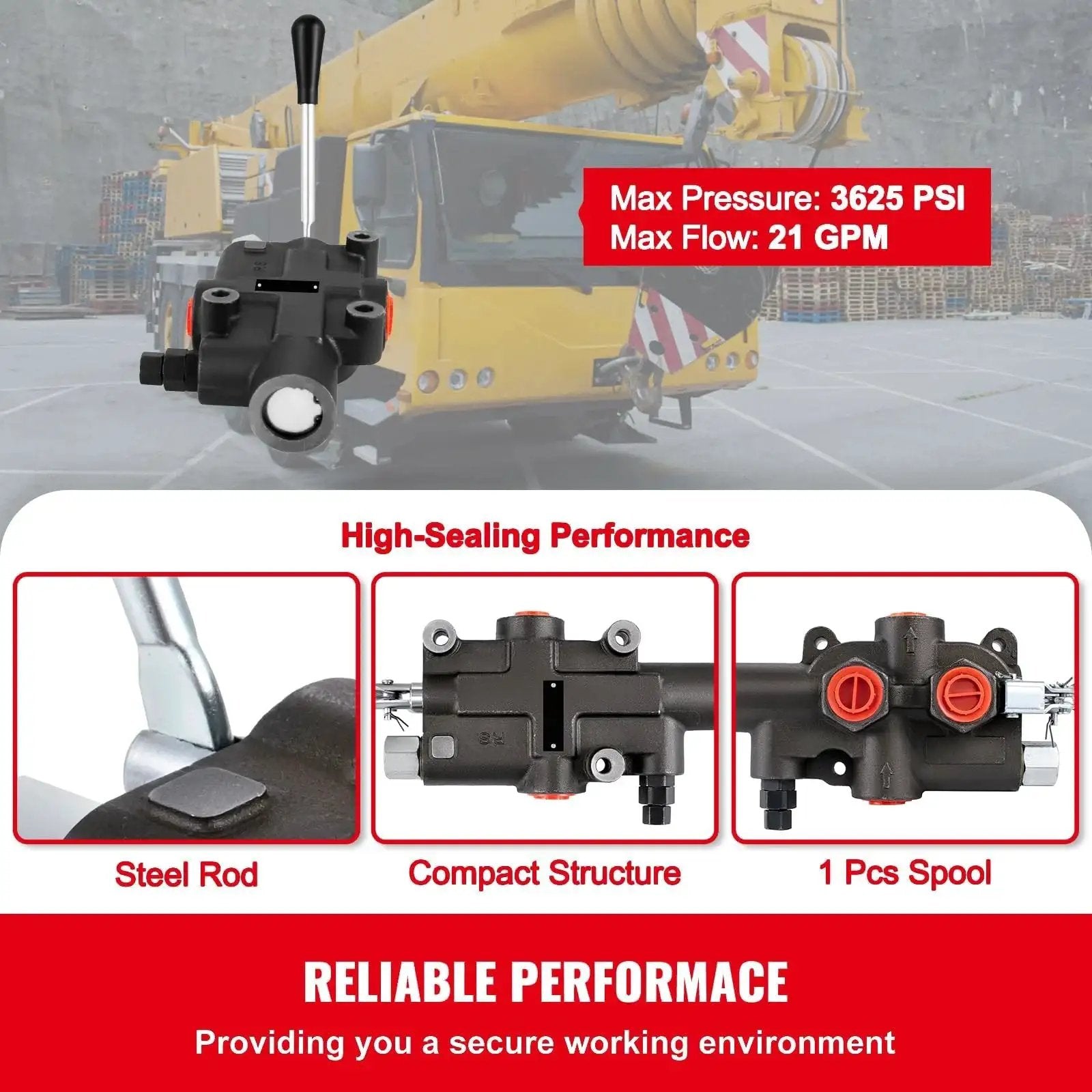

Compact 1-Spool Hydraulic Directional Valve for Tight Spaces
✔️ 1-unit single valve, 21 GPM at 3625 PSI, aluminum/iron
This compact hydraulic valve is designed for tractors, loaders, sprayers, and other equipment where space is limited. Its aluminum and iron construction ensures durability in rough outdoor environments, delivering reliable control over hydraulic systems.

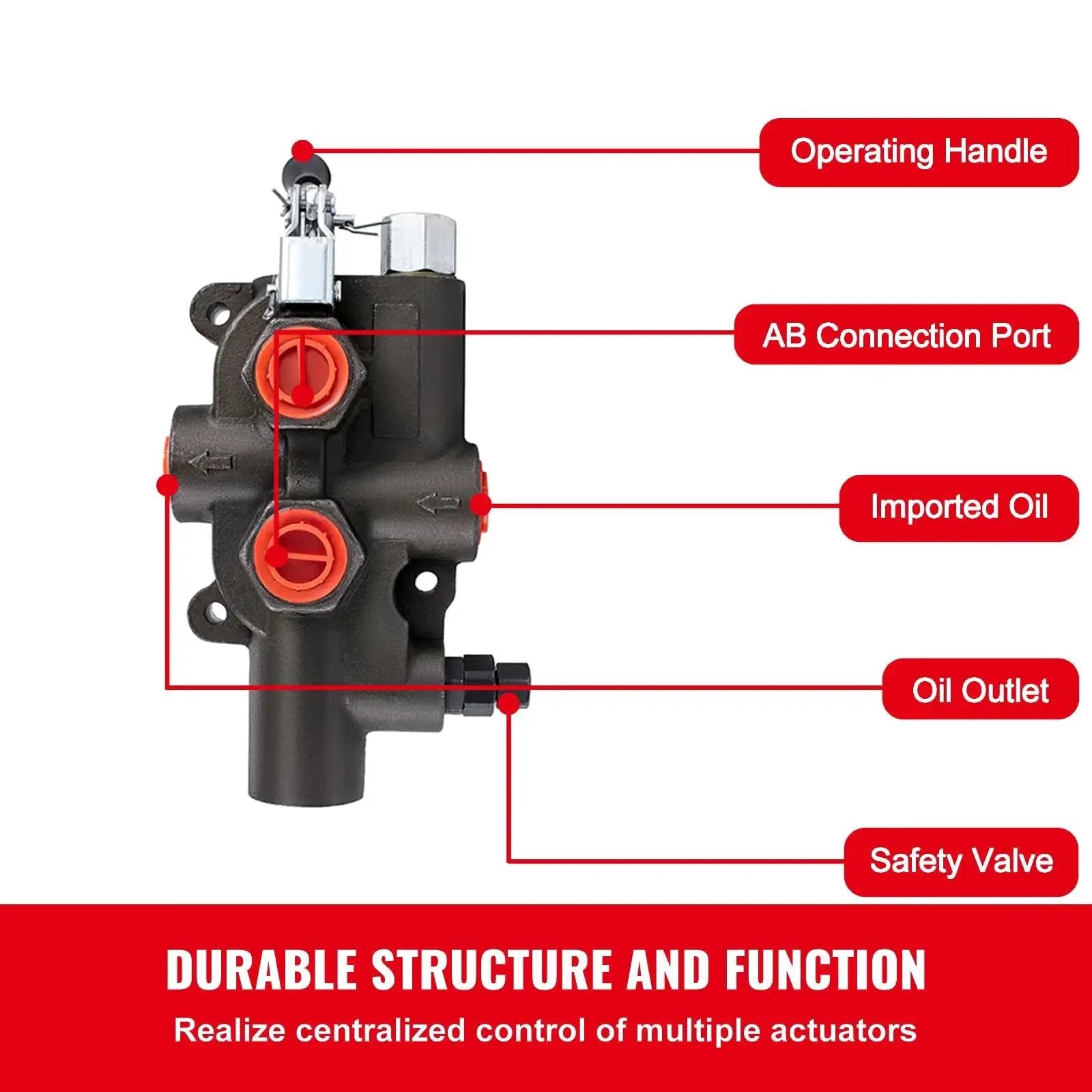

✅ P port: 12.7 mm BSPP (1/2"), A port: 12.7 mm BSPP (1/2"), B port: 12.7 mm BSPP (1/2")
✅ T port: 19 mm BSPP (3/4"), N port: 19 mm BSPP (3/4" open center)

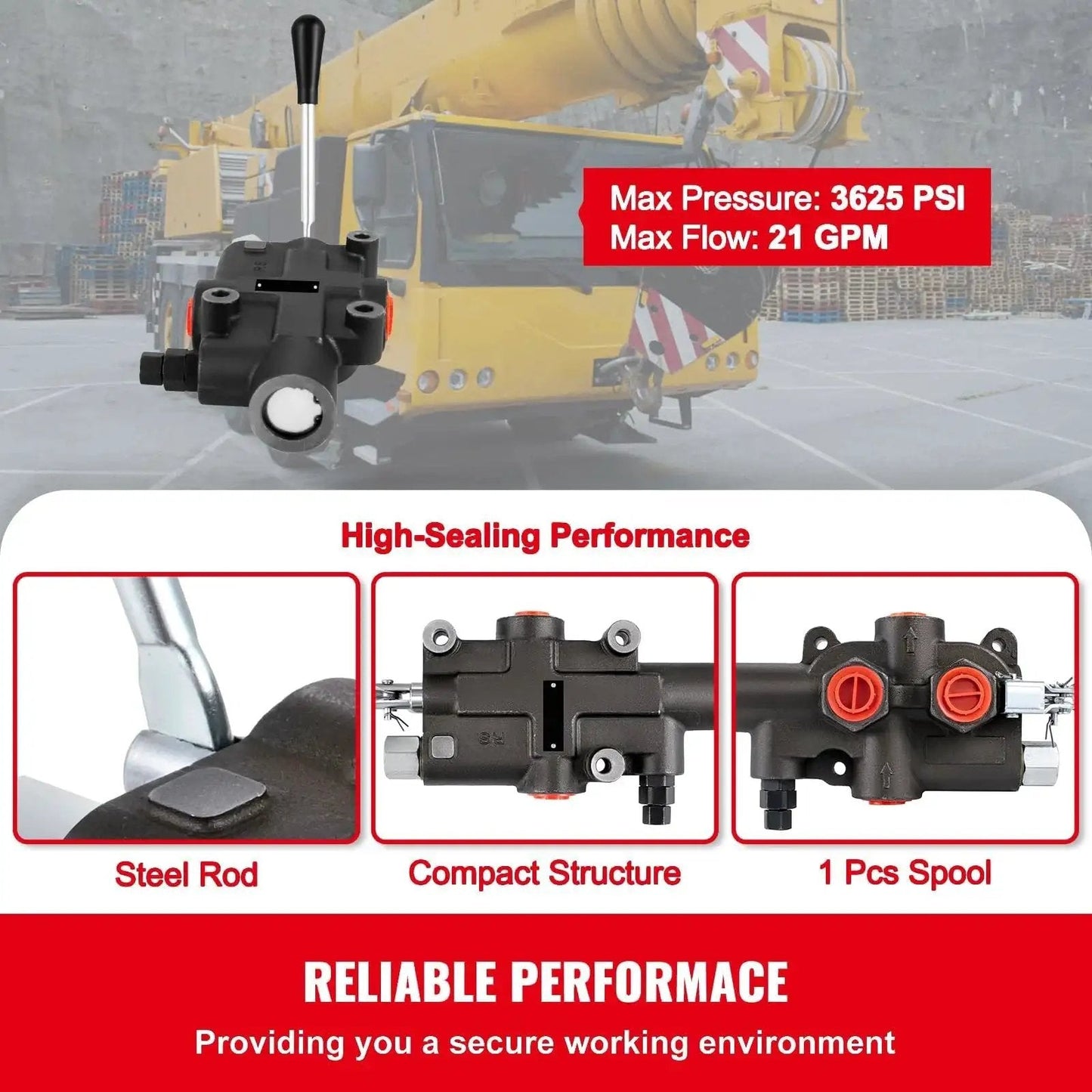

✅ Max operating pressure: 250 bar (3625 PSI), flow up to 79.5 L/min (21 GPM)

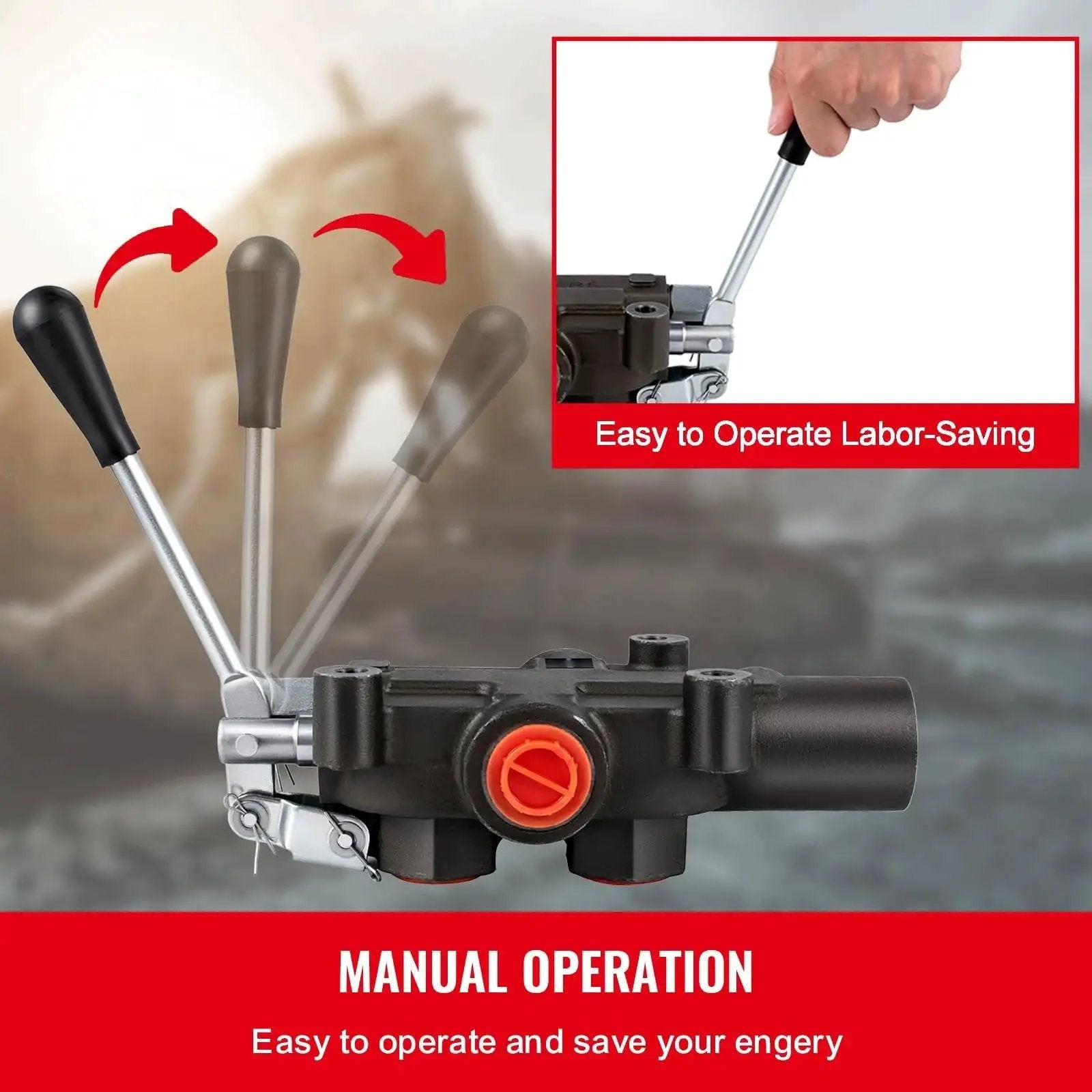

✅ Auto neutral return with spring-return for easy control

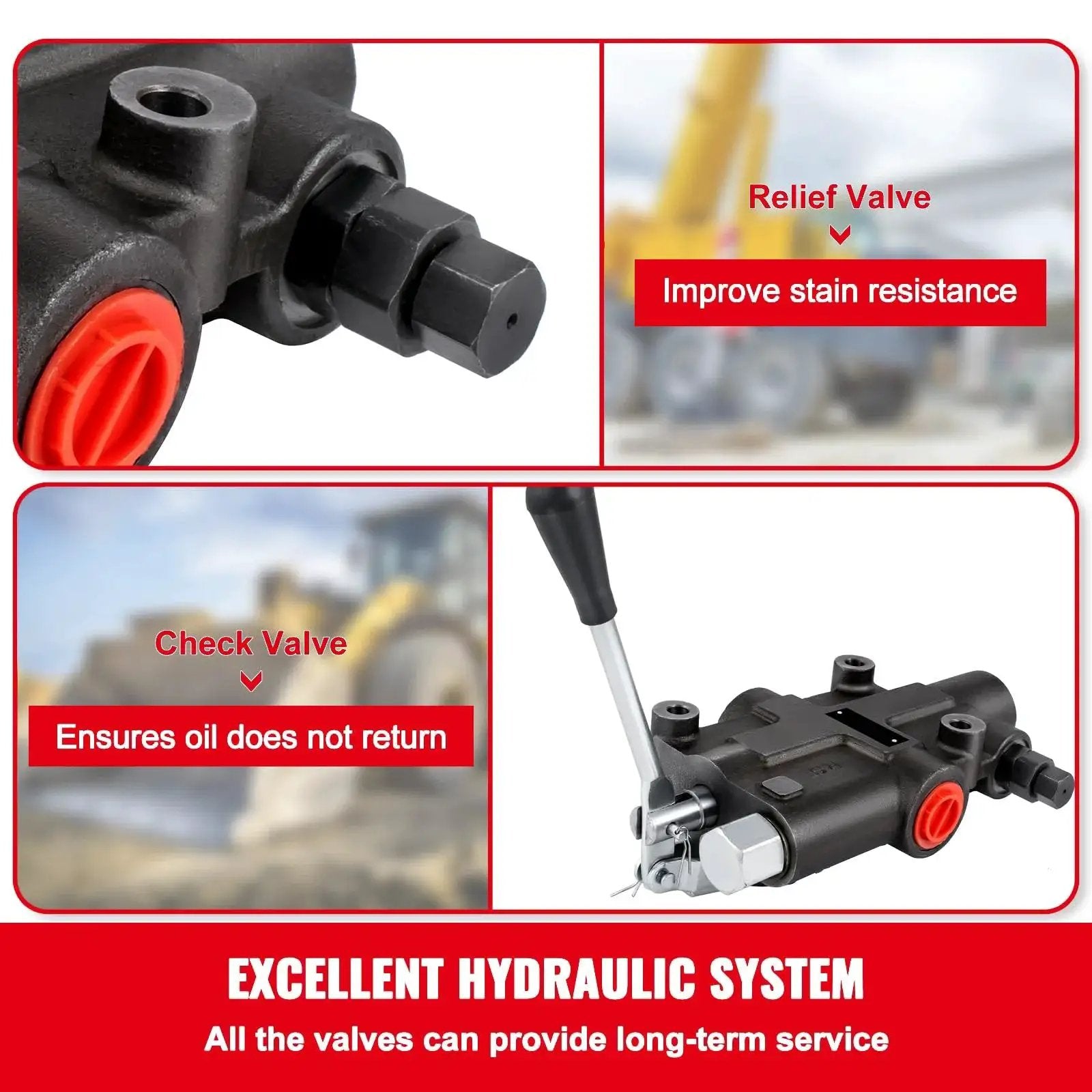

✅ Built-in safety: check valve and adjustable relief valve
✅ Open center centerline for common hydraulic circuits

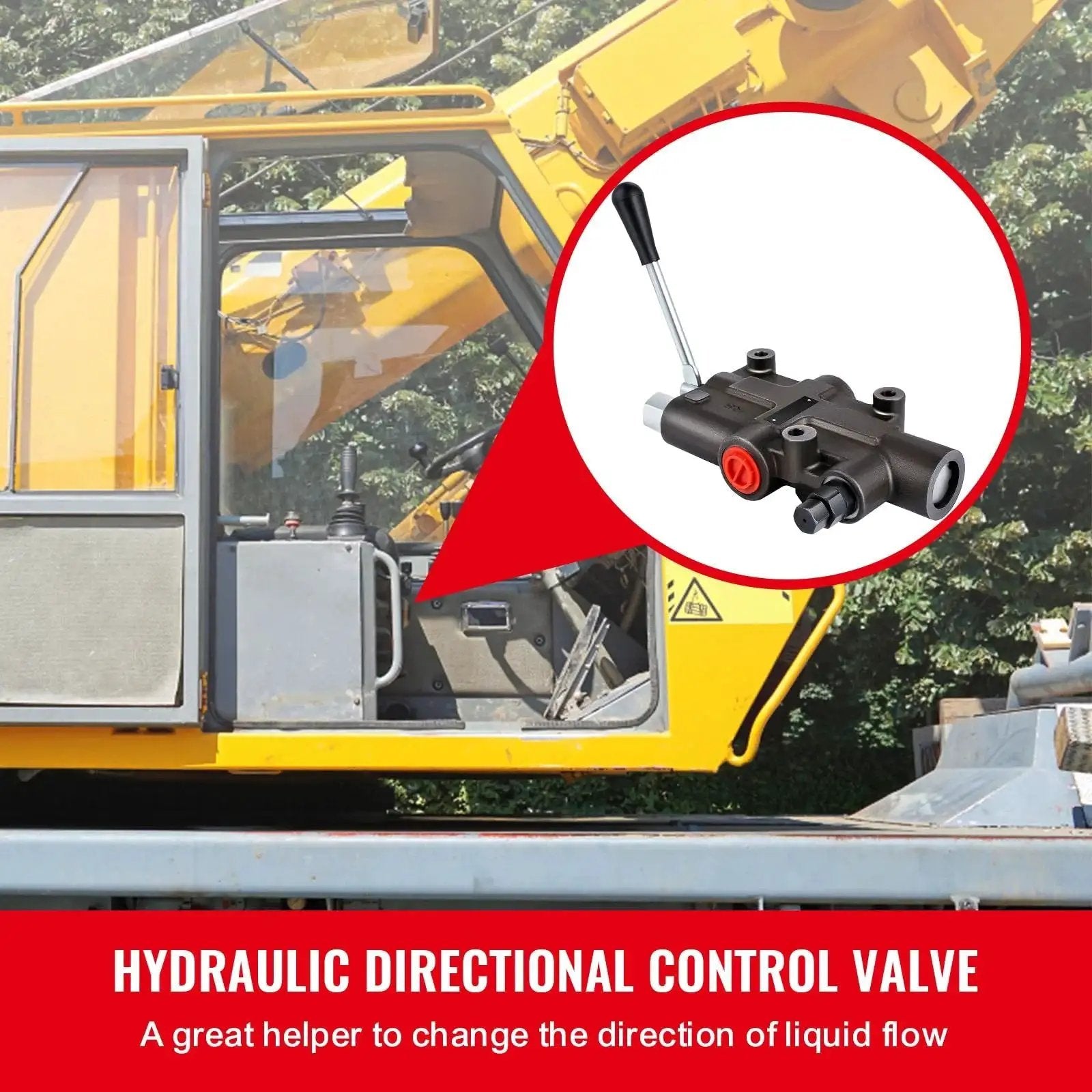

💡 What is a hydraulic directional control valve used for in tractors and loaders?
- It controls the direction and flow of hydraulic oil to cylinders and implements on tractors and loaders.
- Handy for tight spaces in fields or shop floors where space is limited.
- Includes safety features like a relief valve and a check valve to protect the system.
