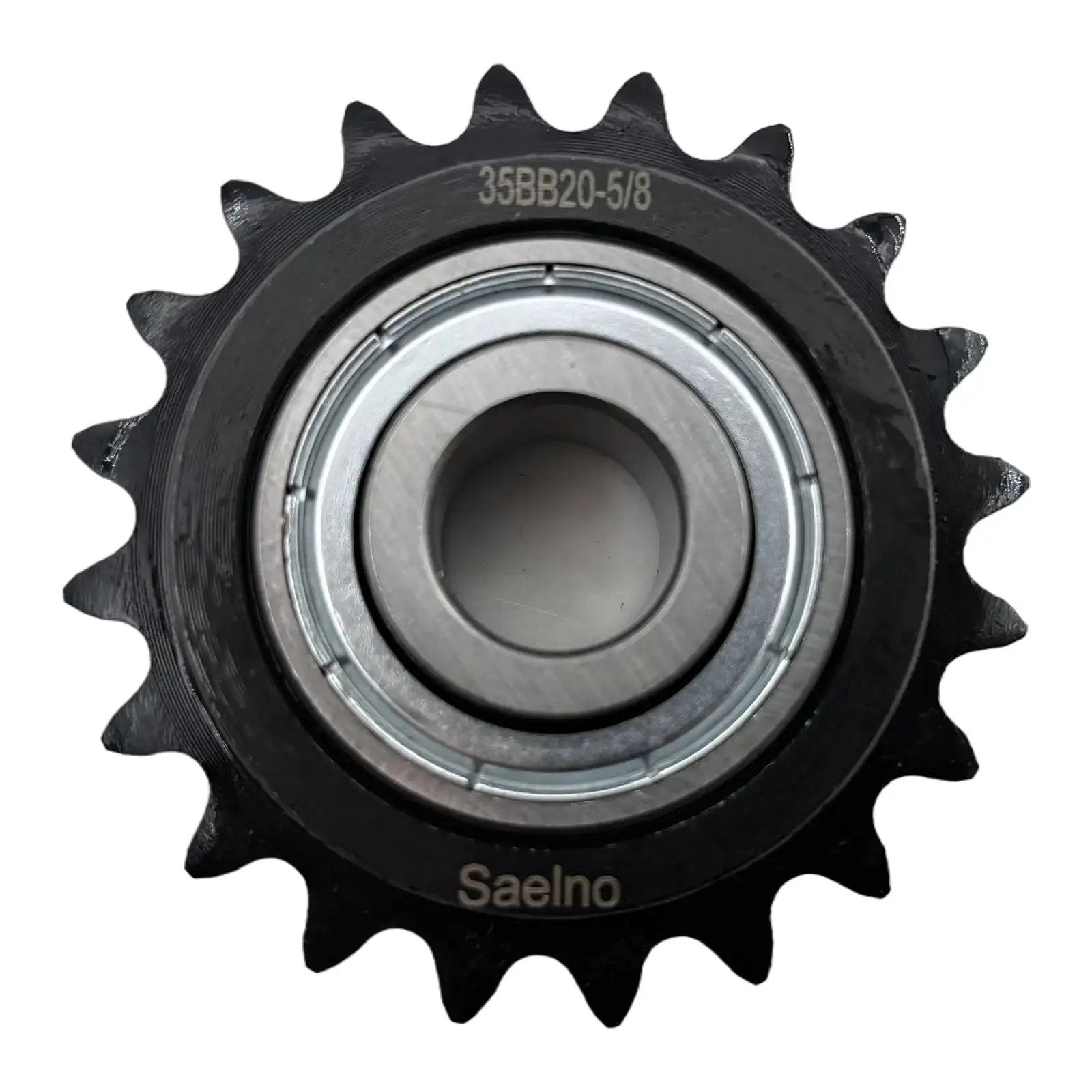

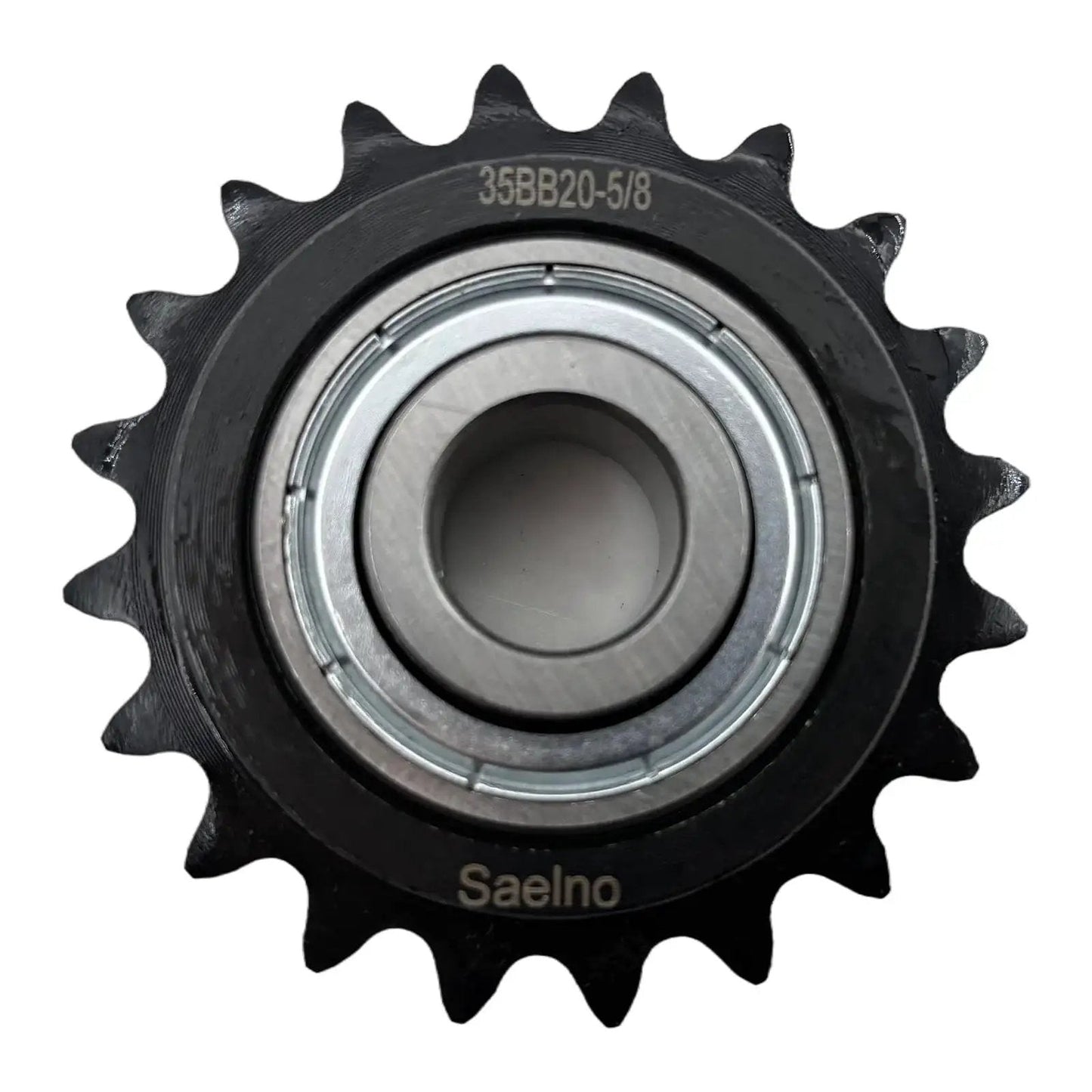

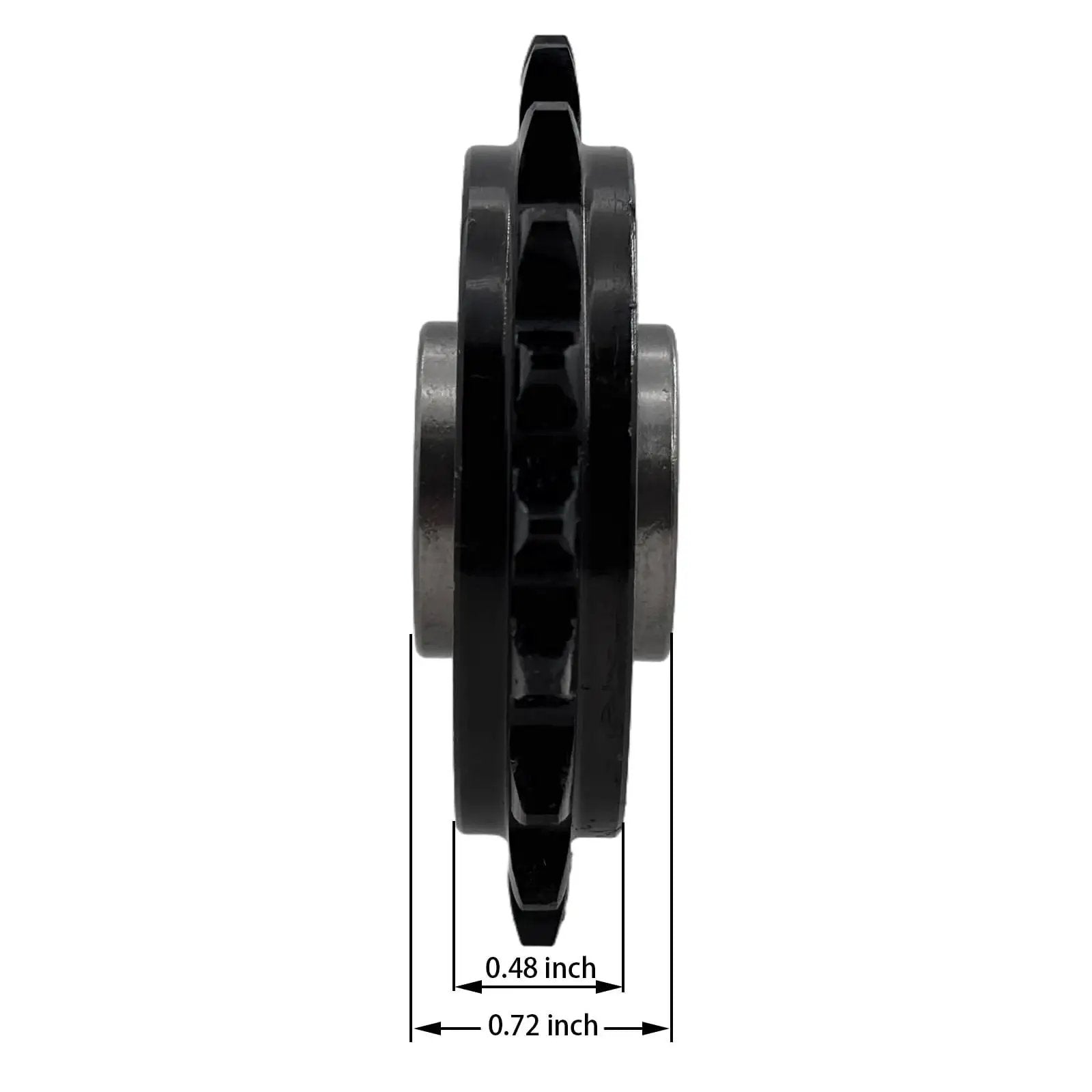

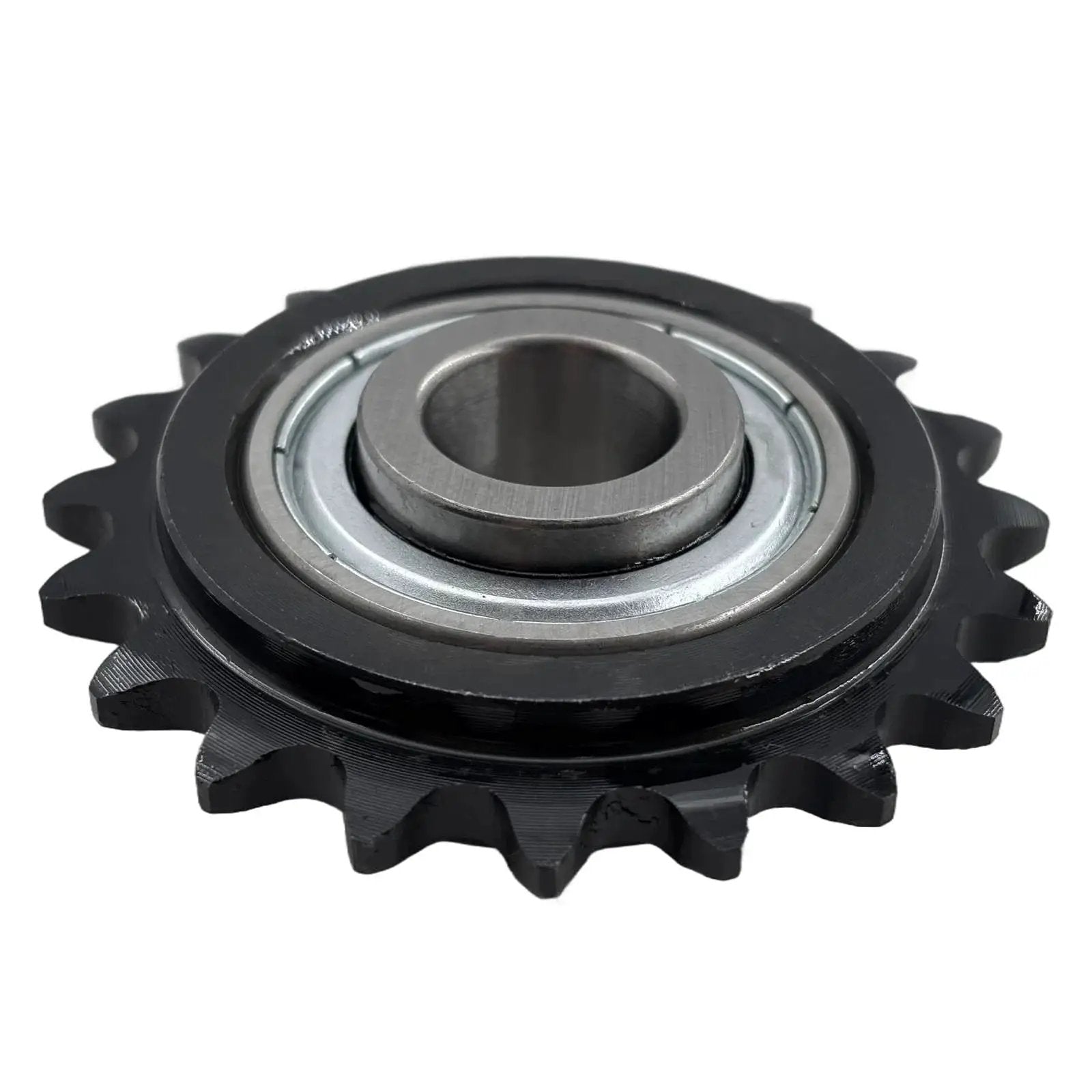

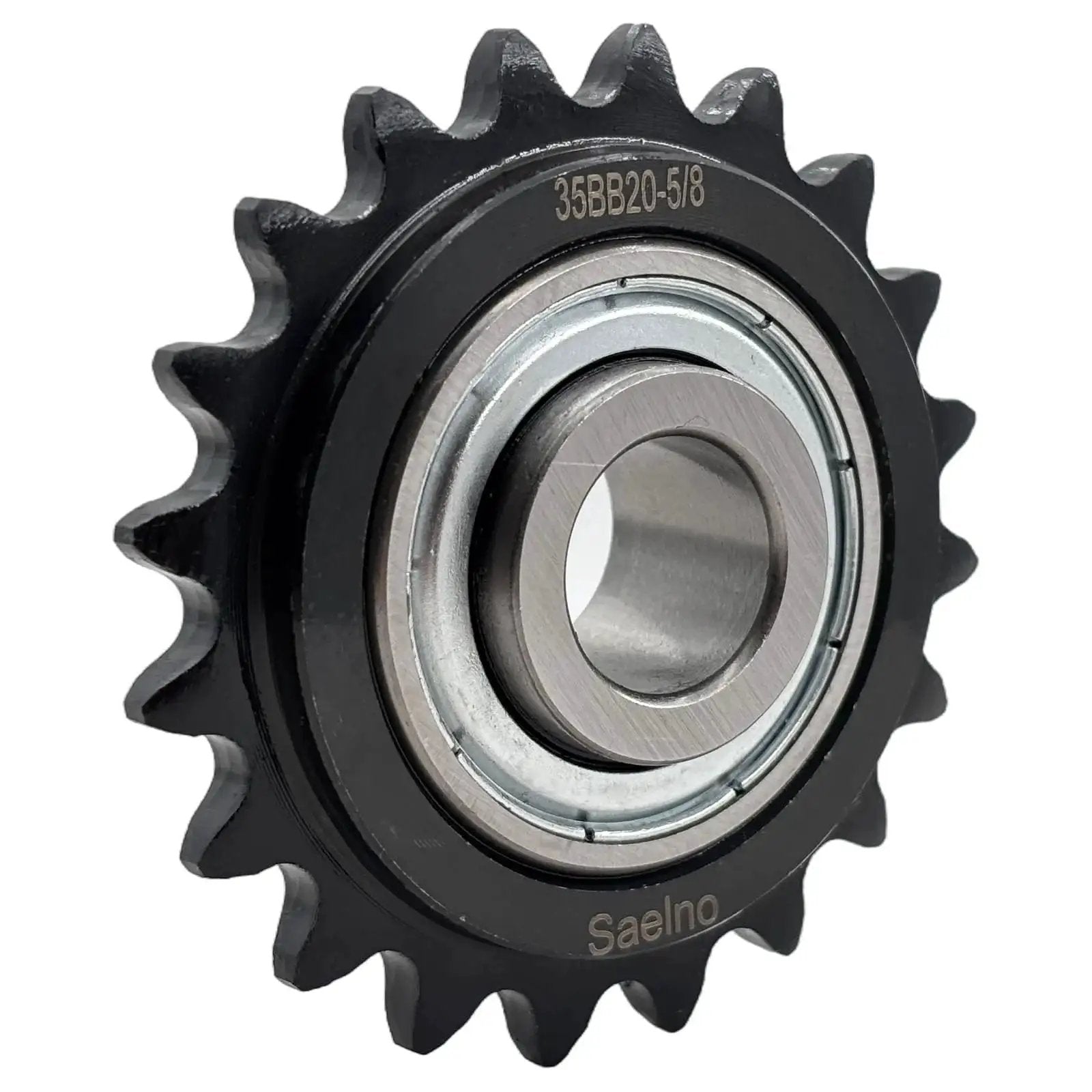

ANSI 35 Roller Chain Idler Sprocket Type C, 5/8 Bore, 20T
✔️ 1x sprocket with bearing 203KRR2, hardened 1045 steel
This Type C roller chain idler for ANSI #35 chain is used for power transmission in agricultural, woodworking, and machine tool setups. It matches 3/8 inch pitch (9.53 mm) and a 5/8 inch bore (15.9 mm) with 20 teeth, delivering stable engagement. The sprocket is made from ANSI 1045 carbon steel and teeth are hardened to HRC 38-42 with high-frequency quenching, while a blackened finish adds corrosion resistance. Interchangeable with Martin, Browning, and other idlers, it's a solid choice for legacy and modern equipment alike.

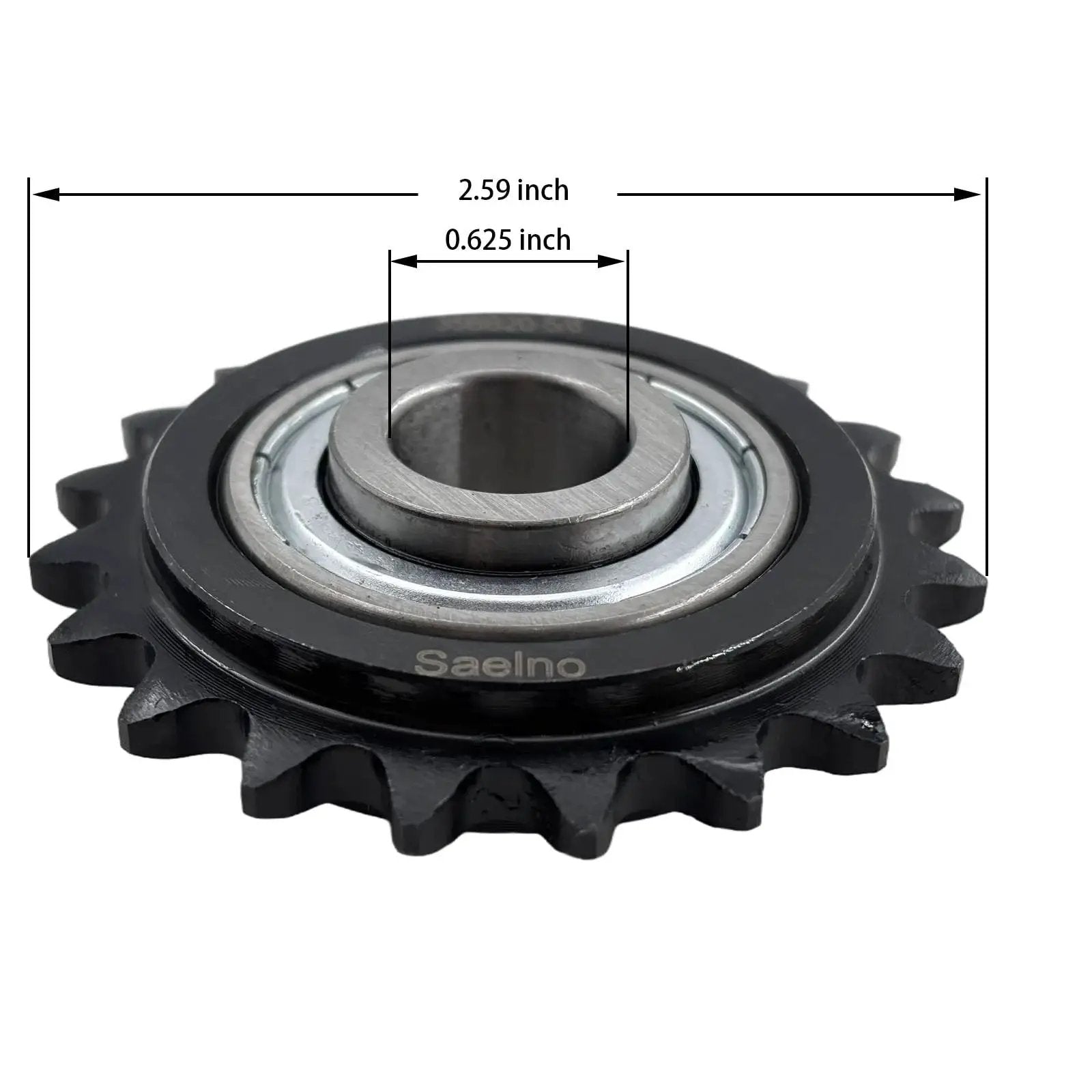

✅ ANSI #35, 3/8 in pitch, 5/8 in bore, 20 teeth, Type C
✅ Material: ANSI 1045 carbon steel, teeth hardened to HRC 38-42
✅ Finish: blackened, corrosion-resistant surface
✅ Includes: 1 x Roller Chain Sprocket, 1 x 203KRR2 bearing
✅ Interchangeable with Martin, Browning, and other idler sprockets
💡 What is a roller chain idler sprocket used for?
A handy overview for power transmission setups:
- Guides and supports chain under load to maintain tension and alignment
- Keeps chain running true to reduce wear and slippage
- Works with ANSI #35 chain, 3/8 inch pitch and 5/8 inch bore
