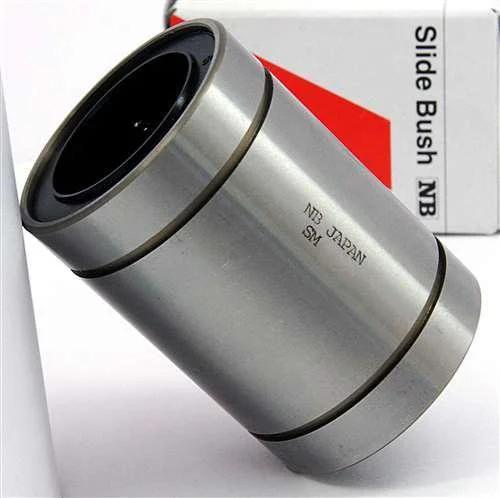

NB SW16G 1"inch Ball Bushings Linear Motion

Name: NB SW16G 1"inch Ball Bushings Linear Motion
Brand: NB
SKU: Kit13887
Price: 133.23 CAD
Availability: OutOfStock

$133.23 CAD

~~$179.86 CAD~~ $133.23 CAD

Sale Sold out

Shipping calculated at checkout.

SW16G:Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

SW16G NB Systems Ball Bushings Linear Motion, 1" Bore linear motion ball bushings/bearings, the inner diameter(bore) is 1" inch dimensions with a resin retainer, bearing is high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

SW16G Linear Motion Ball Bushings
NB Systems Ball Bushings Linear Motion
Quantity: 1 Bearing

Item	Number of ball circuits	Dimensions(Inches)											Eccentricity		radial clearance	basic load rating
		dr			D		L		B		W	D1	Eccentricity			basic load rating
		inch	tolerance inch/mm		inch	tolerance inch/mm	inch	tolerance inch/mm	inch	tolerance inch/mm			precision inch/mm	high inch/mm		dynamic CN	static CoN
		inch	precision	high	inch	tolerance inch/mm	inch	tolerance inch/mm	inch	tolerance inch/mm			precision inch/mm	high inch/mm		dynamic CN	static CoN
SW16G	6	1"	0 -.0003	0 -.0004	1 9/16"	0 -.00065	2 1/4"	0 -.012	1 3/4"	0 -.012	0.068"	1 15/32"	.0004 10	.0006 15	.0002 -6	980	1,570
