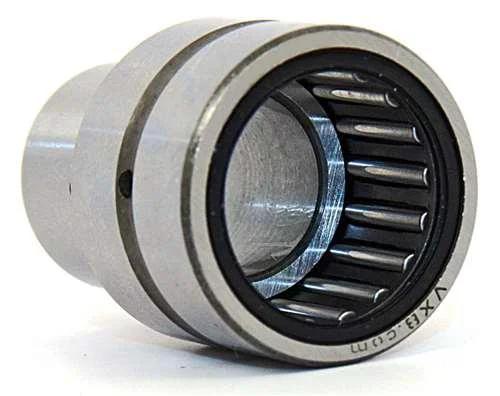

NA4903UU Needle Roller Bearing 17x30x14mm - Machined Type

NA4903UU Needle Roller Bearing 17x30x14mm - Machined Type

$28.54 CAD
$38.52 CAD $28.54 CAD
Sale Sold out
Shipping calculated at checkout.
NA4903UU Needle Roller Bearing
One Bearing



 Machined type needle roller bearing NA4903UU, the NA4903UU inner diameter is 20mm, the outer diameter is 37mm, width of the cone (inner ring) is 14mm and the outer ring width is 13mm.
  • NA4903UU Bearing
  • Machined Needle Roller Bearing
  • Closures: Rubber Sealed (both sides)
  • Dimensions: 17mm x 30mm x 14mm /Metric
  • ID (inner diameter)/Bore: 17mm
  • OD (outer diameter): 30mm
  • inner ring: 14mm
  • outer ring: 13mm
  • Size: 17mm x 30mm x 14mm
  • Quantity: 1 Complete Bearing - Inner Cone Included
  • Dynamic Load Rating: 1,050 KGF
  • Static Load Rating: 1,340 KGF


Dimensions
d dr D B B1
17mm 22mm 30mm 13mm 14mm
