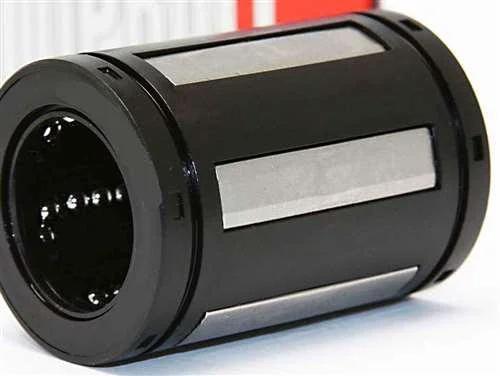

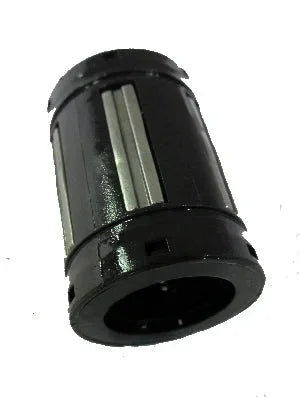

LMES16 Self Aligning Ball Bushings 16mm Linear Motion Bearing

LMES16 16 Bore High Load Standard type TopBall metric type linear motion ball bushings/bearing inner diameter(bore) is 16 mm dimensions with built-in seals. the Topball slide bush is a high performance bushing with three times the load capacity capable of providing up to 27 times normal travel life of a conventional slide bushing high accuracy grade linear bushings series mainly used in the USA.

• LMES16 Ball Bearing
• Linear Motion Ball Bushing
• Ball circuit: 5
• Size: 16 x 26 x 36 mm
• Bearing Inner Diameter: 16 mm
• Bearing Outer Diameter: 26 mm
• Bearing Length: 36 mm
• Dynamic Load Rating: 1250 N
• Static Load Rating: 1550 N
• Quantity: 1 Bearing
