LMB4812NAJ 4 inch Linear Motion Bearing Ball Bushing

Name: LMB4812NAJ 4 inch Linear Motion Bearing Ball Bushing
Brand: NB
SKU: LMB4812NAJ
Price: 2506.90 CAD
Availability: OutOfStock

$2,506.90 CAD

~~$3,384.30 CAD~~ $2,506.90 CAD

Sale Sold out

Shipping calculated at checkout.

LMB4812NAJ:Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems

LMB4812NAJ 1/4" Bore linear motion ball bushing/bearing, innerdiameter(bore) is 4" inch dimensions with steel retainer, Bearing is a high accuracy grade linear bushing, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.

LMB4812NAJ Linear Motion Ball Bushing
NB Systems Linear Motion Ball Bushing
Quantity: 1 Bearing
Size: 4" x 6" x 8" inch
Inner Diameter: 4" inch
Outer Diameter: 6" inch
Length: 8" inch
Dynamic load rating: 14,100 N
Static load rating: 34,800 N

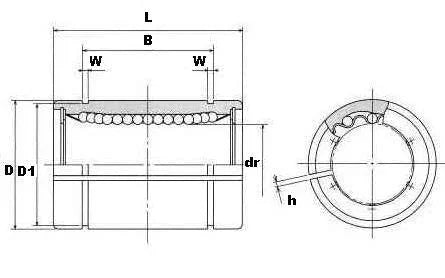

Major dimensions and tolerance (inch)											Eccentricity		Radial clearance (inch)
dr			D		L		B		W	D1	Precision (inch)	High (inch)
inch	tolerance		inch	tolerance	inch	tolerance	inch	tolerance
inch	Precision	High	inch	tolerance	inch	tolerance	inch	tolerance
4"	0-.0004	0-.0008	6	0-.001	8	0-.016	6.258	0-.016	0.1389	5-3/4"	.0008-20	.0012-30	.0008-20
