VXB

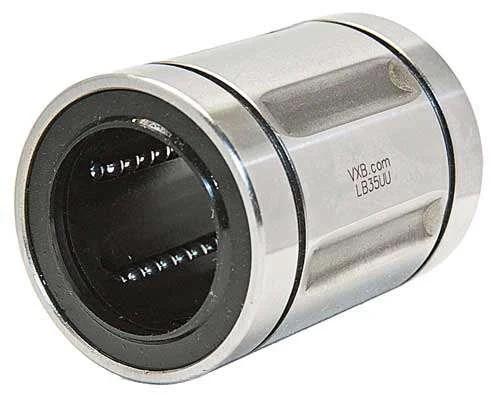

LB35UU 35mm Ball Bushing 35x52x70 Linear Motion Bearing

Name: LB35UU 35mm Ball Bushing 35x52x70 Linear Motion Bearing
Brand: VXB
SKU: Kit12130
Price: 31.70 CAD
Availability: OutOfStock

$31.70 CAD

~~$42.78 CAD~~ $31.70 CAD

Sale Sold out

Shipping calculated at checkout.

Linear Ball Bushings LB35UU
Works with 35mm Shafts
35mm x 52mm x 70mm

LB35UU Linear Ball Bushing works with a 35mm Shafts, Size is 35mm x 52mm x 70mm, the inner Diameter is 35mm, the outer Diameter is 52mm and the Length is 70mm.

LB35UU Bearing
Linear Ball Bushing
Ball circuit: 6
Size: 35 x 52 x 70 mm
Quantity: 1 Bearing
Dynamic load rating Cr: 1,670 N
Static load rating Cor: 3,140 N

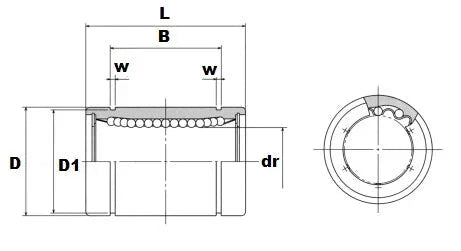

Major dimensions and tolerance (mm)												Eccentricity		Radial clearance (mm)


d			D		L		B		W	D1	h1	Precision (mm)	High (mm)
mm	tolerance		mm	tolerance	mm	tolerance	mm	tolerance
mm	Precision	High	mm	tolerance	mm	tolerance	mm	tolerance
35	0-8	0-12	52	0-19	70	0-300	49.5	0-300	2.1	49	17	12	20	-8
