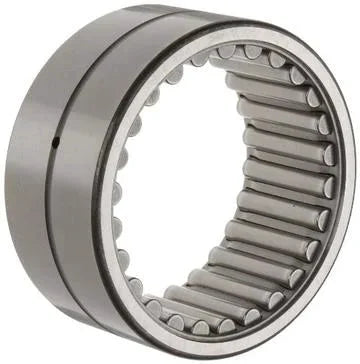

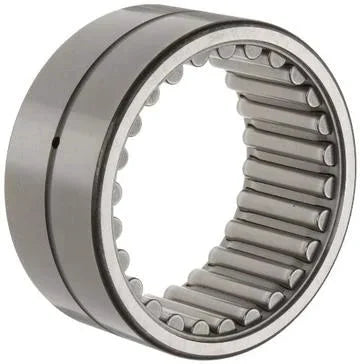

HJ202816 Needle Roller Bearing 1-1/4" x 1-3/4" x 1 inch - Machined Type

Needle Roller Bearing 1-1/4" x 1-3/4" x 1"
✔️ HJ202816 - Machined Type, High Load, One-Piece

The HJ202816 is a machined-type needle roller bearing built to handle tight radial spaces and high load demands. With a 1-1/4" inner diameter, 1-3/4" outer diameter, and 1" width, it’s commonly used in transmissions, gearboxes, and heavy-duty machinery. Made for strength and speed, this bearing runs up to 13,000 RPM. Ships as one bearing.

✅ Pack size: 1 bearing
✅ Inner diameter: 1-1/4" inch
✅ Outer diameter: 1-3/4" inch
✅ Width: 1" inch
✅ Type: Machined needle roller bearing
✅ Dynamic load rating (Cr): 36,000 N
✅ Static load rating (Cor): 53,500 N
✅ Max speed: 13,000 RPM

Dimension Table:

💡 Why choose a machined-type needle roller bearing for compact assemblies?
They’re built for high load in low-clearance areas:

• Slim profile fits in compact radial spaces

• Handles heavy radial forces with needle rollers

• Machined outer ring improves alignment and durability

• Ideal for gearboxes, transfer cases, and transmissions

Tight on space but big on load? This bearing’s built for it. Add one to your cart and let it take the pressure!
