Powerful 12V Linear Actuator with 660LBS, 6in Stroke
✔️ Single unit pack; 12V actuator, 660LBS, 6in stroke, IP65

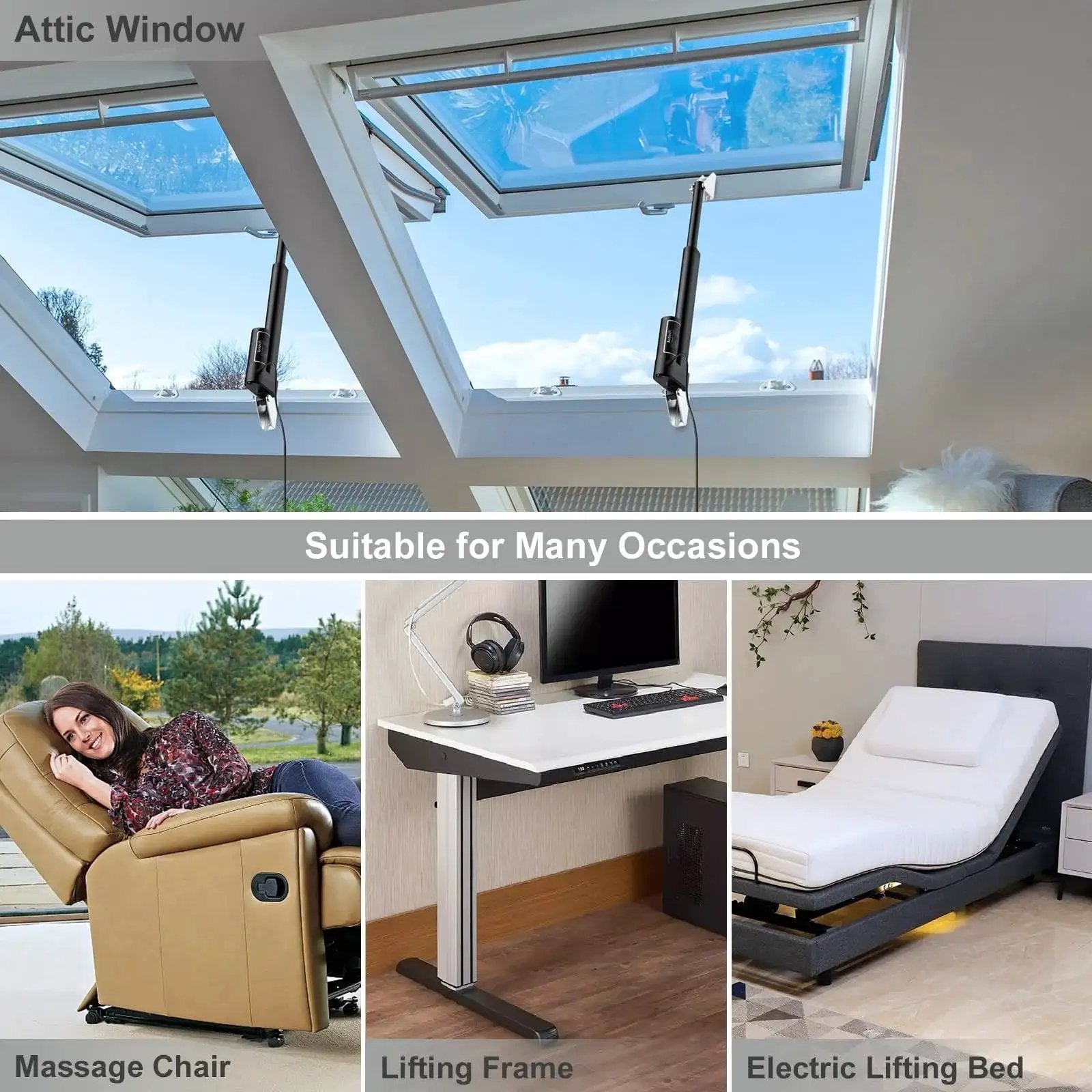

The heavy-duty 12V linear actuator delivers reliable push/pull motion for windows, gates, farm equipment, vehicle modifications, solar trackers, and DIY automation projects. It's built to offer smooth, quiet operation in both indoor and outdoor settings.

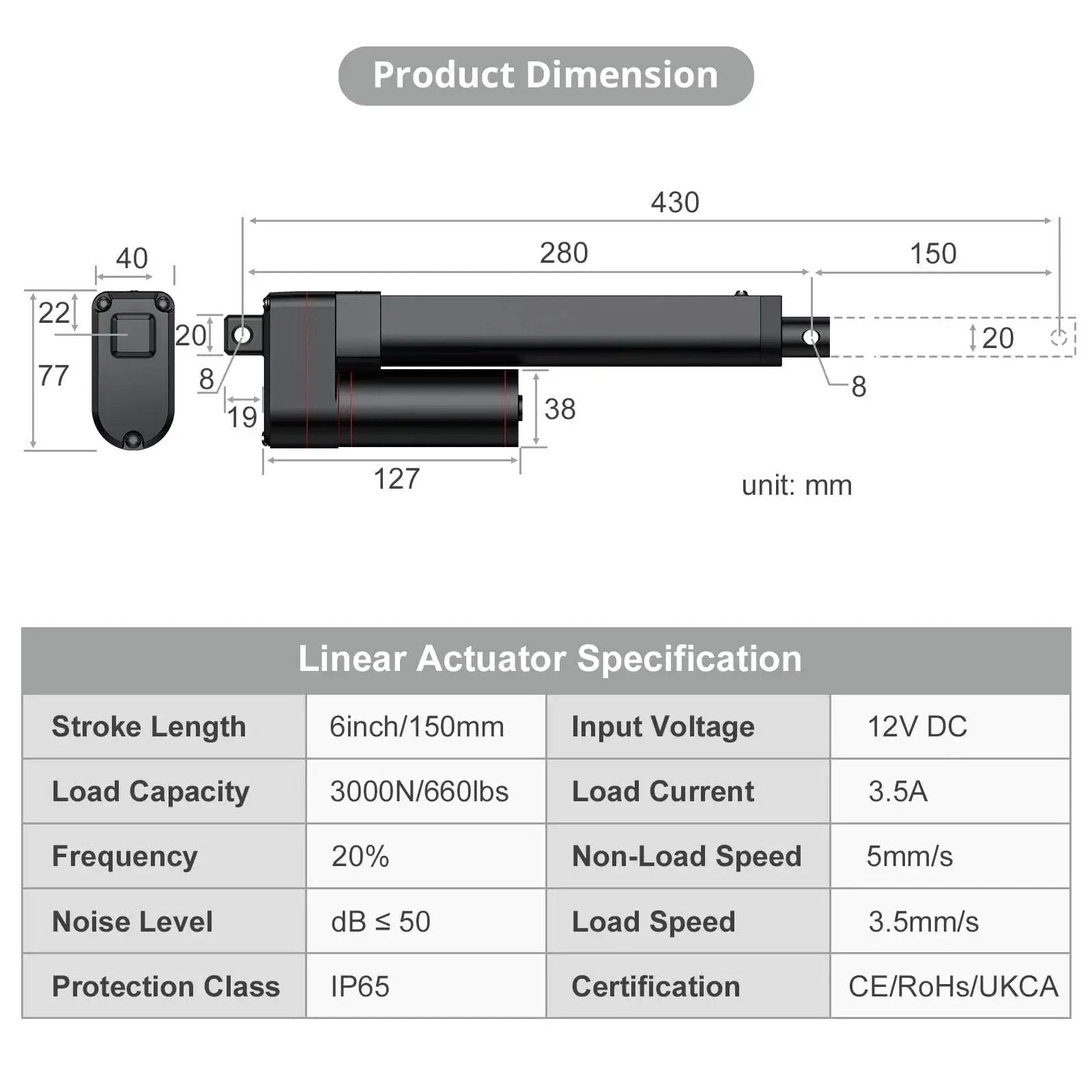

✅ Max load: 660 LBS (3000 N) for push/pull
✅ Stroke length: 6 in (150 mm)
✅ Retracted length: 11 in (280 mm); Extended length: 17 in (430 mm)
✅ Non-load speed: 5 mm/s; Load speed: 3.5 mm/s
✅ Non-load current: 1.2 A; Load current: 4 A

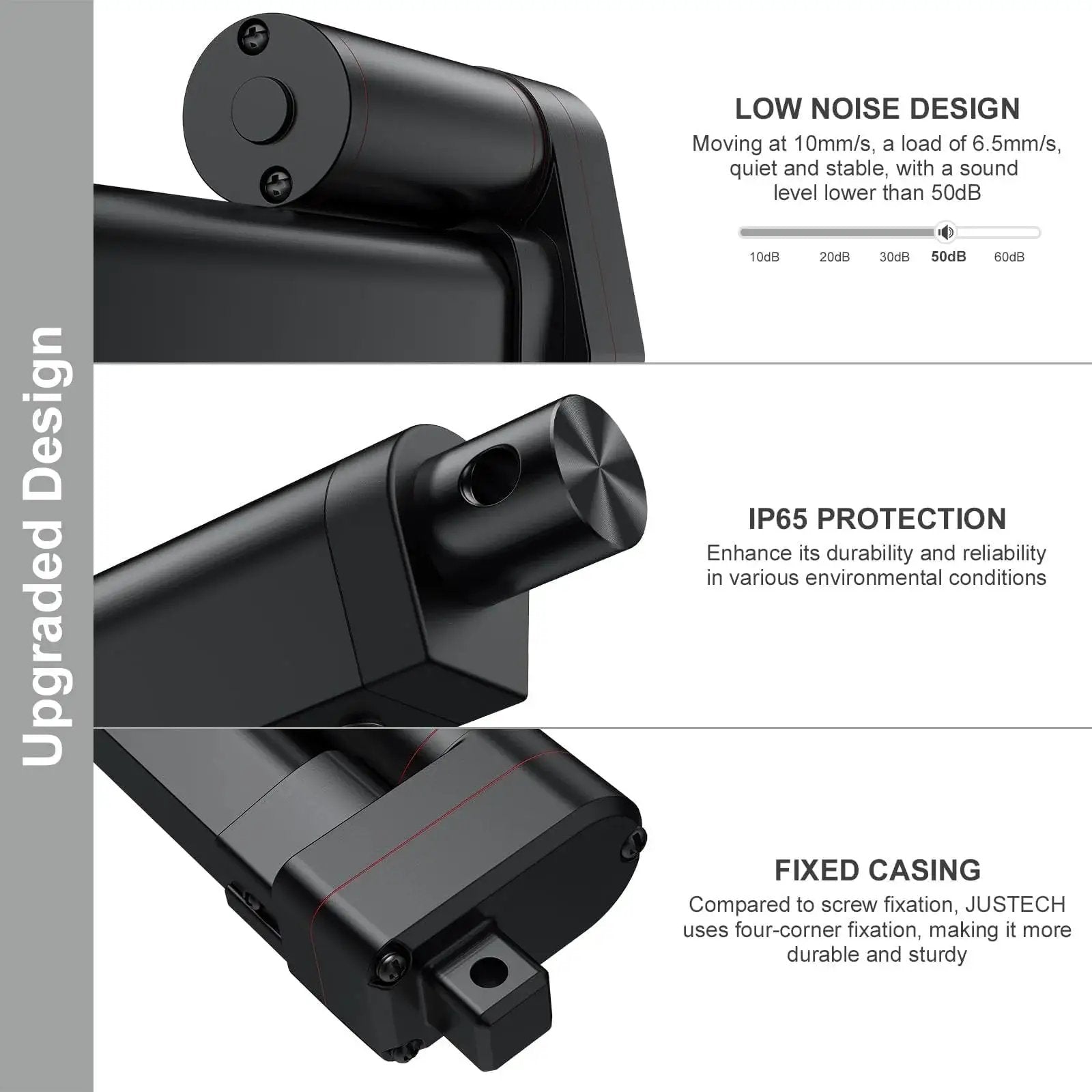

✅ IP65 rated; Silent operation under 50 dB

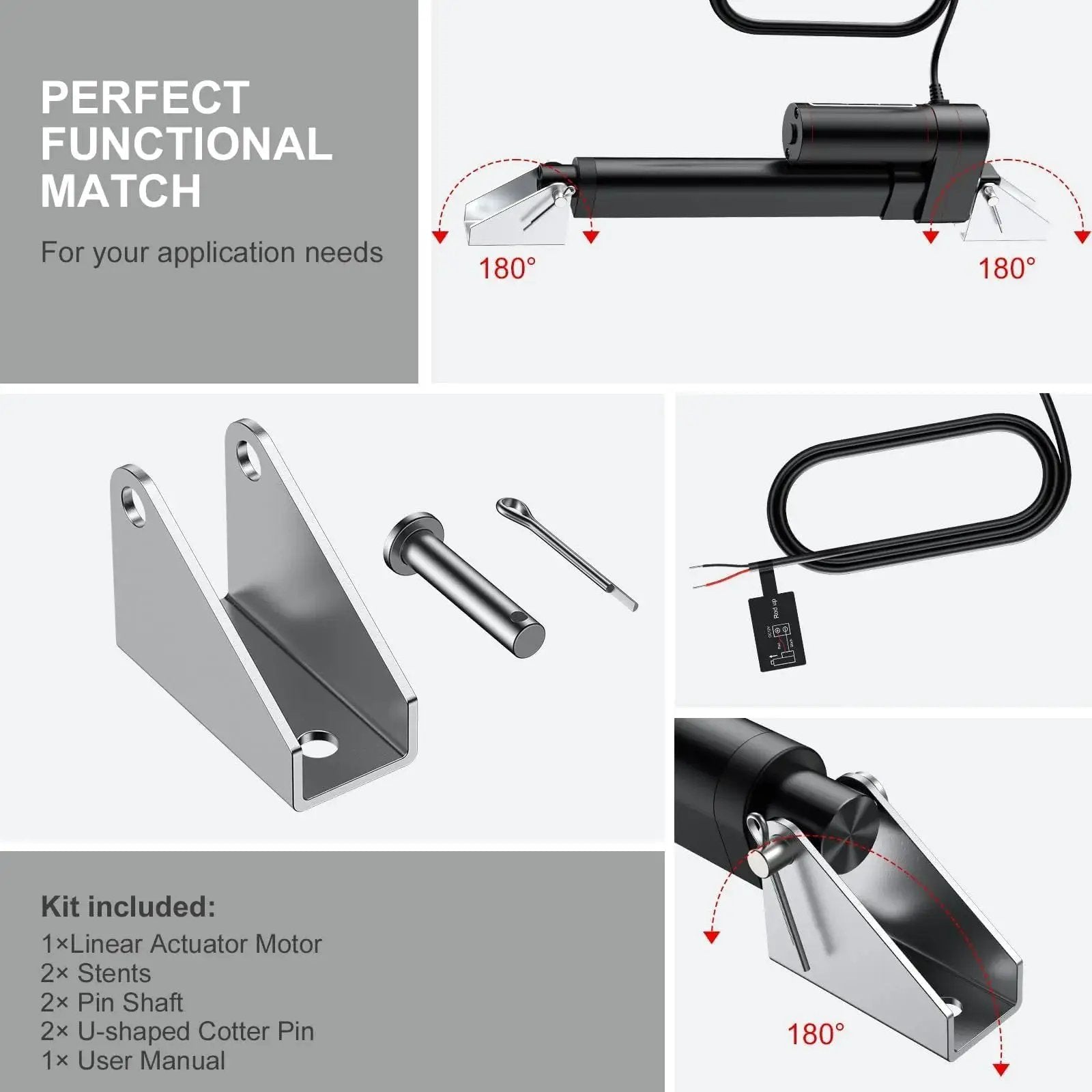

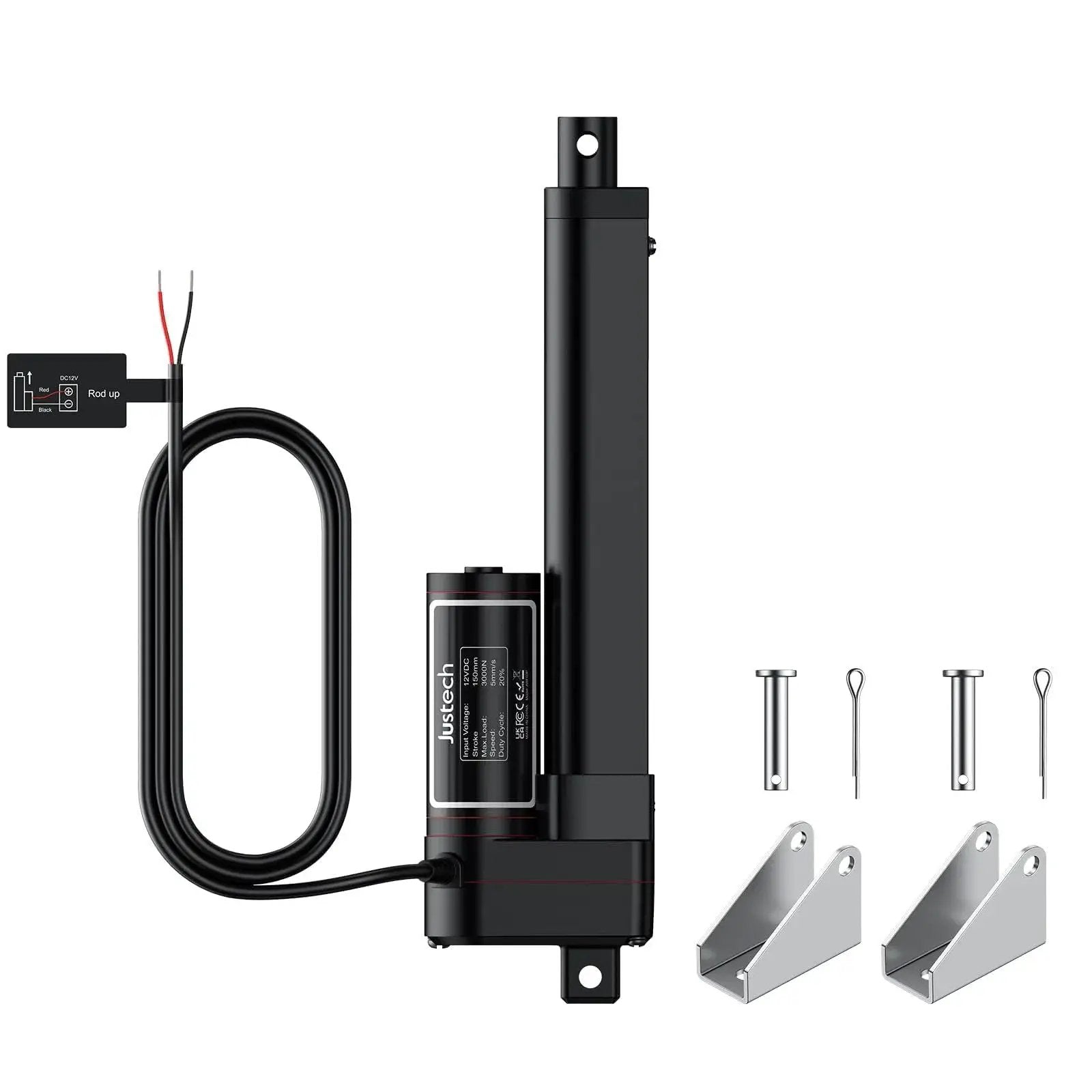

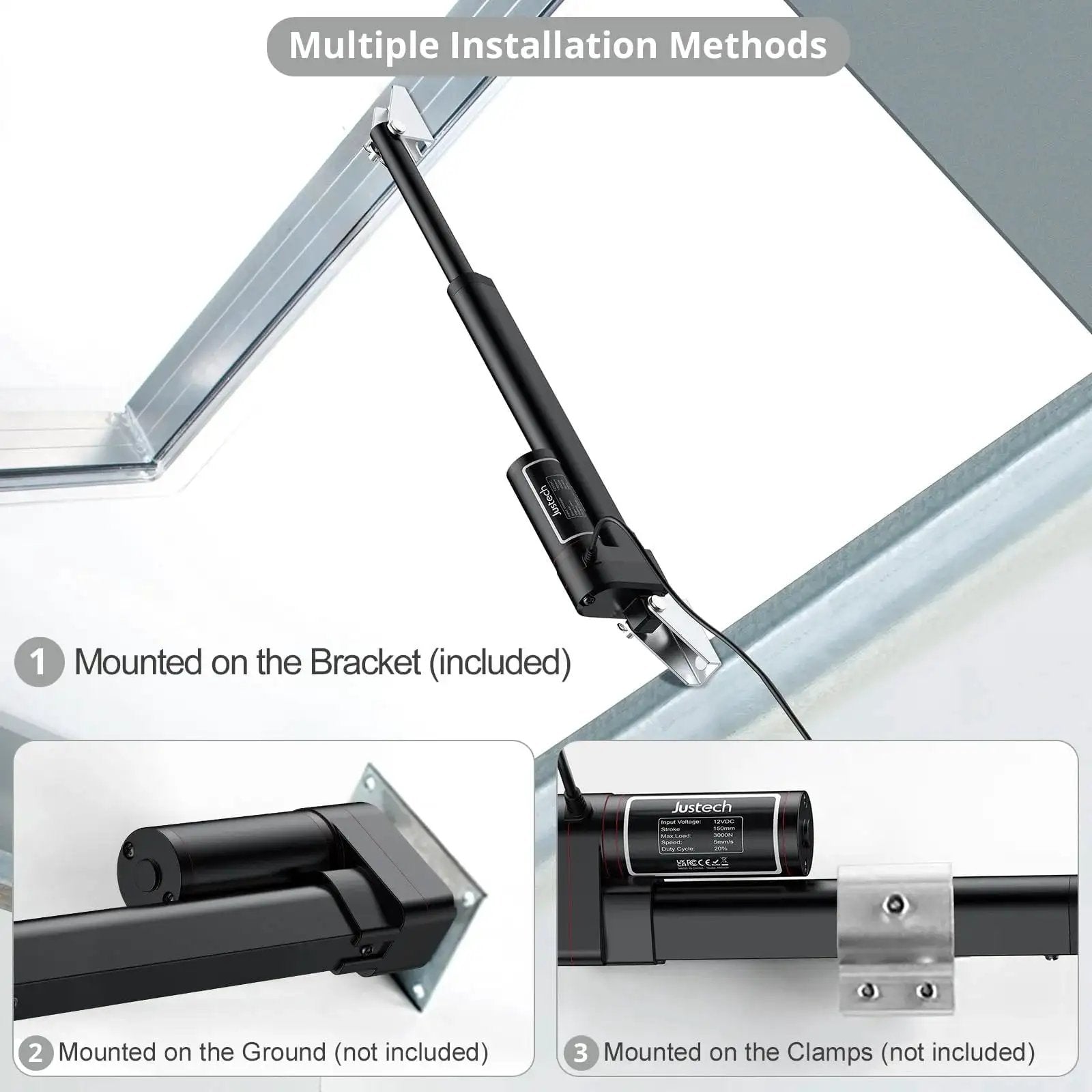

✅ Includes mounting brackets; CE, RoHS, UKCA certified
💡 What is a 12V linear actuator used for in hands-on home and industrial projects?
A handy device that turns rotation into straight-line motion, enabling automation in tight spaces.
- High-load pushing and pulling for doors, hatches, and lifts
- Quiet operation suitable for indoor environments and quiet workshops

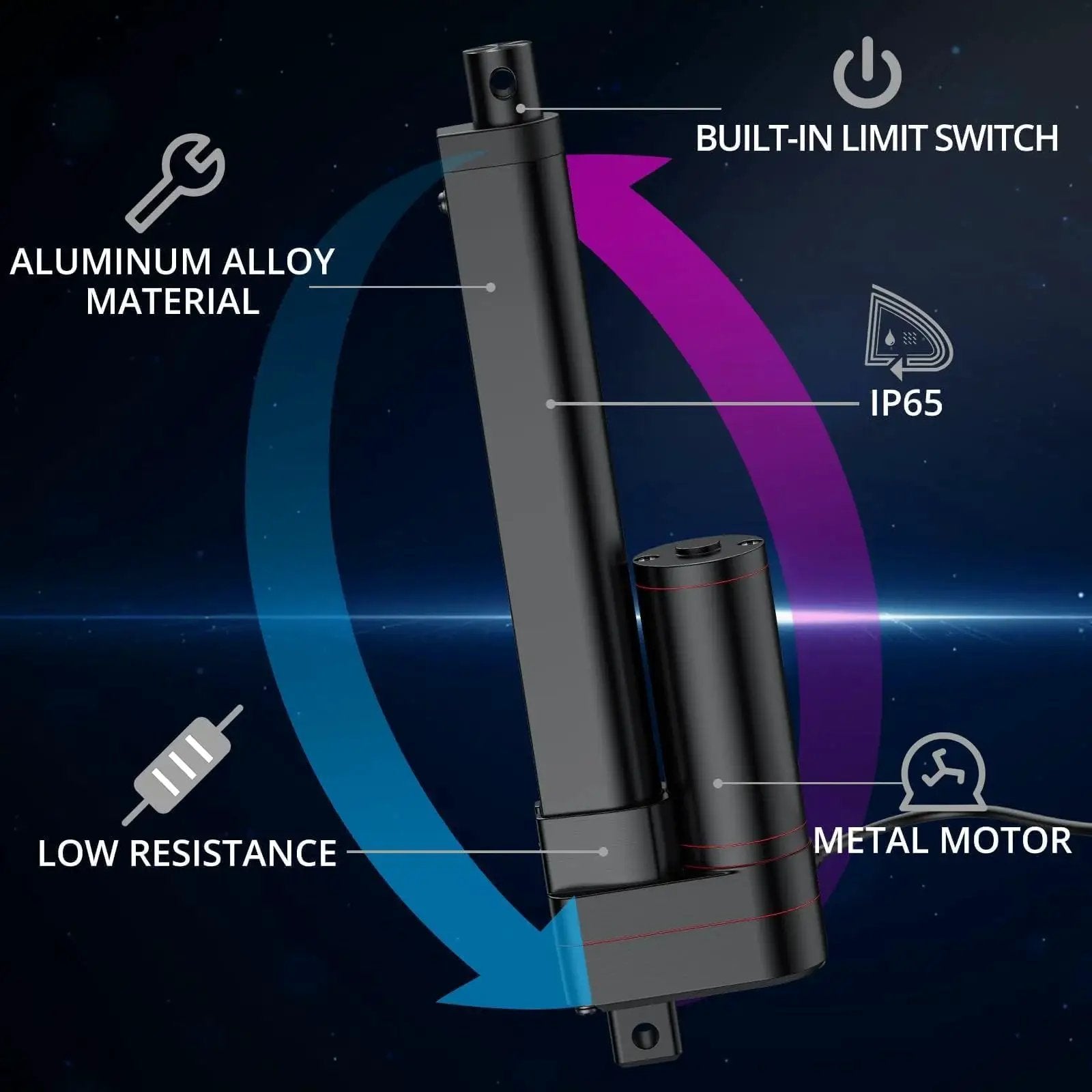

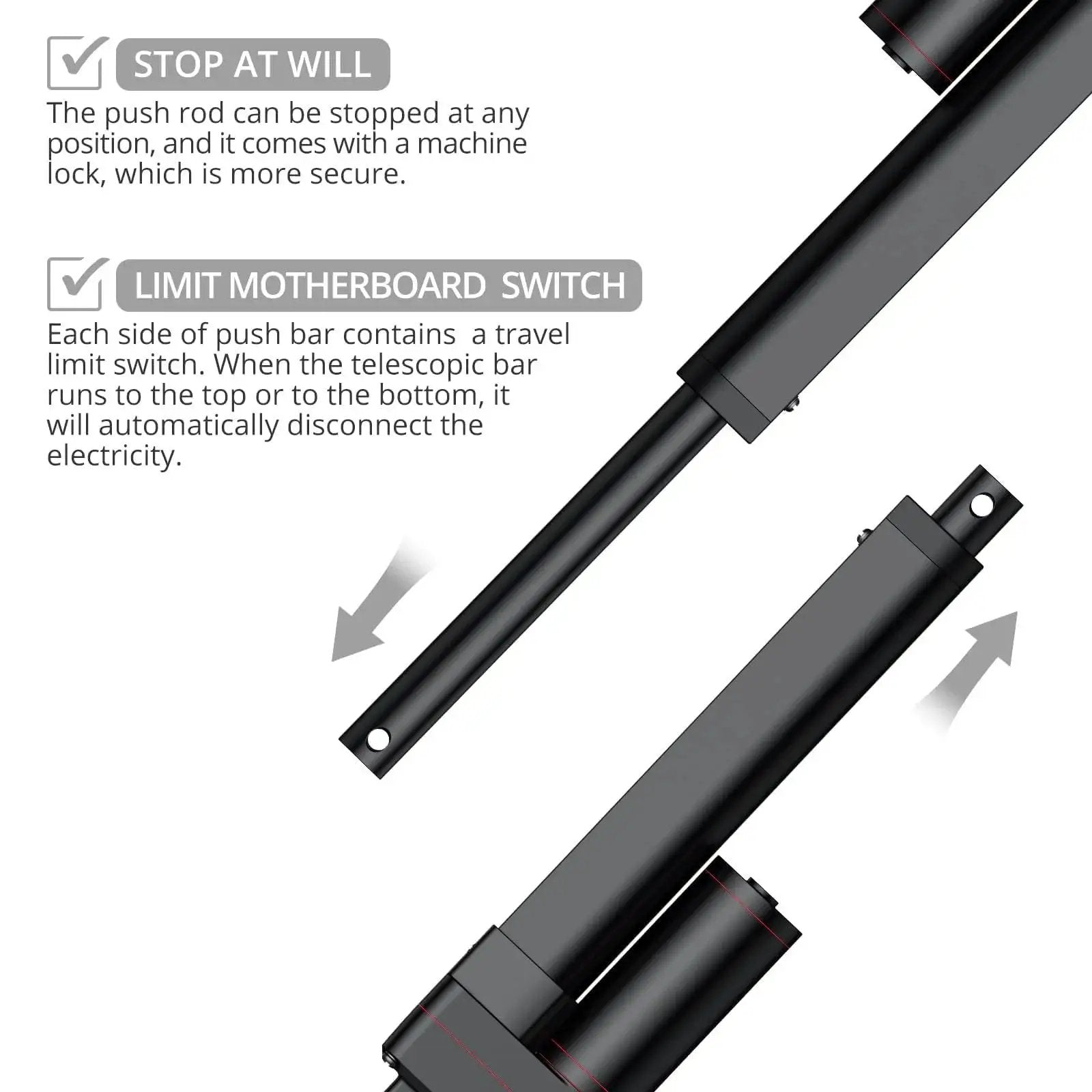

- Easy integration with limit switches, sensors, and control circuits
- Outdoor use thanks to IP65 protection for rain or dust
