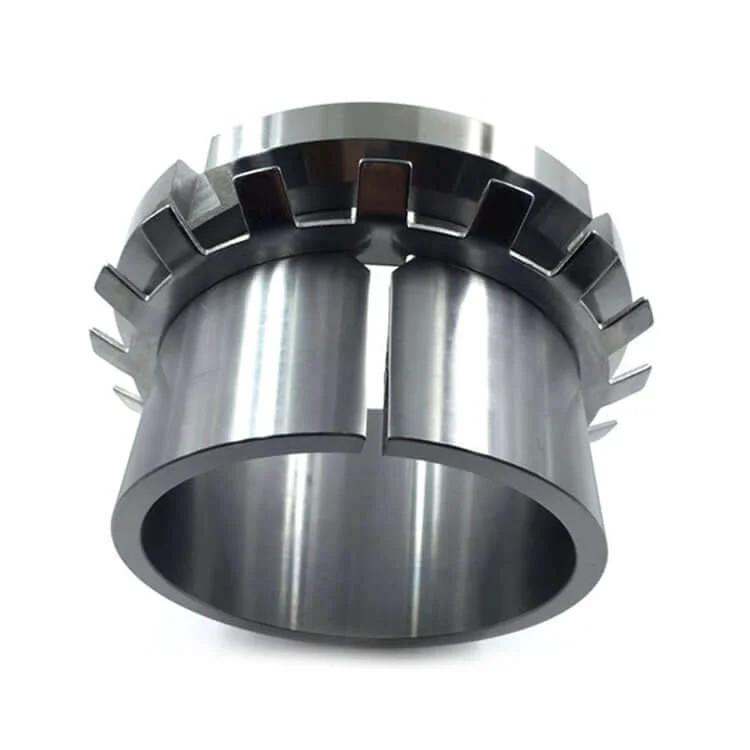

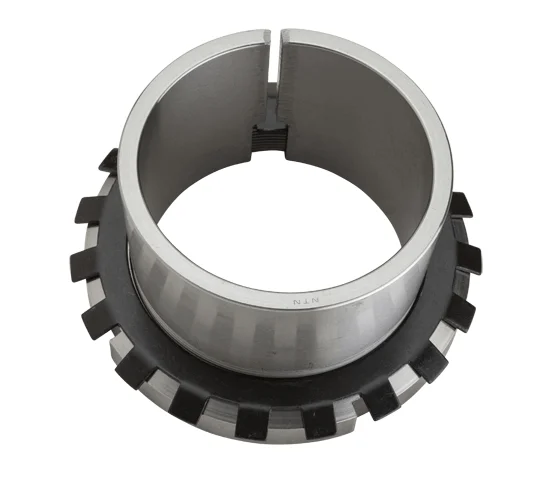

H219 Bearing Housing Adapter Sleeve with Lock Nut & Washer
H219 Bearing Housing Adapter Sleeve with Lock Nut & Washer
Regular price
$76.10 CAD
Regular price
$102.73 CAD
Sale price
$76.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

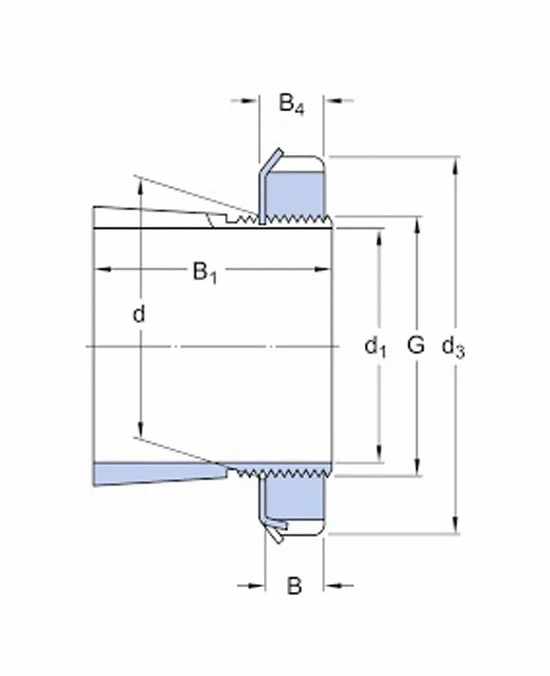

H219 Adapter Sleeve Specifications
| Feature | Specification |
|---|---|
| Adapter Sleeve Designation | H219 |
| Suitable Shaft Diameter (d) | 85 mm |
| Bore Diameter of Sleeve (d1) | 90 mm |
| Thread (G) | M90 × 2 |
| Sleeve Width (B1) | ~60 mm |
| Lock Nut Designation | KM19 |
| Lock Washer Designation | MB19 |
| Compatible Bearings | 2219K, 1319K, 1219K, etc. |
| Material | Typically carbon steel |
| Used With | Tapered bore bearings on cylindrical shafts |
This sleeve assembly allows a tapered bore bearing to be mounted onto a straight shaft by tightening the lock nut, which pulls the bearing onto the sleeve and locks it in place using the washer.
