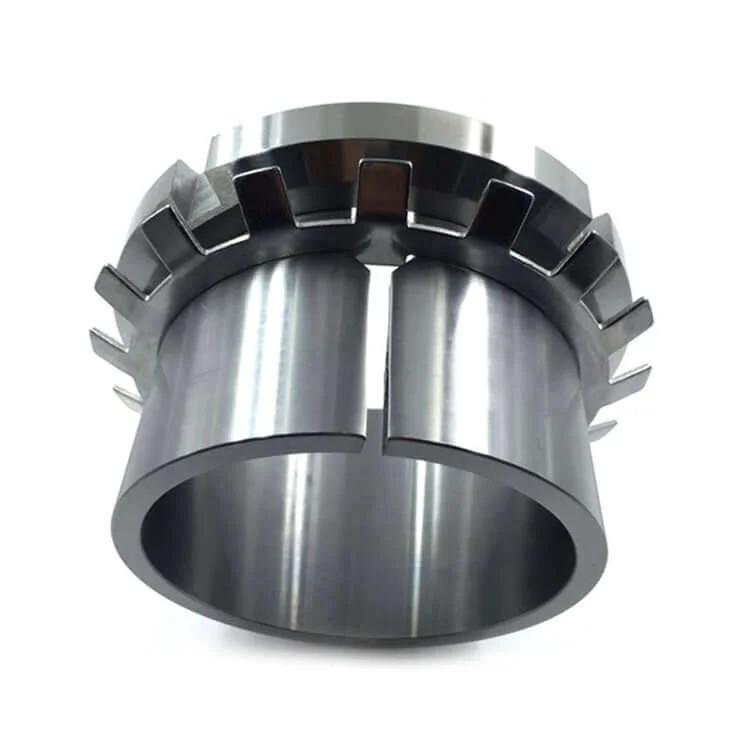

• H216 Bearing Housings Adapter Sleeves w/Lock Nut & Washer, close-up view of the metal sleeve with locking features.

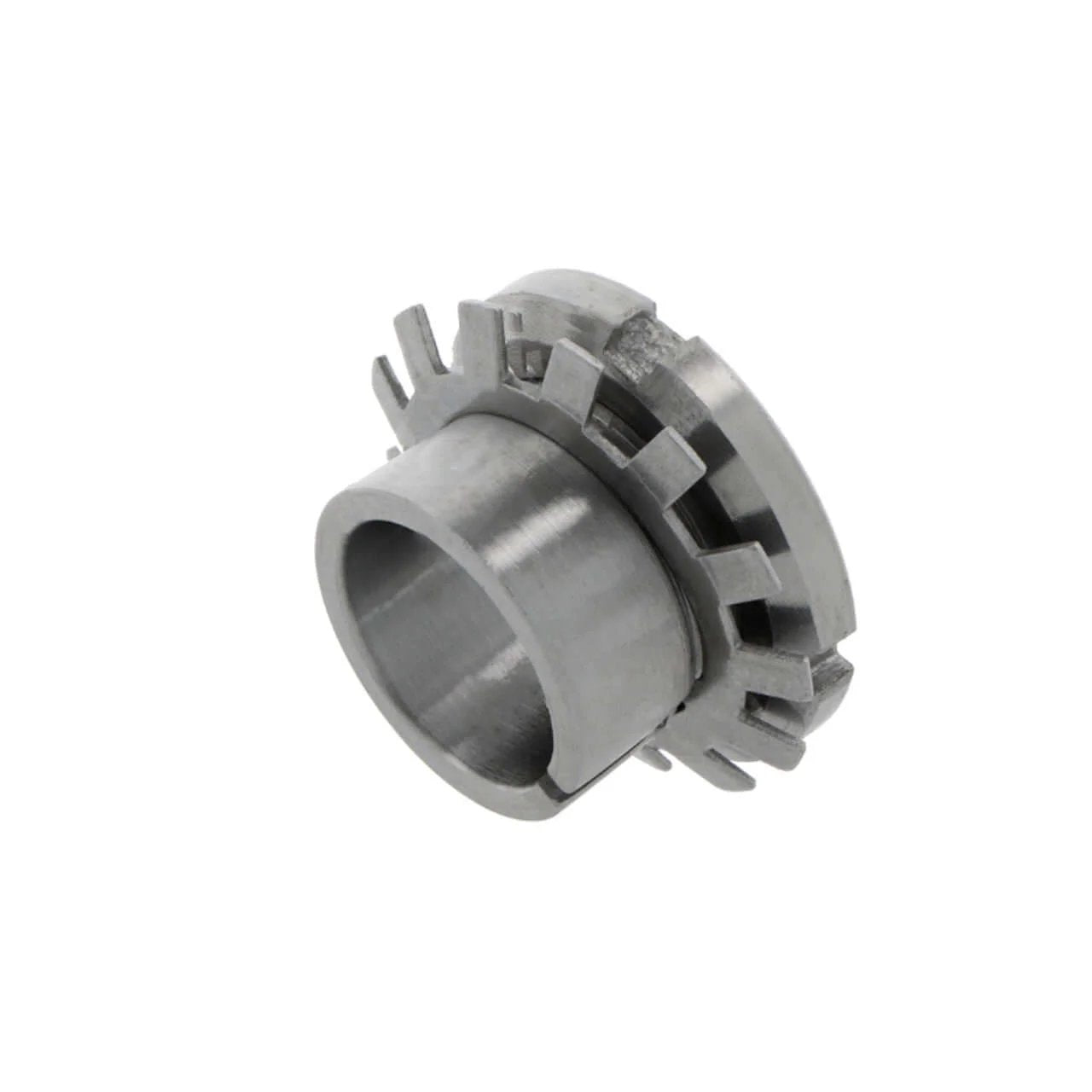

  • H216 Bearing Housings Adapter Sleeves w/Lock Nut & Washer, side view of adapter sleeve, metal construction, tapered bore design.

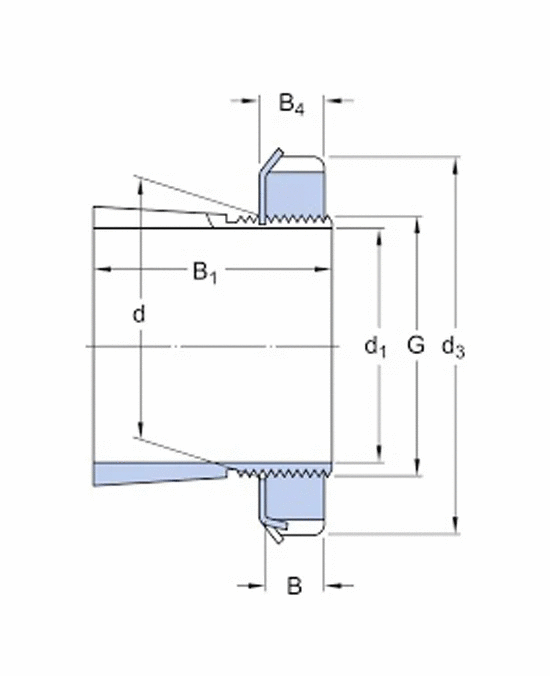

  • Illustration of H216 Bearing Housings Adapter Sleeves w/Lock Nut & Washer dimensions and structure.
1 3

Rubber Belts Online

H216 Bearing Housings Adapter Sleeves w/Lock Nut & Washer

H216 Bearing Housings Adapter Sleeves w/Lock Nut & Washer

$57.06 CAD
$77.04 CAD $57.06 CAD
Sale Sold out
Shipping calculated at checkout.

šŸ”© H216 Adapter Sleeve, General Specifications:

Parameter Value
Designation H216
Suitable shaft diameter (d) 70 mm
Adapter sleeve bore (d1) 80 mm
Thread (G) M70Ɨ2
Lock nut KM16
Locking washer MB16
Width (B1) ~52 mm (varies slightly by brand)
Fits bearing inner bore Tapered bore (1:12)
Common housing match SNL 516-613, SNL 516-615, etc.

āœ… Application Context:

  • Used With: Bearings with tapered bores (e.g., 2216K, 1316K, 22216K).

  • Mounting: Converts a smooth cylindrical shaft to accept a tapered bore bearing.
