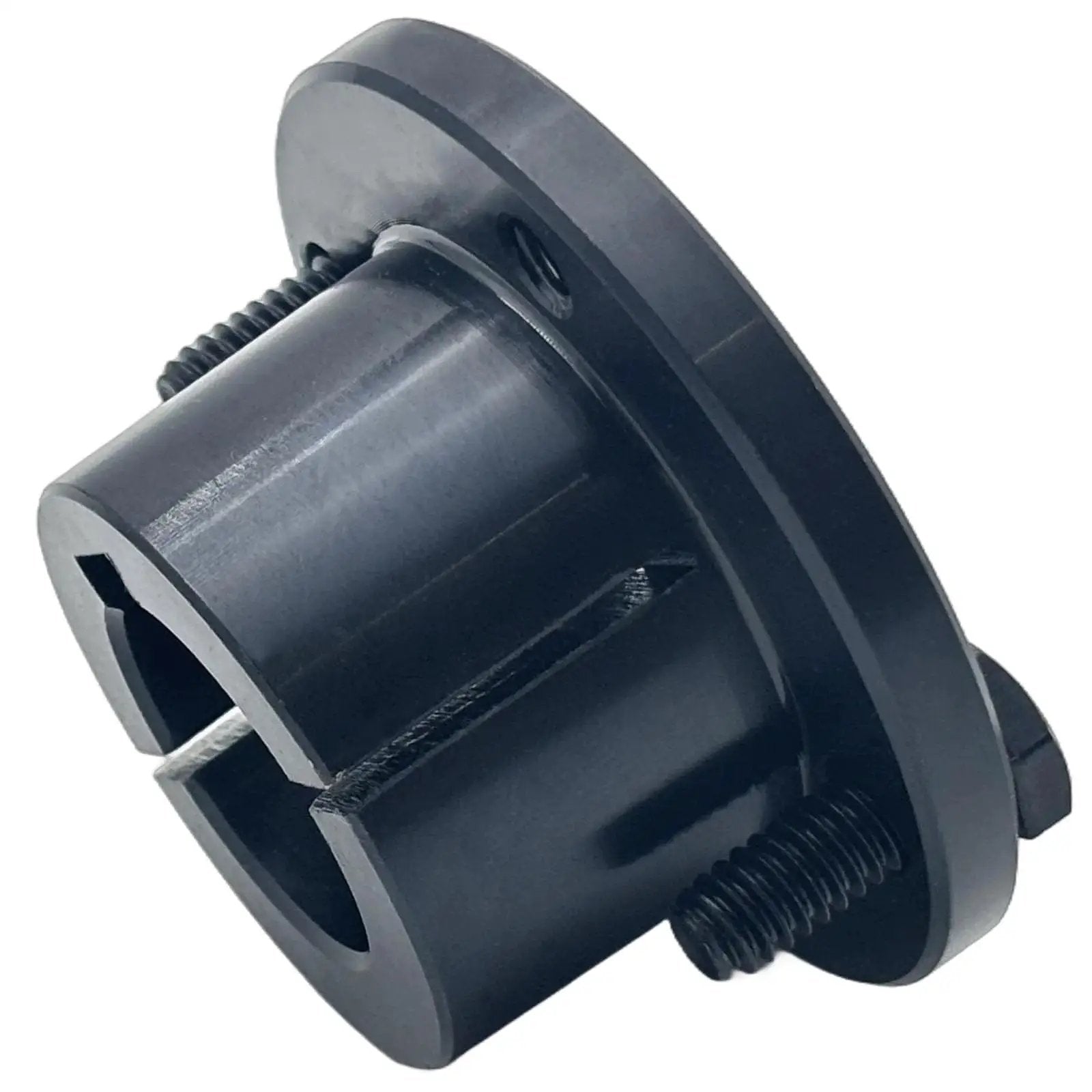

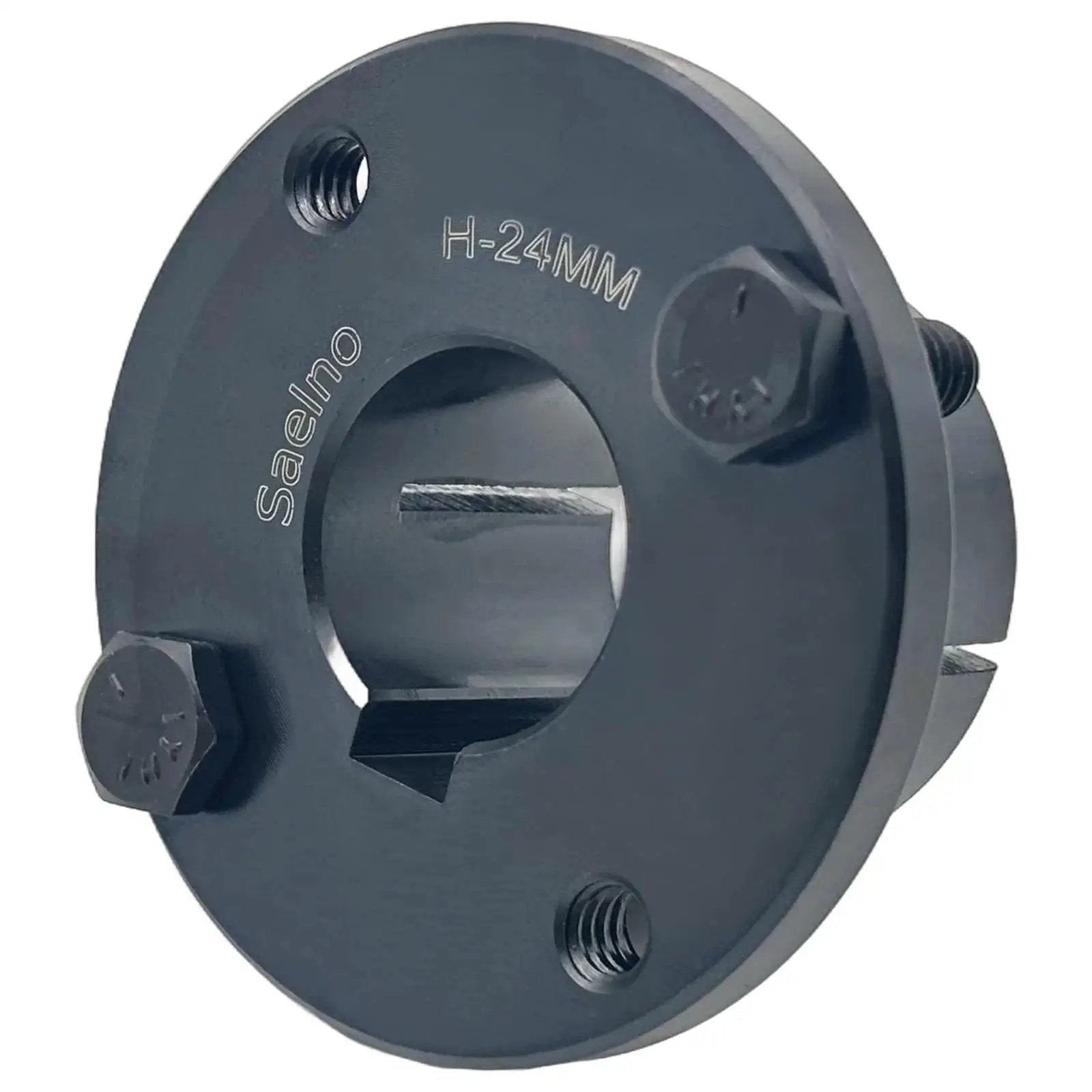

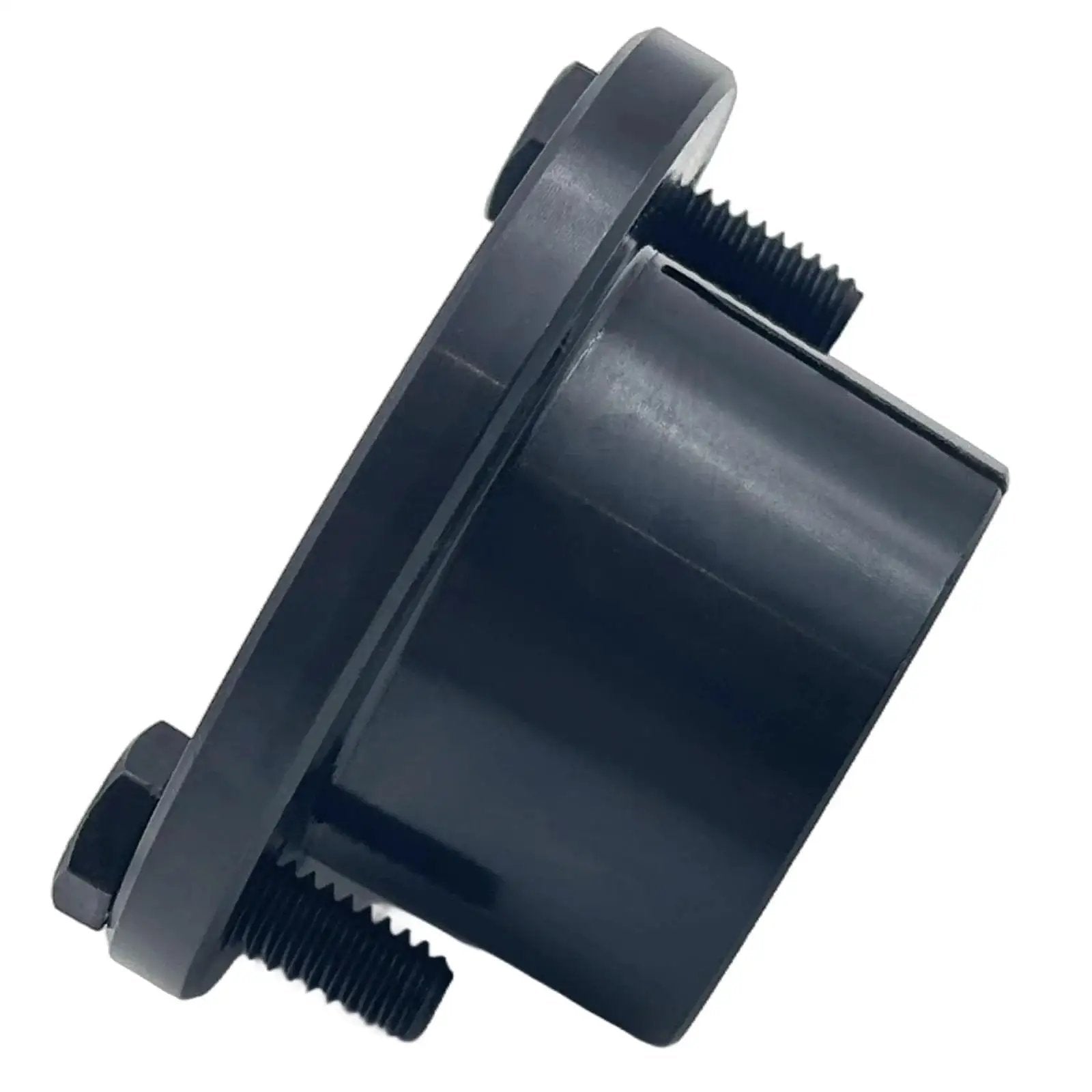

H-Type 24mm Split Taper Bushing for Pulleys (1 pc)

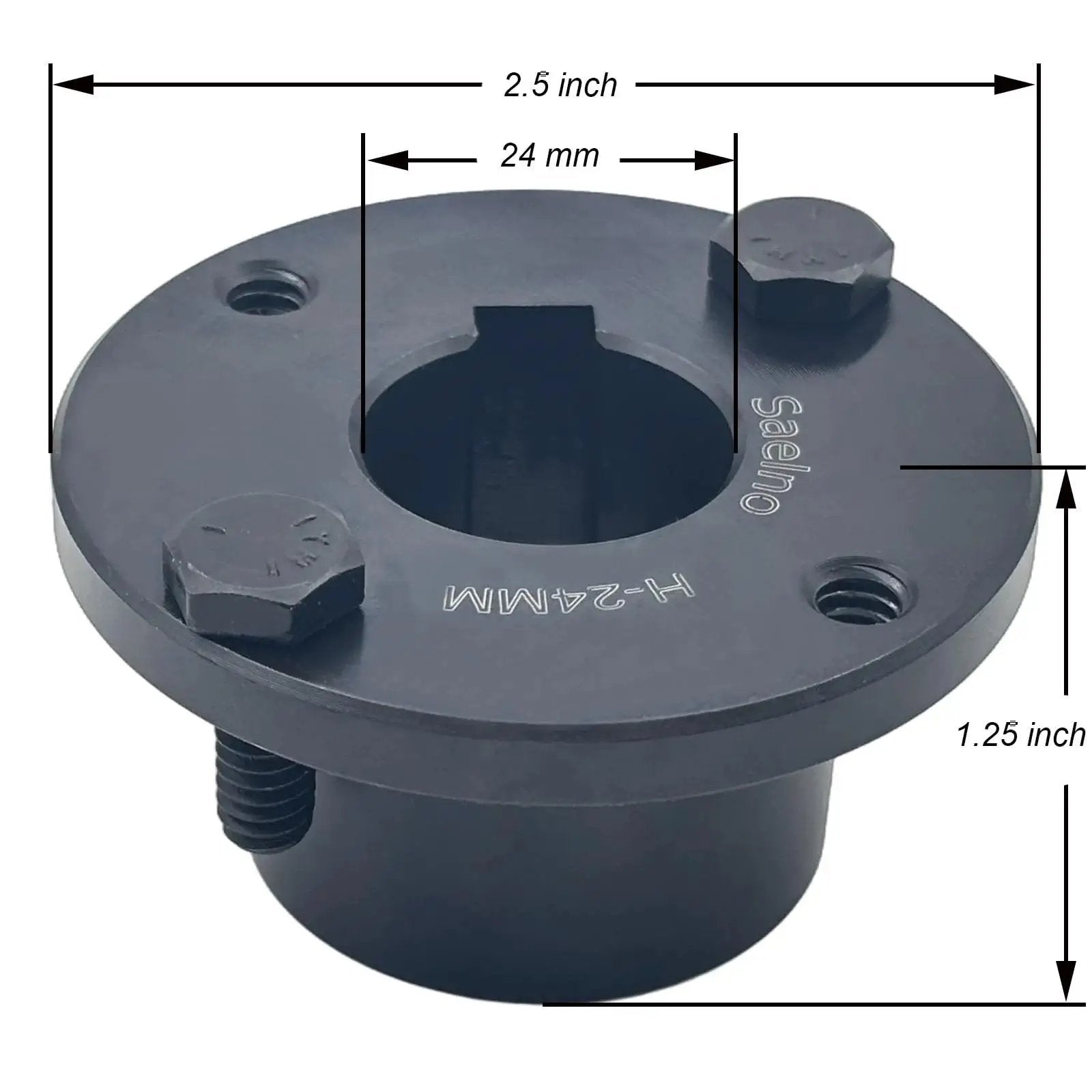

✔️ 24 mm bore, 8x3.3 keyseat, carbon steel, black oxide finish
This locking bushing locks H-type taper pulleys and sheaves onto a 24 mm shaft, delivering a secure drive connection in belt systems and industrial machinery.
✅ Shaft diameter: 24 mm (0.945 in)

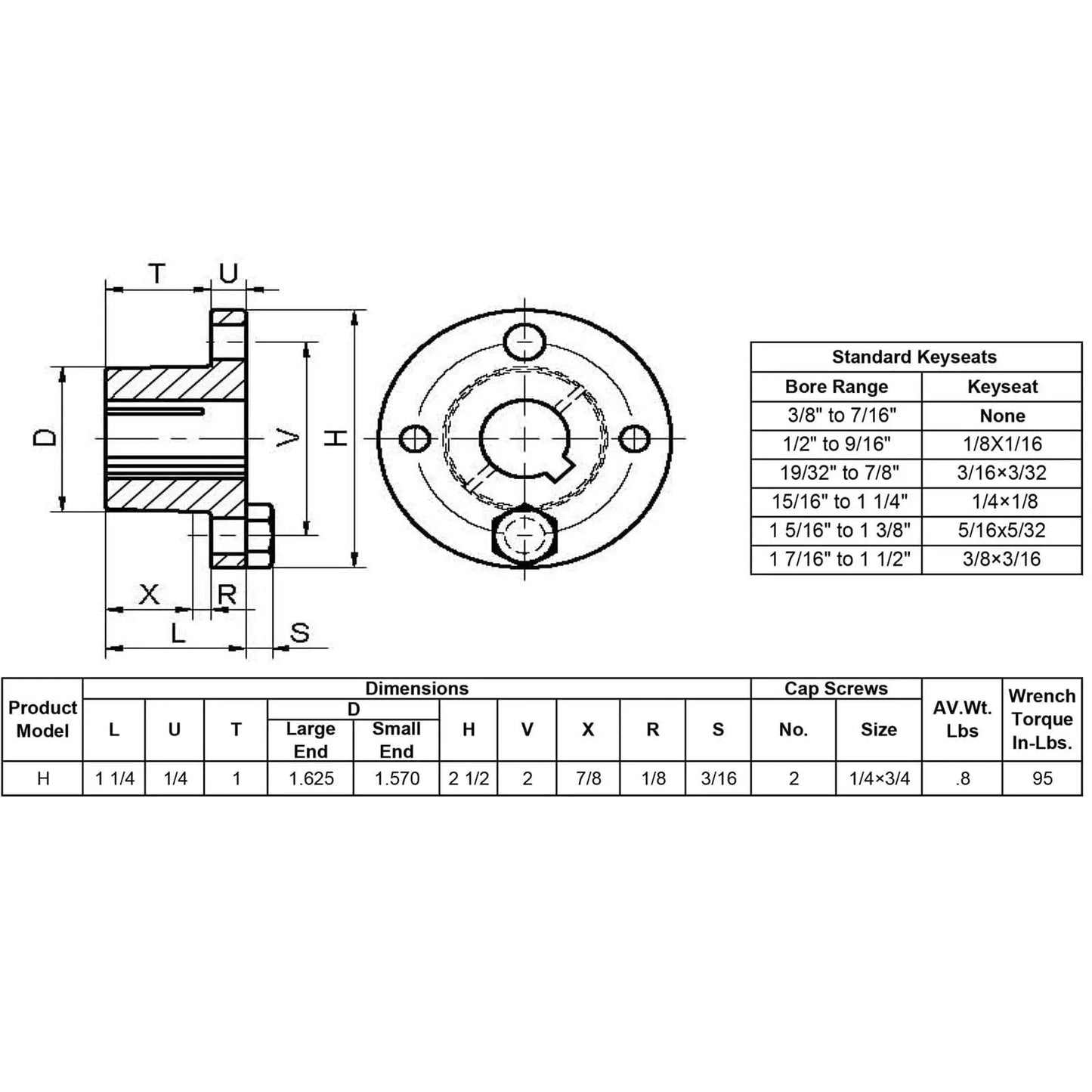

✅ Keyseat size: 8x3.3 mm (0.315 x 0.130 in)
✅ Material: ASTM 1045 carbon steel
✅ Finish: black oxide for rust resistance

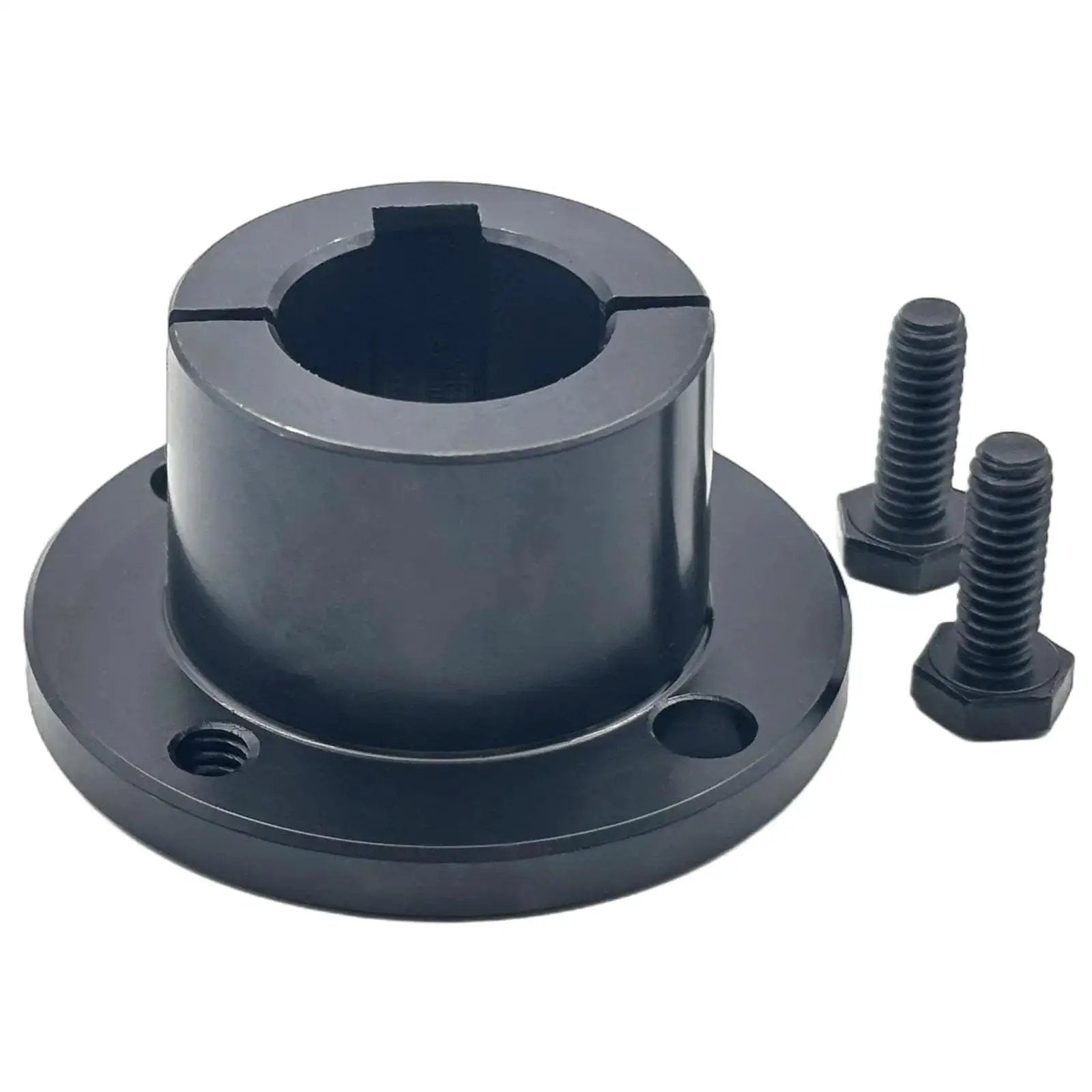

✅ Screws: 2 pcs, 1/4-20 UNC x 3/4 in (19.05 mm)
💡 What is a locking bushing used for in pulley systems?
Locking bushings provide a secure, handy interface between a pulley and shaft, keeping alignment under load.
- Handy method to lock pulleys onto 24 mm shafts
- Improves belt drive alignment and reduces slip under load
- Easy installation with two bolts and clamping action
- Durable carbon steel with rust-resistant black oxide finish
