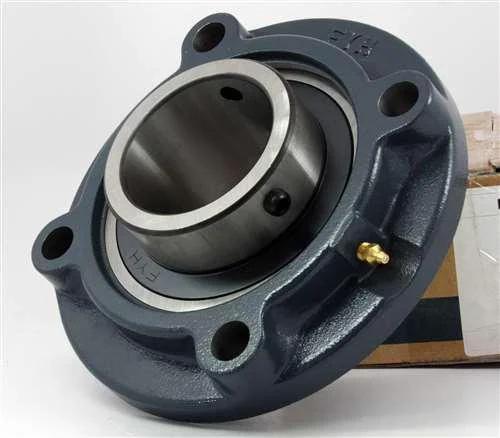

• FYH Bearing UCFCX-09J 45mm Round Flanged Mounted Bearing close-up view of the round cartridge with set screws.
  • FYH Bearing UCFCX-09J 45mm Round Flanged Mounted Bearing with cylindrical bore and set screws.

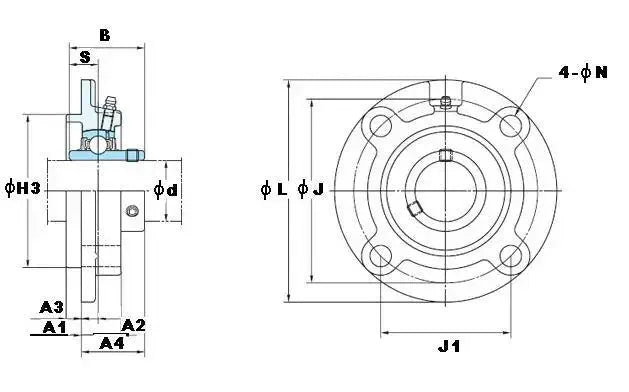

  • Technical drawing of FYH Bearing UCFCX-09J 45mm Round Flanged Mounted Bearing with detailed dimensions.
1 3

FYH

FYH Bearing UCFCX-09J 45mm Round Flanged Mounted Bearing

FYH Bearing UCFCX-09J 45mm Round Flanged Mounted Bearing

$234.12 CAD
$316.05 CAD $234.12 CAD
Sale Sold out
Shipping calculated at checkout.
UCFCX09J FYH Bearing
Round flanged Mounted Bearing
Cylindrical bore (with set screws)
1-3/4" Inner Diameter Bearing


This four-bolt flange cartridge unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Application are Rotating drum, rotating roller and areas where precise mounting accuracy is required.

  • UCFCX-09J Bearing
  • Round Flanged Bearing
  • Basic Load (Cr): 35.1 KN
  • Basic Load (Cor): 23.3 KN
  • Bolt Size: 7/16"
  • Bearing No: UCX09J
  • Brand: FYH
  • Quantity: One bearing

UCFCX-09J Dimensions (mm)
d L H3 J J1 N A1 A2 A3 A4 B S
45 1.55 108 130 91.9 14 25 10 12 40.2 51.6 19
