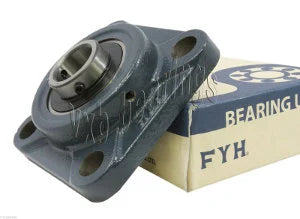

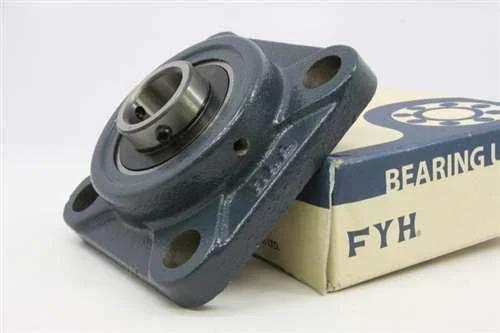

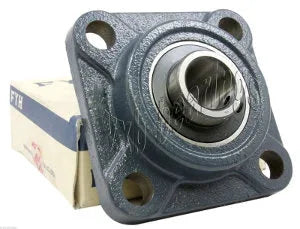

FYH Bearing UCF320-63 3 15/16 Square Flanged Mounted Bearing

FYH Bearing UCF320-63 3 15/16 Square Flanged Mounted Bearing

$2,432.66 CAD
$3,284.09 CAD $2,432.66 CAD
Sale Sold out
Shipping calculated at checkout.
UCF320-63 FYH Bearing
Square Flanged Mounted Bearing
Cylindrical bore (with set screws)
3 15/16" Inner Diameter

This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Applications are Rotating drum, rotating roller and when precise mounting accuracy is required.

  • UCF320-63 Bearing
  • Four bolt Flanged Bearing
  • Bolt Size: 1 1/4" inch
  • Basic Load (Cr): 173 KN
  • Basic Load (Cor): 141 KN
  • Bearing No: UC320-63
  • Quantity: 1 Bearing


Dimensions (Inches)
d L A J N A1 A2 A0 B S
3-15/16" 12-7/32" 3-11/16" 9-17/32" 1-1/2" 1-1/4" 2-21/64" 4-29/32" 4-1/4" 1-21/32"
