FYH

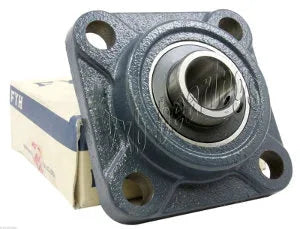

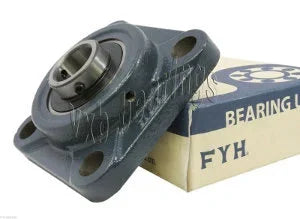

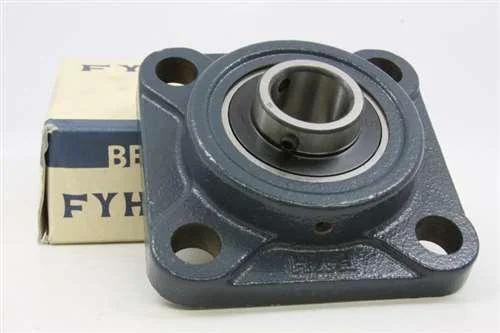

FYH Bearing UCF206-18 1 1/8 Square Flanged Mounted Bearing

FYH Bearing UCF206-18 1 1/8 Square Flanged Mounted Bearing

$150.36 CAD
$202.98 CAD $150.36 CAD
Sale Sold out
Shipping calculated at checkout.
UCF206-18 FYH Bearing
Square Flanged Mounted Bearing
Cylindrical bore (with set screws)
1 1/8" Inner Diameter

This heavy duty four-bolt flange unit has a round cartridge on the backside of the flange which allows for precise mounting and alignment.Applications are Rotating drum, rotating roller and when precise mounting accuracy is required.

  • UCF206-18 Bearing
  • Four bolt Flanged Bearing
  • Bolt Size: 3/8" inch
  • Basic Load (Cr): 19.5 KN
  • Basic Load (Cor): 11.3 KN
  • Bearing No: UC206-18
  • Quantity: 1 Bearing


Dimensions (Inches)
d L A J N A1 A2 A0 B S
1-1/8" 4-1/4" 1-7/32" 3-17/64" 15/32" 1/2" 45/64" 1-19/32" 1-1/2" 5/8"
