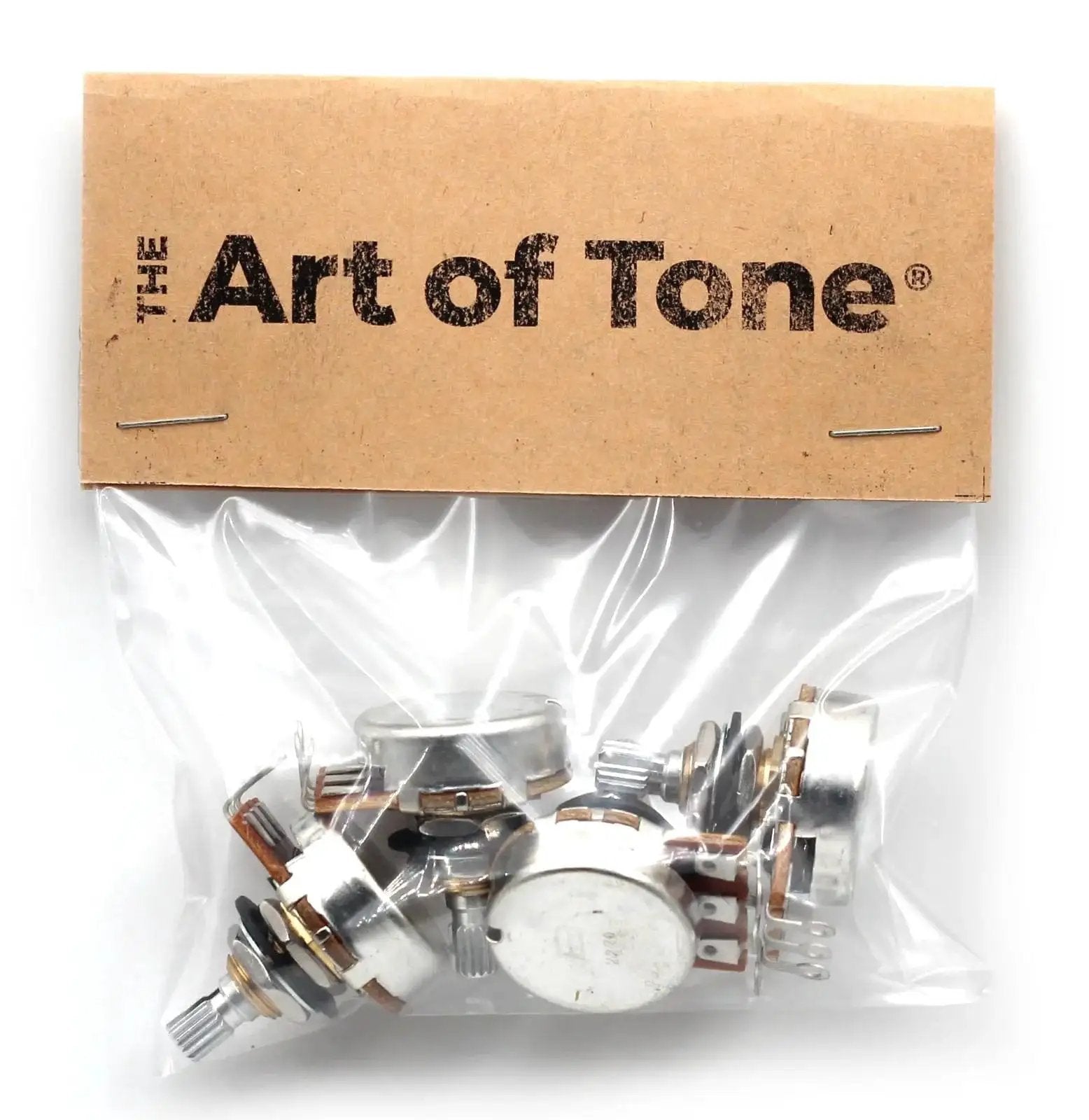

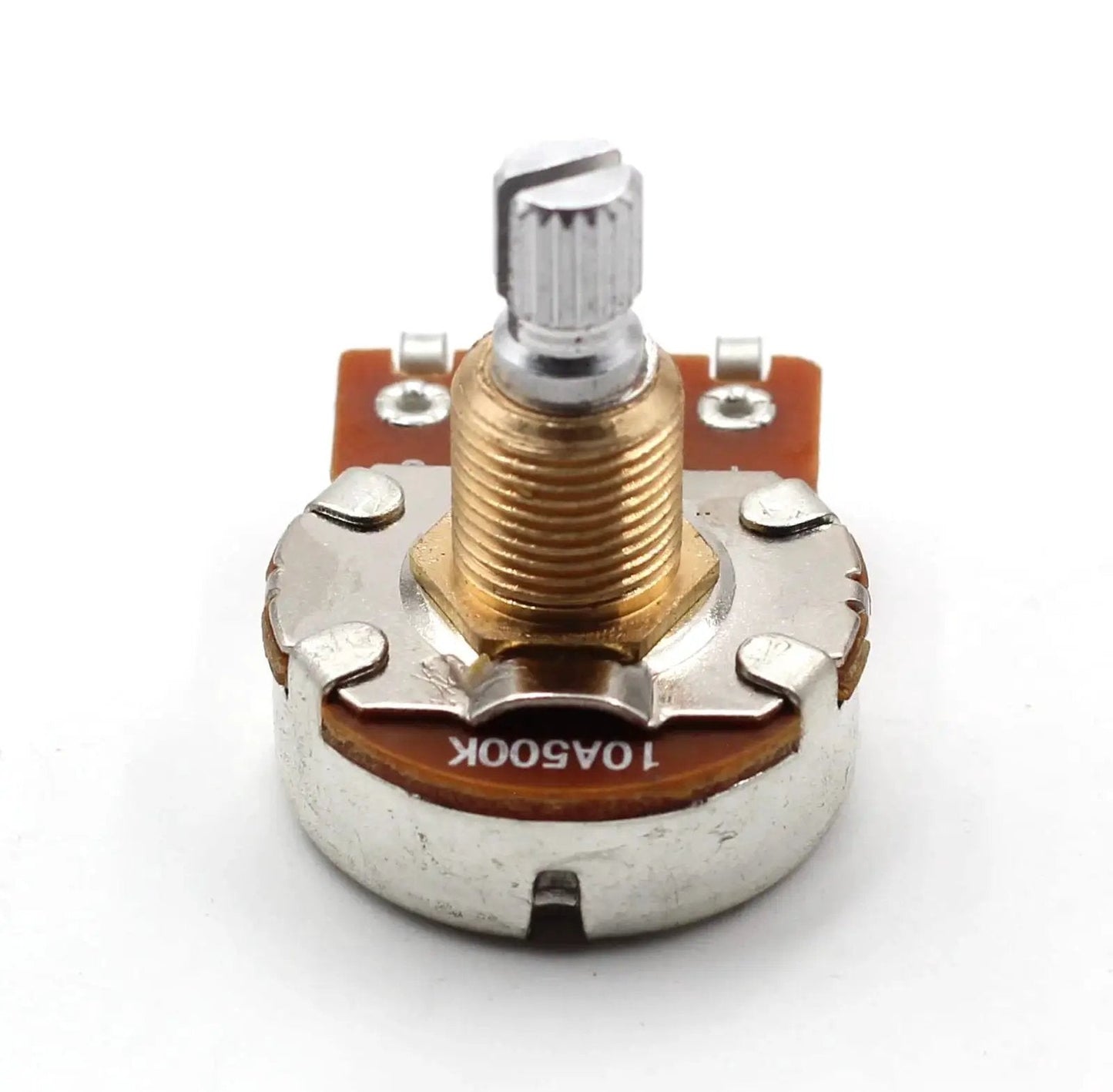

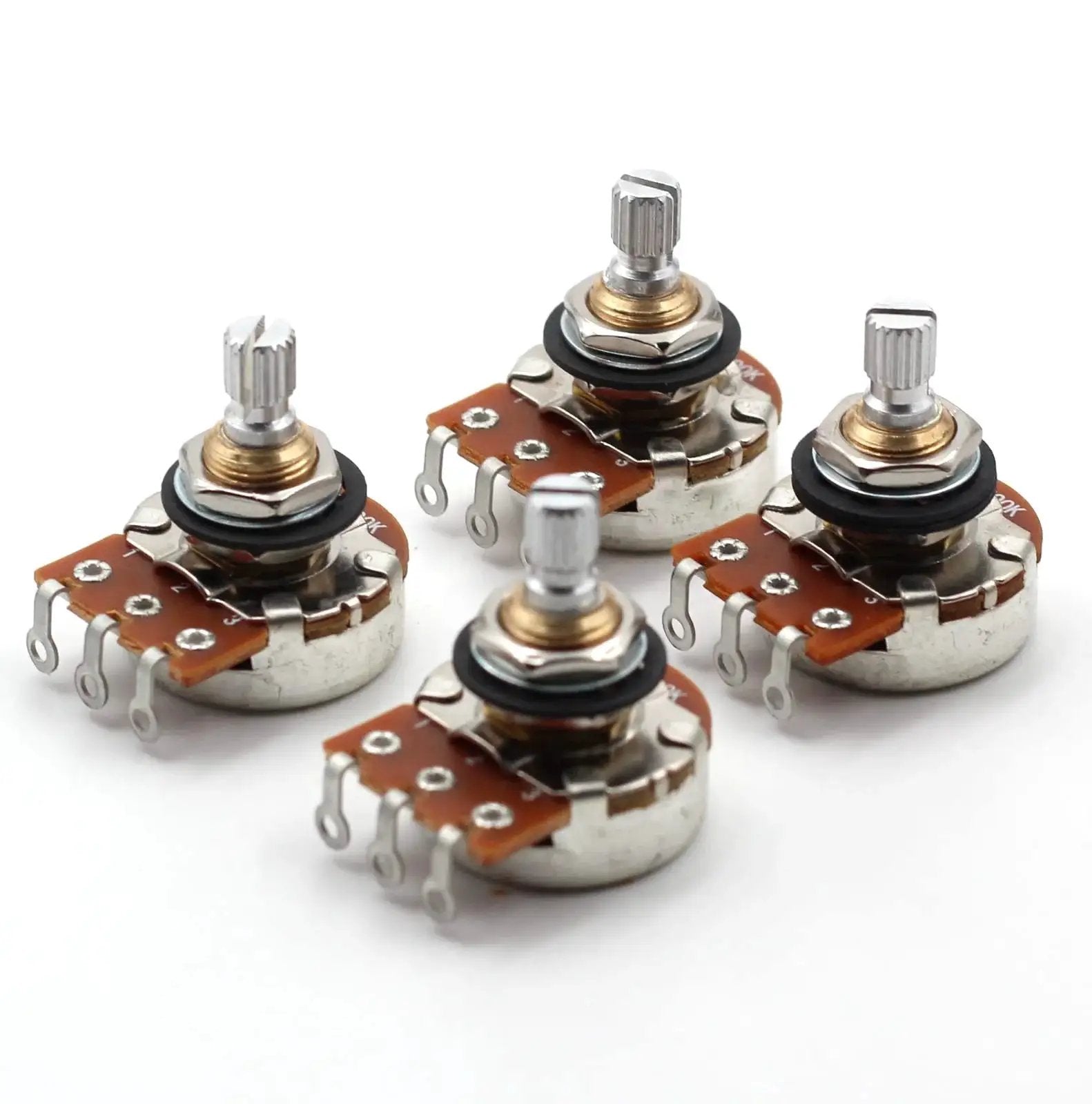

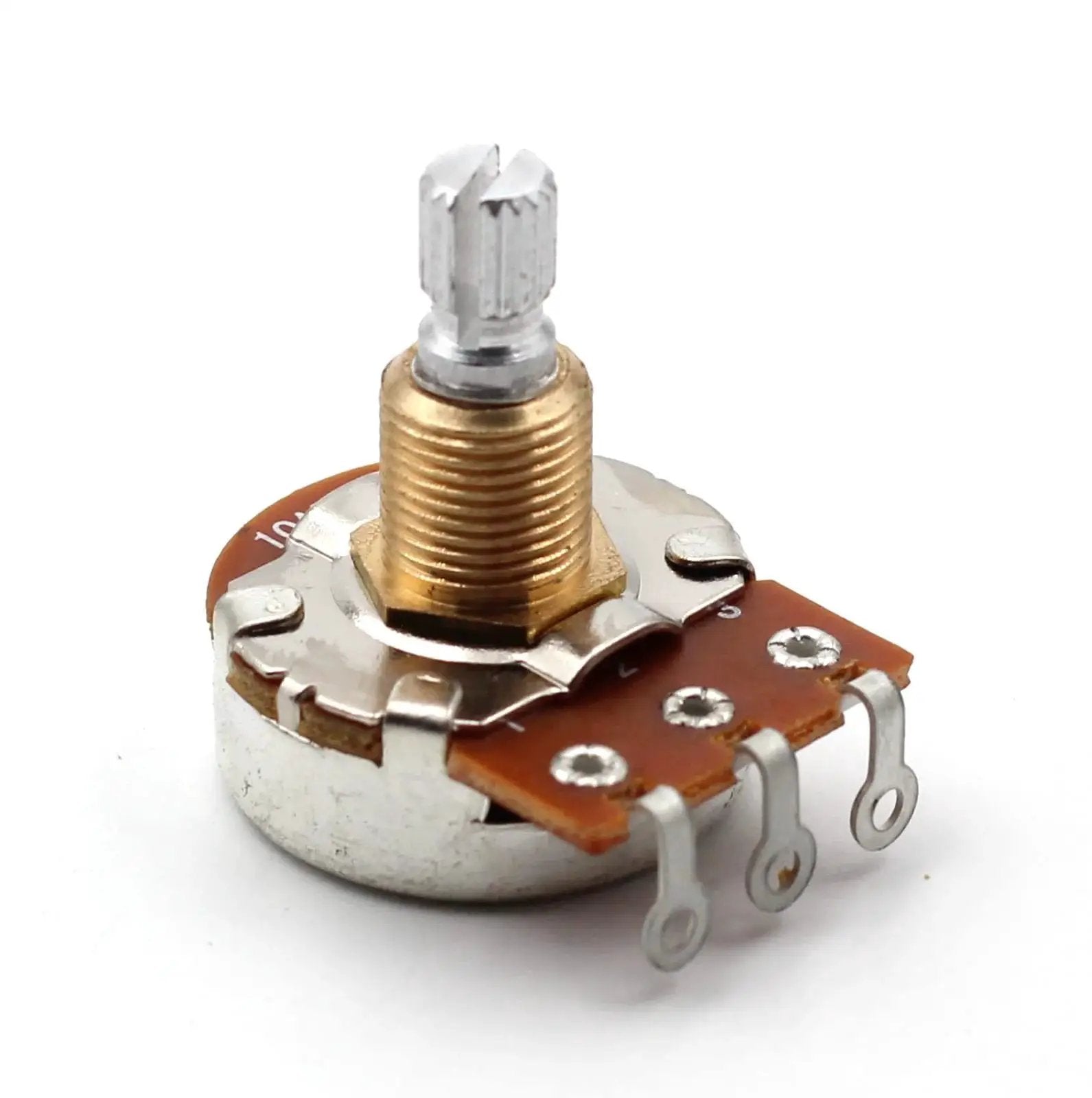

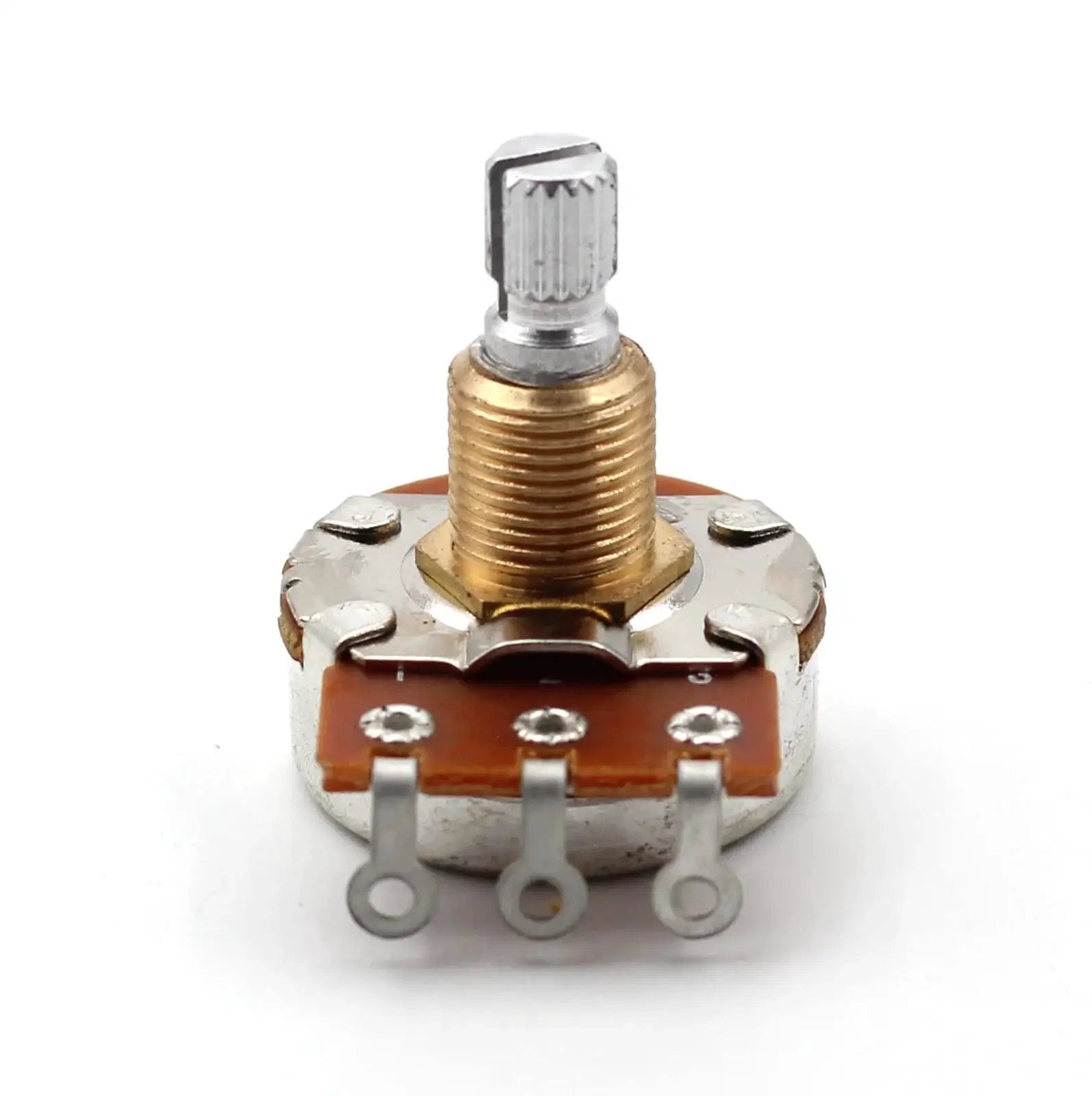

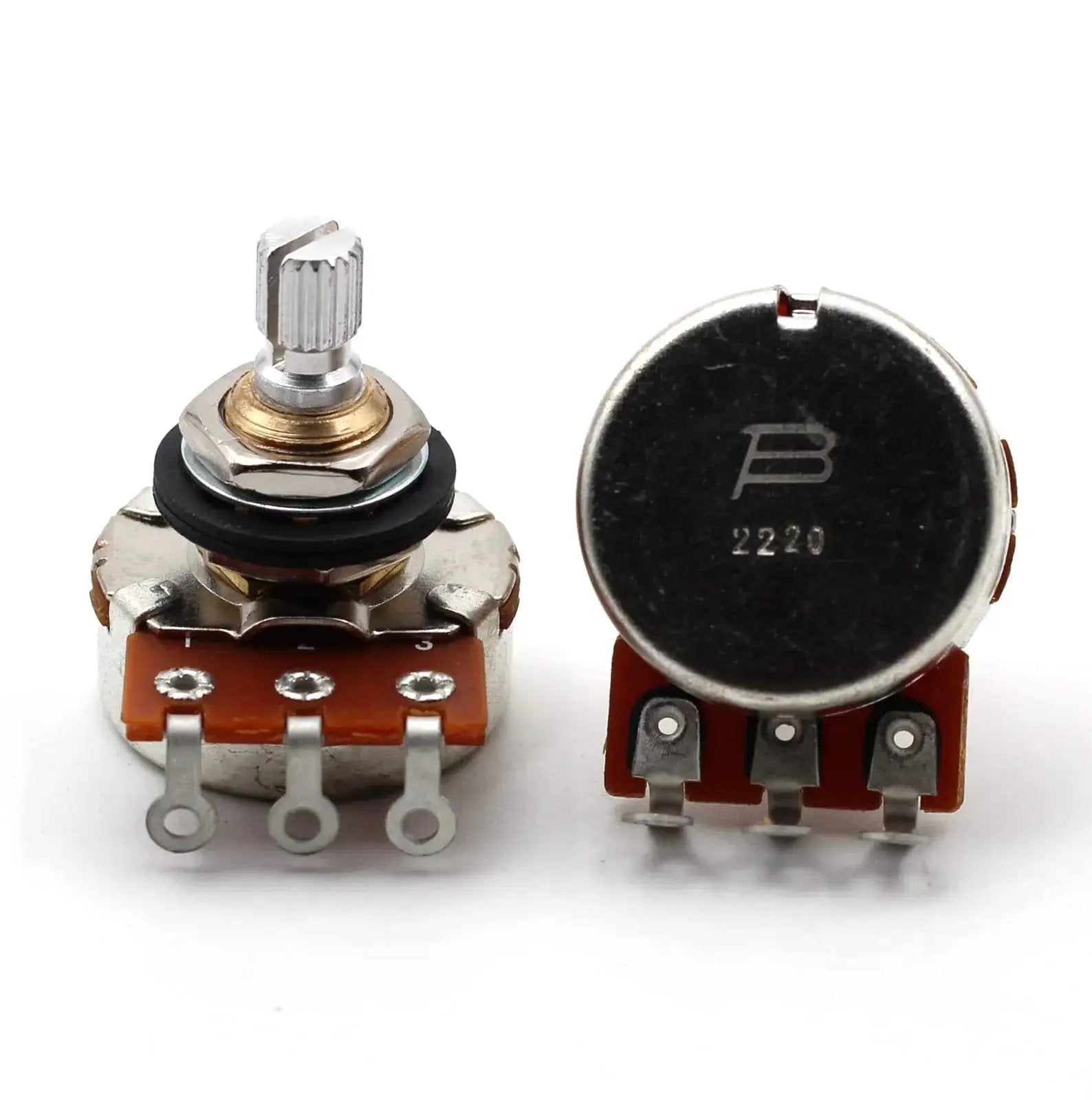

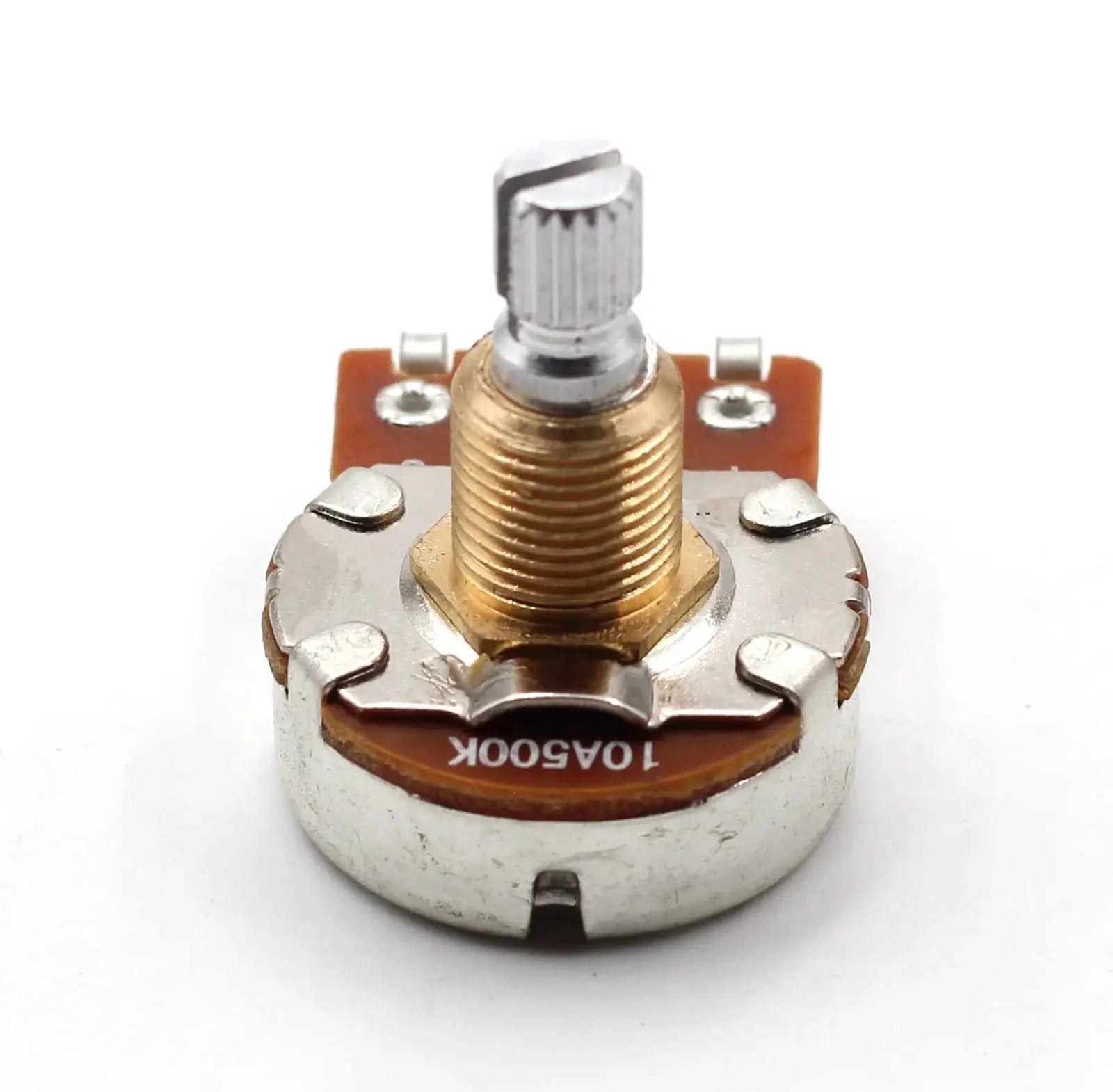

4-Pack 500K Audio Taper Guitar Pots with 3/8 inch Bushings
✔️ 500K log taper, 0.25W, 1 turn, 3/8 in bushing, imperial
These four 500K short split shaft audio taper potentiometers are designed for electric guitars and related gear, delivering smooth, low-friction rotation with imperial 3/8 inch bushings for easy installs in common control cavities.
✅ Resistance: 500K Ohms ±10%
✅ Taper: Logarithmic
✅ Power rating: 0.25W (1/4W)
✅ Turns: 1.0
✅ Bushing: 3/8 inch imperial

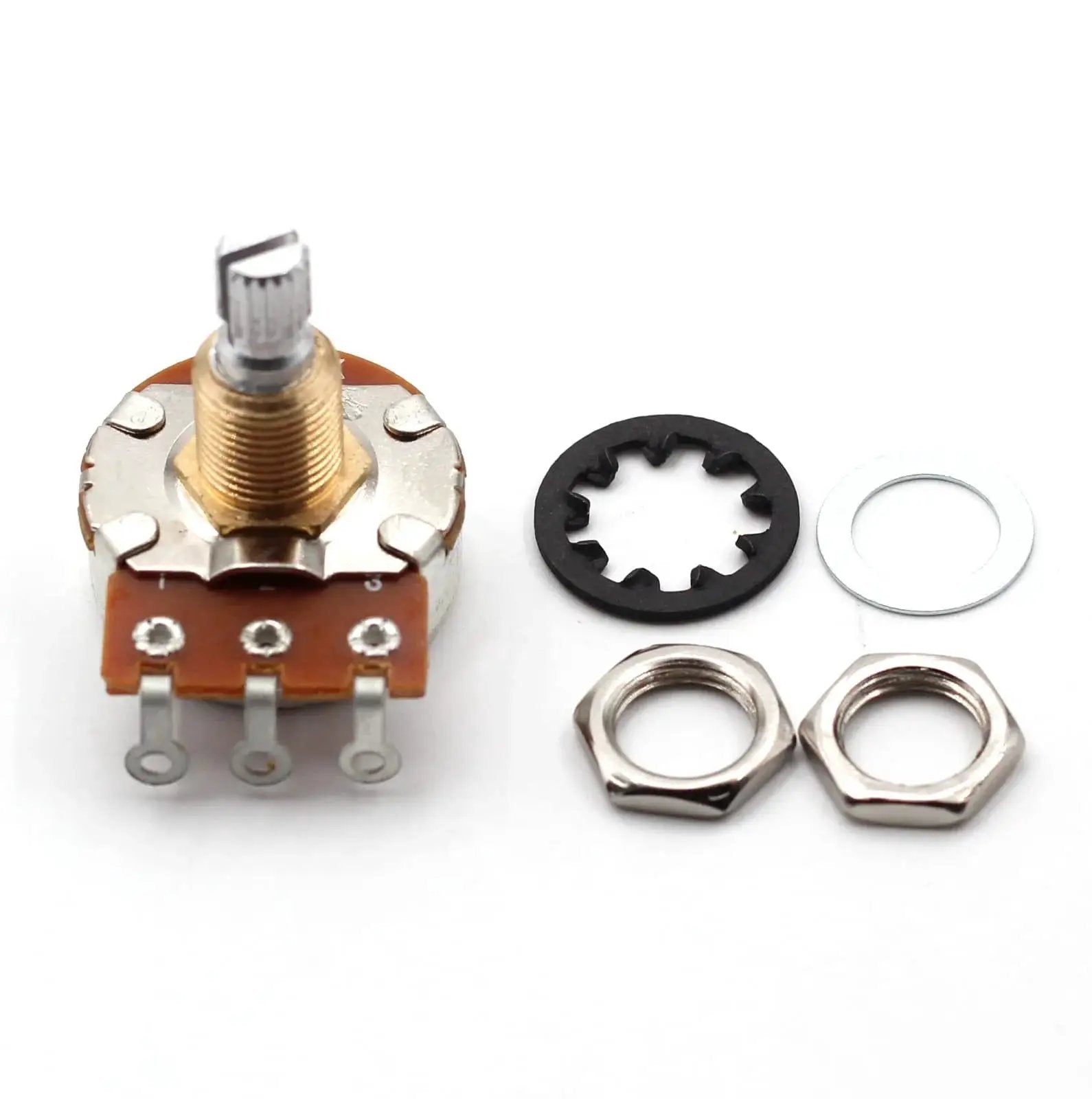

✅ Hardware included: 2 nuts, dress washer, lock washer
✅ Actuator: Knurled and slotted
RoHS Compliant
| Dimension | mm | in |
| Bushing diameter | 9.525 | 0.375 |
| Actuator length | 19.00 | 0.748 |
| Actuator diameter | 6.00 | 0.236 |
💡 What is a 500K audio taper pot used for in guitars and audio gear?
These handy parts are used to shape volume and tone in guitar circuits and other audio gear.
- handy for guitar volume and tone control in electric guitars
- fits 3/8 inch imperial bushings for quick retrofit installs
- logarithmic taper provides smooth, musical sweep
- panel-mount design with solder lug terminations
