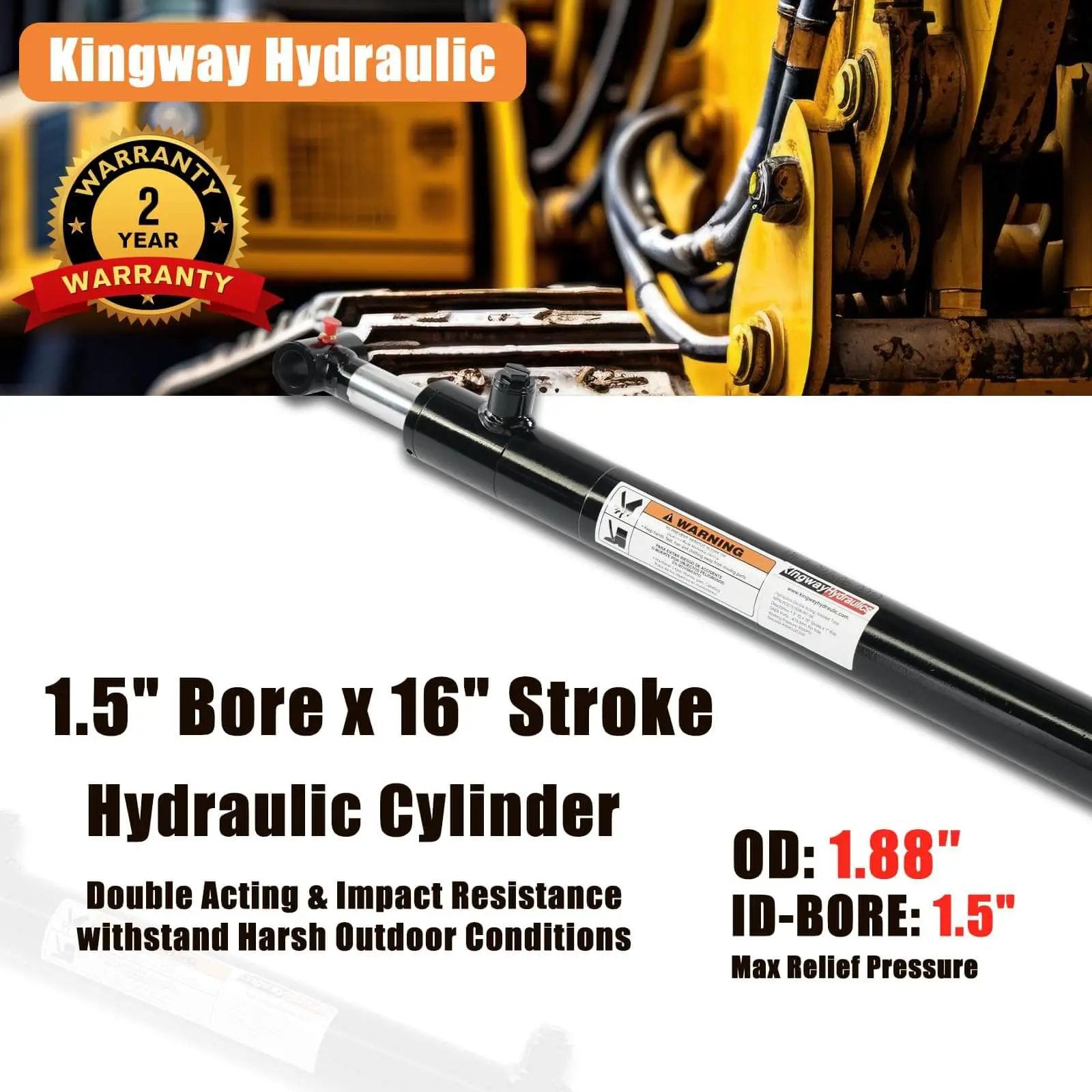

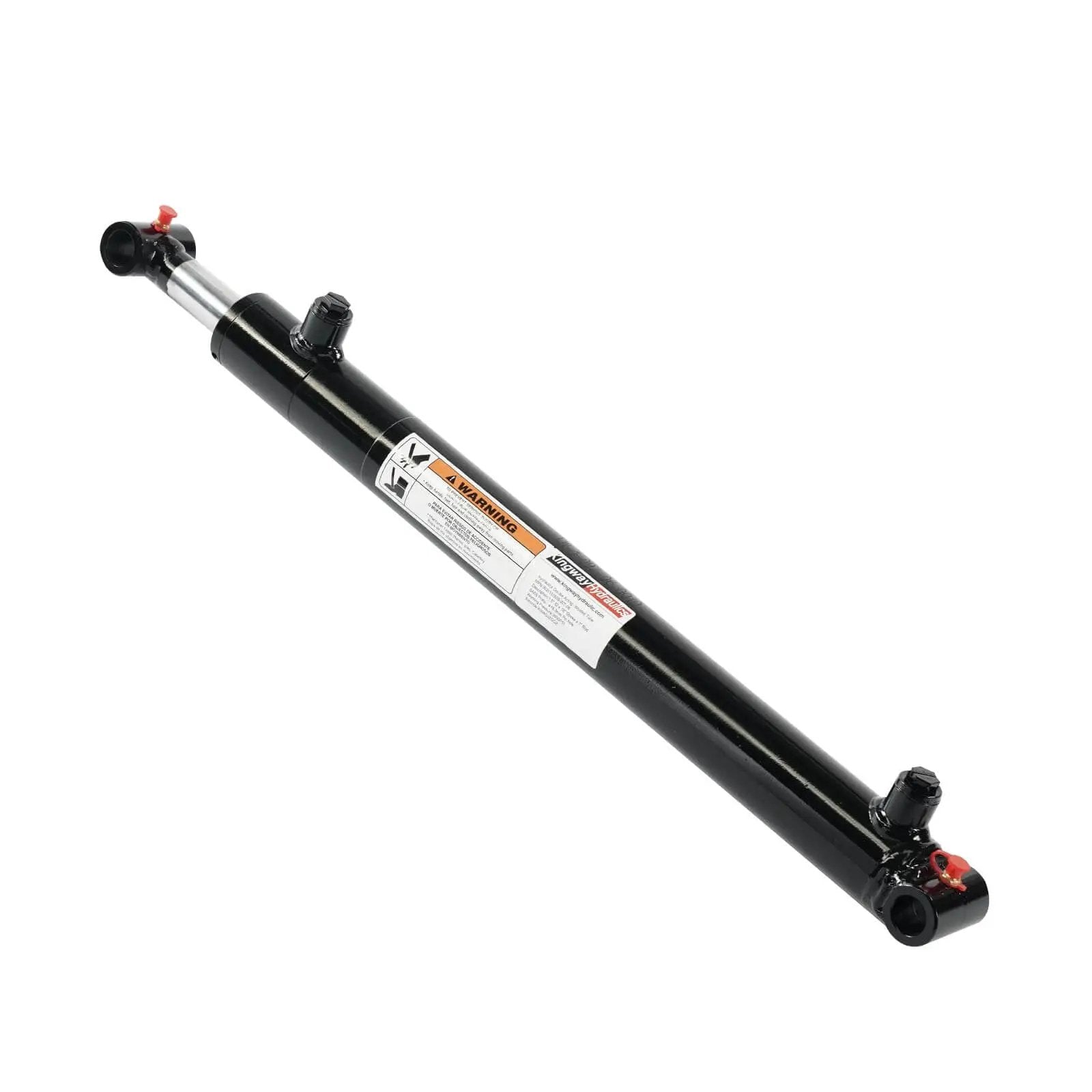

Cross Tube Double Acting Hydraulic Cylinder, 1.5in Bore
✔️ Single unit, 3500 PSI, 5300 lb load, SAE 6 ports, 0.75 in pin holes
This cross-tube double-acting hydraulic cylinder is built for heavy-duty tasks. It’s commonly used on front-end loaders, tractors, and other hydraulic equipment to power lifting, tilting, and pushing actions in tough work environments.

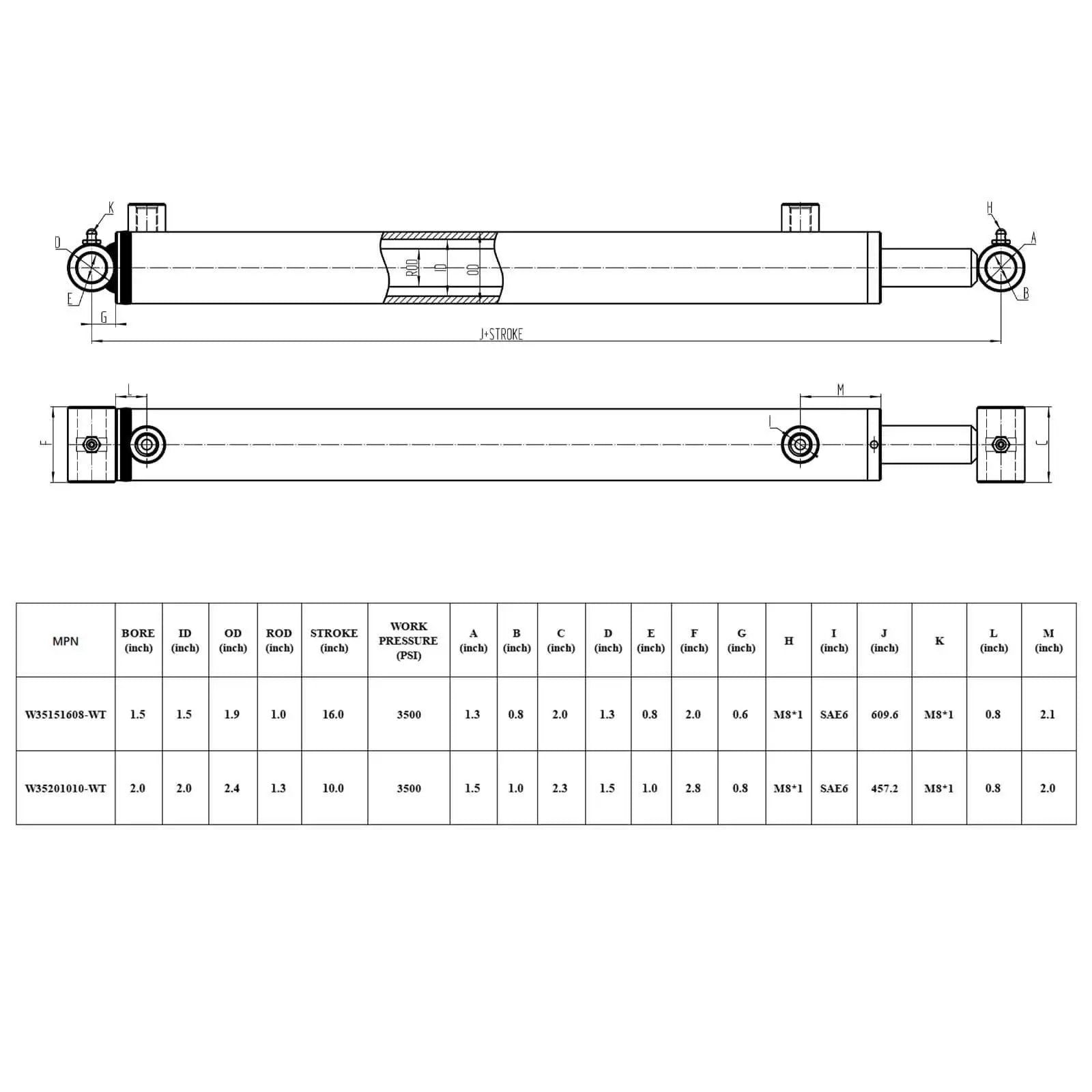

✅ Bore 1.5 in (38 mm), stroke 16 in (406 mm) for long travel
✅ 3500 PSI operating pressure
✅ 5300 lb load capacity for heavy loads

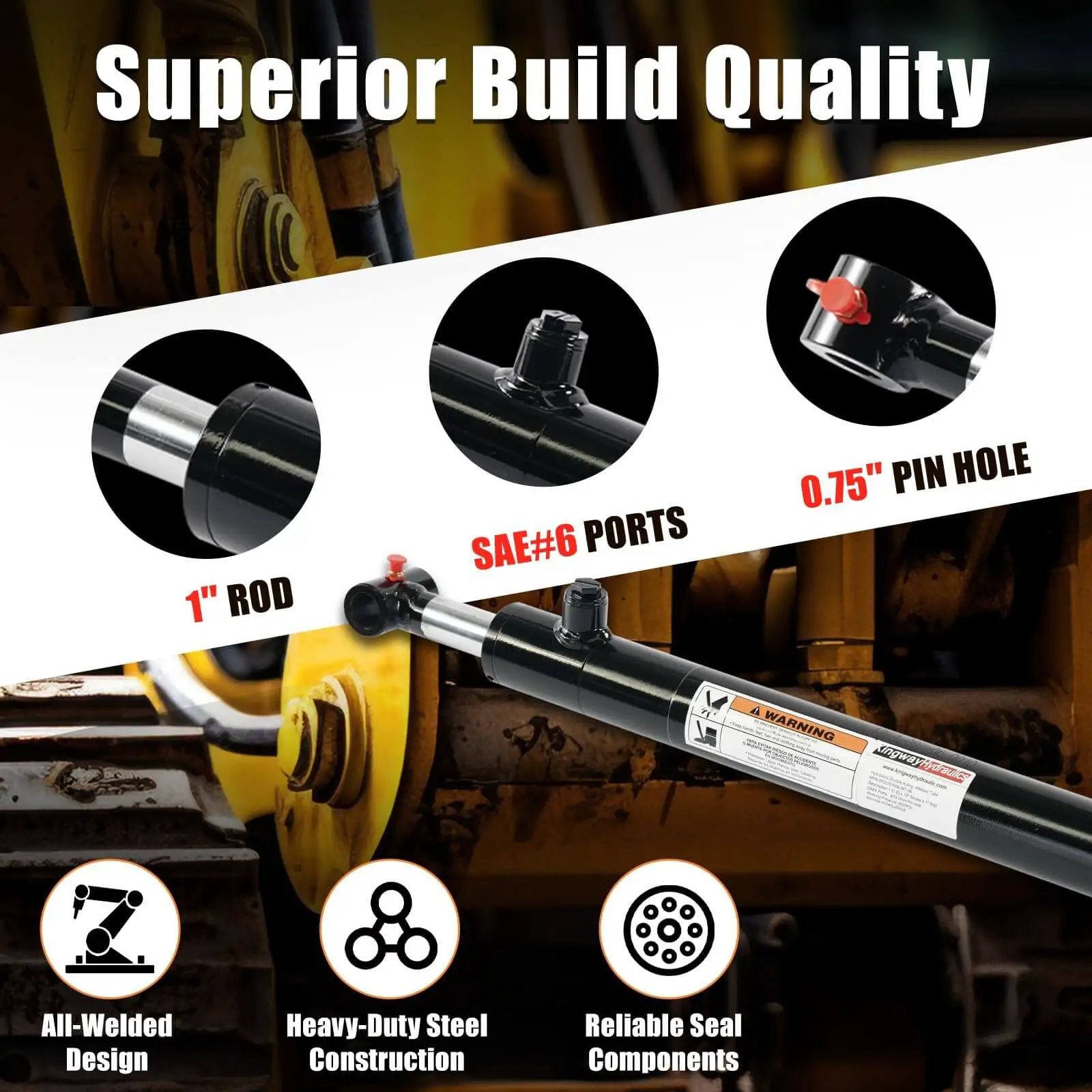

✅ SAE #6 ports and 0.75 in pin holes for easy mounting
✅ Hardened steel with hard chrome plating for corrosion resistance
💡 What is a cross tube double-acting hydraulic cylinder used for in heavy equipment? This handy device uses hydraulic power to generate linear motion for lifting, pressing, and positioning loads on farming and construction gear.
- High-load actuation for lifting and tilting tasks
- Sealed, rugged design for dirty environments
- Easy installation with standard SAE ports and pin holes
- Long service life thanks to chrome-plated steel
