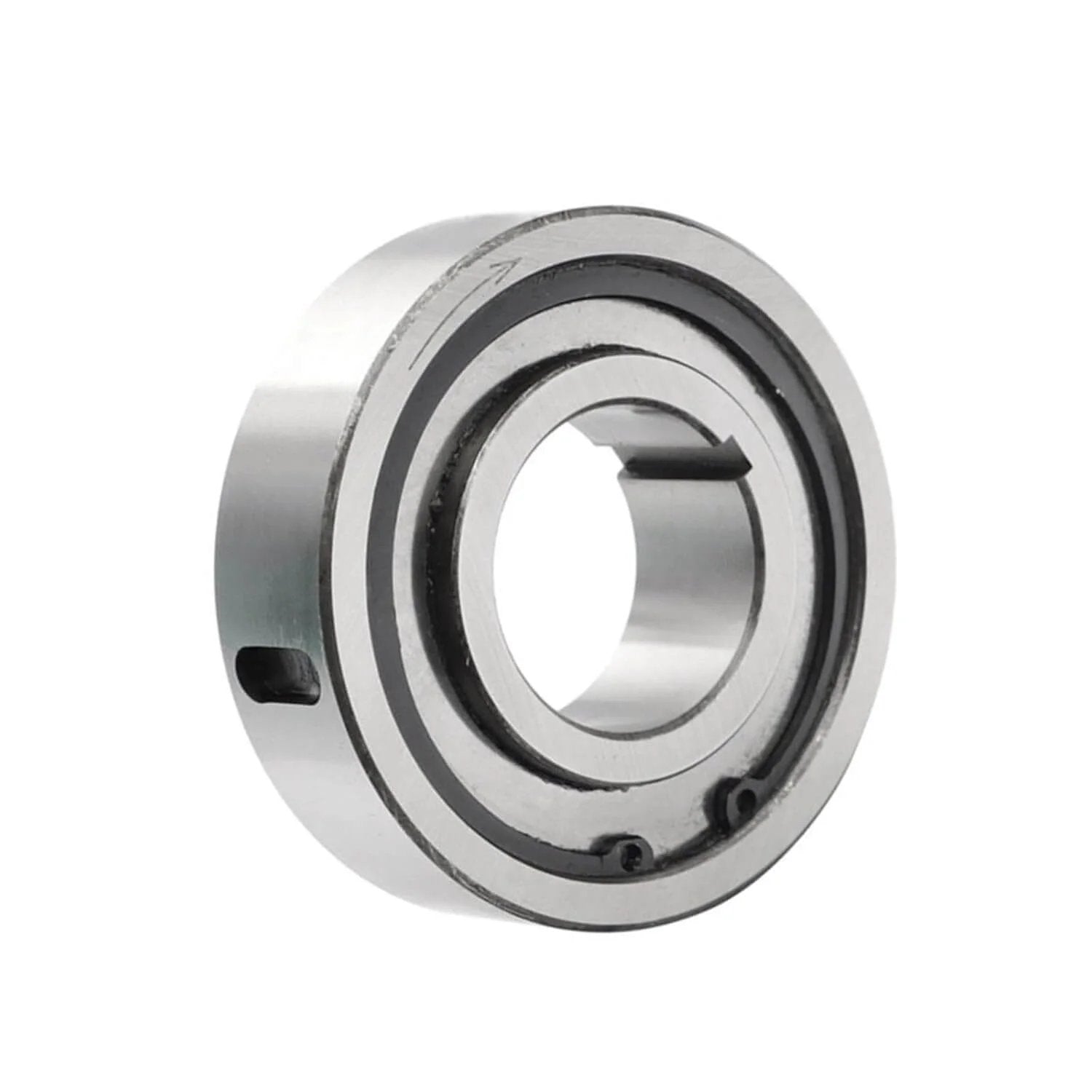

CK-A1747 sprag-type one-way (overrunning) clutch bearing 17x47x24mm
CK-A1747 sprag-type one-way (overrunning) clutch bearing 17x47x24mm
Regular price
$66.61 CAD
Regular price
Sale price
$66.61 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
CK-A1747 - CSK1747
Dimensions & Performance
Here are the critical specs for CK-A1747:
| Parameter | Value |
|---|---|
| Nominal Torque | 75 N·m |
| Overrunning Speed (Inner Race) | ~1,575 rpm |
| Overrunning Speed (Outer Race) | ~400 rpm |
| Outer Diameter (D) | 47 mm |
| Width (B) | 23 mm |
| Inner Diameter (d) | 17 mm |
| Inner Race Thickness (C) | ~24 mm |
| Bearing Reference (for the “bearing” part) | 6304 (this refers to a standard bearing size used in the race) |
| Weight | ~0.21 kg |
Material
-
Usually made from GCr15 chrome steel (common for sprag clutch bearings).
Applications
-
Used in machinery for conveyors, printing, packaging, paper-making, textile machinery,
-
Commonly used for overrunning or backstop functionality.
