CF16 35mm Cam Follower Needle Roller Bearing, inner diameter is 16mm, outer diameter is 35mm and the length is 52mm.Thread standard is M16x1.5, the size of this bearing is 16 x 35 x 52 mm.
- CF16 Bearing
- Cam Follower Needle Roller Bearing
- Size: 16mm x 35mm x 52mm
- Quantity: 1 Bearing
- Dynamic Load Rating: 1,230 KGF
- Static Load Rating: 1,870 KGF
- Equal: MCFR-35-X

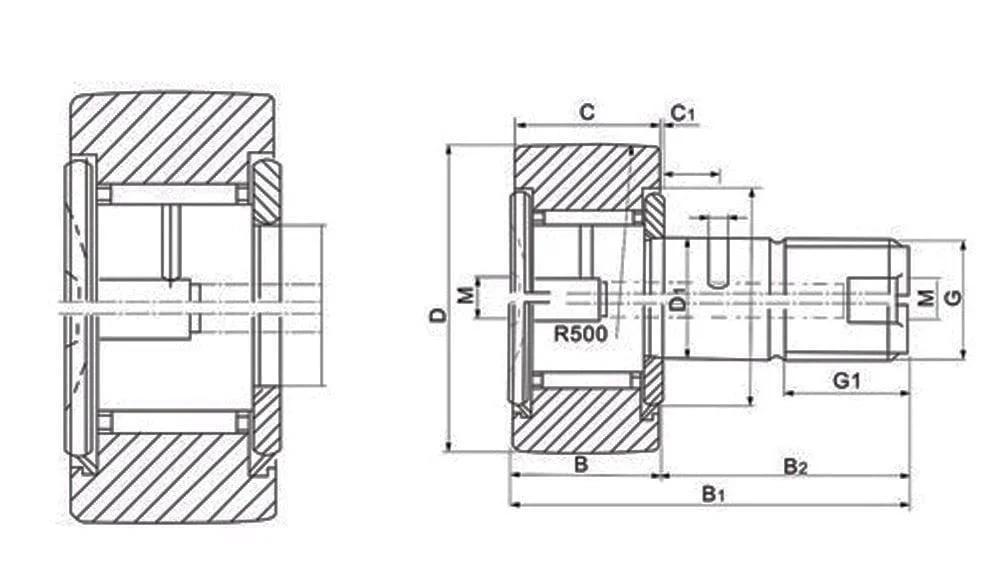

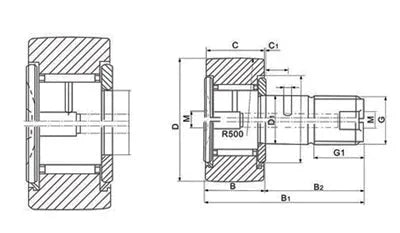

| Dimensions (mm) |
|---|
| d |
D |
B |
B1 |
B2 |
B3 |
G |
G1 |
C |
C1 |
| 16 |
35 |
19.6 |
52 |
32.5 |
8 |
M16x1.5 |
17 |
18 |
0.8 |
|
