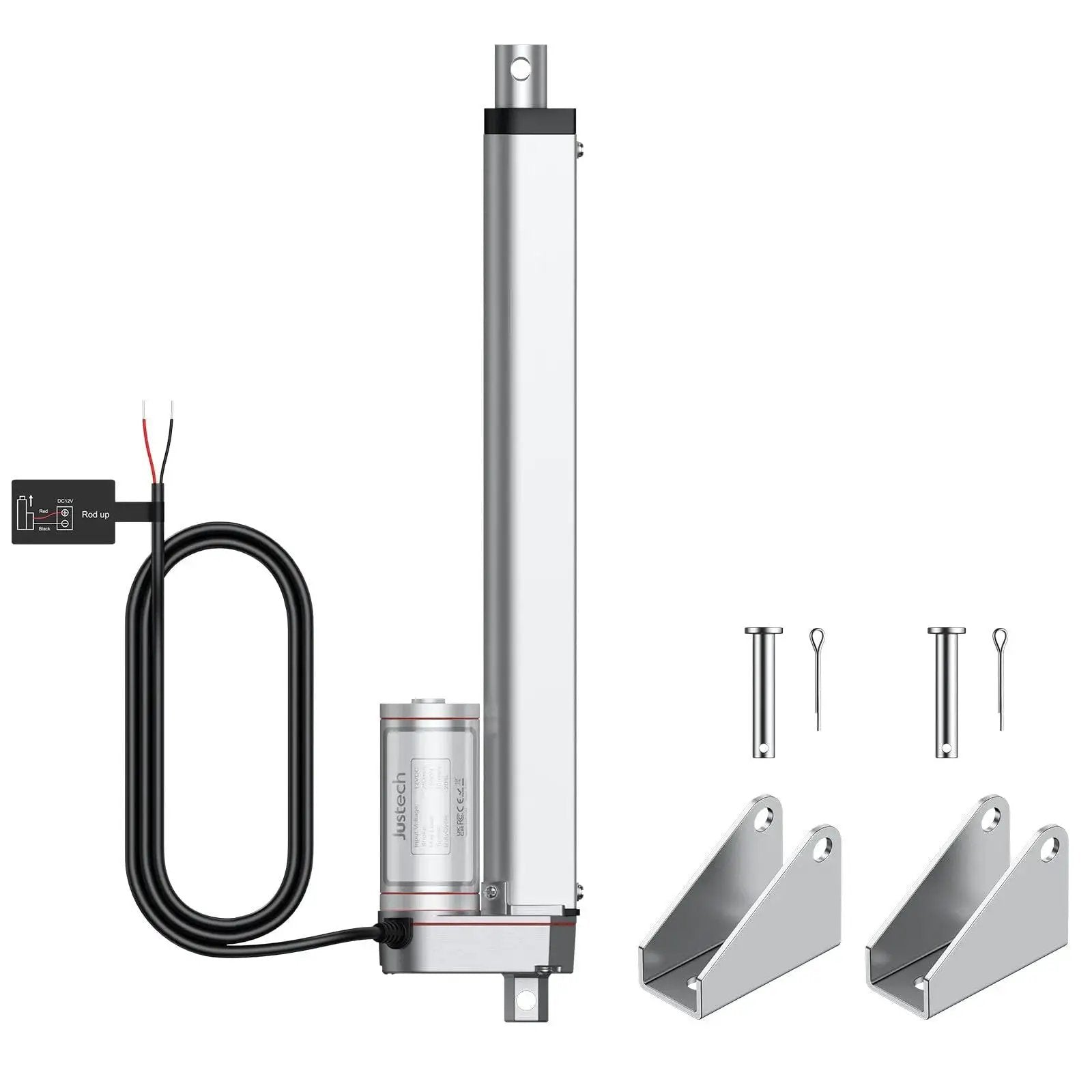

Single 12V Actuator with Brackets, 10-Inch Stroke, IP65
✔️ 330 LBS max load, 250 mm stroke, IP65 rated

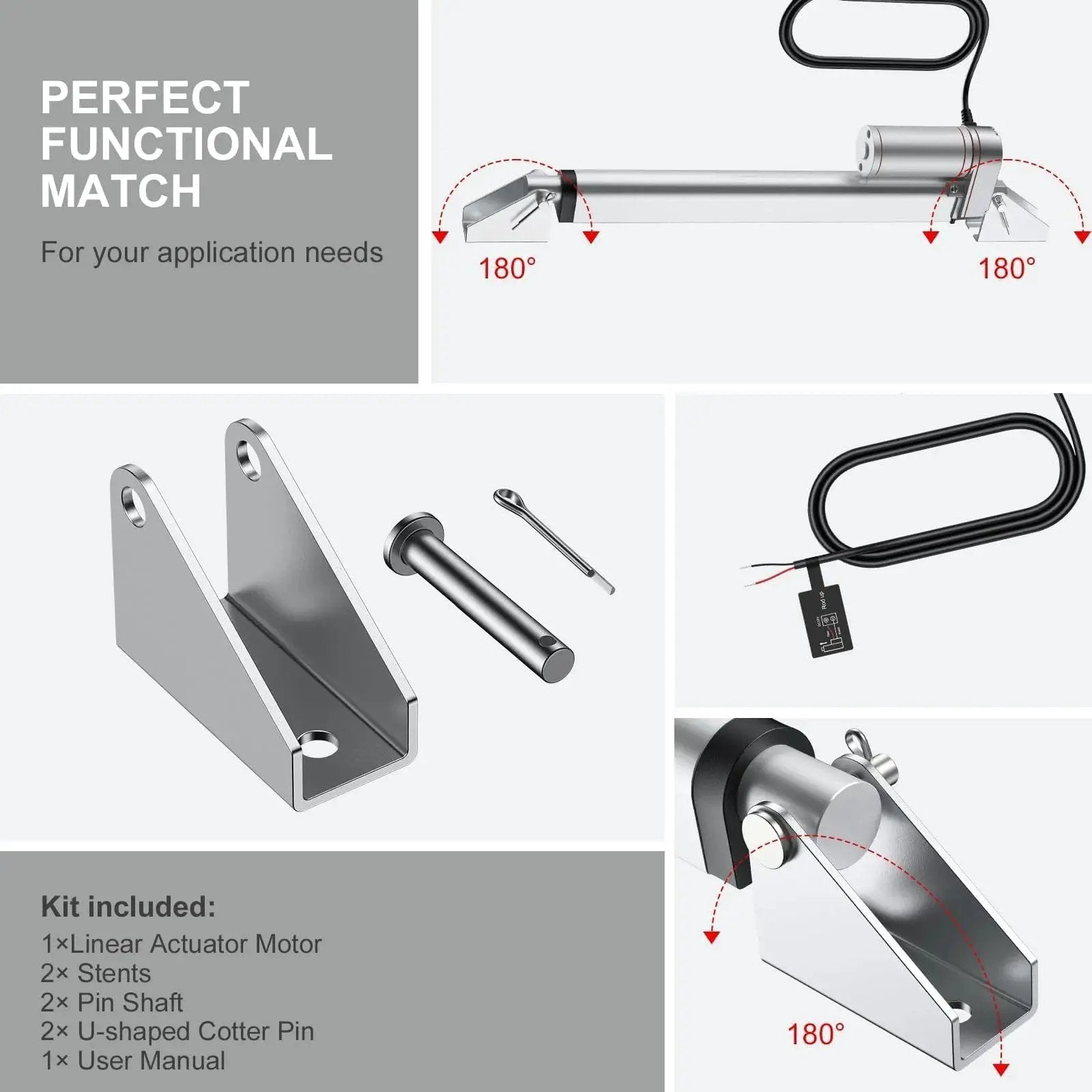

Designed for tough outdoor and indoor use, this heavy-duty 12V actuator powers pushing, pulling, lifting, and precise positioning for windows, RVs, solar trackers, and industrial gear. Brackets are included for quick, secure mounting in a single-pack package.
✅ Max load: 1500 N (330 LBS); pull load: 1200 N (264 LBS).

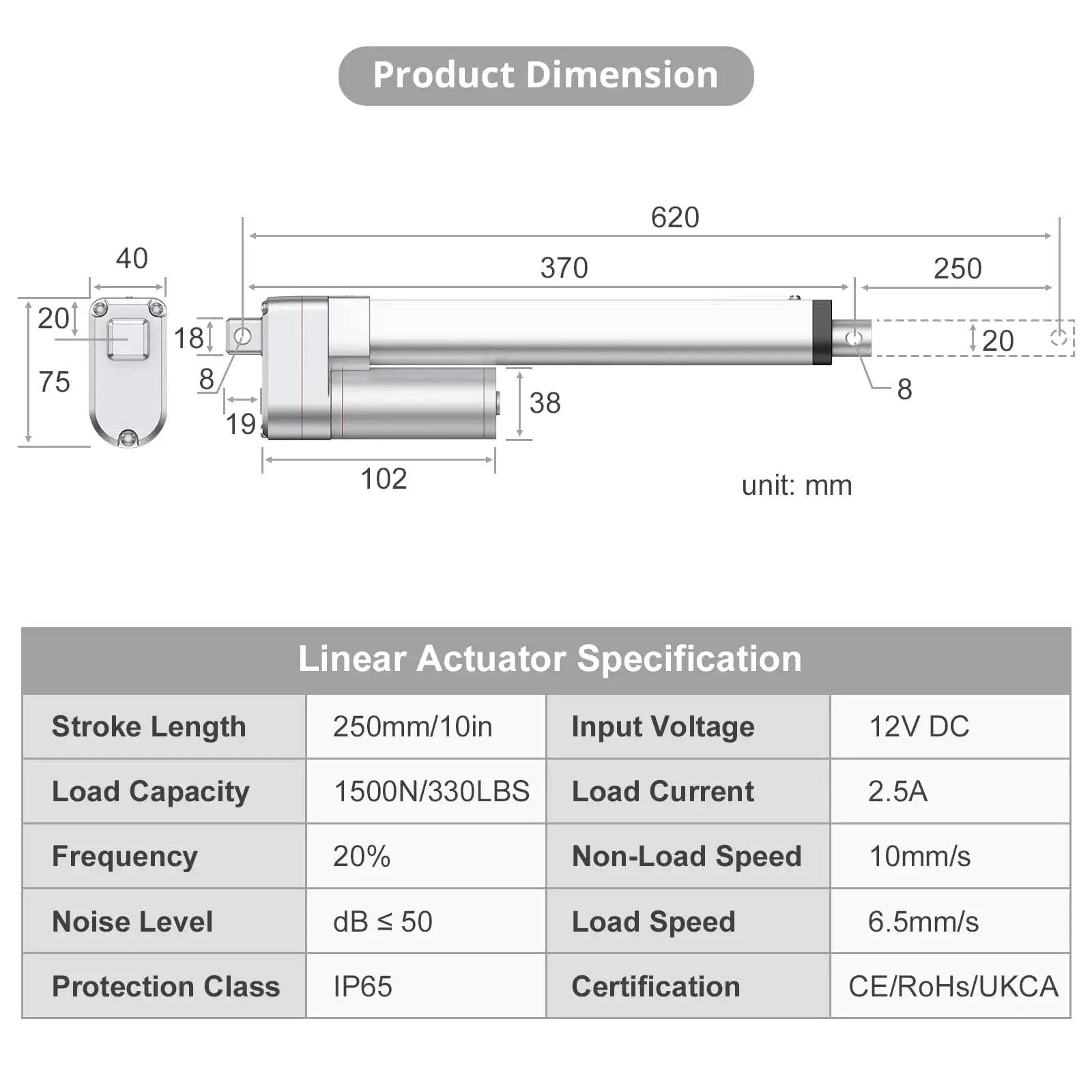

✅ Stroke: 250 mm (10 in); retract: 370 mm (14.6 in); extended: 620 mm (24.4 in).
✅ Non-load speed: 10 mm/s; load speed: 7 mm/s; current: 0.8 A no-load; 2.5 A load.

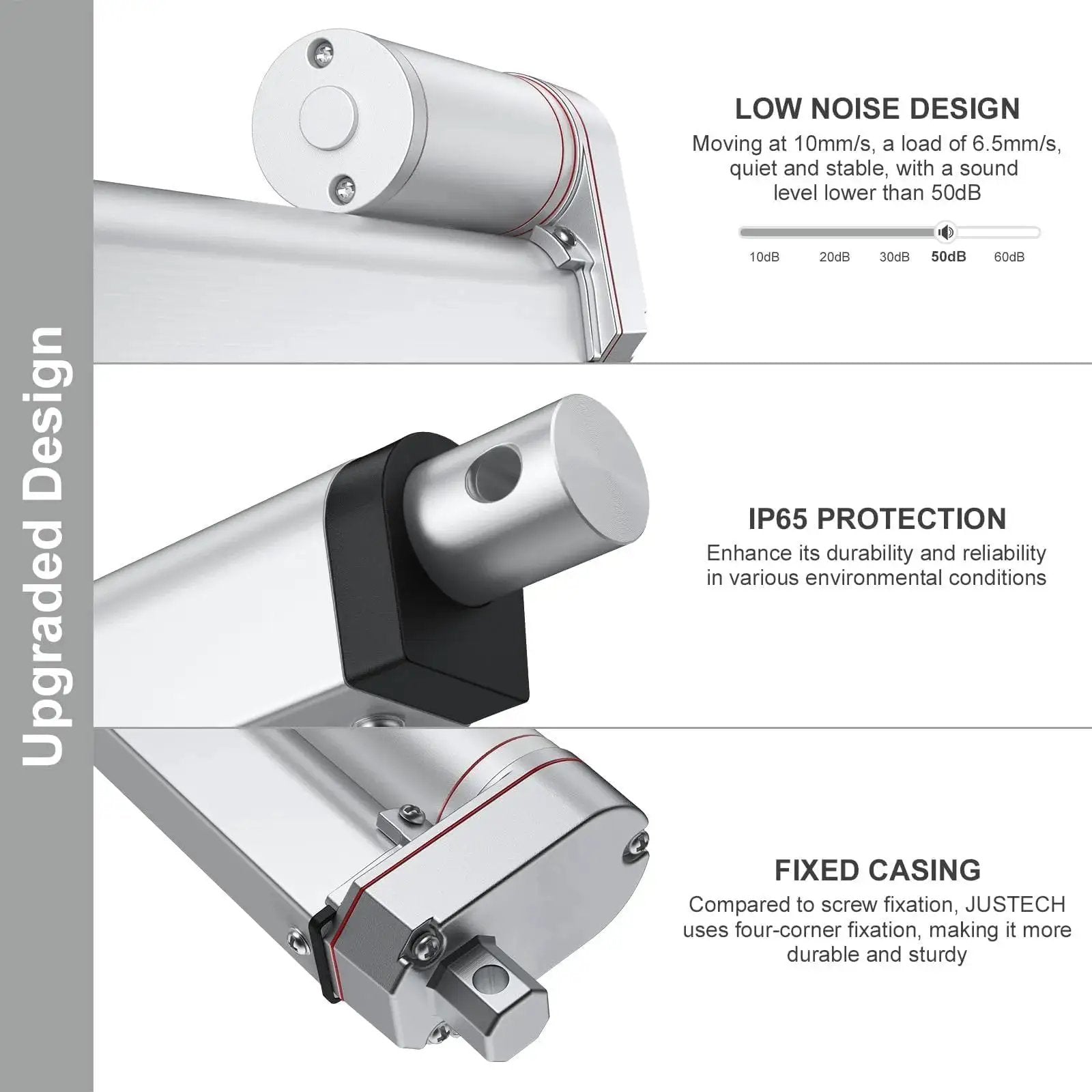

✅ Install range: min 355 mm; max 605 mm; IP65, CE/ROHS/UKCA.

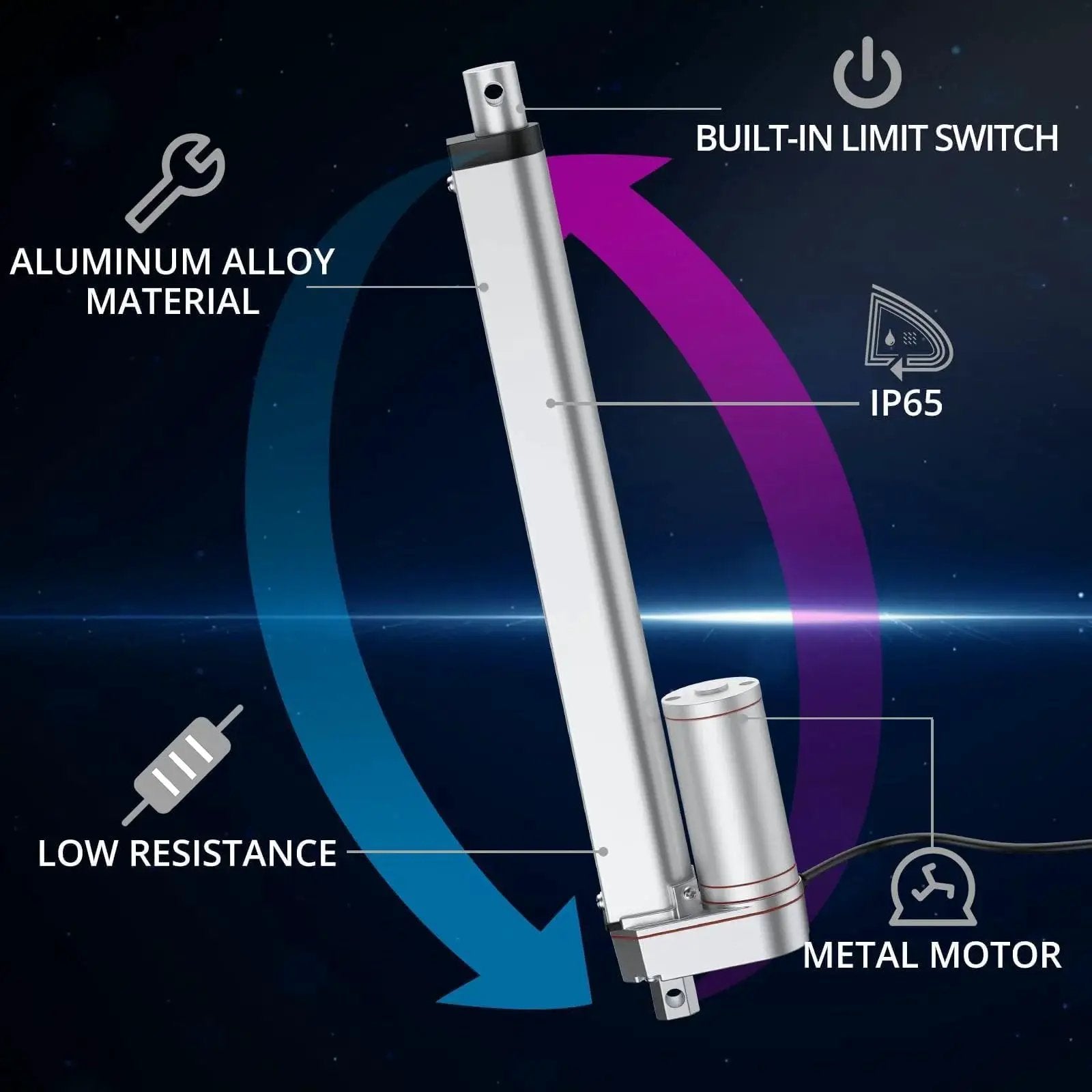

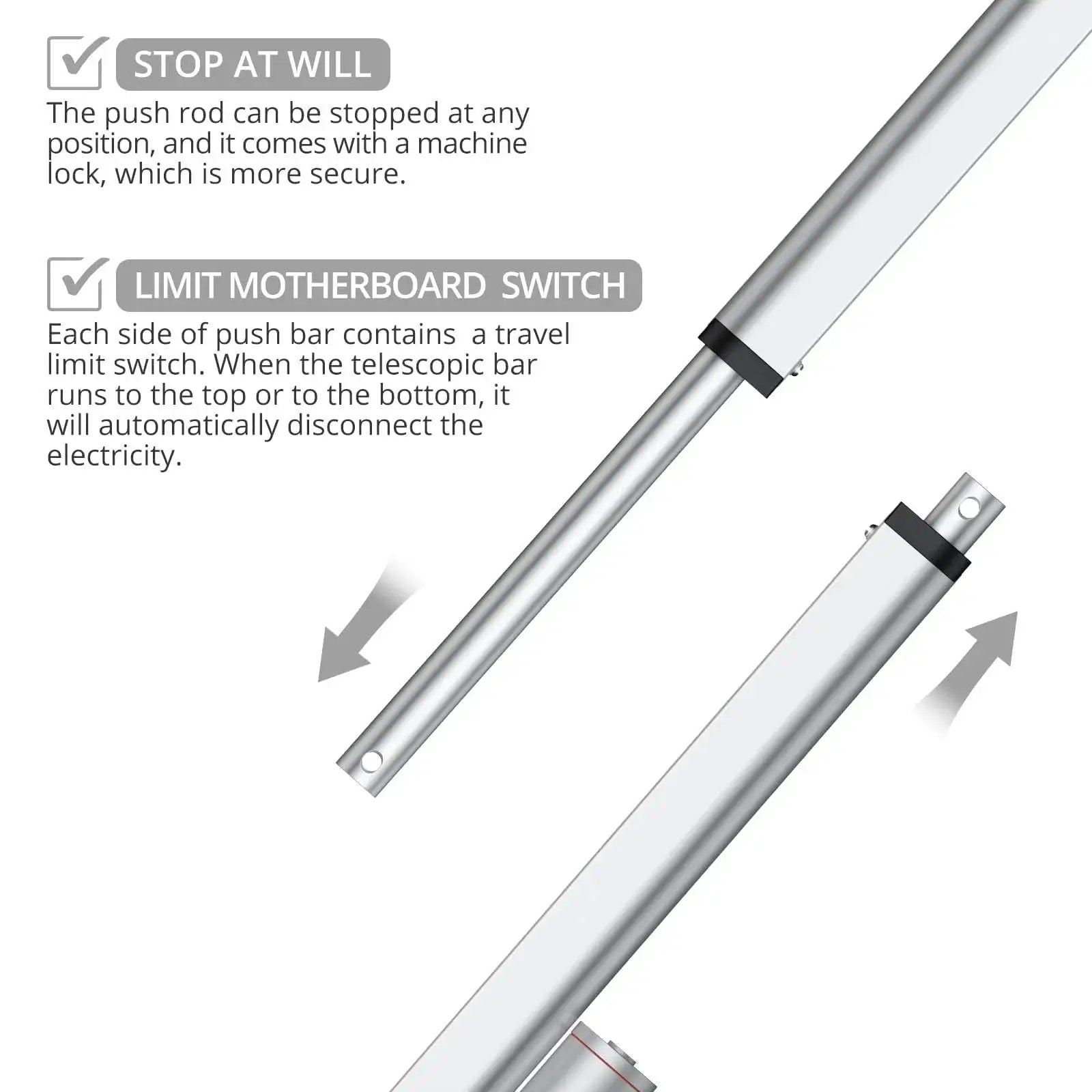

✅ Built-in self-locking with limit switches for safe, precise stopping.
💡 What is a heavy-duty 12V linear actuator used for in home and industrial automation? A handy overview of its core roles in automation.

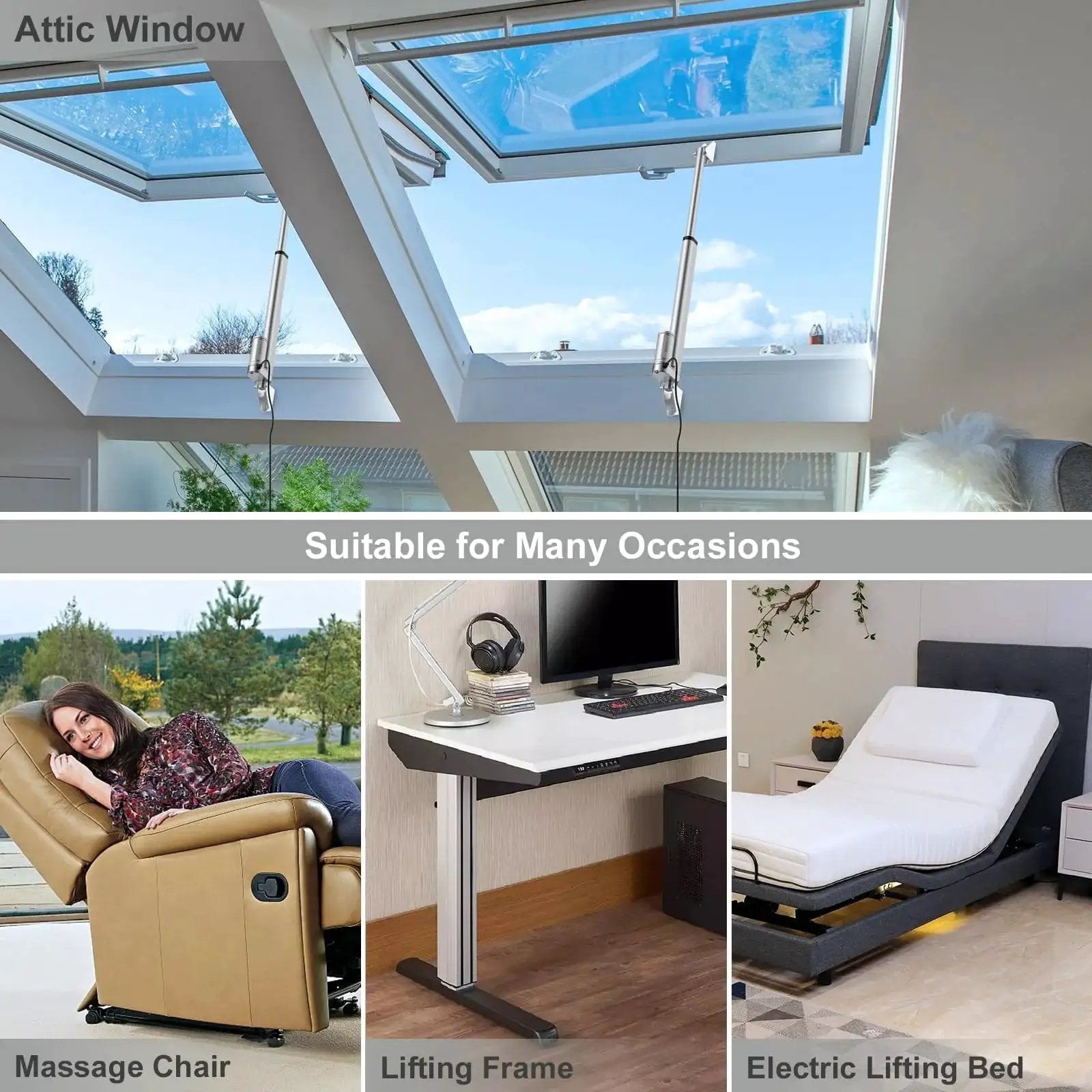

- precise push/pull to control windows, gates, and equipment
- smooth motion and reliability under load in outdoor or workshop setups
- IP65-rated durability for weather exposure in farms, RVs, or trackers

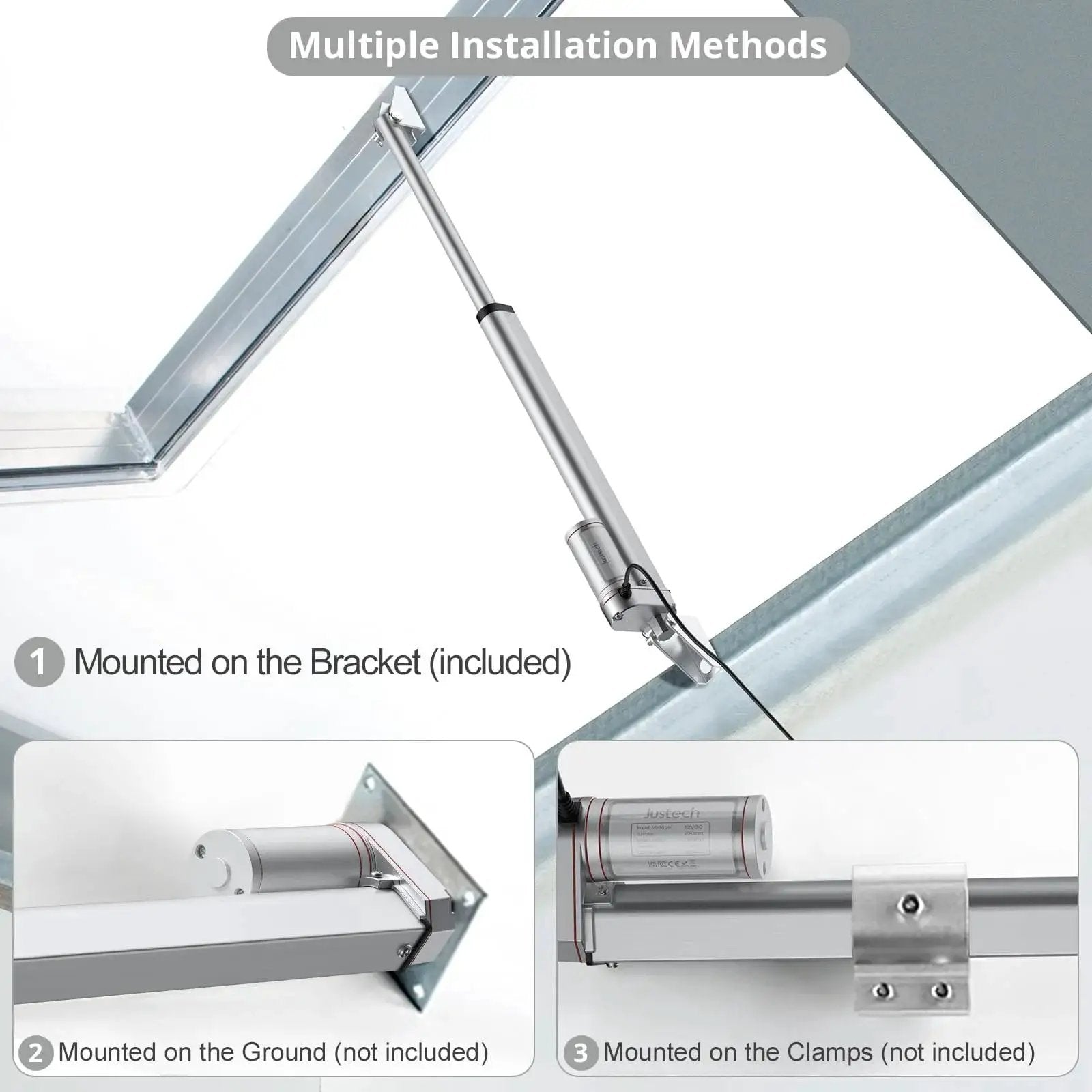

- easy mounting with included brackets for quick setup
