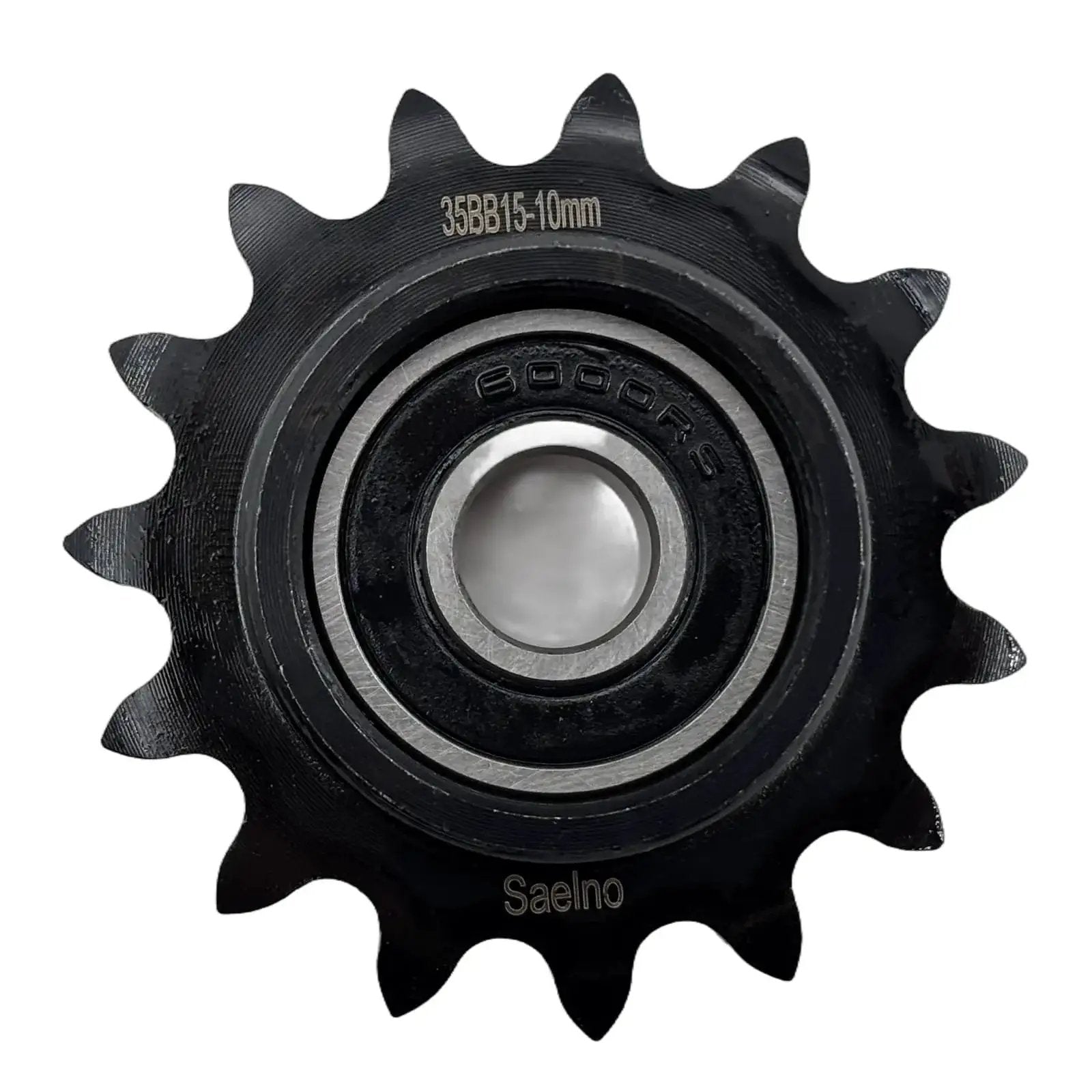

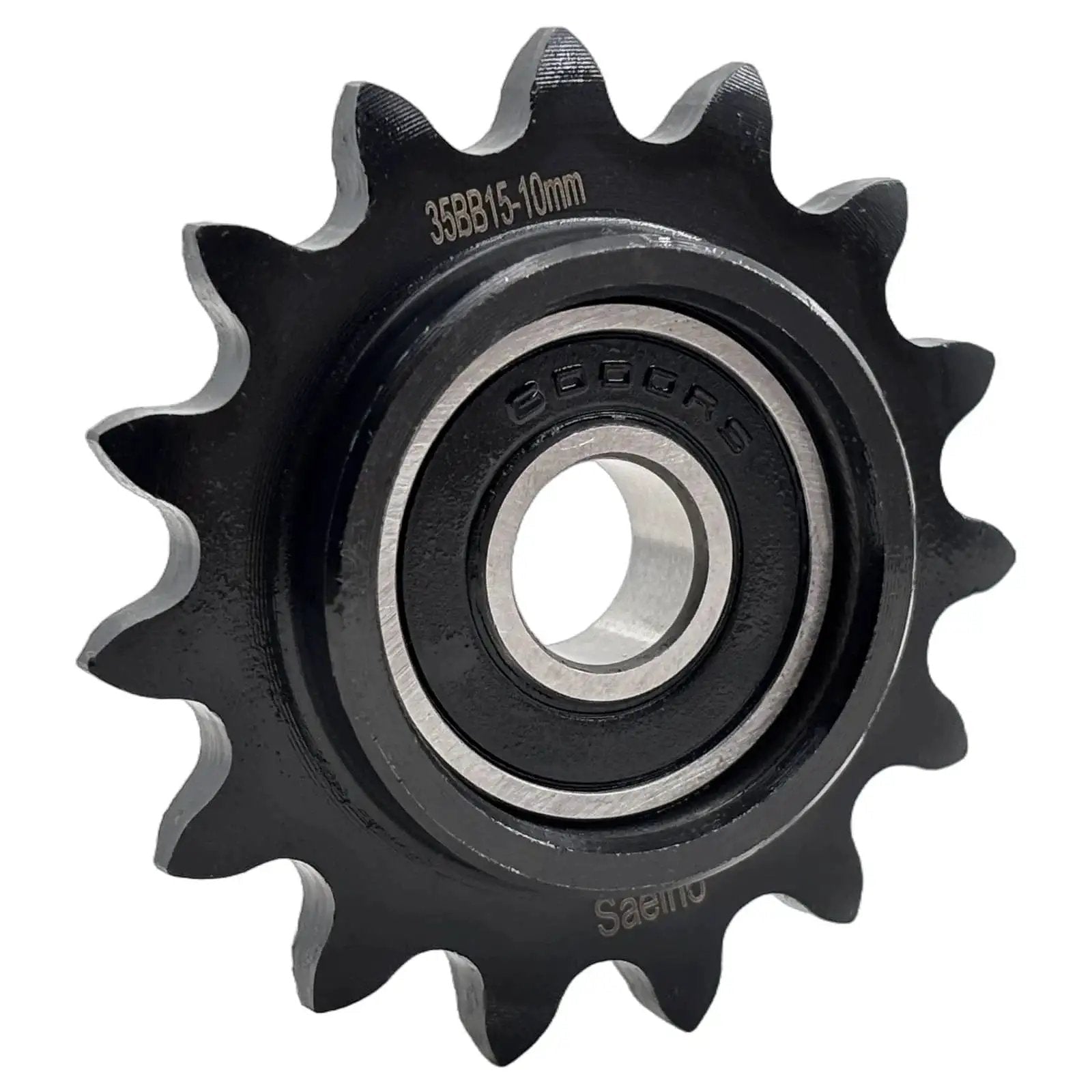

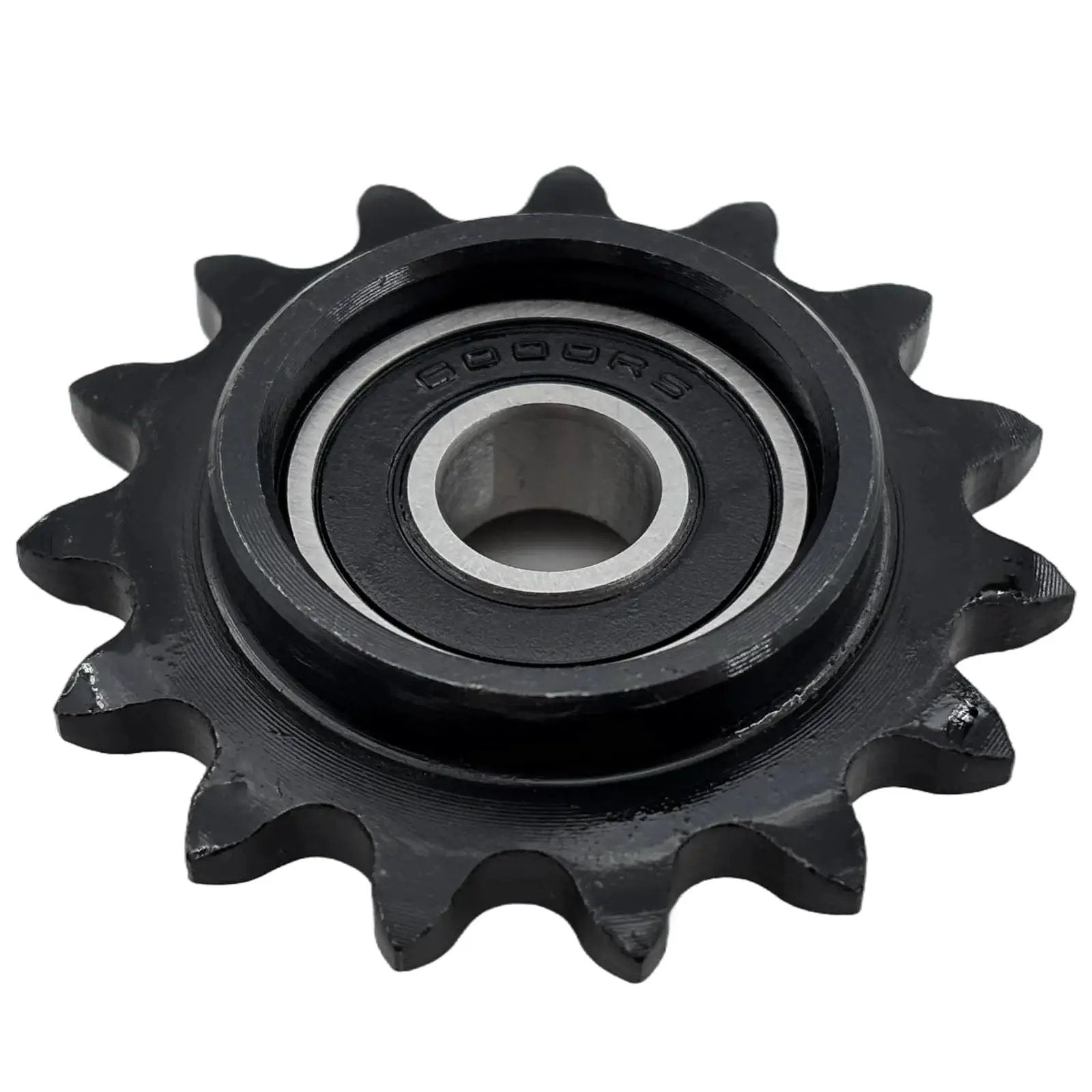

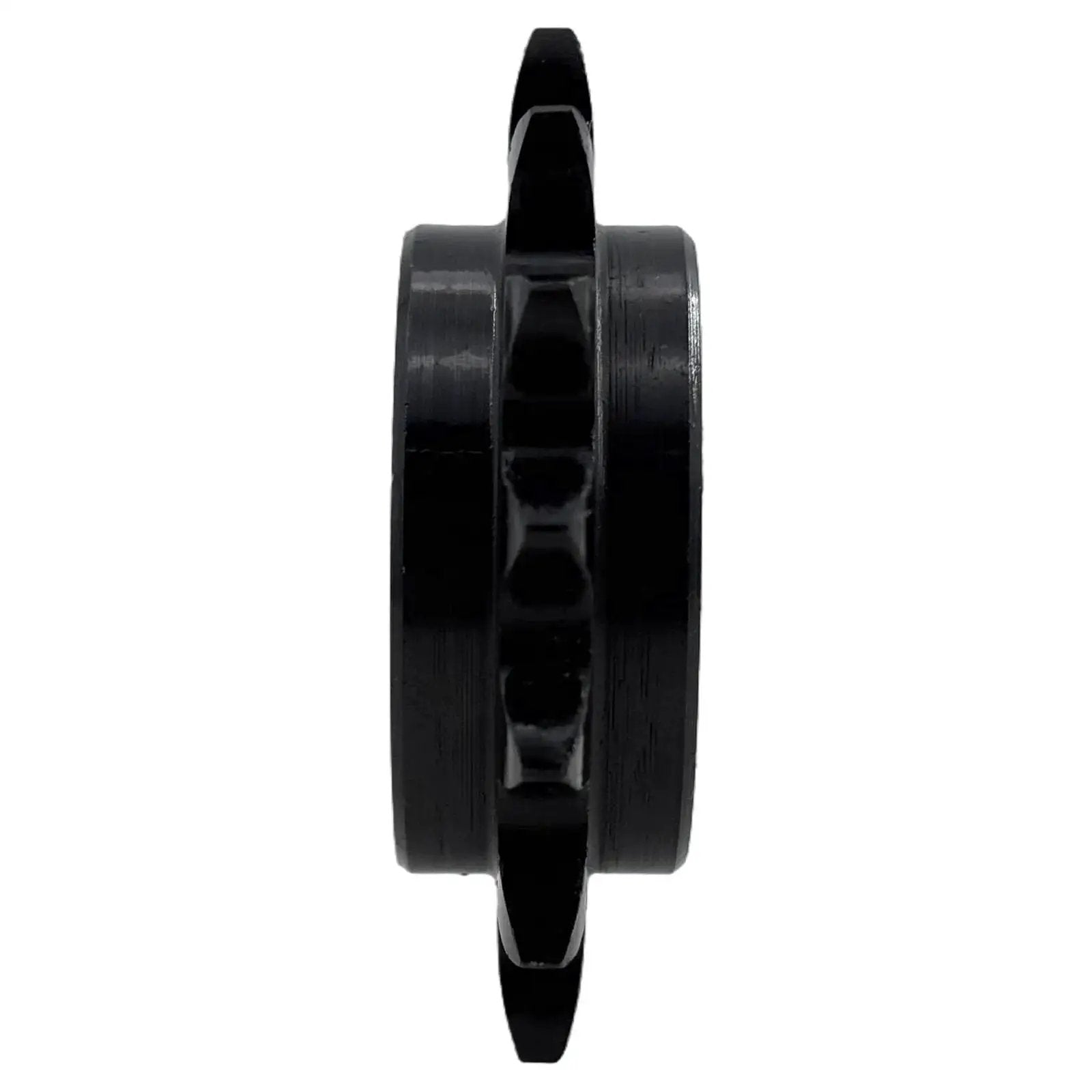

Heavy-Duty ANSI 35 Roller Chain Sprocket, Type C

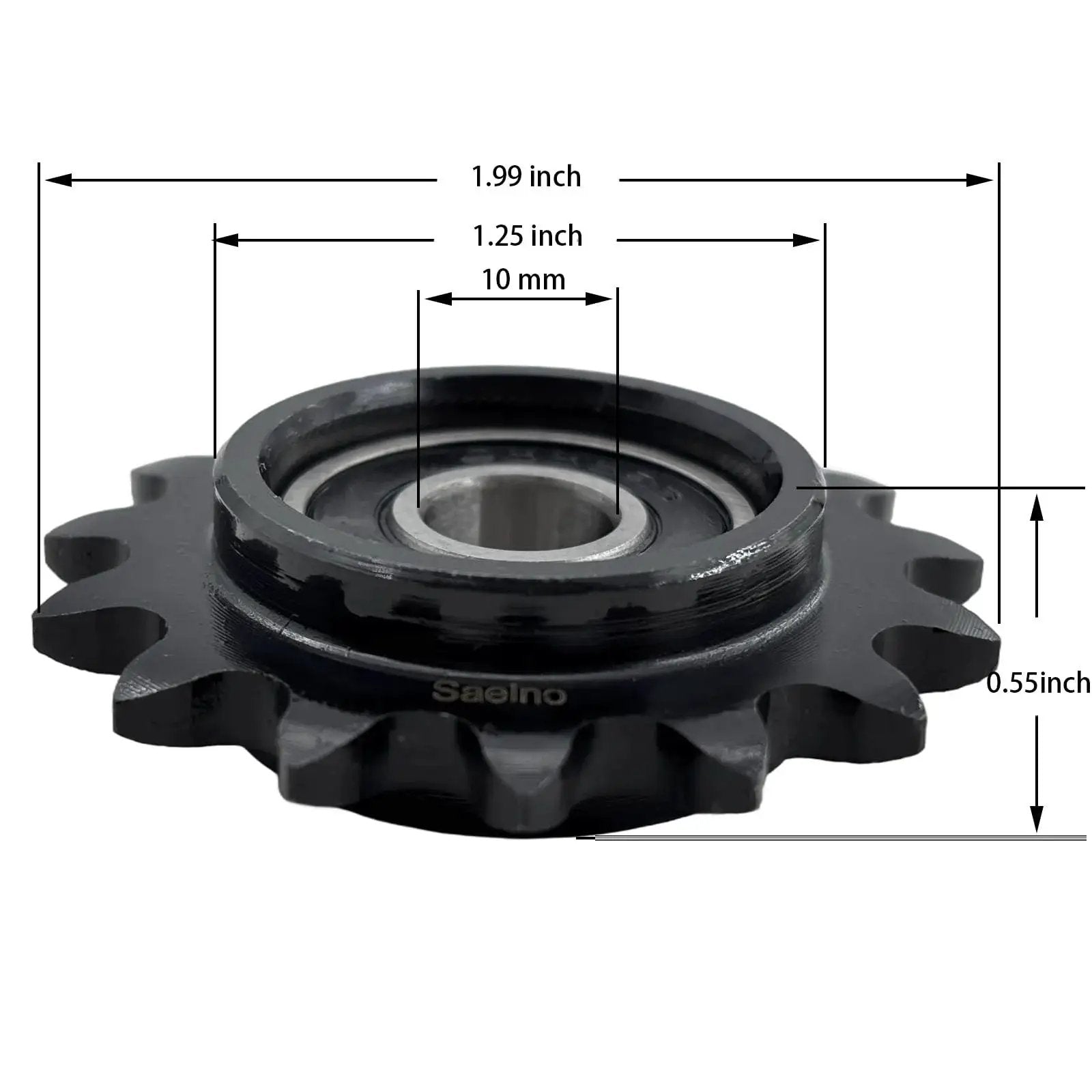

✔️ 3/8 in pitch (9.525 mm), 15 teeth, 10 mm bore (0.394 in)
This heavy-duty ANSI #35 roller chain idler sprocket (Type C) is designed for 3/8 inch pitch chains and fits standard #35 drive chains. It ships as a single sprocket with a 6000RS bearing, built from hardened 1045 carbon steel for rugged use in agricultural, woodworking, and machine tool settings.
✅ ANSI #35, 3/8 in pitch (9.525 mm), 15 teeth
✅ 10 mm bore (0.394 in) with 6000RS sealed bearing
✅ Teeth hardened to HRC38-42 with high-frequency quenching
✅ Blackened finish for corrosion resistance
✅ Interchangeable with Martin, Browning, and other idler sprockets
✅ Includes 1 x sprocket and 1 x 6000RS bearing
💡 What is a common use for an ANSI 35 roller chain idler sprocket in heavy-duty drive systems? This handy component keeps chain alignment and tension to ensure smooth power transmission across conveyors, farm equipment, and woodworking machines.
- handy for maintaining chain tension on long runs
- supports standard #35 chain and Type C configurations
- hardened teeth and corrosion-resistant finish boost life
- easy to install and interchangeable with similar idlers
