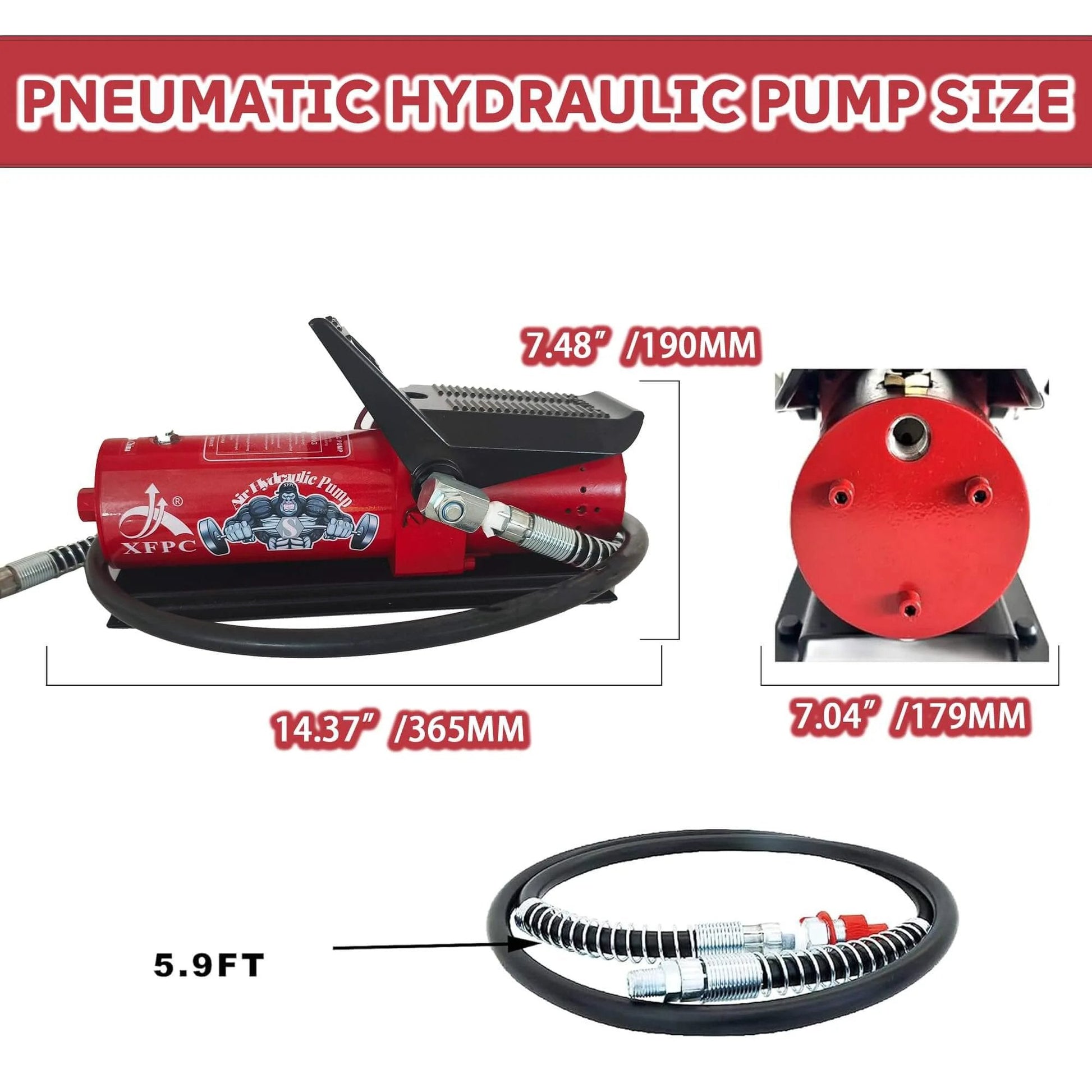

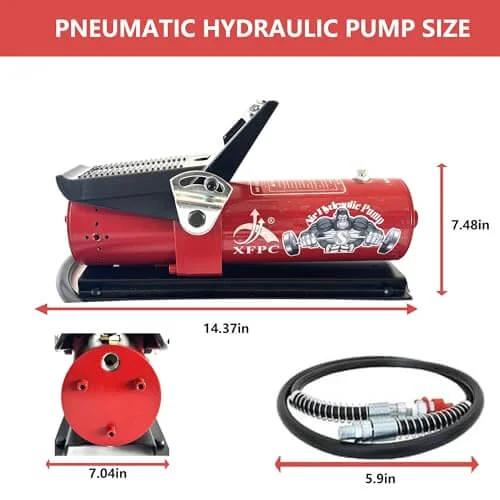

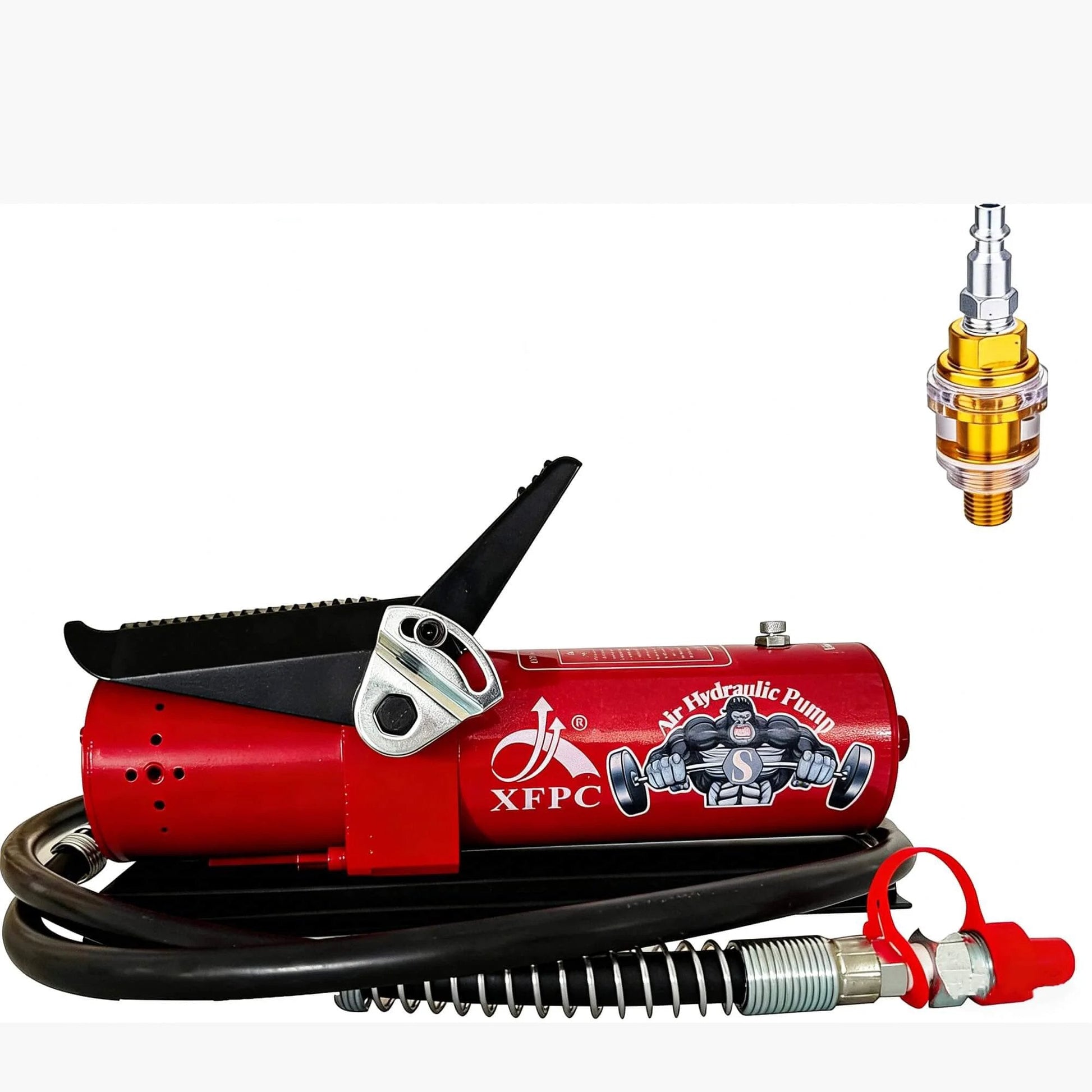

Air Hydraulic Pump 0.45 Gal, 10,000 PSI Aluminum Foot Pump with NPT Inlet/Outlet - Red, Portable High-Pressure Hydraulic Power Unit for Single Pack Use

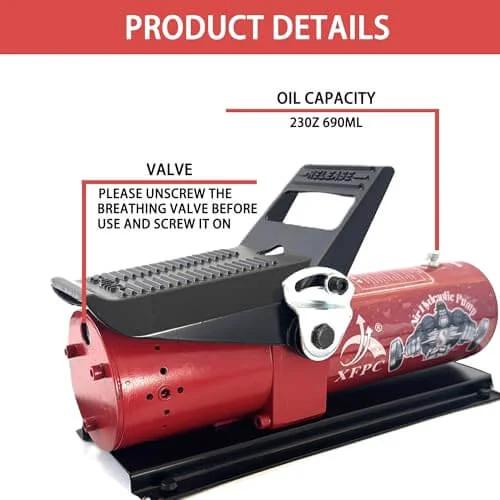

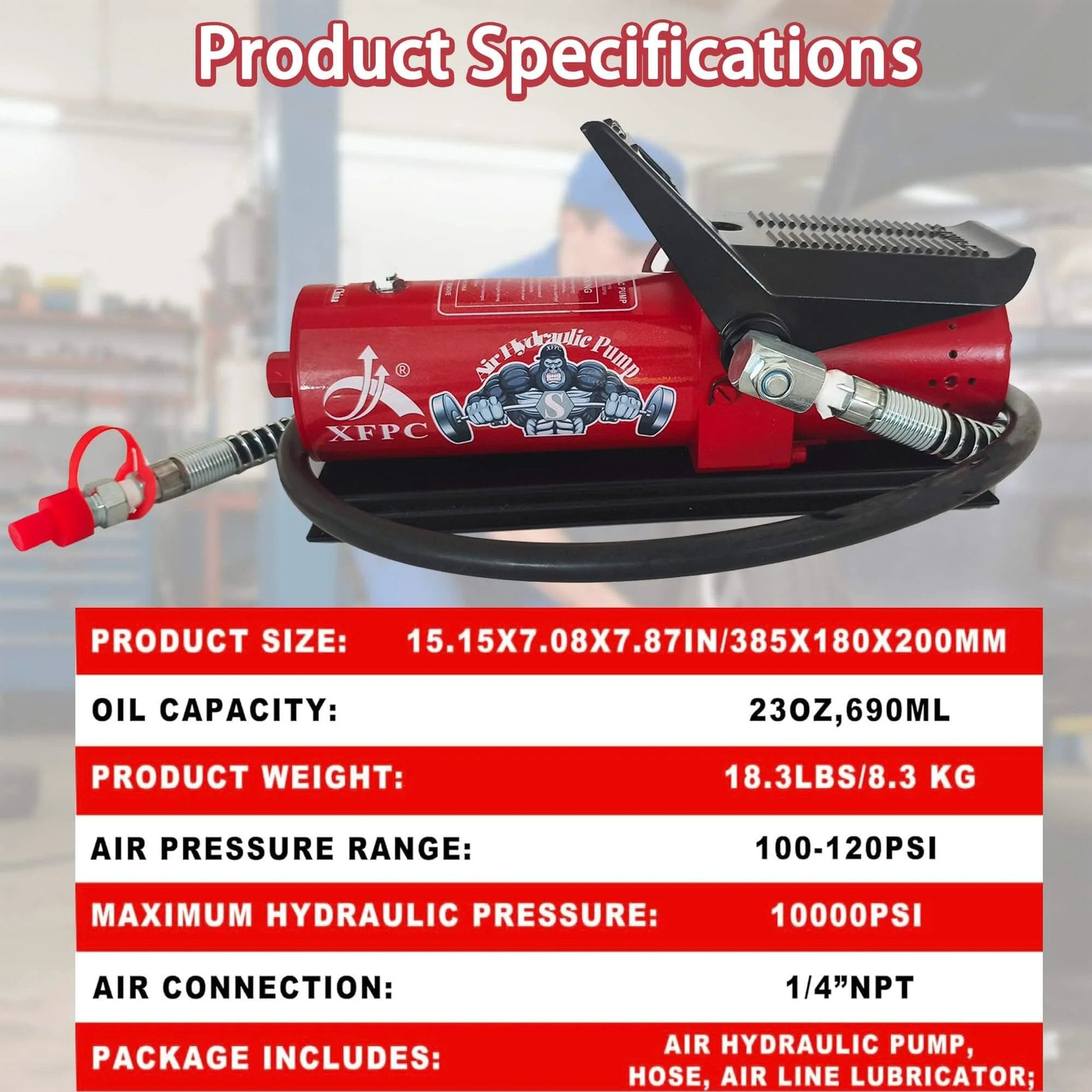

✔️ 0.45 gal reservoir, 10,000 psi max, 100-150 psi input, 1/4 NPT air inlet, 3/8 NPT oil outlet, aluminum body, red, foot-operated with lubricator

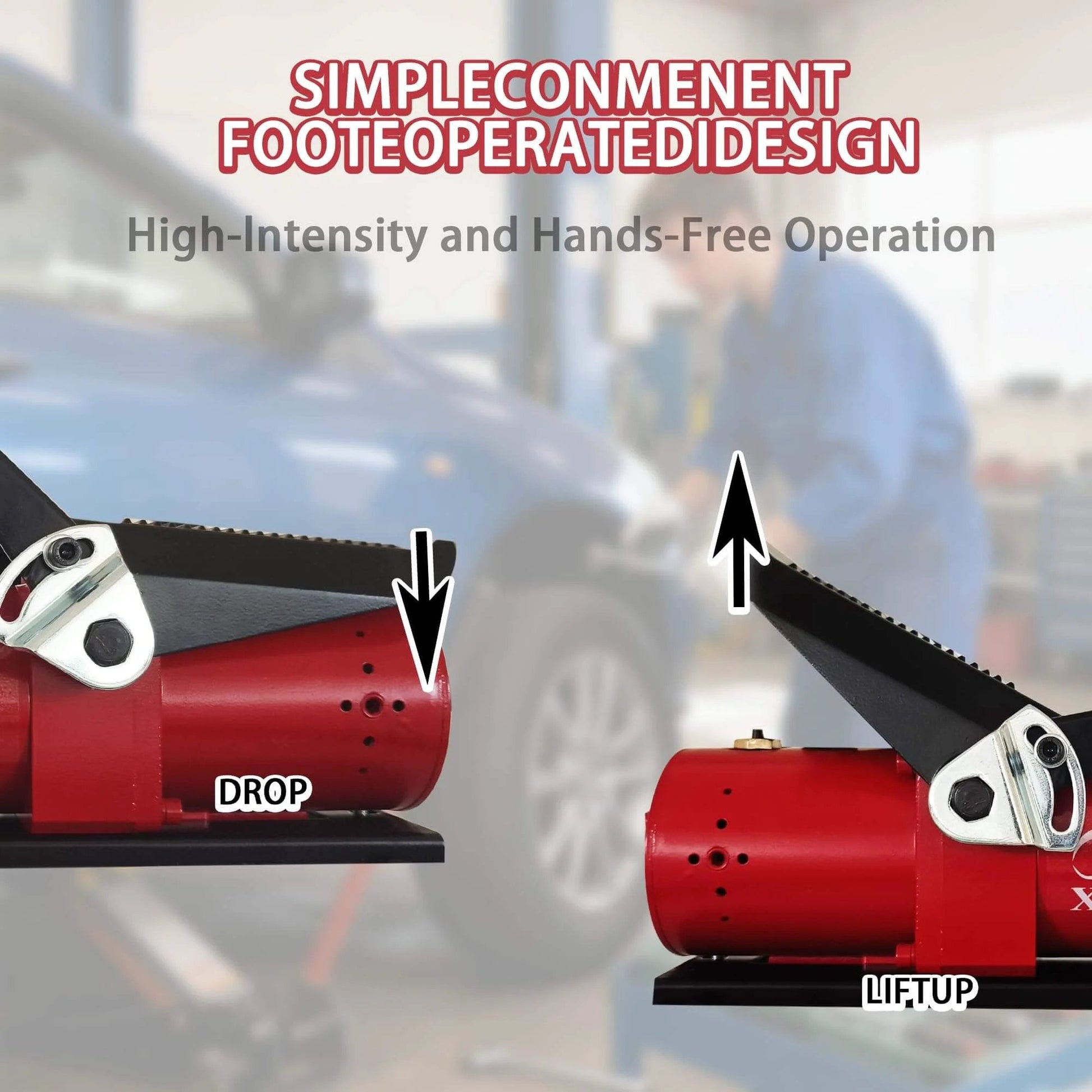

This air hydraulic pump is a compact, aluminum-foot-operated power unit designed to generate up to 10,000 psi for high-pressure hydraulic tasks. It's commonly used in automotive, industrial, and maintenance setups to actuate hydraulic tools and clamps.
✅ Max output pressure: 10000 psi (700 bar)
✅ Max output flow (no load): 850 ml/min (52 cu in/min)
✅ Max output flow (load): 170 ml/min (10 cu in/min)
✅ Air input pressure: 100-150 psi (7-10.5 bar)
✅ Air consumption: ~11 SCFM at 100 psi (0.31 m3/min)

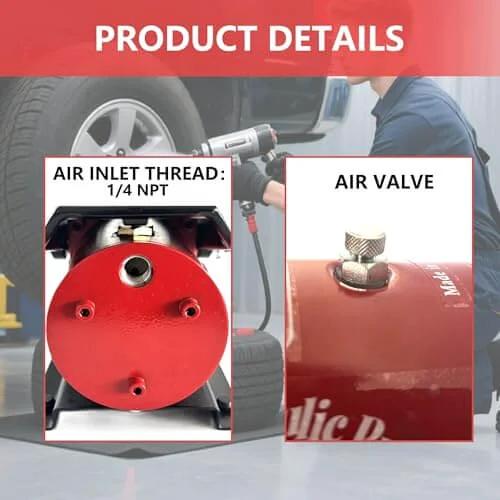

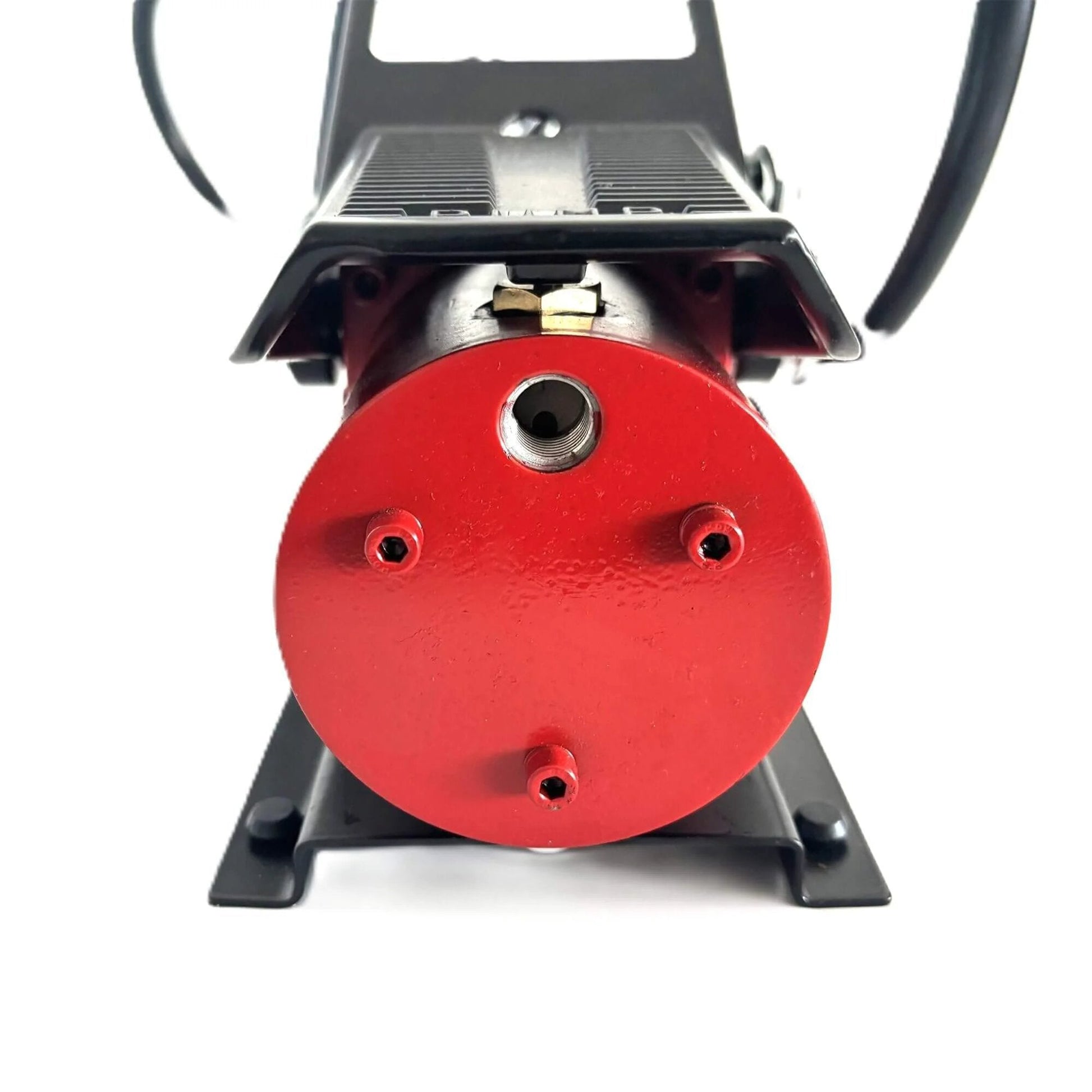

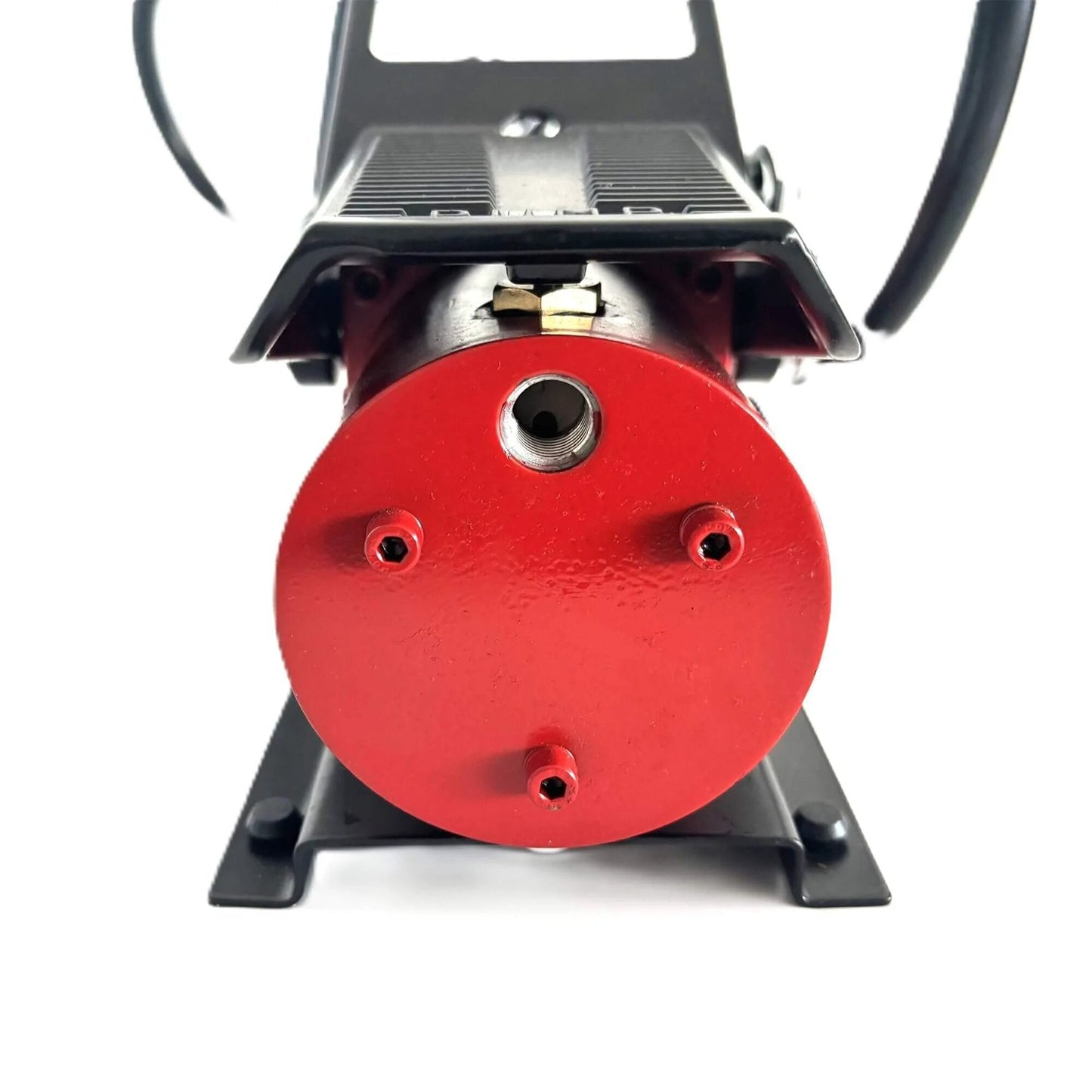

✅ Inlet/outlet fittings: air inlet 1/4 NPT, oil outlet 3/8 NPT
💡 What is an air hydraulic pump used for?
This is a quick, practical overview of its use cases and benefits. - Portable source of high-pressure hydraulic power from compressed air for clamping, pressing, and lifting tasks.
- Handy in maintenance, automotive, and industrial settings where on-site, compact hydraulic power is needed.
- Easy to integrate with standard 1/4 NPT air inlet and 3/8 NPT oil outlet fittings for flexible setups. This handy pump delivers reliable force in a compact form, enabling efficient on-site work and precise hydraulic control for demanding tasks.
