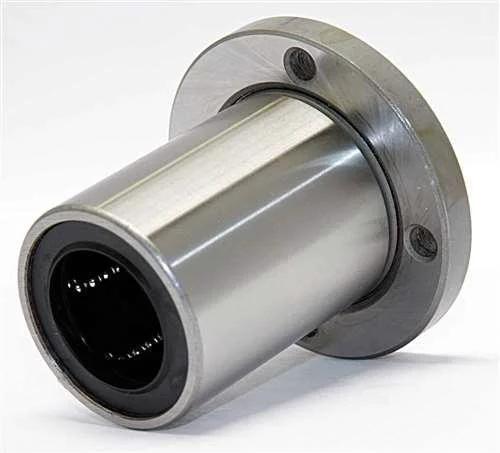

LMF8UU Linear Ball Bearing works with a 8mm Shafts, Size is 8mm x 15mm x 17mm, the inner Diameter is 8mm, the outer Diameter is 15mm and the Length is 17mm, Bearing has Built-in Rubber Seals.
- LMF8UU Bearing
- Linear Ball Bearing
- Size: 8mm x 15mm x 17mm
- Inner Diameter: 8mm
- Outer Diameter: 15mm
- Length: 17mm
- Quantity: 1 Bearing
- Dynamic load rating Cr: 176 N
- Static load rating Cor: 216 N
|
Dimensions(mm)
|
|---|
| dr |
D |
L |
t |
Dp |
X |
Y |
Z |
| mm |
tolerance |
mm |
tolerance |
mm |
tolerance |
| 8 |
0-9 |
15 |
0-13 |
32 |
17 |
5 |
24 |
3.5 |
6 |
3.1 |
|
