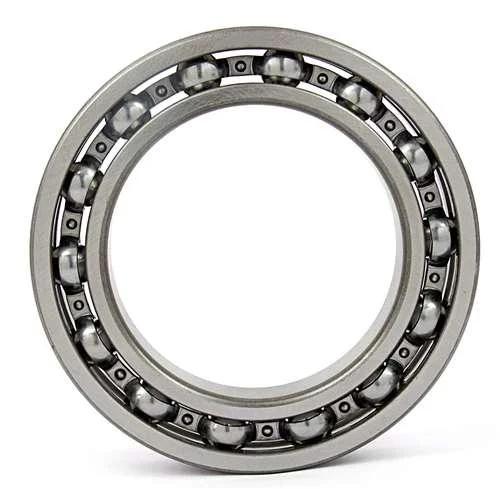

61926 Thin Section Metric Ball Bearing 130x180x24 Large

Name: 61926 Thin Section Metric Ball Bearing 130x180x24 Large
Brand: VXB
SKU: Kit9092_2
Price: 1901.60 CAD
Availability: InStock

$1,901.60 CAD

~~$2,567.16 CAD~~ $1,901.60 CAD

Sale Sold out

Shipping calculated at checkout.

This item will be shipped within 2-3 Weeks

61926 Open Steel Ball Bearing
Quality: ABEC 1

61926 Steel Open Ball Bearing quality is ABEC 1, 61926 bearing is Oil Preservative preserved, inner diameter is 130mm, outer diameter is 180mm and width is 24mm

61926 Ball Bearing
Deep Groove Radial Ball Bearing
Cage: Steel
Closures: Open
Quality: ABEC 1
Material: Steel
Lubrication: Oil Preservative
Dimensions: 130mm x 180mm x 24mm/Metric
ID (inner diameter)/Bore: 130mm
OD (outer diameter): 180mm
Width: 24mm
Size: 130 x 180 x 24 mm
Quantity: 1 Bearing
Dynamic load rating Cr: 65,000 N
Static load rating Cor: 67,000 N
Limiting Speed:
- Grease Lubrication: 3,500 RPM
- Oil Lubrication: 4,200 RPM

💡 Why choose thin section bearings? Because they offer high precision and smooth performance in compact spaces - ideal for applications where saving space and reducing weight is critical, such as robotics, aerospace, and automation systems.
