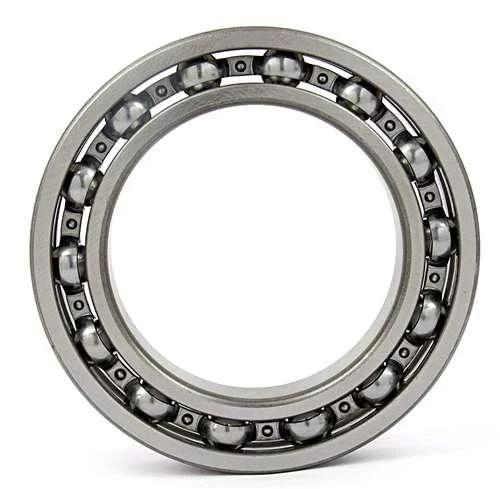

61924 Thin Section Metric Ball Bearing 120x165x22 Large

Name: 61924 Thin Section Metric Ball Bearing 120x165x22 Large
Brand: VXB
SKU: Kit9091_2
Price: 1690.31 CAD
Availability: InStock

$1,690.31 CAD

~~$2,281.92 CAD~~ $1,690.31 CAD

Sale Sold out

Shipping calculated at checkout.

This item will be shipped within 2-3 Weeks

61924 Open Steel Ball Bearing
Quality: ABEC 1

61924 Steel Open Ball Bearing quality is ABEC 1, 61924 bearing is Oil Preservative preserved, inner diameter is 120mm, outer diameter is 165mm and width is 22mm

61924 Ball Bearing
Deep Groove Radial Ball Bearing
Cage: Steel
Closures: Open
Quality: ABEC 1
Material: Steel
Lubrication: Oil Preservative
Dimensions: 120mm x 165mm x 22mm/Metric
ID (inner diameter)/Bore: 120mm
OD (outer diameter): 165mm
Width: 22mm
Size: 120 x 165 x 22 mm
Quantity: 1 Bearing
Dynamic load rating Cr: 53,000 N
Static load rating Cor: 54,000 N
Limiting Speed:
- Grease Lubrication: 3,800 RPM
- Oil Lubrication: 4,600 RPM

💡 Why choose thin section bearings? Because they offer high precision and smooth performance in compact spaces - ideal for applications where saving space and reducing weight is critical, such as robotics, aerospace, and automation systems.
