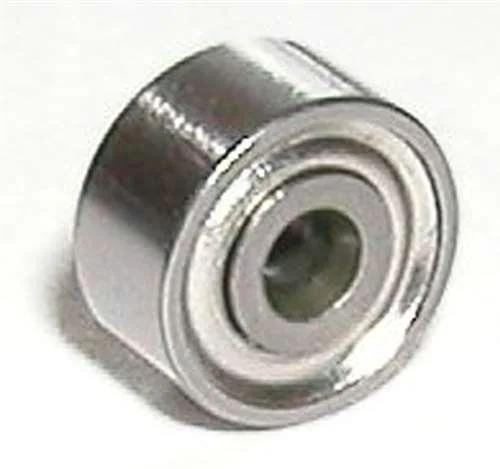

603ZZ Miniature Ball Bearing 3x9x5mm

603ZZ shielded, radial and deep groove ball bearing,603ZZ bearing is made from stainless Steel, 603ZZ bearing is closed with metal shields to protect the bearing from dust or any possible contamination, 603ZZ bearing is shielded and self lubricated, the quality is set to EMQ (electric motor quality), 603ZZ bearing is lubricated with grease, 603ZZ Catalog as follows.

• 603ZZ Ball Bearing
• Deep Groove Ball Bearing Design
• Standard: Metric
• Quality: Standard Precision
• Inner and Outer Rings Material: Chrome Steel
• Balls Material: Chrome Steel
• Cage Material: Steel
• Band: VXB
• Load Direction: Radial Ball Bearing
• Lubrication: Pre-lubricated with grease Bearing
• Closures: Double metal shields (Z/ZZ/2Z) for protection against dust and debris
• Dimensions: 3mm x 9mm x 5mm/Metric
• Inner Diameter (ID): 3mm
• Outer Diameter (OD): 9mm
• Width: 5mm
• Size: 3 x 9 x 5 mm
• Quantity: 1 Bearing
• Dynamic load rating Cr: 430 N
• Static load rating Cor: 160 N
• Limiting Speed:
  • Grease
  • Lubrication: 60,000 RPM
