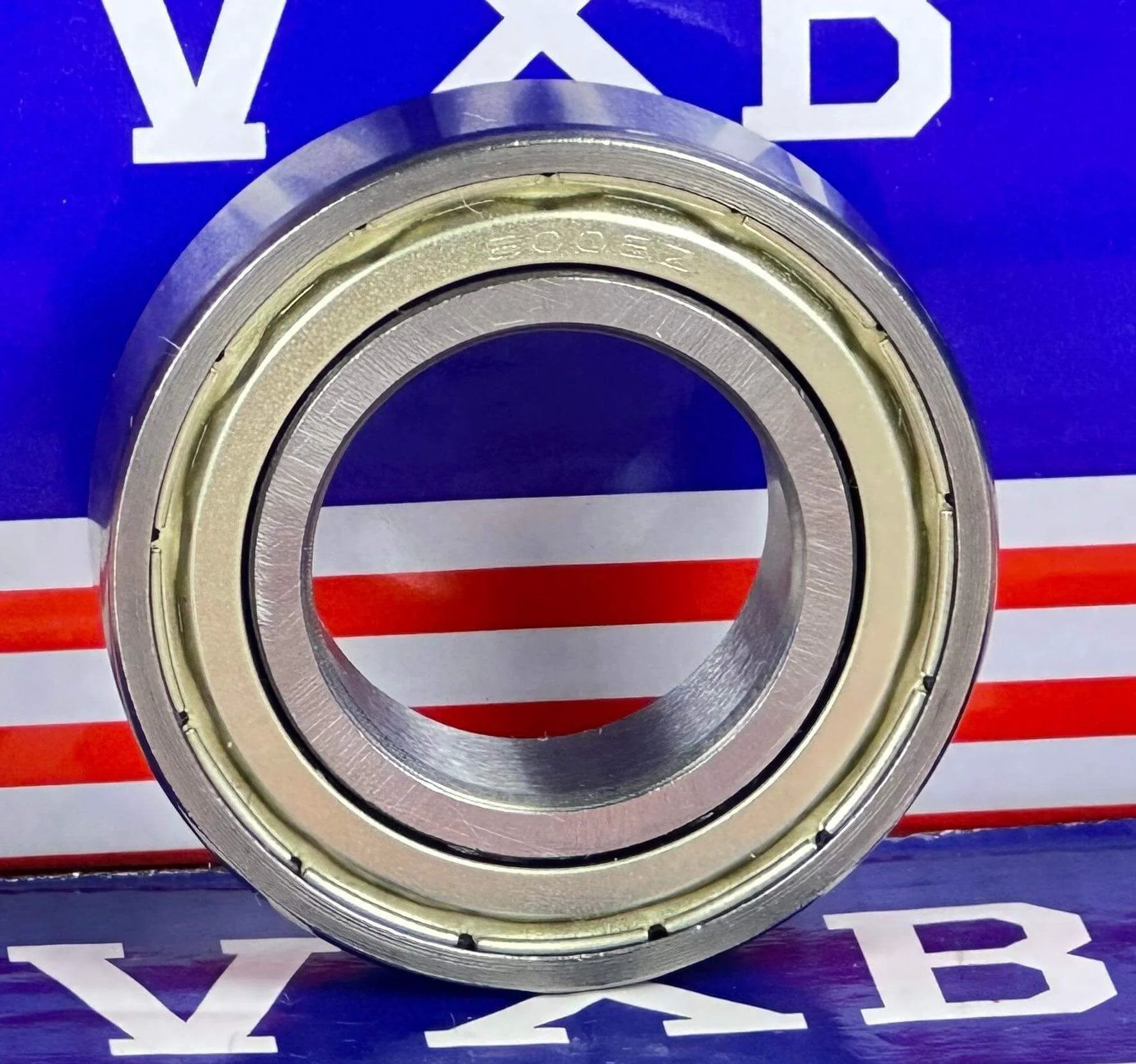

6005ZZC3 Metal Shielded Bearing - C3 Clearance 25x47x12mm

6005ZZC3 Metal Shielded C3 Clearance Bearing
✔️ 25mm x 47mm x 12mm Deep Groove Ball Bearing

The 6005ZZC3 is a deep groove radial ball bearing designed for smooth operation under higher speed or thermal expansion conditions. With double metal shields and C3 clearance, it’s built for durability and reliability in demanding setups.

✅ Bore (ID): 25mm
✅ Outer Diameter (OD): 47mm
✅ Width: 12mm
✅ Material: High-quality steel
✅ Closures: Double metal shields (ZZ) for dust and debris protection
✅ Clearance: C3, allows extra internal play for high-speed or heat-prone applications
✅ Dynamic load rating (Cr): 10,100 N
✅ Static load rating (Cor): 5,850 N
✅ Max speed (grease): 15,000 RPM
✅ Quantity: 1 bearing

💡 What does “C3 clearance” mean in a ball bearing?
C3 clearance provides slightly more internal space between the balls and raceways, which helps in:

• Handling higher operating speeds without excess friction

• Compensating for heat expansion during continuous use

• Reducing the risk of premature wear in warm or high-load environments

If you need a high-speed bearing that can handle temperature changes, the 6005ZZC3 is a strong choice.
