564534A Conical Roller Bearing 7.75" Bore x 10" Diameter

564534A Conical Roller Bearing 7.75" Bore x 10" Diameter

$2,200.43 CAD
$2,970.57 CAD $2,200.43 CAD
Sale Sold out
Shipping calculated at checkout.
BEARING 564534 A CONICAL ROLLER
One Bearing

BEARING 564534 A CONICAL ROLLER

  • 564534 A CONICAL ROLLER

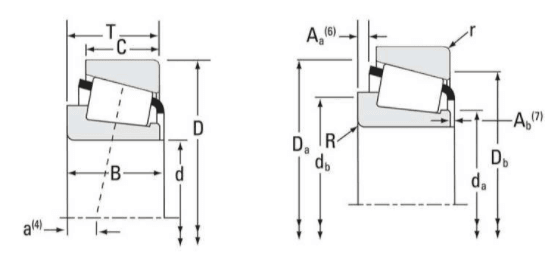

  • d - Bore: 196.85mm / 7.75" inch / 7-3/4" inch
  • D - Cup Outer Diameter: 254mm / 10.00" Inch
  • B - Cone Width: 27.783mm / 1.0938" Inch
  • C - Cup Width: 21.433mm / 0.8438" Inch
  • R - Cone Backface "To Clear" Radius 1.520mm / 0.06" Inch
  • r - Cup Backface "To Clear" Radius 1.52mm / 0.06" Inch
  • da - Cone Frontface Backing Diameter 208.03mm / 9.13" Inch
  • db - Cone Backface Backing Diameter 210.06mm /8.27" Inch
  • Da - Cup Frontface Backing Diameter 246.90mm / 9.80" Inch
  • Db - Cup Backface Backing Diameter 243.08mm / 9.57" Inch
  • Ab - Cage Cone Frontface Clearance 2.5mm / 0.1" Inch
  • Aa - Cage Cone Backface Clearance 2mm / 0.08" Inch
  • a - Effective Center Location 14.2mm / 0.56" Inch
