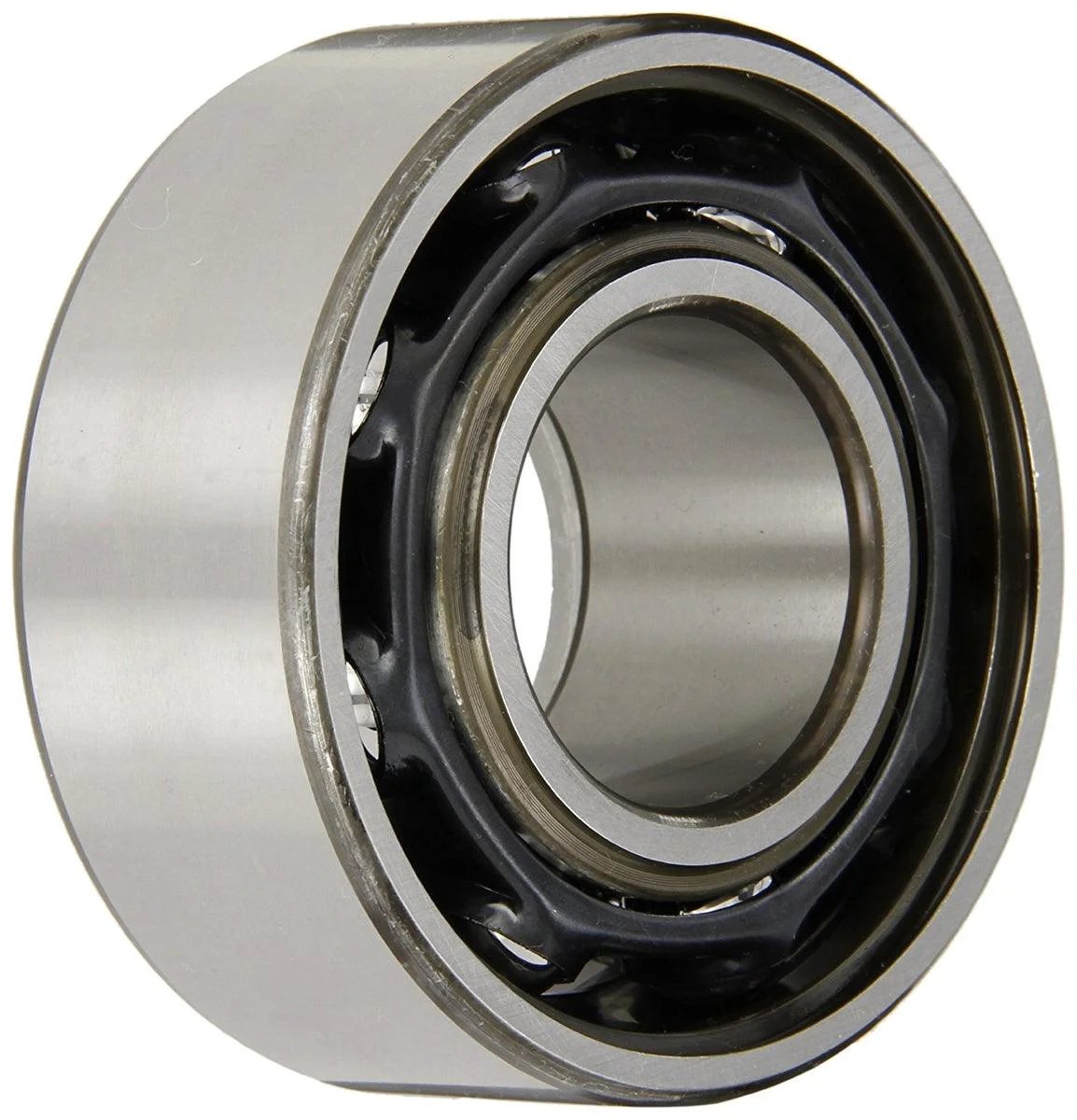

5309 2-Row Angular Contact open Bearing 45X100X39.6

5309 Double Row Angular Ball Bearing, open Double Row Angular Contact ball bearing has two rows of balls that are arranged in a back-to-back configuration.Double Row Angular Contact ball bearings may offer some economic benefits as well as handling and mounting benefits versus pairs of Single Row Angular Contact ball bearings

• 5309 Ball Bearing
• Double Row Angular open Ball Bearing
• Closures: Open
• Dimensions: 45mm X 100mm X 39.6mm/Metric
• ID (inner diameter)/Bore: 45mm
• OD (outer diameter): 100mm
• Width: 39.6mm
• Size: 45 x 100 x 39.6 mm
• Quantity: 1 Bearing
• Dynamic load rating Cr: 72,800 N
• Static load rating Cor: 53,000 N
• Limiting Speed:
  • Grease Lubrication: 5,000 RPM
  • Oil Lubrication: 6,000 RPM
