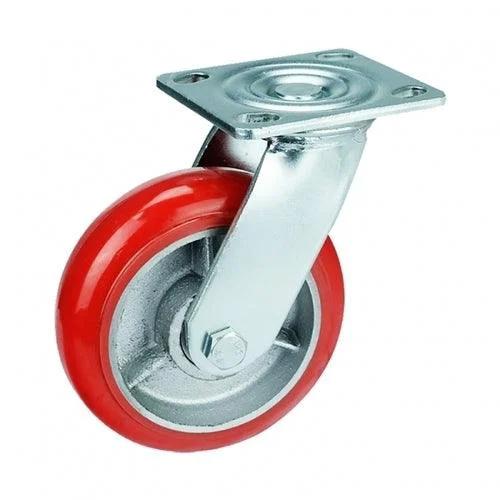

5"inch Heavy Duty Caster Wheel 661 Lbs Rotating+Brake+Fixed Steel Core - PU - Top Plate Mount

5" Inch Caster Wheel 661 pounds Swivel+Brake+Fixed Steel Core and Polyurethane Top Plate

VXB005125ACPU

Heavy Duty

Wheel Diameter= 125mm

Wheel Width= 50mm

Wheel Diameter= 5" Inch = 125mm

Overall Height= 167mm

Overall Height Inch= 6.575"

Mounting Type= Top Plate

Top Plate Size= 100mm x 115mm

Hole distance= 75mm x 85mm

Wheel Core= Steel Core and Polyurethane

Tire= Steel Core and Polyurethane

Bearing type= Double ball beaing

Load Capacity= 661 lb

Mounting= Swivel+Brake+Fixed

Temperature Range= -40 to 180 F

Utilizing VXB005125ACPU makes it feasible to pull and push items instead of transport Diameter size of the caster wheel has a metric standard 125mm which is equal to 4.921" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. Overall height of the wheel caster is 167mm = 6.575" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The weehl core material is Steel Core and Polyurethane and has a Steel Core and Polyurethane tire with a low friction Double ball beaing. Bearing in mind that every caster wheel has the load capacity of 661 lb with a Swivel+Brake+Fixed type. The caster temperature range = -40 to 180 F. Buy the VXB005125ACPU now, just add the quantity to basket and click on Checkout.
