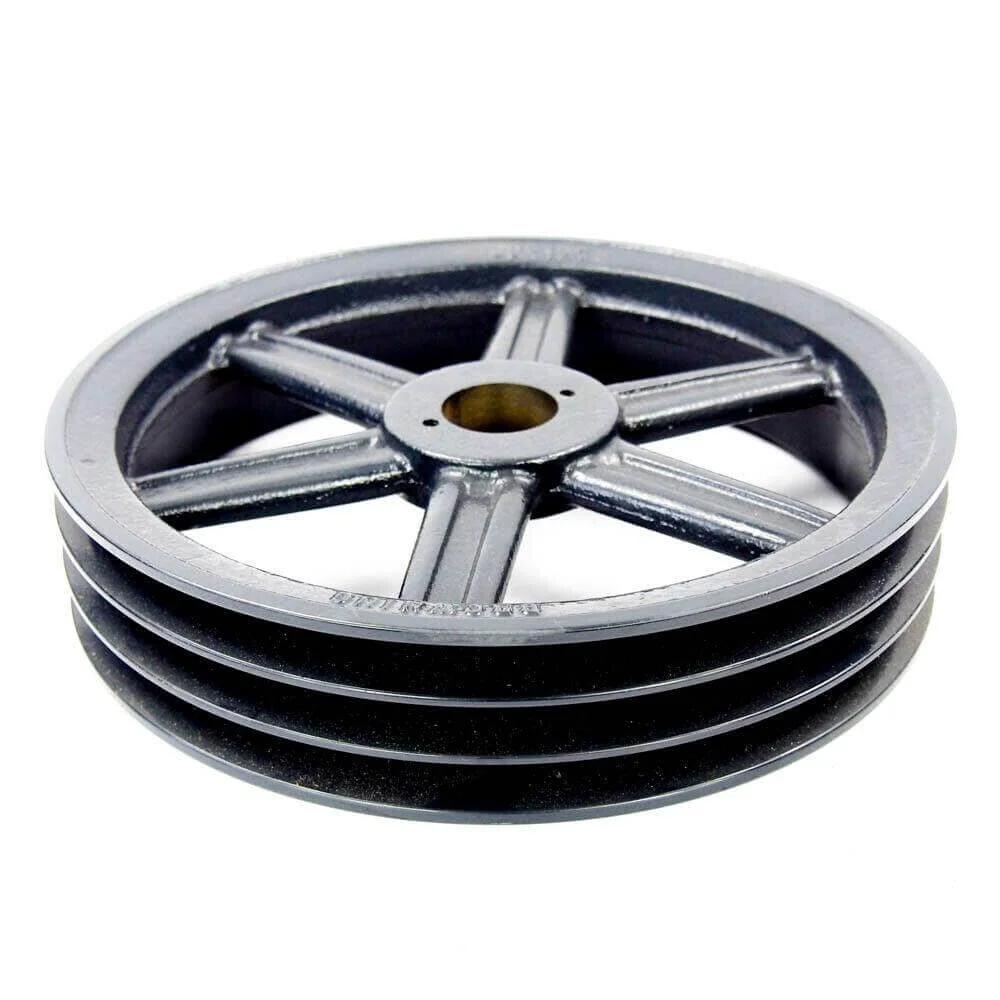

3BK65H Cast Iron Bushed Sheave Pulley for V-belt size 5L, B OD : 6.5" 3 Grooves Pulley 3BK65H

3BK65H Cast Iron Bushed Sheave Pulley for V-belt size 5L, B OD : 6.5" 3 Grooves Pulley 3BK65H

$218.89 CAD
$295.49 CAD $218.89 CAD
Sale Sold out
Shipping calculated at checkout.
3BK65H Cast Iron Bushed Sheave Pulley for V-belt
size 5L, B OD : 6.5" Inches 3 Grooves Pulley 3BK65H
  • Outside diameter: 6.5" inch
  • Length through bore: 1.1563" inch
  • Belt section size: 5L, B, BX
  • Material : Cast Iron
  • Belt Top Width: 5/8"
  • 3 Grooves
  • One Bushing pulley
B-Section Groove Outside Dia. 6.5" Inch Bushing H

  • 3BK-H bushing V-Belt sheaves ( pulleys ) is an excellent choice for inch and metric shafts
  • 3BK Sheaves are accurately machined from fine grained cast iron, statically balanced
  • The belt series most common for this pulley is 5L, or B, BX, V-Belts. Keyway not included
