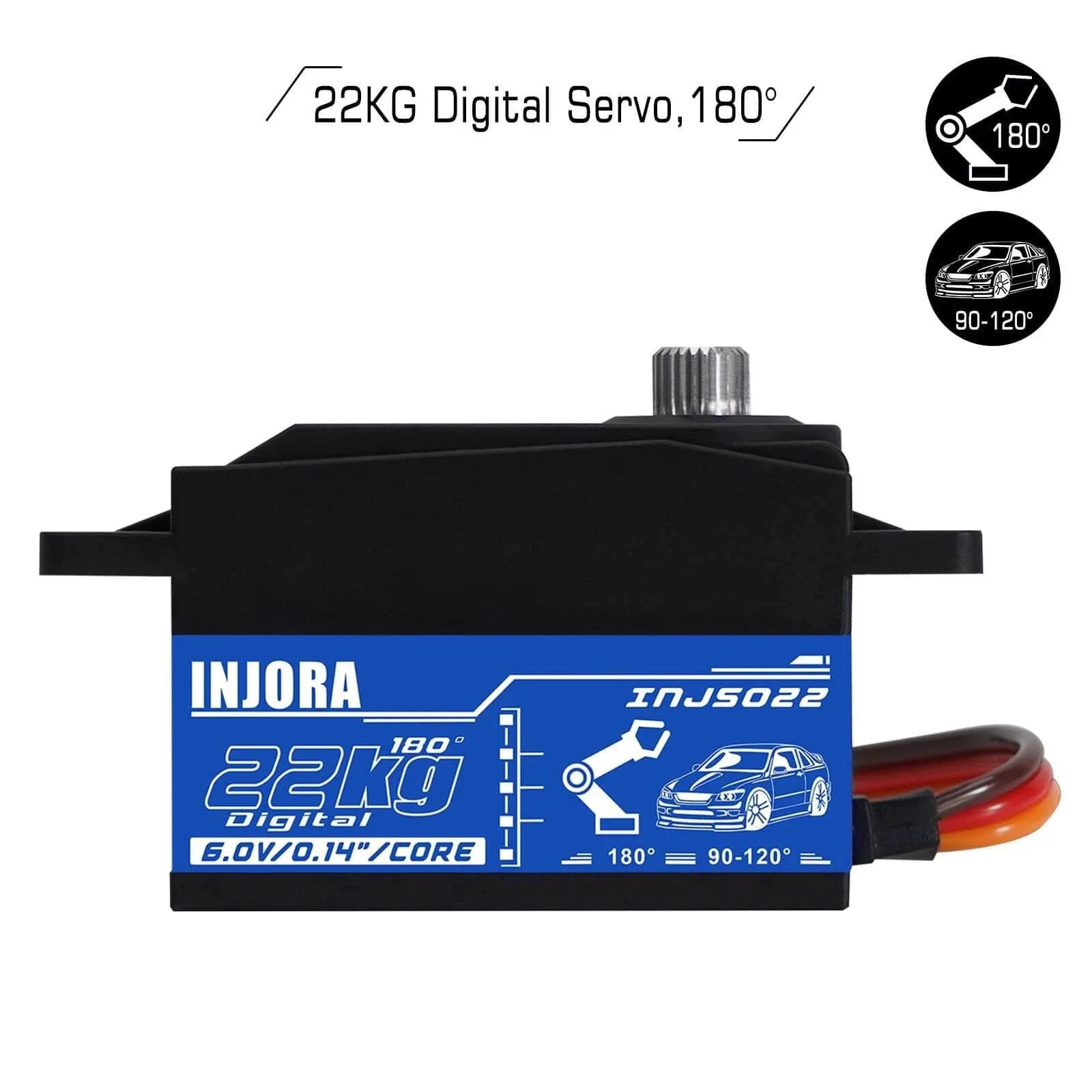

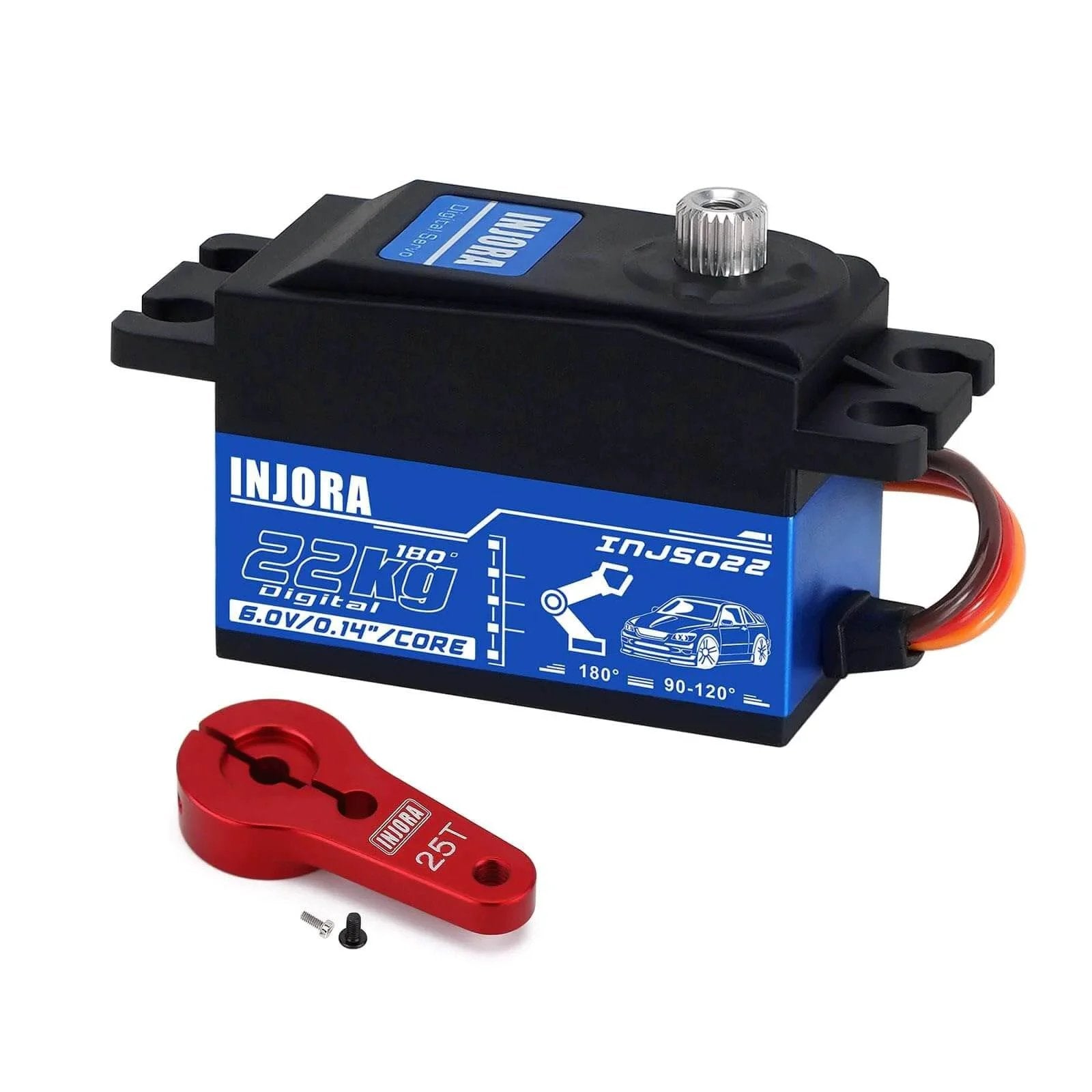

Low-profile 22 kg digital servo for 1/10 RC cars with 25T horn
✔️ Compact, metal gears, dual bearings, 4.8-6.0V operation

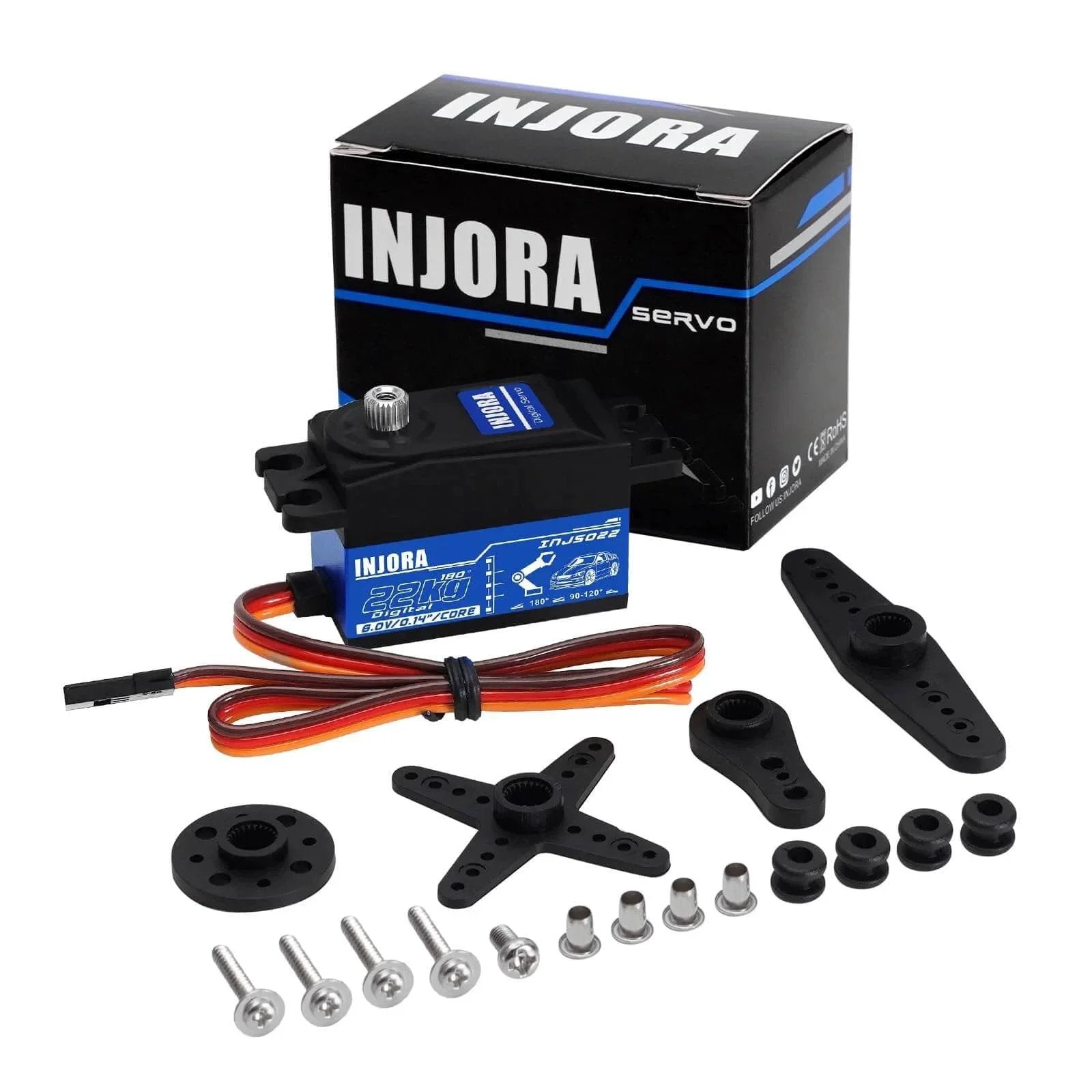

The single-unit 22 kg low-profile digital servo is designed for 1/10 RC cars and robots, compact enough to fit tight spaces. Includes a 25T aluminum horn for quick upgrades and improved steering or actuator control. Pack: 1 piece.

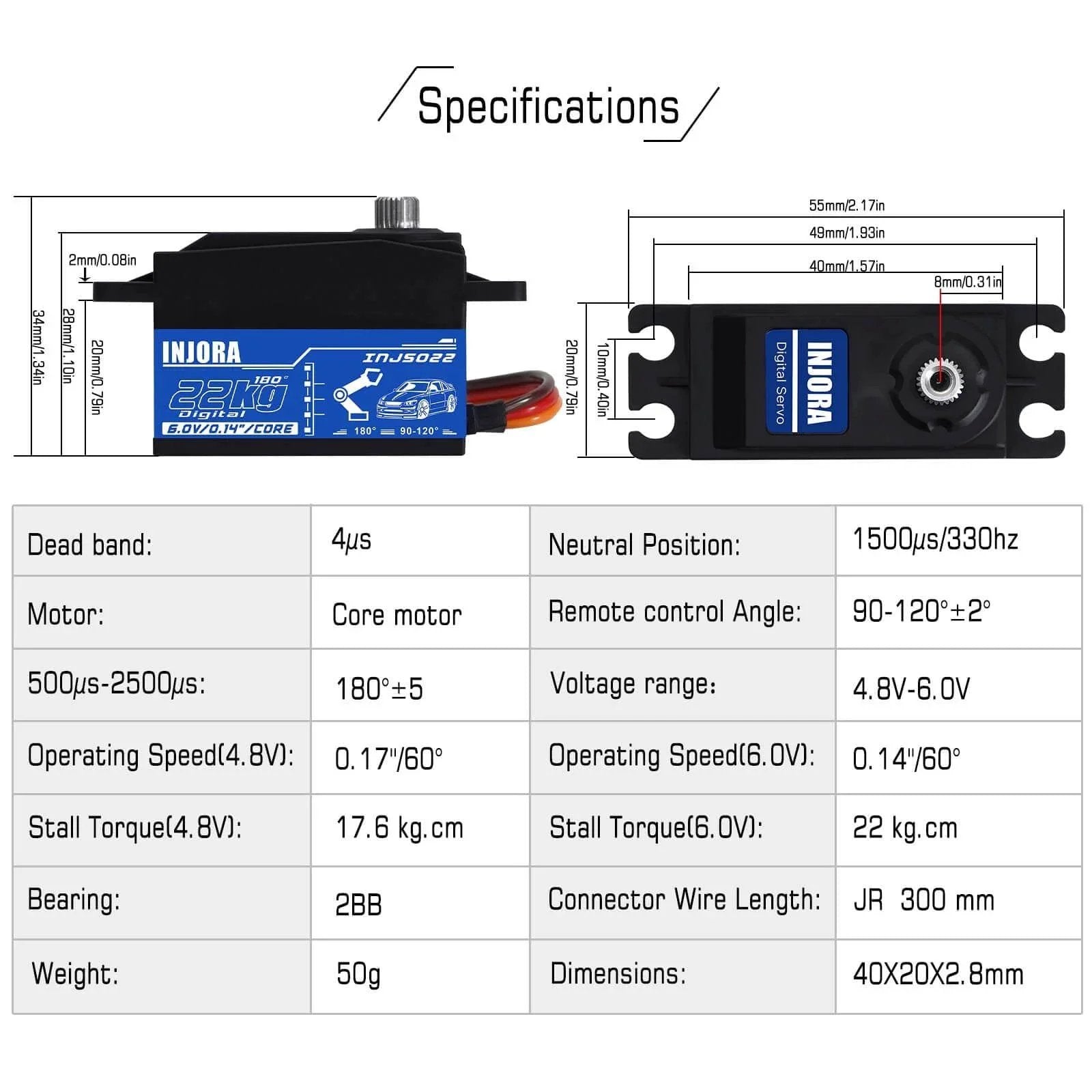

✅ Speed: 0.14 s/60° @ 6.0V; 0.17 s/60° @ 4.8V

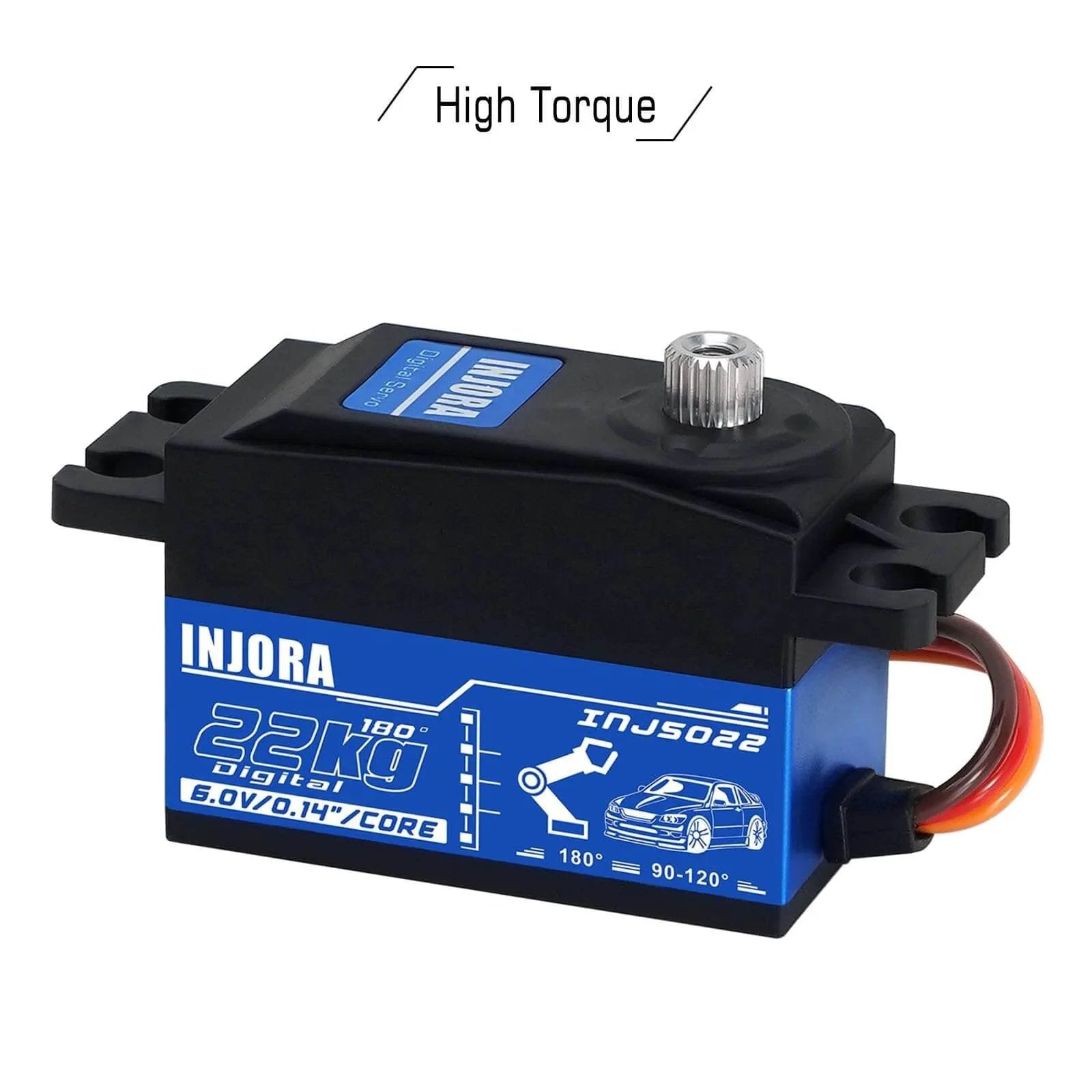

✅ Stall torque: 22 kg.cm @ 6.0V; 17.6 kg.cm @ 4.8V
✅ Spline: Φ5.9, 25T; Weight: 50 g; Size: 40 × 20 × 28.8 mm
✅ Voltage range: 4.8-6.0V; Dead band: 4 μs; Neutral: 1500 μs / 330 Hz

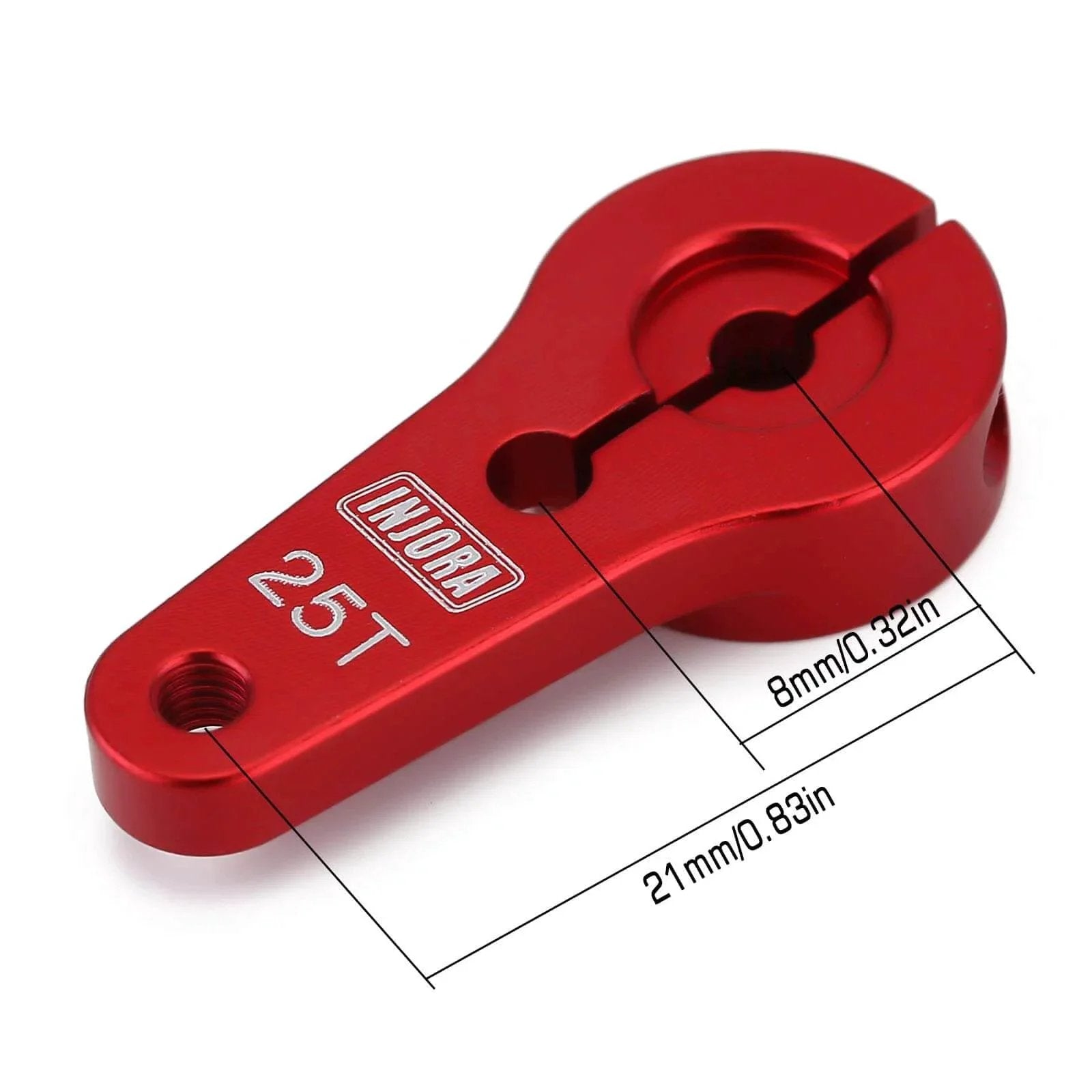

✅ Horn included: 25T aluminum horn; Remote angle: 90-120° ±2°
💡 What is a low-profile digital servo used for in 1/10 scale RC cars and robots?
This handy servo is built for tight spaces where standard servos won’t fit, delivering solid torque and precise control.
- Ideal for steering linkages in compact 1/10 scale cars

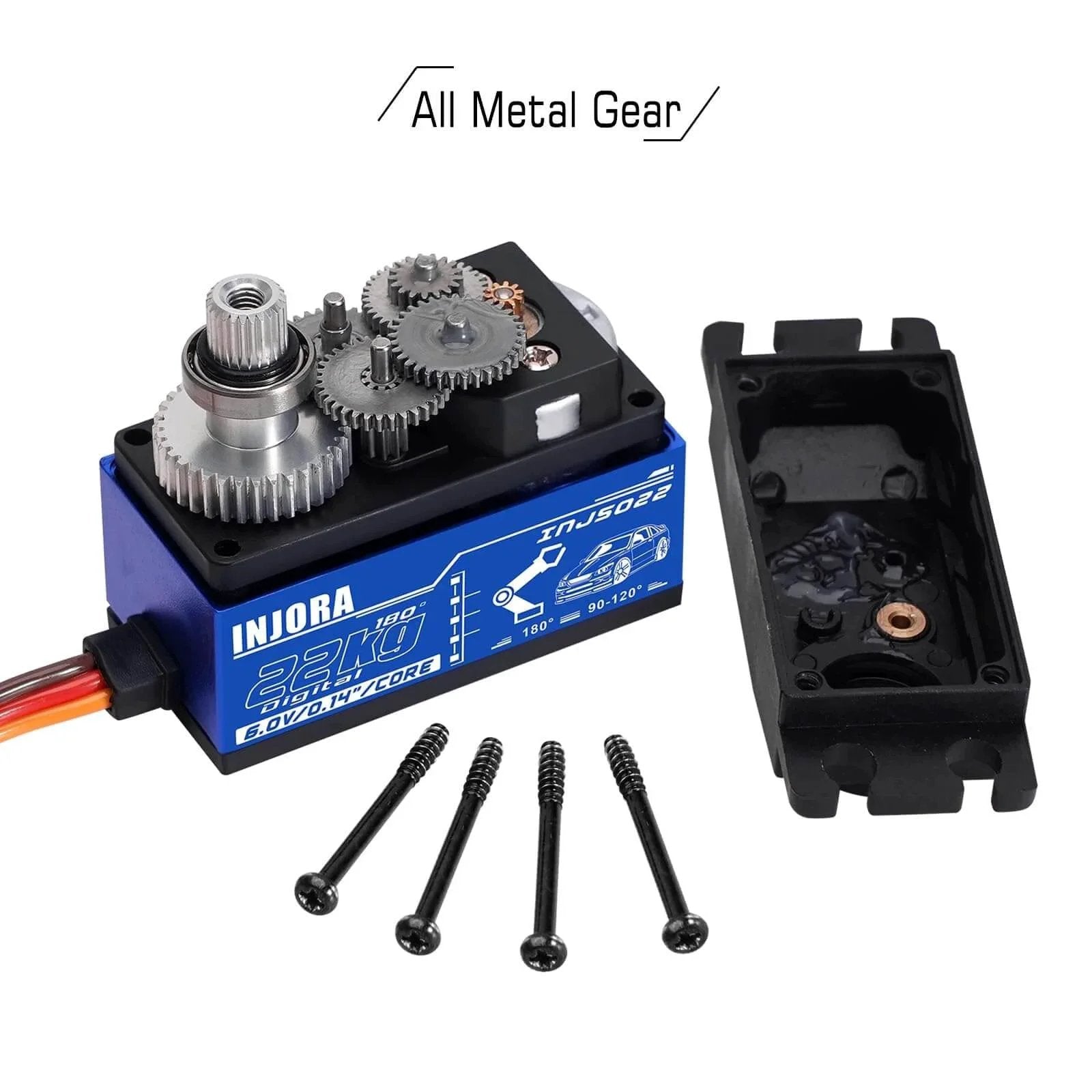

- Provides reliable performance with full metal gears and dual bearings
- Works across 4.8-6.0V for consistent power in tight layouts
