Nachi

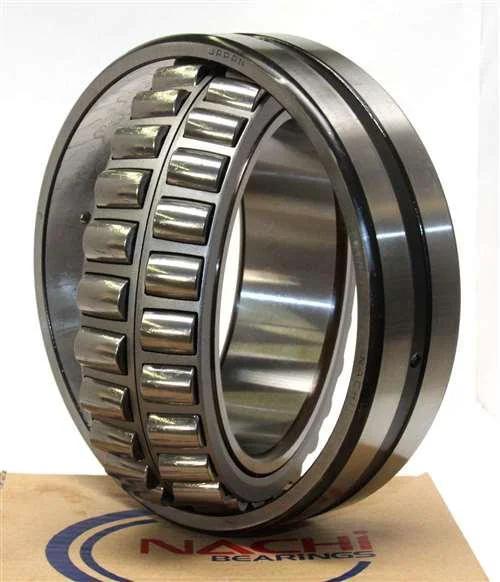

22208EXW33 Nachi Roller Bearing Japan 40x80x23 Spherical Bearing

22208EXW33 Nachi Roller Bearing Japan 40x80x23 Spherical Bearing

$251.26 CAD
$339.20 CAD $251.26 CAD
Sale Sold out
Shipping calculated at checkout.
22208EXW33
Nachi Spherical Roller Bearing
Steel Cage
Made in Japan

22208EXW33 Nachi Spherical Roller Bearing, Steel Cage, Made in Japan, the 22208EXW33 inner diameter is 40mm, the 22208EXW33 outer diameter is 80mm and the 22208EXW33 width is 23mm.

  • 22208EXW33 Roller Bearing
  • Nachi Spherical Roller Bearing
  • Cage: Steel Cage
  • Dimensions: 40mm x 80mm x 23mm/Metric
  • ID (inner diameter)/Bore: 40mm
  • OD (outer diameter): 80mm
  • Width: 23mm
  • Size: 40 x 80 x 23 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 126,000 N
  • Static load rating Cor: 102,000 N
  • Limiting Speed:
    • Grease Lubrication: 6,700 RPM
    • Oil Lubrication: 8,500 RPM
  • Made in Japan

Nachi Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. NACHI Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Nachi Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
