22205C3W33
Spherical Roller Bearing

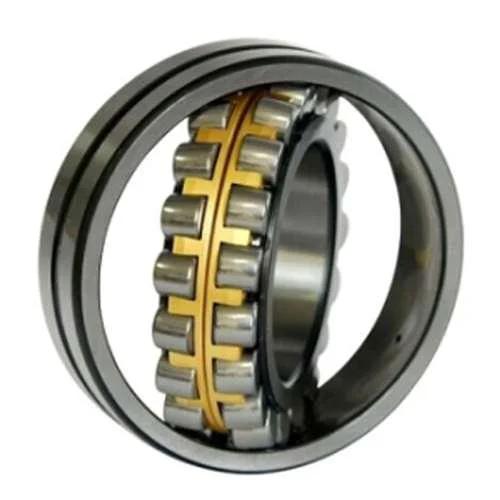

22205C3W33 Spherical Roller Bearing, with Bronze Cage, the 22205C3W33 inner diameter is 25mm, the 22205C3W33 outer diameter is 52mm and the 22205C3W33 width is 18mm with a C3 clearance.

  • 22205C3W33 Roller Bearing
  • Spherical Roller Bearing
  • Cage: Bronze Cage with C3 clearance
  • Dimensions: 25mm x 52mm x 18mm/Metric
  • ID (inner diameter)/Bore: 25mm
  • OD (outer diameter): 52mm
  • Width: 18mm
  • Size: 25 x 52 x 18 mm
  • Quantity: 1 Bearing
  • Dynamic load rating Cr: 63,000 N
  • Static load rating Cor: 48,000 N
  • Limiting Speed:
    • Grease Lubrication: 10,500 RPM
    • Oil Lubrication: 13,000 RPM

Spherical Roller Bearings are particularly suitable for applications where misalignment can arise from error in mounting or from shaft deflection. Spherical Roller Bearings are manufactured in a number of design and material configurations depending on the type of application and size of the bearing. Spherical Bearings have two designs, regular spherical roller bearings and spherical roller thrust bearings.
