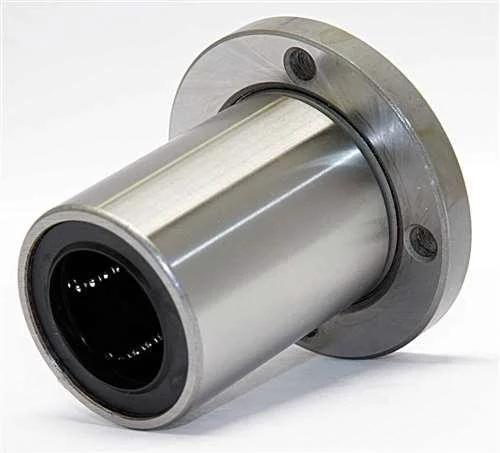

LBF20LUU Round Flanged Linear Motion
Long Ball Bushing 20mm


LBF20LUU Round Flanged Linear Motion Long Ball Bushing, inner diameter is 20mm, outer diameter is 32mm, and length is 80mm.
  • LBF20LUU Ball Bushing
  • Flanged Linear Motion Ball Bushing
  • Inner Diameter: 20mm
  • Outer Diameter: 32mm
  • Length: 80mm
  • Dynamic load rating: 1400 N
  • Static load rating: 2740 N
  • Quantity: 1 Bearing

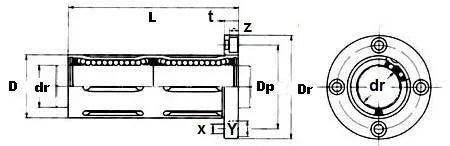

Major dimensions and tolerance (mm)
dr D L Flange
mm tolerance mm tolerance mm tolerance Df K t Dp X Y Z
20 0-12 32 0-19 80 300 54 42 8 43 5.5 9 5.1
