20-Ton Hydraulic Porta Power Kit with CP-180 Pump
✔️ 20 ton lift, 4.1 in height, 2 in stroke, CP-180 gauge; single kit

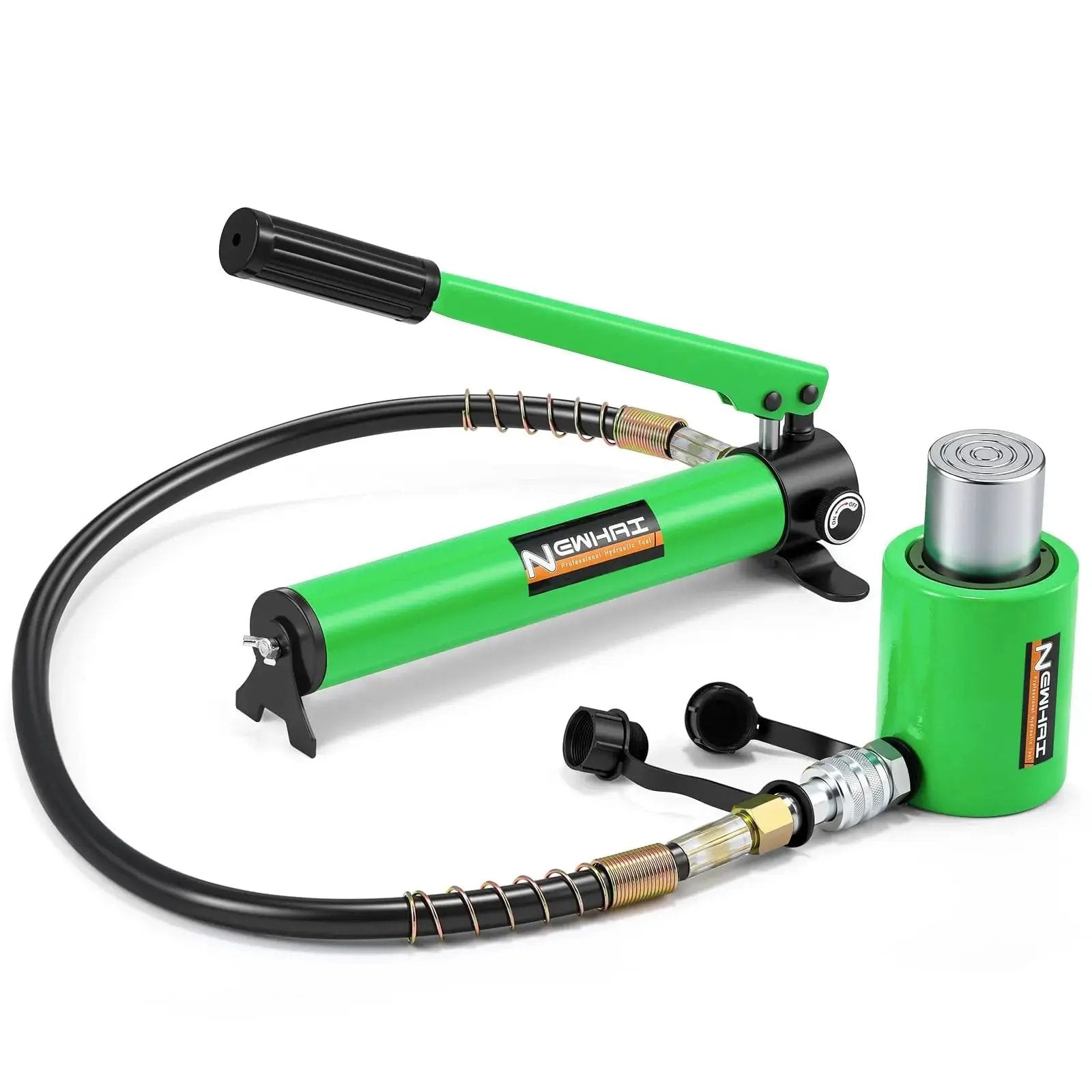

Compact, rugged, and portable, this 20-ton hydraulic porta power kit pairs a CP-180 hand pump with a retractable lift cylinder. It's ideal for lifting, aligning, and testing components in factories, docks, rail yards, and shipyards.
✅ 20 ton hydraulic capacity
✅ 4.1 in self height, compact profile

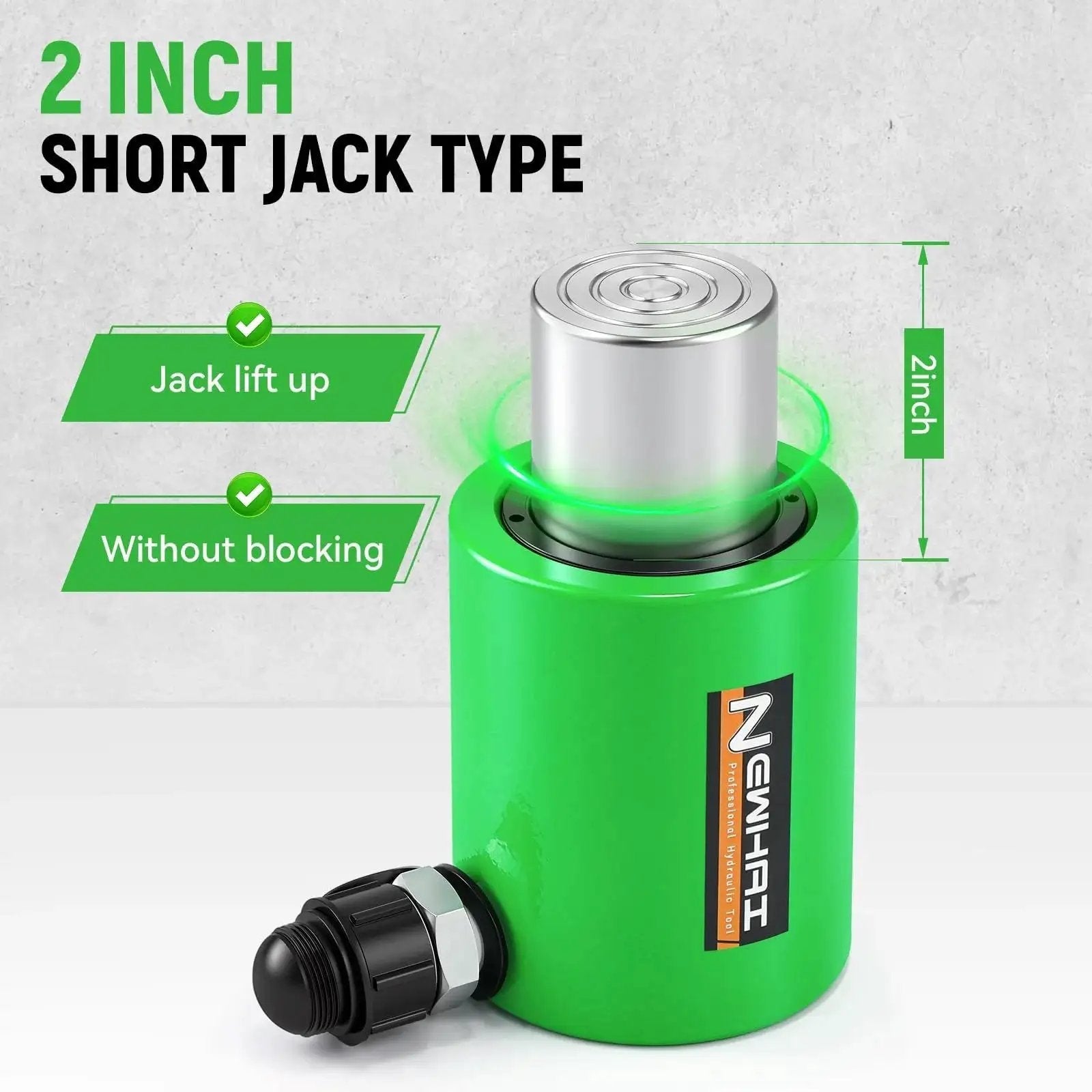

✅ 2 in stroke with smooth ram

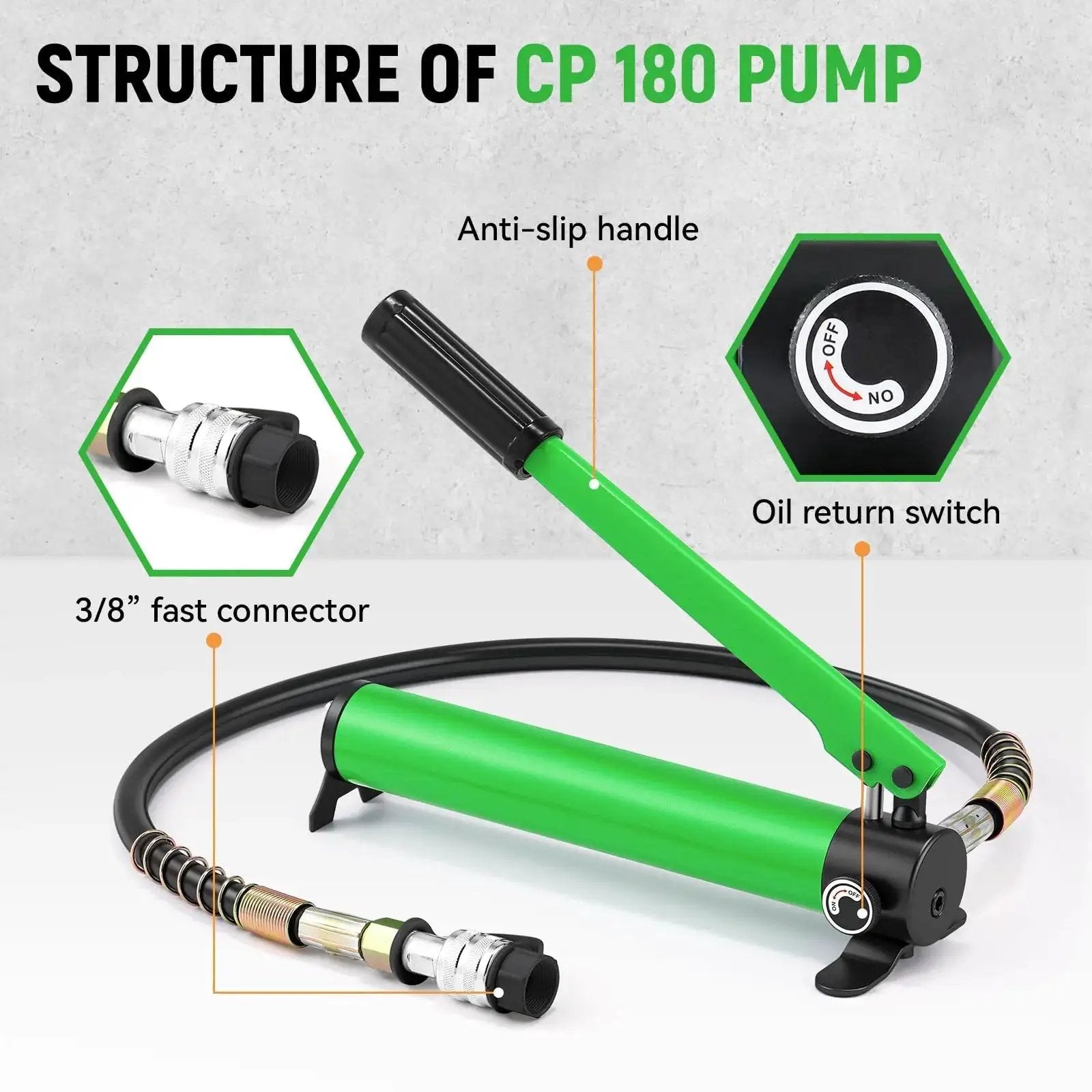

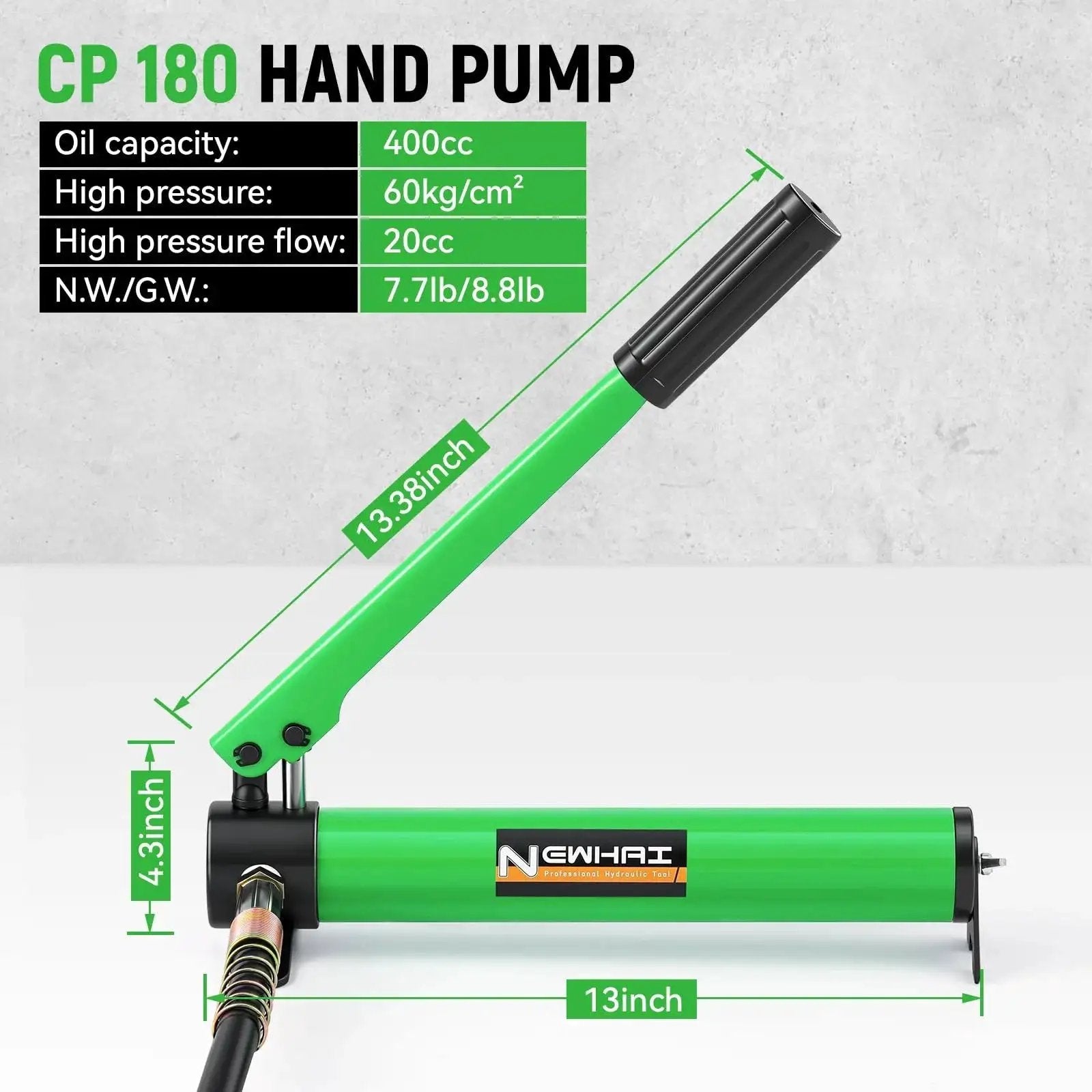

✅ CP-180 pump with oil gauge and 400cc capacity
✅ Rust-resistant lacquer finish and chrome-plated spindle
✅ Horizontal, vertical, or inverted operation supported
✅ Not for automotive use
💡 What is a porta power kit used for in industrial lifting and alignment tasks in heavy equipment maintenance? It’s a handy tool to apply controlled hydraulic force in tight spaces.
- lifting, pressing, alignment in confined spaces with hydraulic power
- precise load control for assembly and testing tasks
- CP-180 gauge helps monitor pressure and prevent overloading
- flexible orientation for horizontal, vertical, or inverted operation

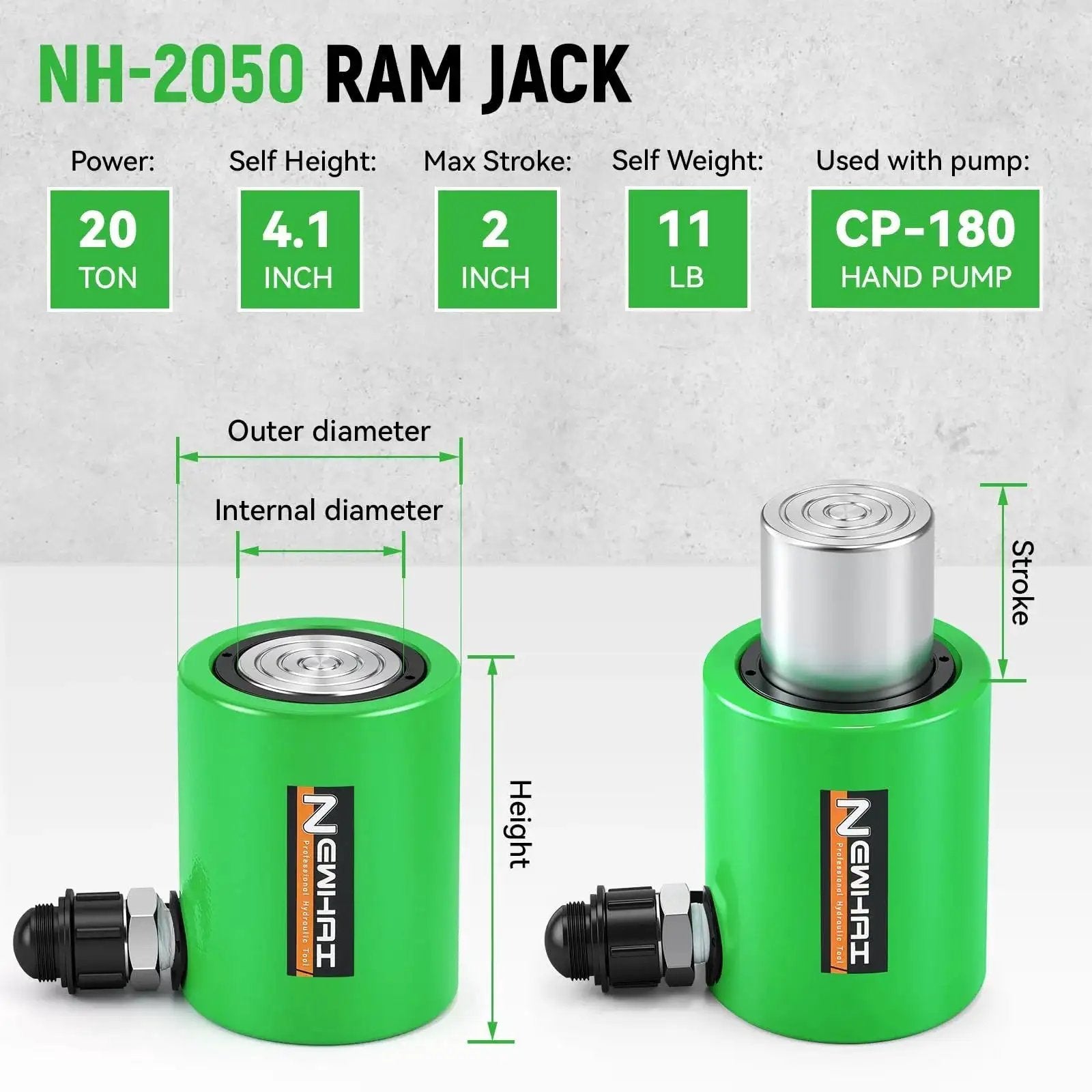

Dimensions (mm & inches):
| Dimension |
Inches |
Millimeters |
| Self height |
4.10 in |
104.14 mm |
| Max stroke |
2.00 in |
50.80 mm |
| Inner diameter |
2.56 in |
65.02 mm |
| Outer diameter |
3.34 in |
84.84 mm |
| Weight |
9.6 lb |
4.36 kg |
