2" Inch Bearing UCF-211-32 + 4-Bolt Flanged Housing Mounted Bearing
2" Inch Bearing UCF-211-32 + 4-Bolt Flanged Housing Mounted Bearing
Couldn't load pickup availability

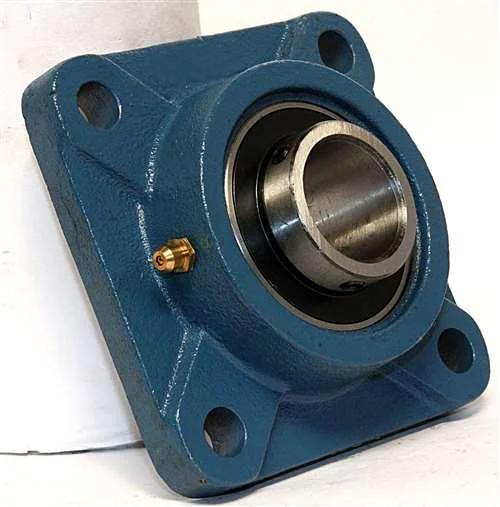

UCF-211-32 Four Bolt Flange Bearing Unit
✔️ 2" Set Screw Locking Bore - Heavy Duty Mount
This UCF-211-32 is a four-bolt flange bearing unit built to handle serious loads with a secure 2" inch inner diameter. Featuring a set screw locking mechanism, it's ideal for shaft mounting in agricultural machinery, conveyors, and industrial equipment.
✅ Pack size: 1 flange bearing unit
✅ Type: Four-bolt flange unit with set screw lock
✅ Bore diameter: 2" inch
✅ Bolt size: 5/8" inch
✅ Bearing number: UC11-32
✅ Housing number: F211
✅ Dynamic load rating: 43,400 N
✅ Static load rating: 29,400 N
Mounting Dimensions (inches):
| a | e | i | g | l | s | z | Bi | n |
|---|---|---|---|---|---|---|---|---|
| 6-3/8" | 5-1/8" | 63/64" | 25/32" | 1-11/16" | 3/4" | 2-5/16" | 2-3/16" | 7/8" |
💡 Why use a four-bolt flange bearing with a set screw lock?
Four-bolt flange units provide strong mounting support and stay secure under vibration and load. The set screw locking method makes installation easy and keeps the shaft firmly in place, even in tough environments.
Need reliable support that won’t back off? This unit is built for it - grab one now and get your machinery running solid and smooth!
