2 1/16" Bearing HCF211-33 4-Bolt Flanged Housing Mounted Bearing - eccentric collar
2 1/16" Bearing HCF211-33 4-Bolt Flanged Housing Mounted Bearing - eccentric collar
Couldn't load pickup availability
HCF211-33 Four-Bolt Flange Bearing Unit
✔️ 2 1/16" ID with Eccentric Collar & Set Screws
This HCF211-33 flange unit features a 2 1/16" inner diameter insert bearing with an eccentric locking collar. It's designed for easy installation and secure shaft locking in conveyor systems, heavy equipment, and agricultural machinery.
✅ Bore size: 2 1/16" inch
✅ Mount: Four-bolt flange housing
✅ Lock type: Eccentric collar with set screws
✅ Bolt size: 5/8" inch
✅ Dynamic load rating (Cr): 32,695 N
✅ Static load rating (Cor): 18,460 N
✅ Bearing number: HC11-33
✅ Housing number: F211
✅ Quantity: 1 assembled unit

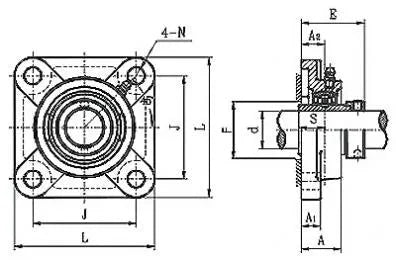

Dimensions (inch):
| Feature | Size |
|---|---|
| d | 2 1/16" |
| L | 6 3/8" |
| J | 5 1/8" |
| A2 | 1" |
| A1 | 23/32" |
| A | 1 11/16" |
| E | 2 23/32" |
| N | 23/32" |
| S | 1 3/32" |
| F min. | 2 13/16" |
💡 What is the purpose of a four-bolt flange bearing unit with an eccentric collar?
It provides a strong, secure hold for rotating shafts in fixed positions.
Common in conveyors, fans, and industrial machinery
✅ Four-bolt flange allows for solid mounting to frames or plates
✅ Eccentric collar ensures tight shaft locking under vibration
✅ Easy to install, service, and replace
Need solid support and easy shaft locking? This unit is ready to bolt on and get to work - grab yours today and keep things turning!
