Heavy-Duty Gas-Hydraulic Fold-Top Table Hinge for Furniture
✔️ Pair, 50 kg load, 125° swing, 242 mm rise, 320×102 mm folded

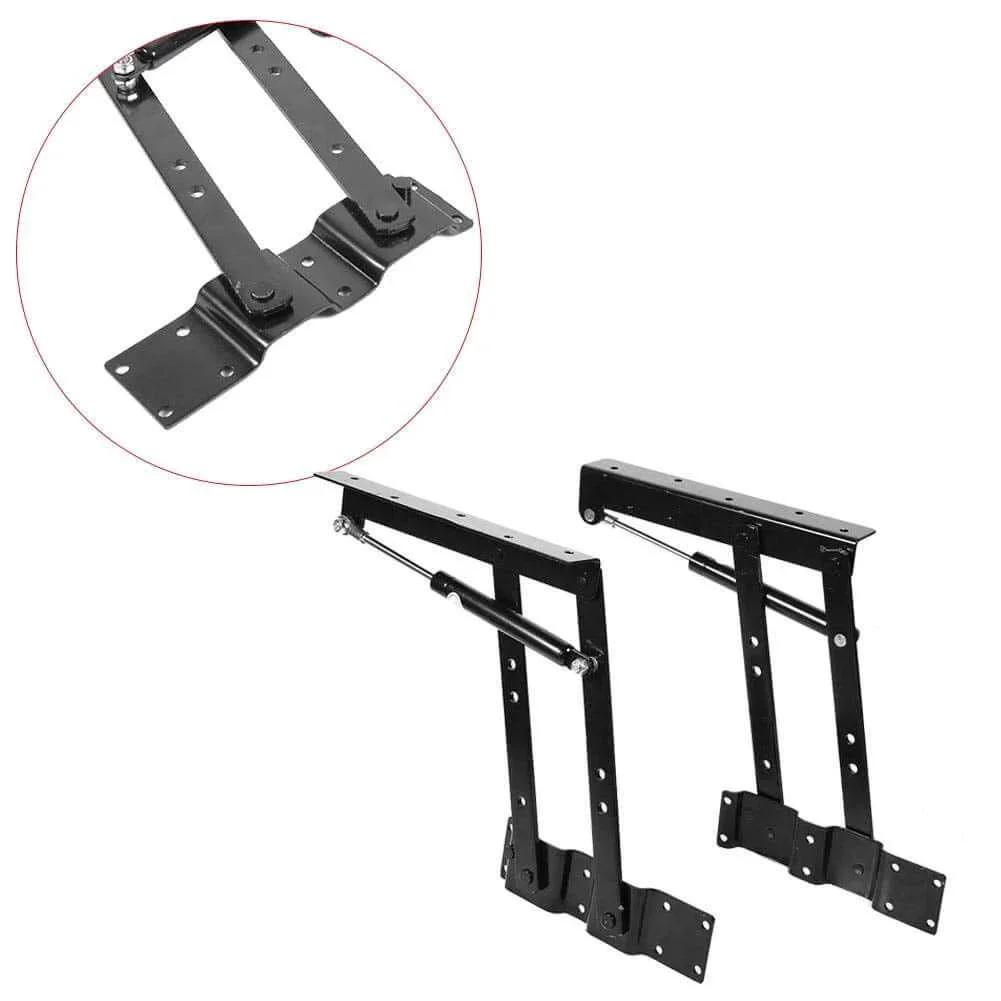

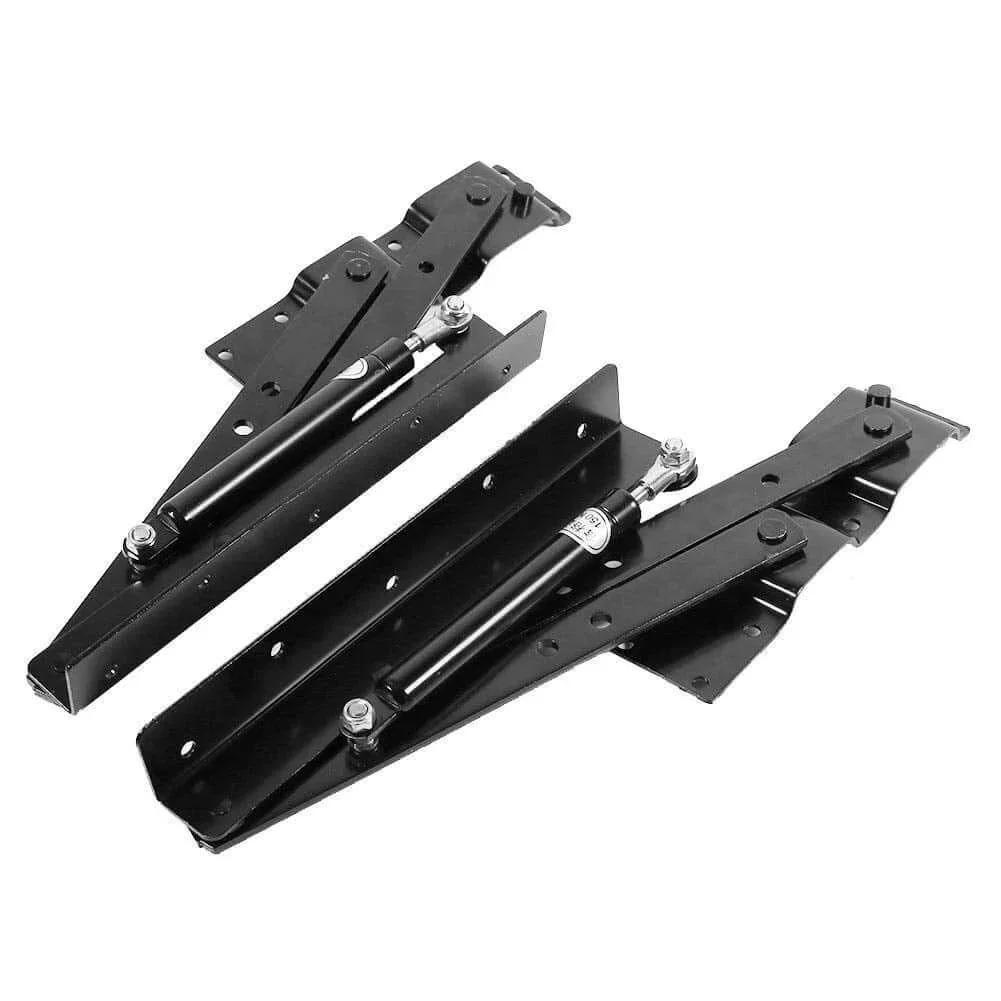

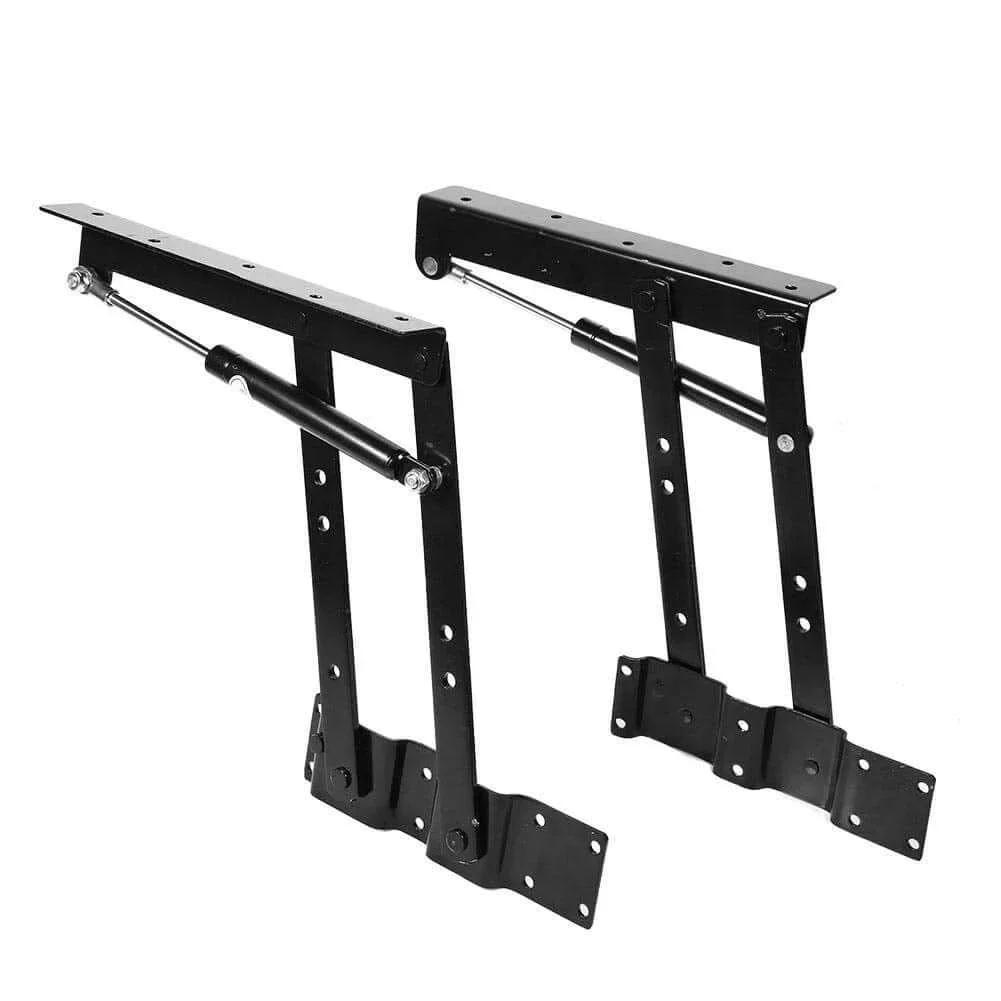

This pair of folding top table mechanism hinges adds a lift-top function to tables, desks, and cabinets, turning ordinary pieces into space-saving, handy surfaces. Built from heavy-duty steel, the hinges support about 50 kg and provide a smooth, controlled rise and drop for safe, everyday use. Perfect for small spaces, apartments, studios, and craft rooms where maximizing usable area matters.
✅ Load Capacity: approx. 50 kg / 100 lb
✅ Material: heavy-duty steel
✅ Angle Range: approx. 125 degrees
✅ Thickness: 2.5 mm and 4.0 mm

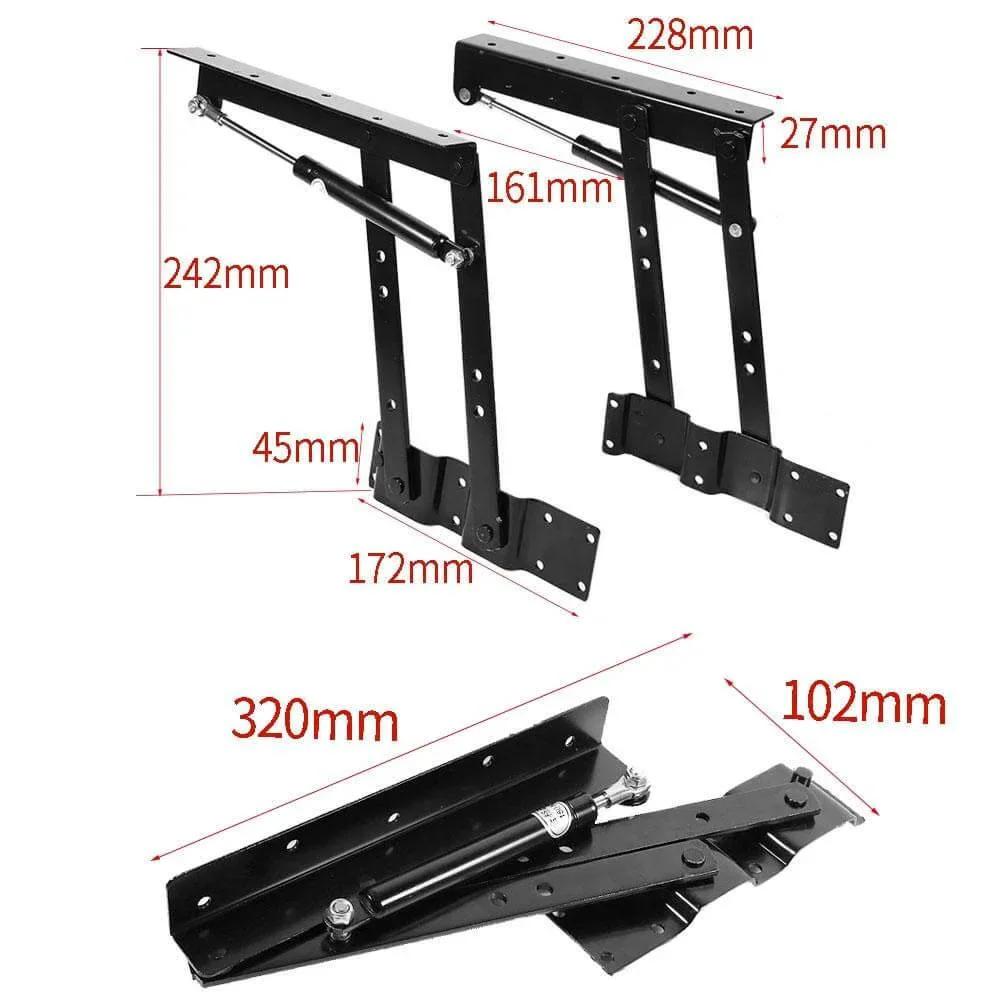

✅ Folded Size: 320 mm × 102 mm (12.6" × 4")
✅ Bottom Size: 172 mm × 45 mm (6.8" × 1.8")
✅ Lift Height: approx. 242 mm (9.5")
✅ Top Forward Length: 228 mm (9.0")
✅ Package Included: 2 x Hydraulic Hinges
💡 What is a handy lift-top hinge used for in furniture?

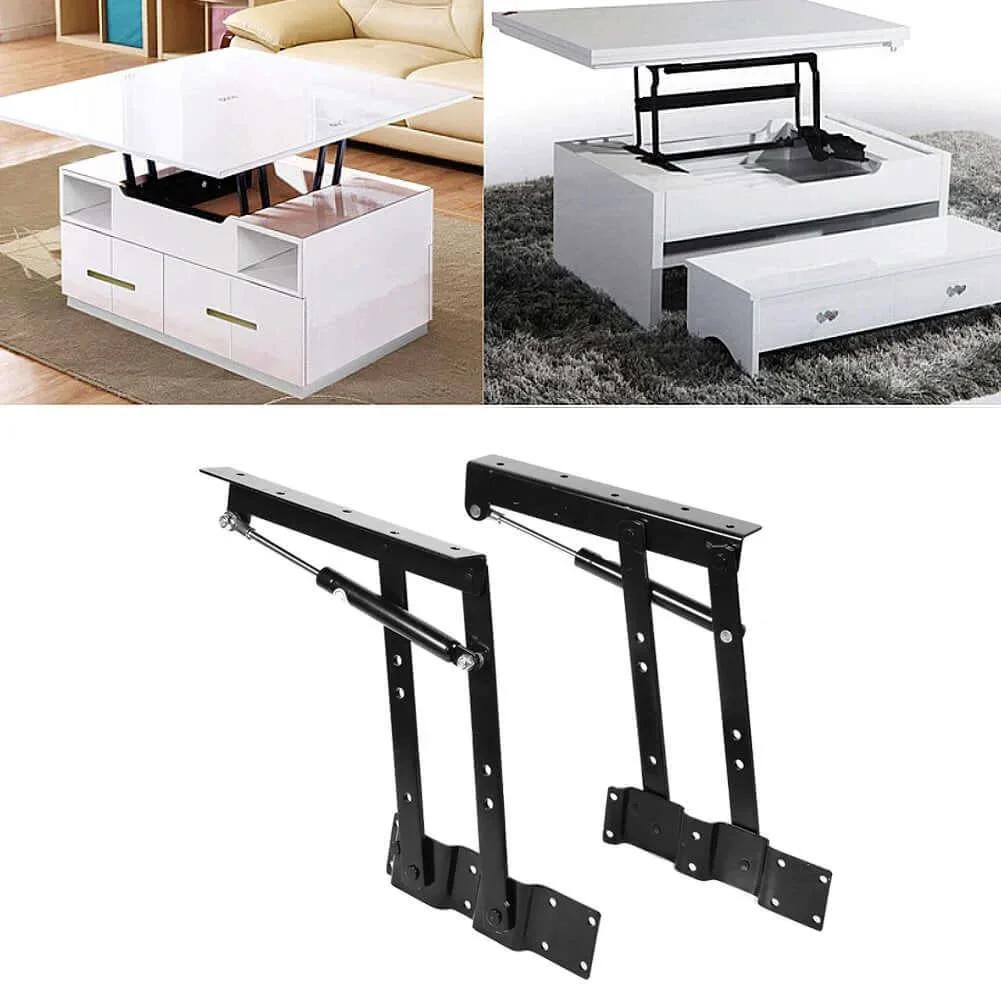

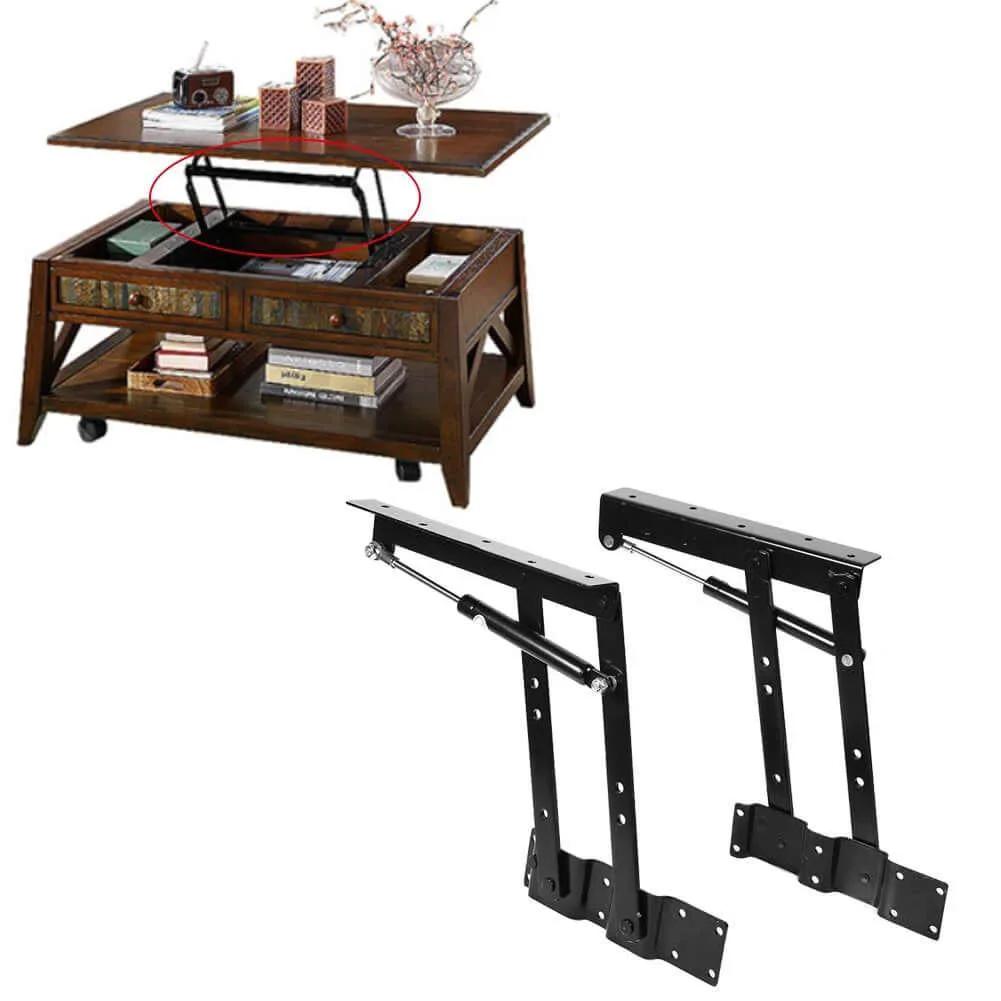

- Turns a regular table into a lift-top workspace with hidden storage
- Handy for compact rooms, apartments, and small workshops
- Supports about 50 kg with a smooth gas-assisted lift for safe use
- Requires mounting screws (not included) for installation
