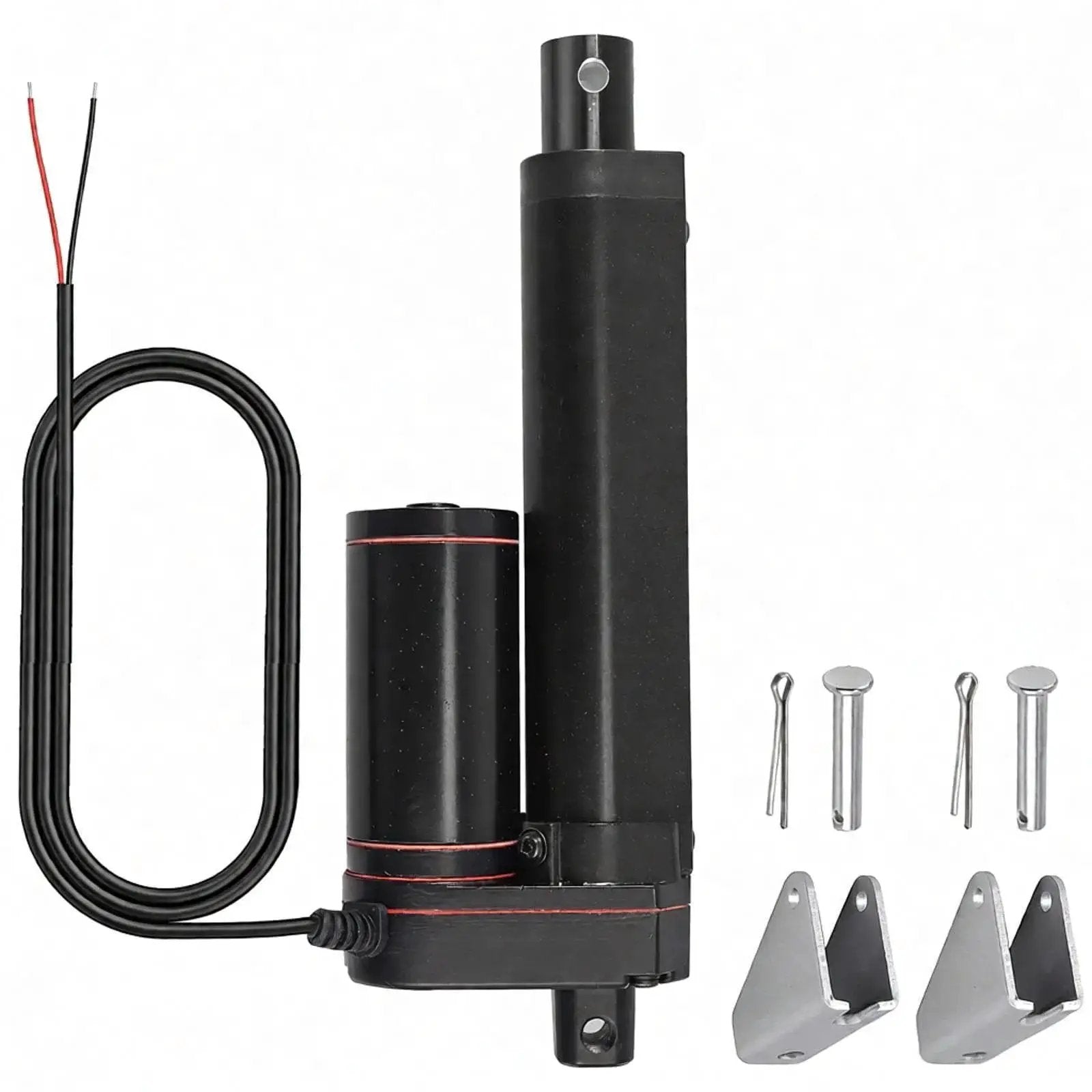

Single 12V heavy-duty linear actuator with 6in stroke IP65

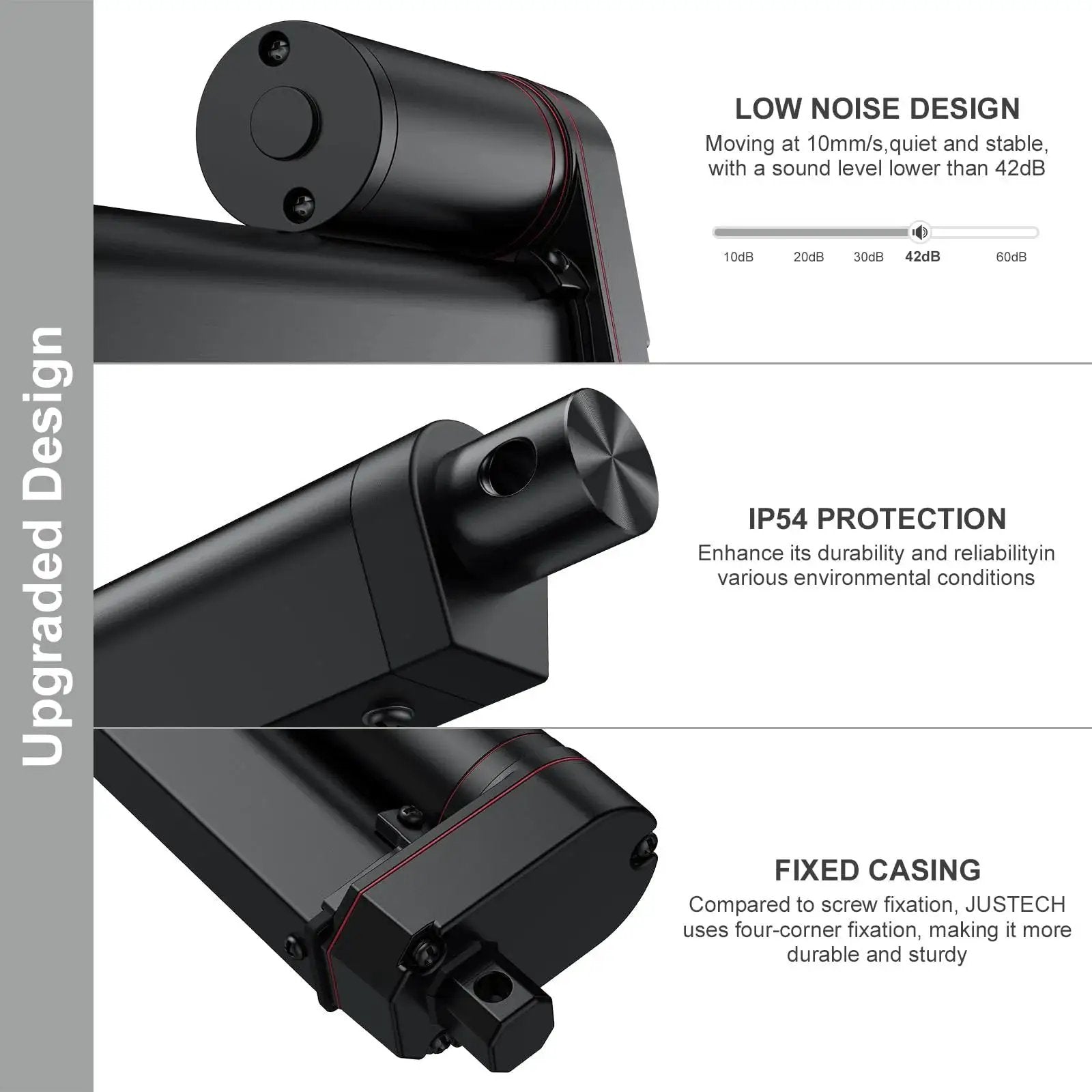

✔️ Push/pull 160LBS load, 150mm stroke, silent operation

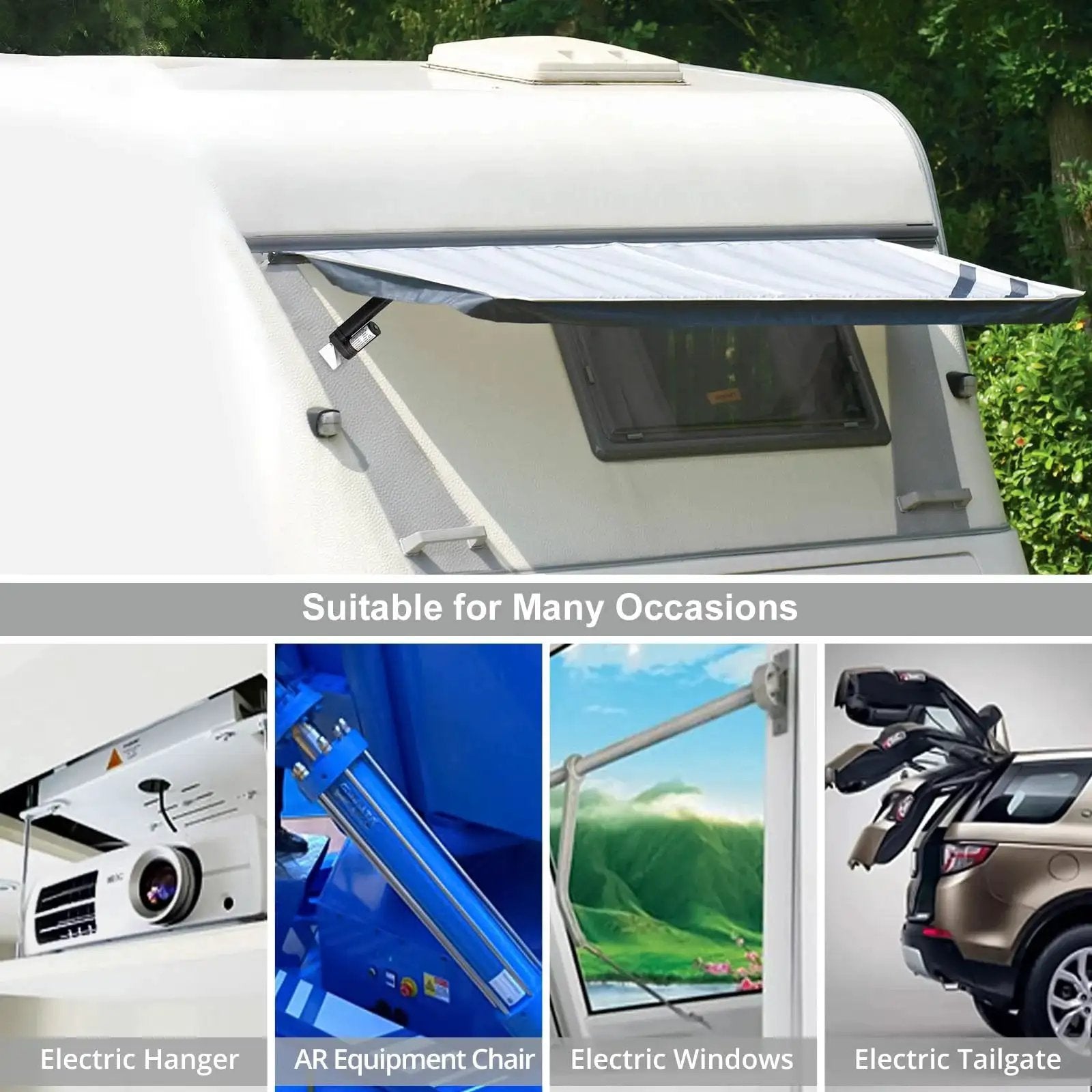

The rugged, 12V linear actuator converts rotational motion into precise linear push or pull. It’s a popular pick for automating electric doors and windows, beds, RV setups, solar trackers, and general industrial machinery, delivering reliable, repeatable motion.
✅ Max load: 160 LBS (750 N)
✅ Max pull load: 132 LBS (600 N)

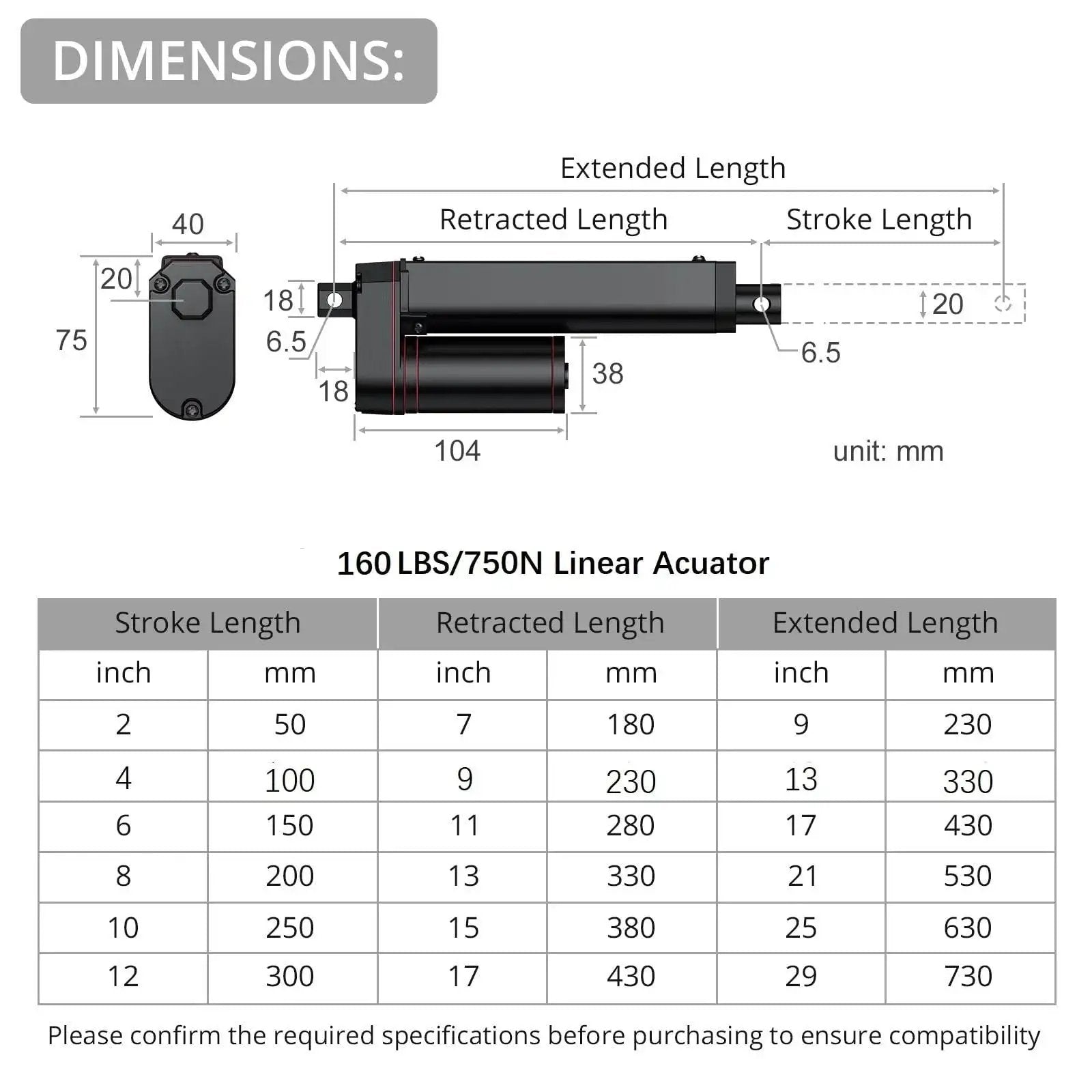

✅ Stroke length: 6 in (150 mm)
✅ Fully retracted length: 11 in (280 mm)
✅ Fully extended length: 17 in (430 mm)
✅ IP65 rating for dust and water resistance
✅ Non-load speed: 10 mm/s; load speed: 7 mm/s
✅ Non-load current: 0.8 A; load current: 2.8 A

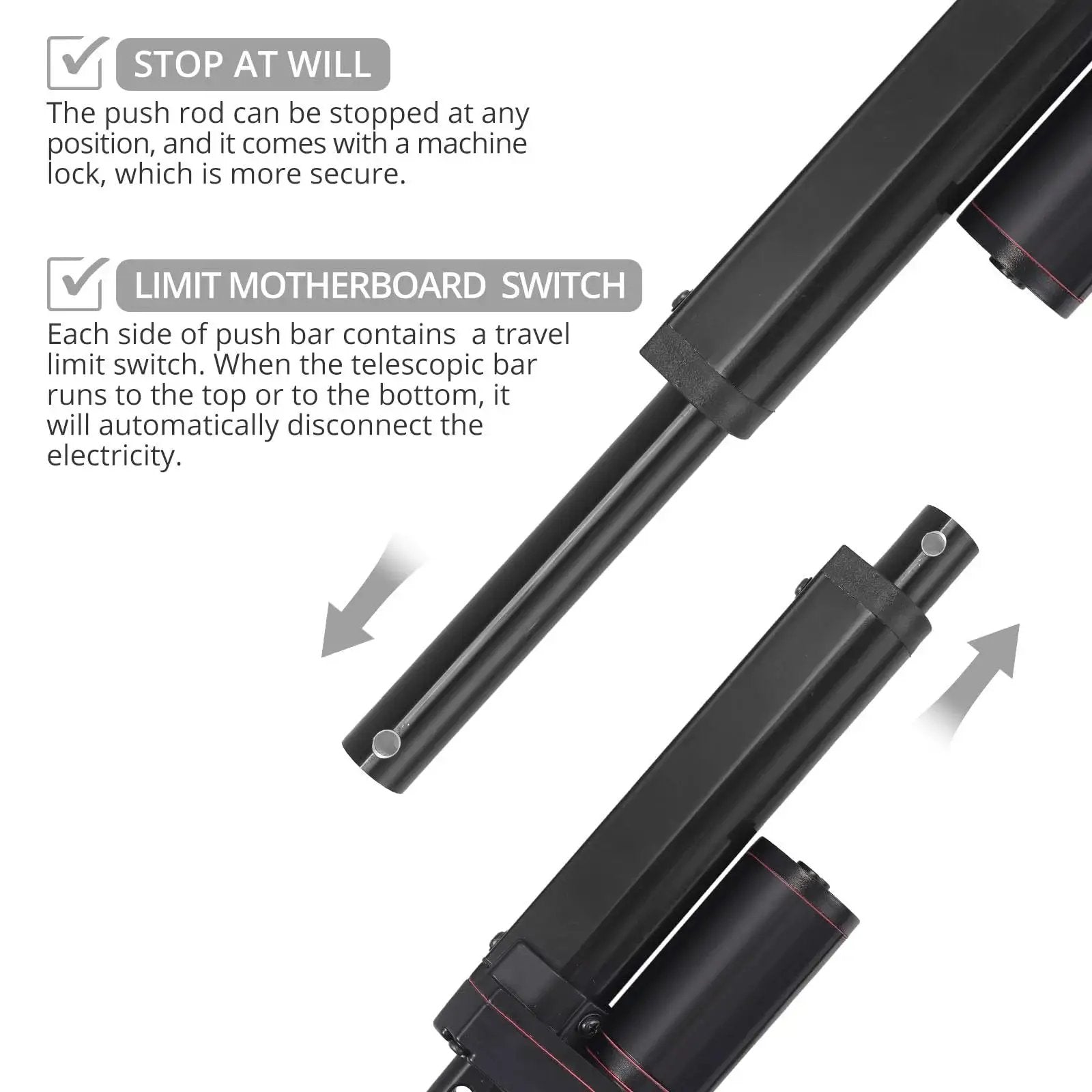

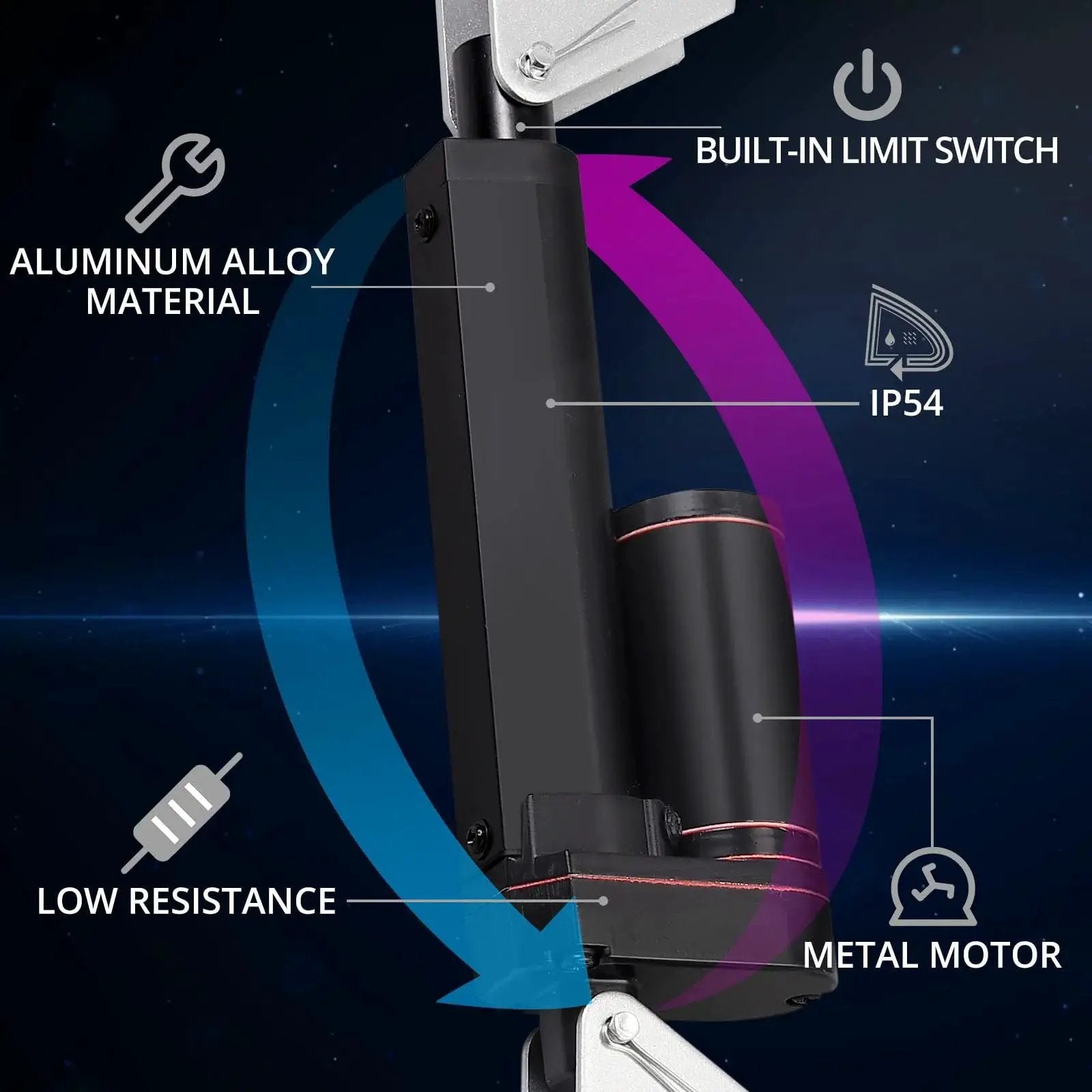

✅ Built-in limit switches and self-locking design
💡 What is a 12V linear actuator best used for in home automation and industrial projects? This handy device turns rotation into linear motion for a broad range of tasks.

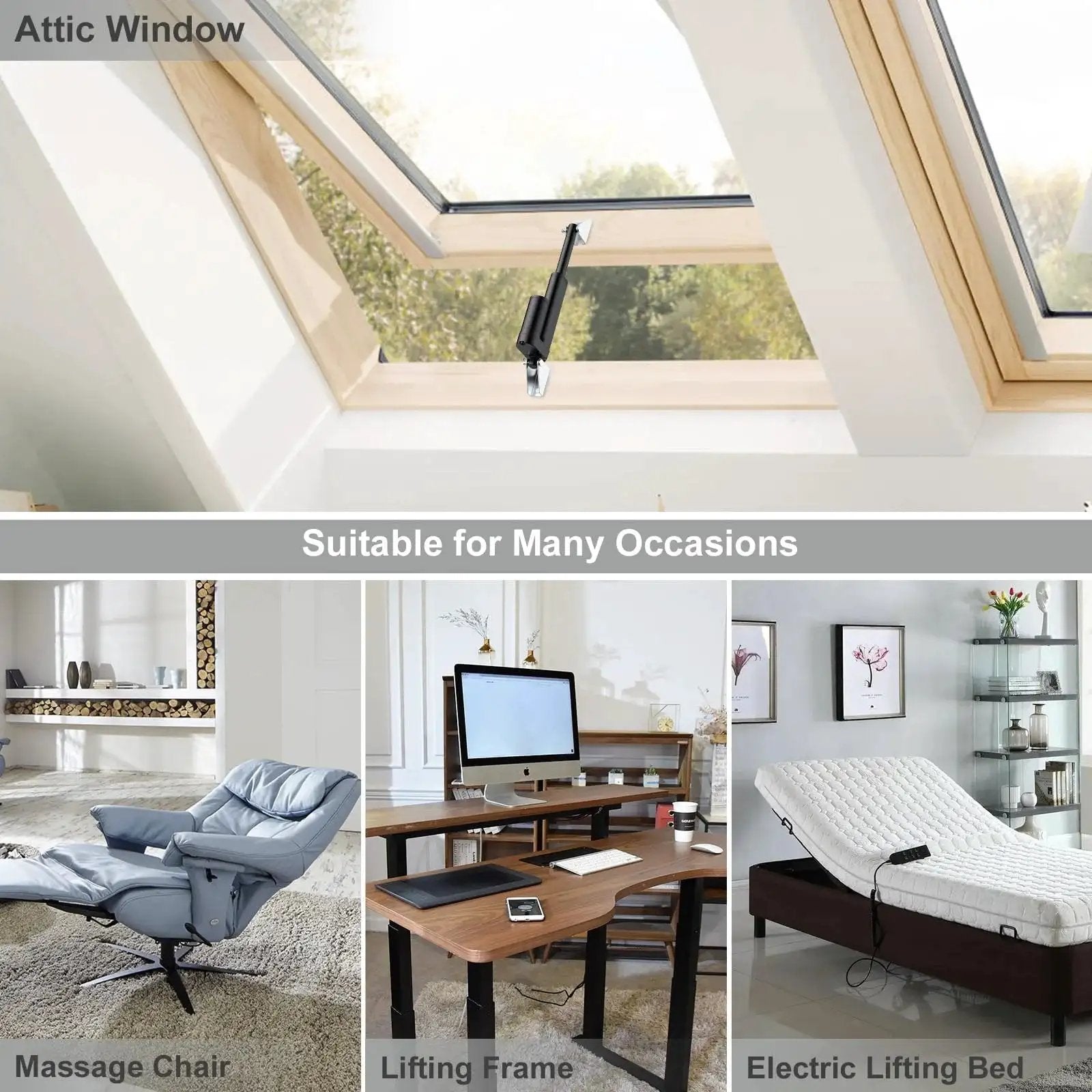

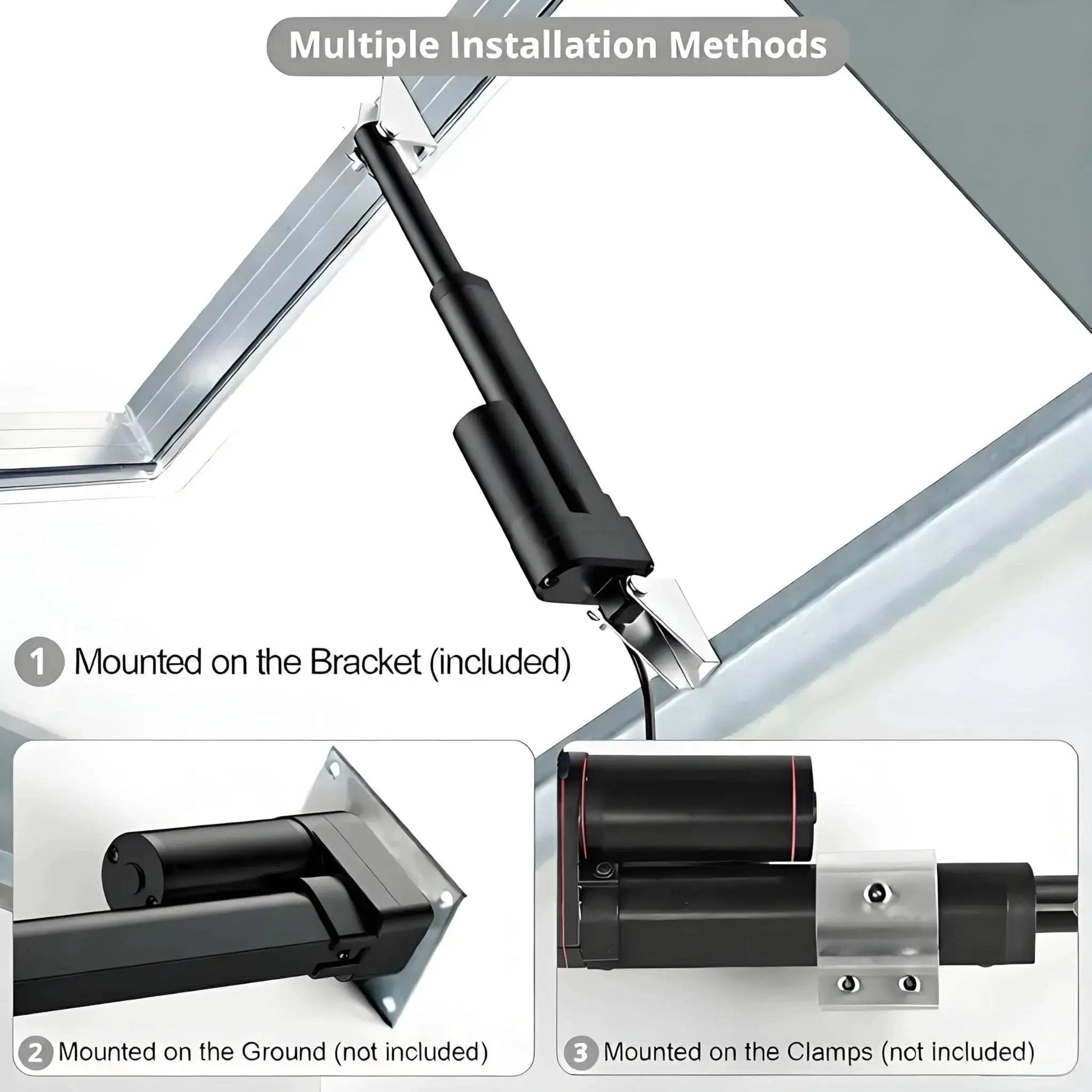

- Handy for automating doors, windows, and hatches
- Great for adjustable mounts, beds, and equipment positioning
- Pair with a controller and limit switches for safe, repeatable cycles
