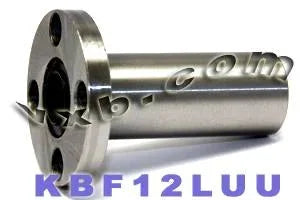

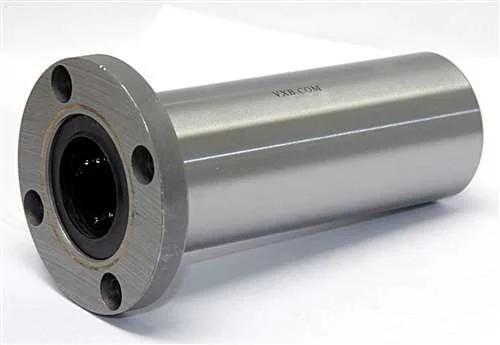

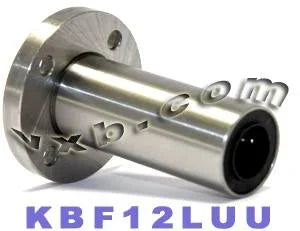

KBF12LUU Round Flanged Linear Motion Long Ball Bushing, inner diameter is 12mm, outer diameter is 32mm, and length is 42mm.
- KBF12LUU Ball Bushing
- Flanged Linear Motion Ball Bushing
- Size: 12mm x 21mm x 57mm
- Inner Diameter: 12mm
- Outer Diameter: 21mm
- Length: 57mm
- Dynamic load rating: 813 N
- Static load rating: 1570 N
- Quantity: 1 Bearing

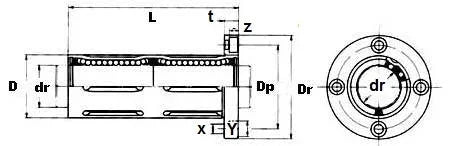

| Major dimensions and tolerance (mm) |
|---|
| dr |
D |
L |
Flange |
| mm |
tolerance |
mm |
tolerance |
mm |
tolerance |
| 12 |
0-10 |
21 |
0-16 |
57 |
300 |
6 |
32 |
4.5 |
7.5 |
4.1 |
|
